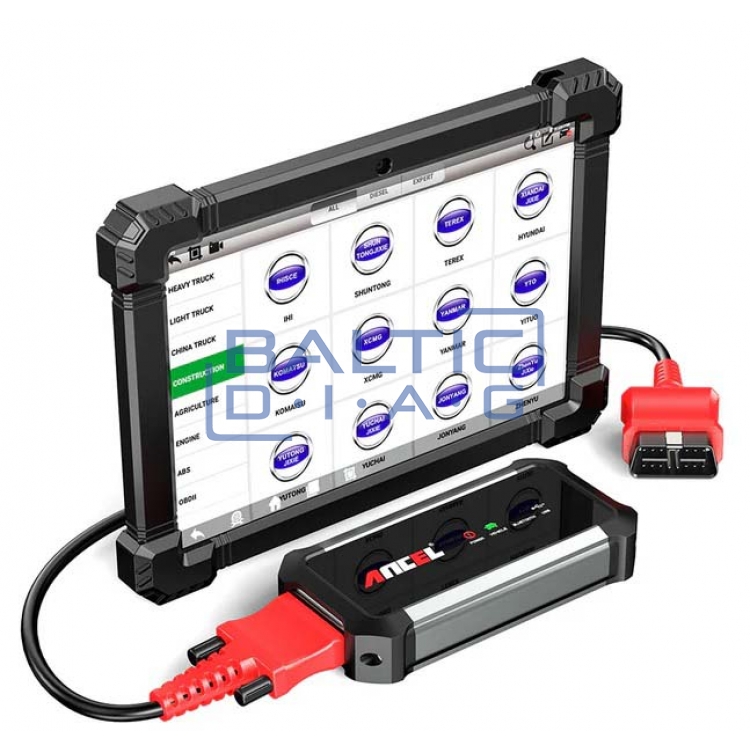

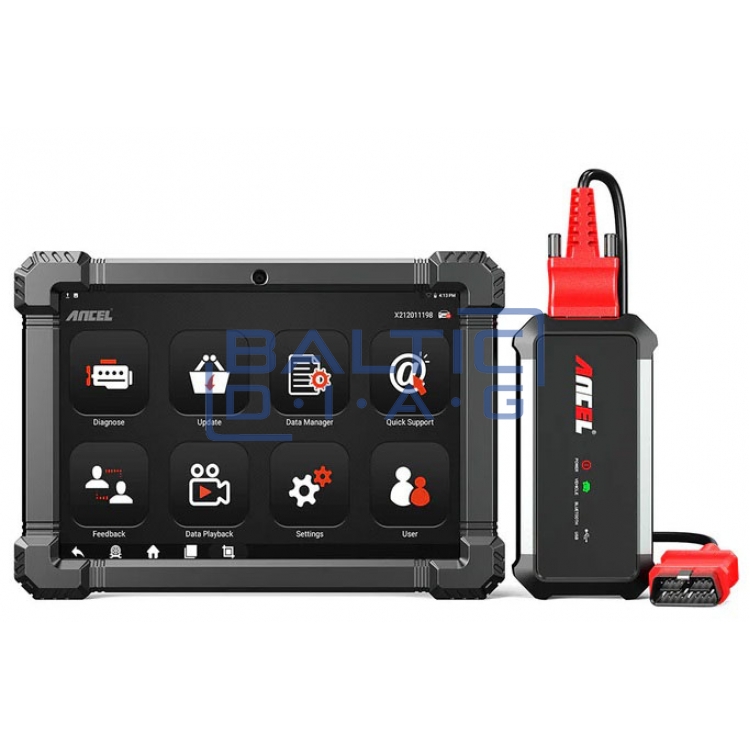

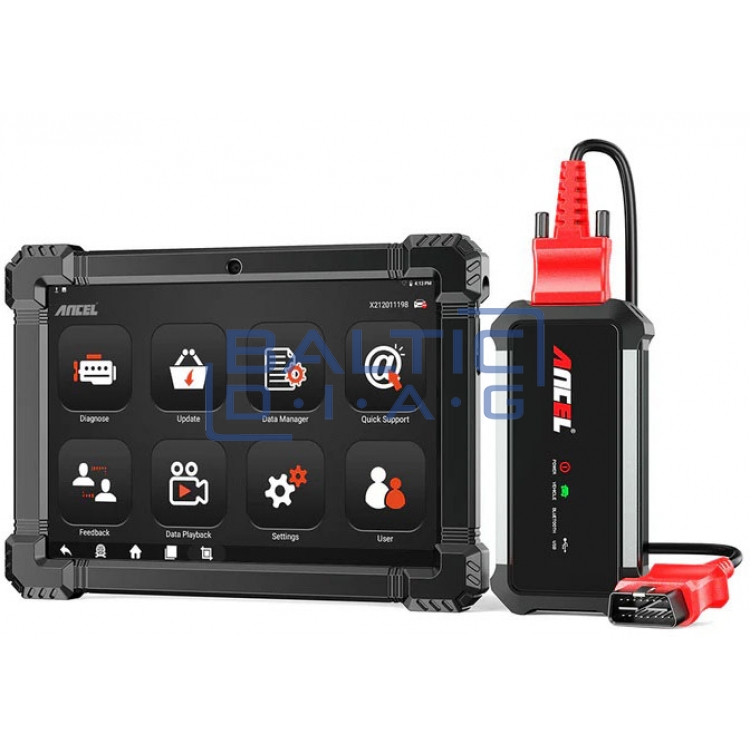

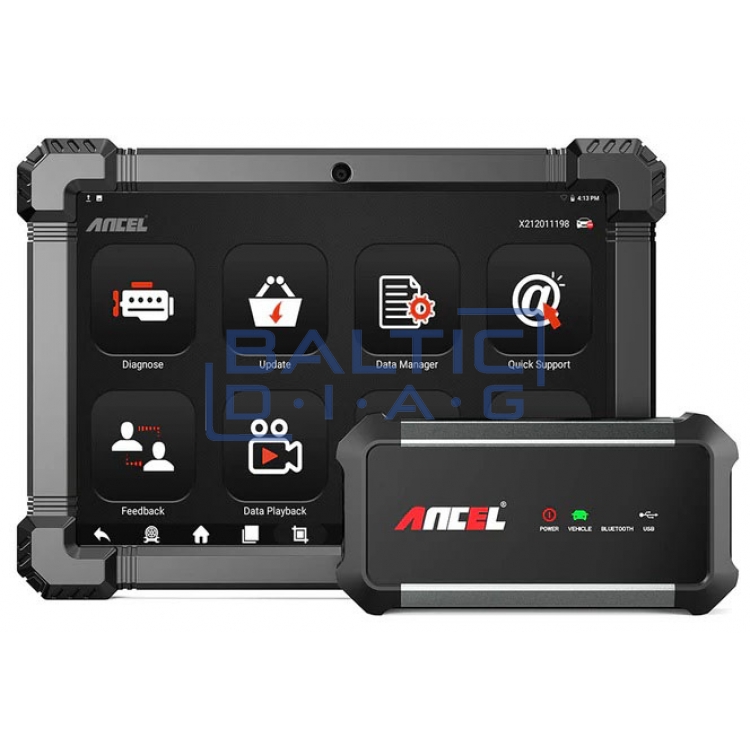

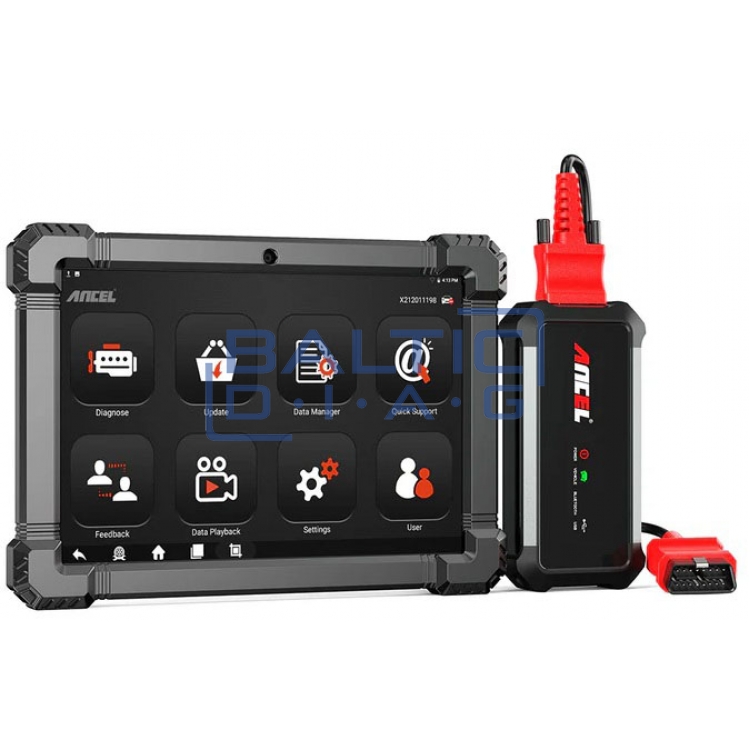

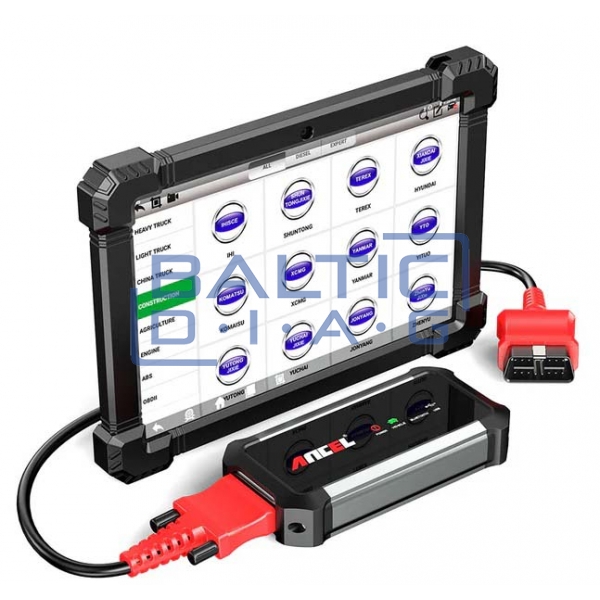

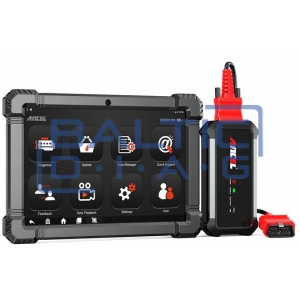

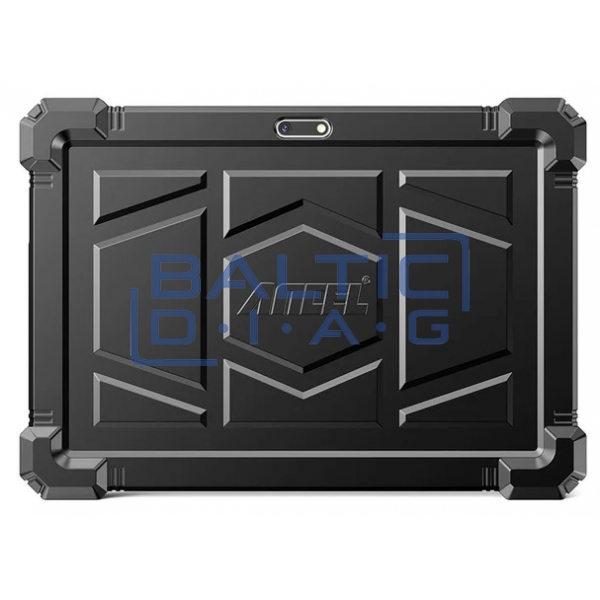

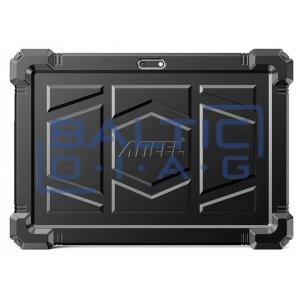

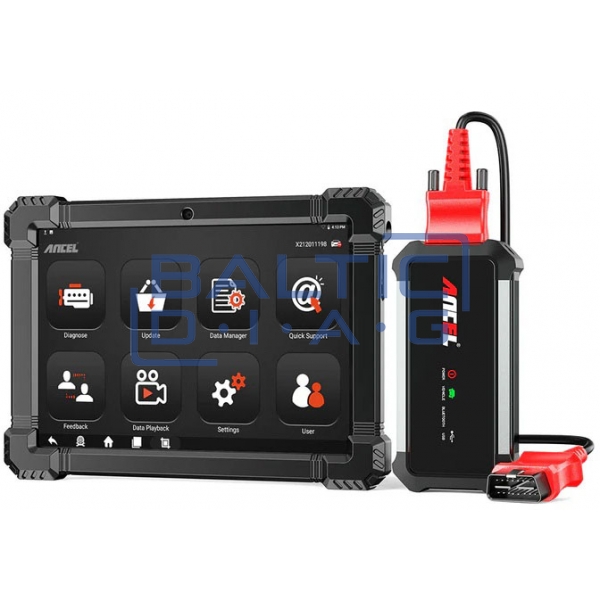

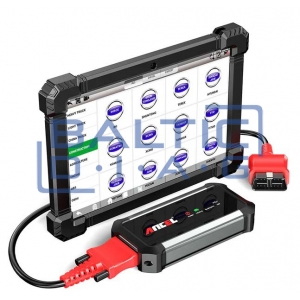

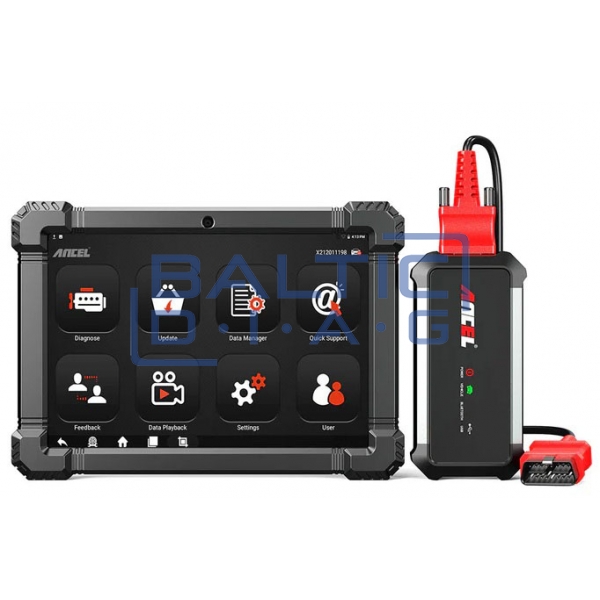

Truck Diagnostic Equipment Ancel X7HD

Truck Diagnostic Equipment Ancel X7HD

Software Advantages:

• Professional diagnostic service system with all brands, systems, and functions.
• Comprehensive vehicle coverage for heavy trucks.
• Complete function capability including DTC, DTC freeze Info, Live data, Actuation test and Special function, and professional data replay, data stream analysis for automobile repacking.
• Support one-key update/logging/Test report/Feedback/function list via wireless.
• Support online & offline DTC query.
• Beautiful UI interface, easy operation, good experience.
• Perfectly compatible with Android 10 and above.

X7HD Function Coverage

• Read ECU Info
• Read Fault Code: Read DTCs, Clear DTCs.
• Clear learning value
• Read Live Data: Data Stream Waveform Display
• Actuations
• Read freeze frame data
• Data Manage: Can manage Vehicle App, Testing pictures, etc. Users can make effective management of files and storage.
• System Auto Detected: Automatically identify the vehicle model and information.

• Basic Reset
• Oil change
• Cylinder shut off test
• Cylinder compression test
• Cylinder balancing test
• EGR Solenoid Test (EGR-exhaust gas recirculation)
• EGR Pulse Ratio Test
• DPF Manual Forced (DPF-diesel particulate filter)
• DPF Normal Regeneration
• ABS bleeding (ABS-antilock brake system) All System Diagnostic
• Systems Coverage
• Engine system
• Body control system
• SRS system Airbag
• ABS-anti-lock brake system
• Instrument System
• Transmission system
• Brake control system
• Unit pump system
• Common Rail System
• Electronical control system
• Natural gas system
• Tail gas after-treatment system
• Air-conditioning system
• ATA-Anti-theft alarm system
• AHA-Auxiliary heating system air-to-air
• AUS-Audio system
• BMS-Brake Management System
• Bosch DENOX AdBlue System
• Break control system
• BWS-Preparation system
• CCS-Climate control system
• Comfort/assistance/safety systems
• Compressed Air Reserve system
• CSS-Collision safety system
• CTS-Clock and Time System
• EBS-Electronically Controlled Brake System
• EHLA-Electrohydraulic steering system
• EMS-Engine Management System
• Fuel system
• Exhaust Pressure Adjustment systems
• ECM-Engine Control Module
• Speed control systems
• Turbo Control systems

Professional Functions:

OBD2 Automatic Programming

• Level calibration,
• Idle speed learning,
• Idle speed Adjustment,
• Camshaft timing control learning, etc.

Automatic Diagnosis Tool for Coding

• Control unit adaptations
• Injector codes
• Read/Write VIN
• Road speed limit optional vehicle speed set.

Other Advantages of X7HD

• Covered truck brands (34 types) and models
• Supports J1939, J1708 and J1587 protocols.Routine diagnosis for almost all cars, mini vans and light duty vehicle from 1996 to newest utilizing ISO9141, ISO14230, ISO15765, ISO11898, SAE-J1850 VPW, SAE-1850 PWM, UDS, K/L lines, High speed CAN, Middle speed CAN, Low speed CAN and Single wire CAN
• Supply USB and WIFI connection for the VCI.
• Very easy to use with touch screen control and intuitive control in the windows.
• The hardware runs stably with built-in over voltage protection to avoid hardware damage due to voltage instability and good operation in low and high temperature environments.
• Compared to the repair shop, compared with similar products, cost-effective

2 Years Free Update

• Support update online, you will always have the latest bug fixes, the newly vehicles support list, newly added parameters and functionality at your fingertips.
• If you choose not to pay the upgrade fee after the software expires, the device will still function normally. However, you will not be able to upgrade the software to access the latest updates for vehicle models and features released by the manufacturer.

Wide Vehicle Coverage

HEAVY TRUCK:

LIGHT TRUCK:

CHINA TRUCK:

CONSTRUCTION:

AGRICULTURE:

ENGINE:

ABS:

OBDII:

What's in the box?

• ANCEL X7HD Scanner x 1
• DIESEL-9 x 1
• CAT-9 x 1
• OBD-R16 x 1
• BENZ-14 x 1
• Bluetooth VCI Connector x 1
• Battery Tester Clamps x 1
• ECU OBD Jumper Cables x 1
• ECU Jumper Leads x 1
• USB Cable x 1
• US Power Plug x 1
• Protective Carrying Case x 1
• ISUZU-3 x 1
• ISUZU-20 x 1
• CUMMINS-6 x 1
• VOLVO-8 x 1
• DENSO-12 x 1
• MAN-37 x 1
• Cigarette Lighter Cable x 1
• Printer Lead USB A - USB B x 1
• OBD Extension Cable x 1
• EU Plug x 1
• UK Power Plug x 1
• User Manual x 1

Technical specifications:

• Operating System: Android 8.1
• Display：10.1”TP
• RAM: 2GB
• ROM: 32GB
• Battery: 6000mAh
• Operating Temperature: 10°C ~ 70°C

• J1939, J1708, J1587, ISO9141, ISO15765, ISO11898, SAE-J1850,
• VPW, SAE-1850 PWM, UDS, K/L lines, High Speed CAN,
• Middle Speed CAN, Low Speed CAN, and Single wire CAN

• English, French, Spanish, German, Russian,
• Korean, Japanese, Portuguese, Italian, Polish, Dutch,
• Czech, Swedish, Chinese

• 2 years free

• Size: 45 x 35 x 45 cm
• Gross weight: 18 kg
