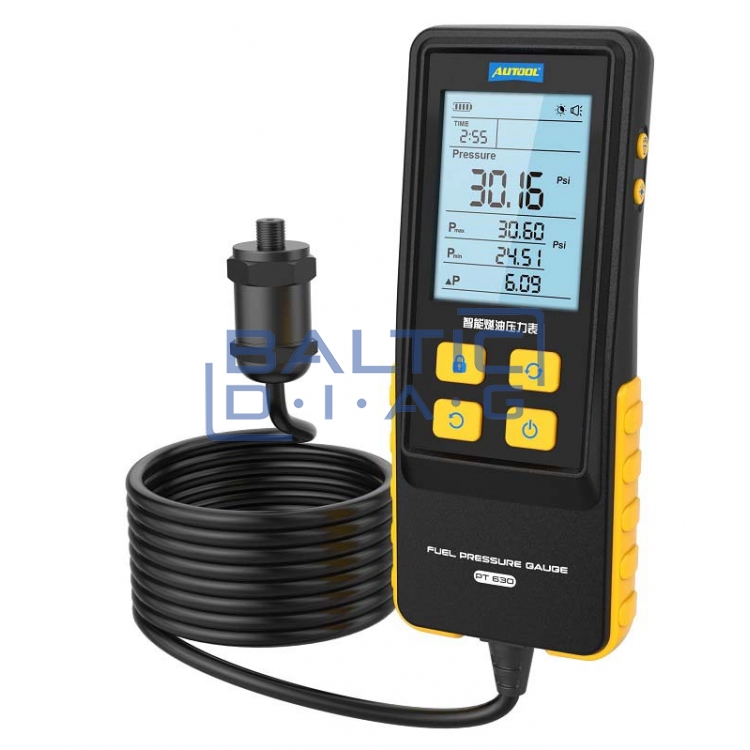

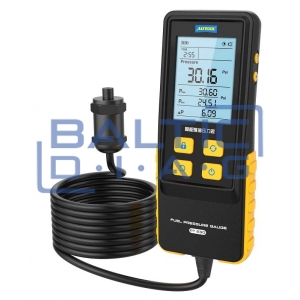

Fuel pressure measuring device Autool PT630

Fuel pressure measuring device Autool PT630

This fuel pressure measuring device is made of the most corrosion-resistant and high-quality materials, suitable for gasoline internal combustion cleaners. Compared to traditional fuel pressure gauges, the Autool PT630 has a detailed digital display that provides a much more accurate representation of the measured parameters to the user. It also has the ability to display parameters in three values and save captured readings. Using the Autool PT630 device, you will easily be able to measure the pressure of the fuel system of gasoline engines, identify possible problems of this system and make the necessary decisions for vehicle repairs.

Use of Autool PT630:

1. Disconnect any fuel supply hose or tube.
2. Connect the adapter suitable for the vehicle being tested to the measuring device.
3. Set the measuring device to zero value before starting measurements.
4. Connect the measuring device with a suitable adapter to the vehicle engine.
5. Start the car or try to start it.
6. The Autool PT630 fuel pressure gauge will show you the recorded values.

Features:

• Digital measurement system: Very wide measurement range, high accuracy, and the data is transmitted with two decimal places.
• Durable brass material used: The device adapters are made of durable and corrosion-resistant materials. And the long measuring hose is made of reinforced rubber that resists pressure, temperature and twisting.

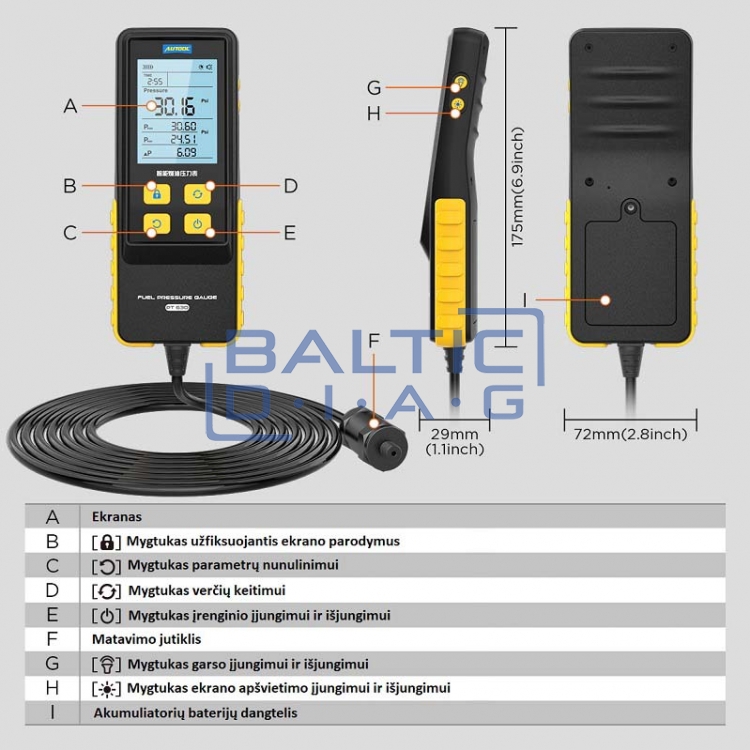

• 2.8” HD Digital Display: It has a built-in screen lighting function, which is especially useful in dark rooms. The result of each test is divided into different lines on the screen, which makes their assessment much simpler and clearer.
• Data saving: The device has a data saving function and a screen capture function. Ability to save up to 6 different measurement results.
• Smart Digital Pressure Gauge: Delivers accurate and clear measurement results. Ability to measure - real fuel pressure, average fuel system pressure, fuel and measurement time interval.
• Simple and fast data measurement: Possibility to measure in three different values, bar, psi and kg/cm3. These values are changed at the touch of a button. Measuring ranges: 0 – 29.4 bar; 0 - 426.6 psi; 0 - 30 kg/cm3.
• Long device warranty
• Wide application: The device is suitable for motorcycles, cars and other vehicles.

Technical parameters:

• Operation method: digital measurement
• Operating voltage: 6V
• Pressure ranges: 0 - 30 bar
• Accuracy of parameters: ± 0.01

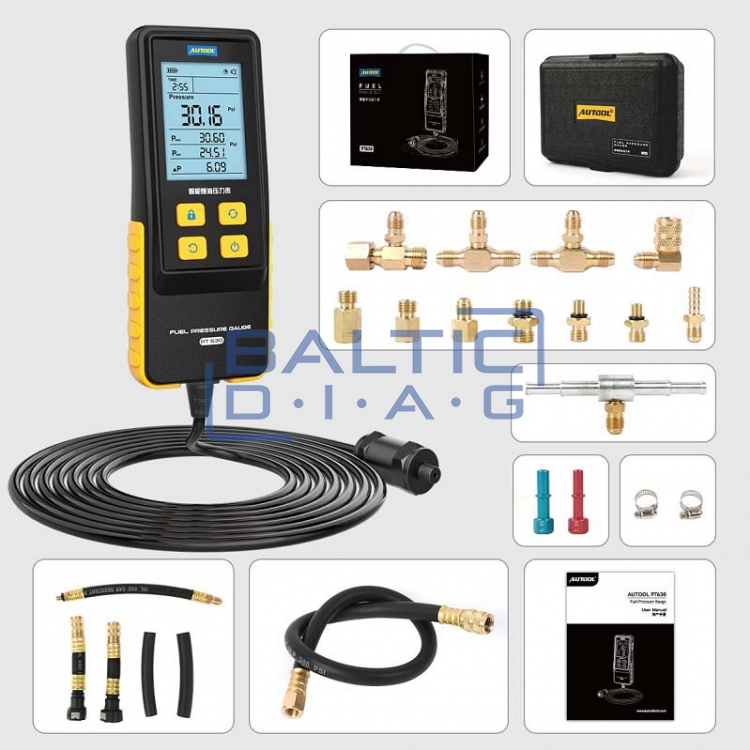

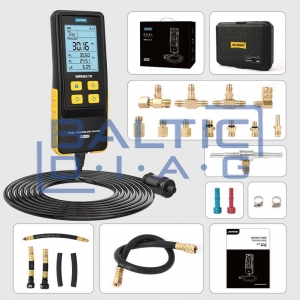

Complete set:

• Autool PT630 fuel pressure gauge
• 21 pcs. different adapters and connectors
• Measuring hose
• Equipment case
• User manual
