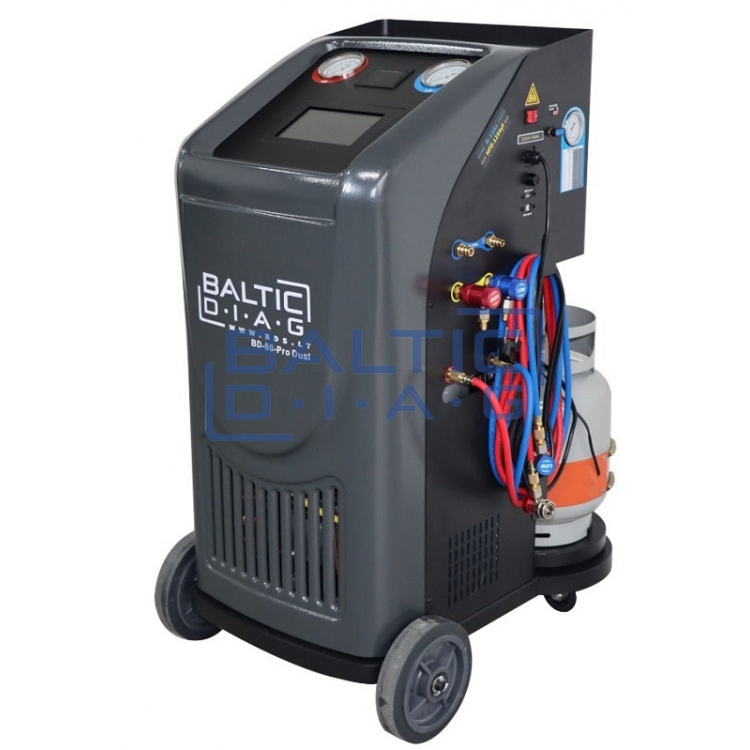

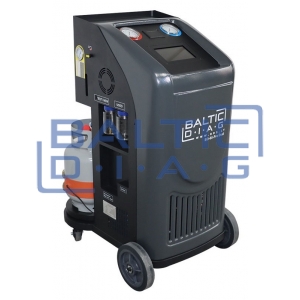

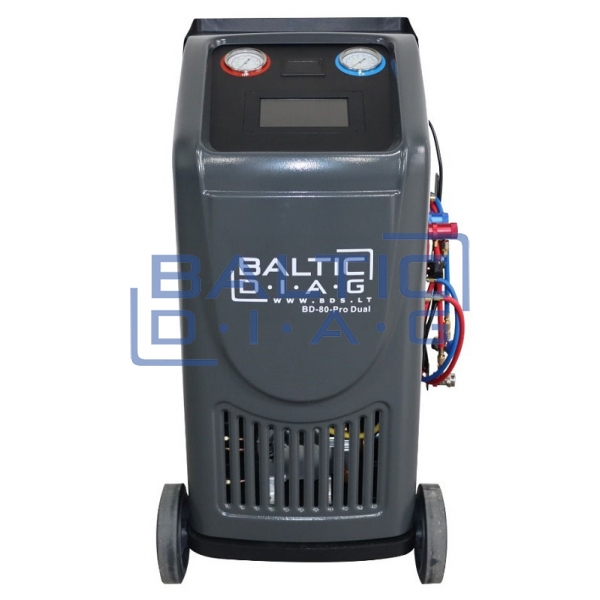

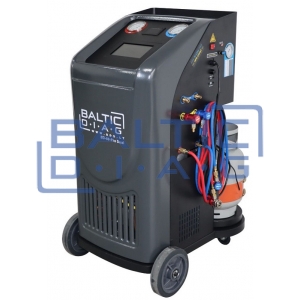

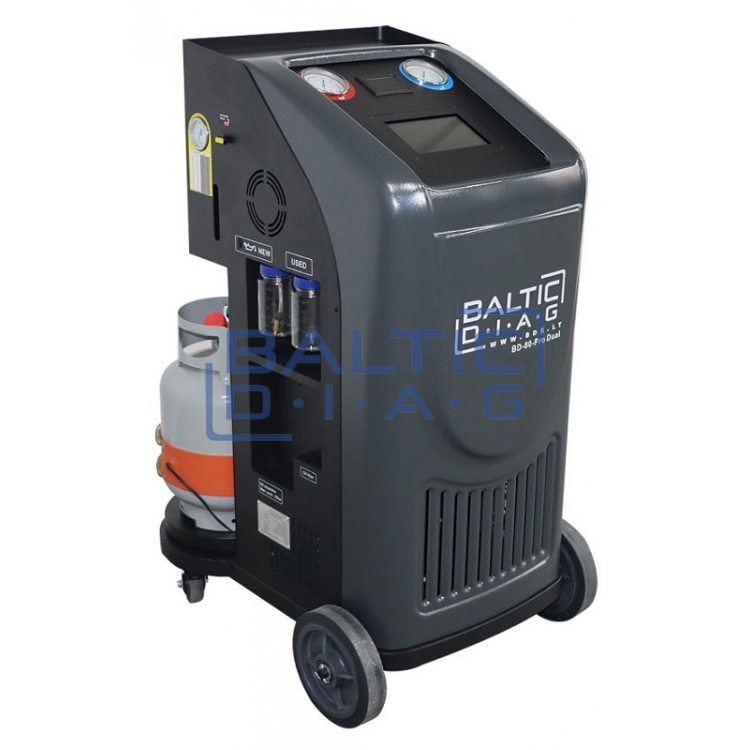

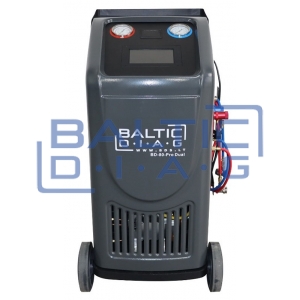

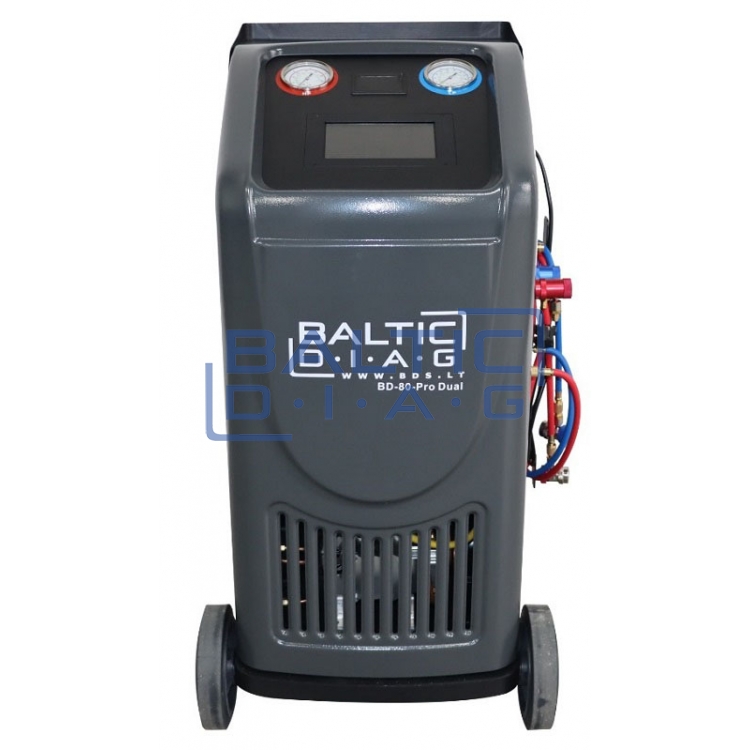

Automatic AC service station BD-80 PRO Dual

Automatic AC service station BD-80 PRO Dual

Warranty 12 months

The new generation of automatic filling station for car AC systems, which works with even two refrigerants - R-134a and R-1234yf. This air conditioning station has all the basic functions and characteristics required for professional work with the R-134a and R-1234yf refrigerants air conditioning systems. The station automatically performs removal, vacuuming, permeability, filling and oil extraction functions. There is an integrated database in Lithuanian for servicing the most popular car brands.

• Conditioner station full control in Lithuanian. However, this station also has more than 20 other languages: English, Russian, Polish, Estonian, German, French, Spanish and more.
• There are several thousand car models in the database up to 2017.
• At AC stations, customers can independently install the database of their desired cars.

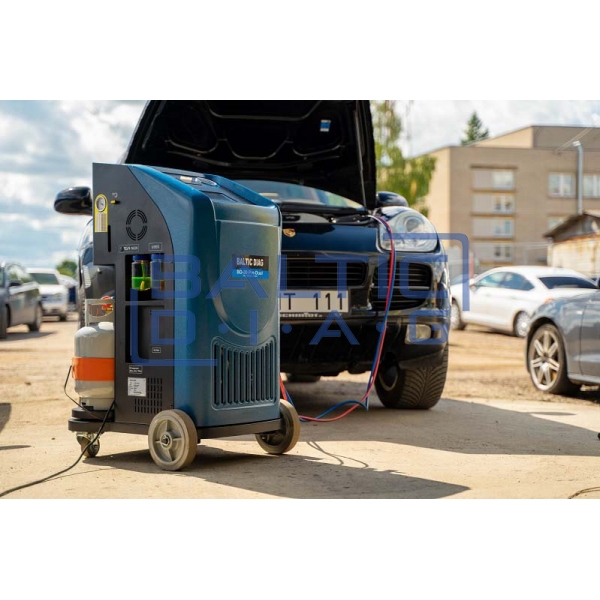

• HP and LP hose lengths are 3 meters each, making this station particularly mobile and easy to use.
• A simple but high-quality connection system guarantees safe operation in processes such as Freon extraction and recycling; vacuum / leak check; pressure testing.
• Conditioner refill with built-in printer so you can print results when you're done.
• Oil extraction: automatic extraction of oil, as well as separation and cleaning of the entire system with simple extraction functions.

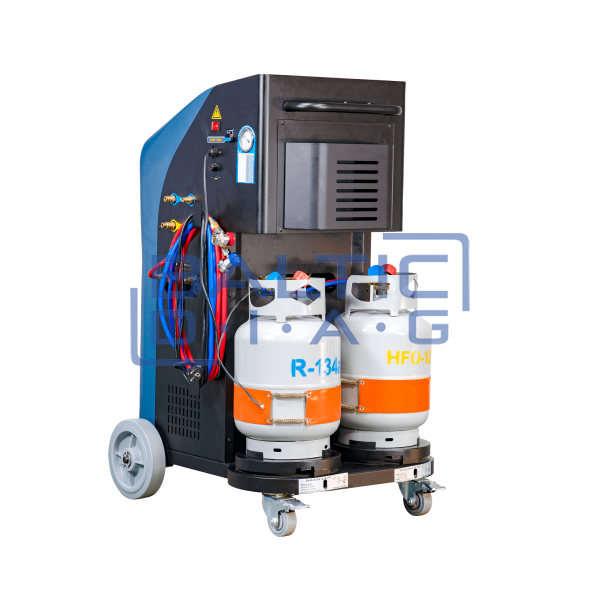

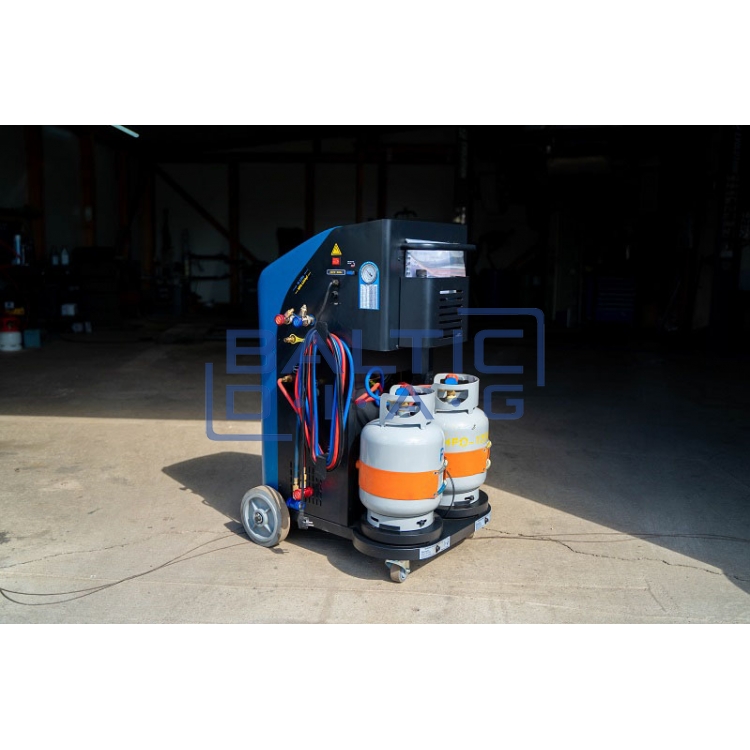

• The station has large casters and two front smaller castors that lock. This will give you mobility and comfort when working on uneven floors.
• Easily accessible vacuum pump for easy oil change.
• Suitable for use not only for cars, but also for heavy transport.
• When used in conjunction with additional equipment, this air conditioning filling station can work with electric cars and hybrid cars


Functions and features:

• Operating mode: automatic
• Freon extraction: automatic
• Freon filling: automatic
• Oil removal: automatic
• Vacuuming: automatic
• Leak test: automatic
• UV injection: yes
• Vacuum leakage test: yes
• Condenser and cooling fan: Available
• Printer: Available
• Flushing function: yes
• Support for hybrid A / C systems: None
• Filling hose cleaning program
• Integrated electronic scales for oil tanks
• Simple calibration of electronic scales


Technical data:

• Refrigerant type: R-134a and R-1234yf

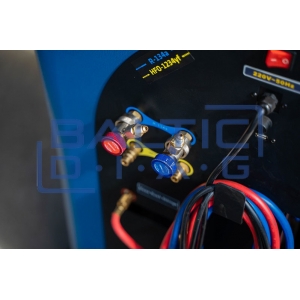

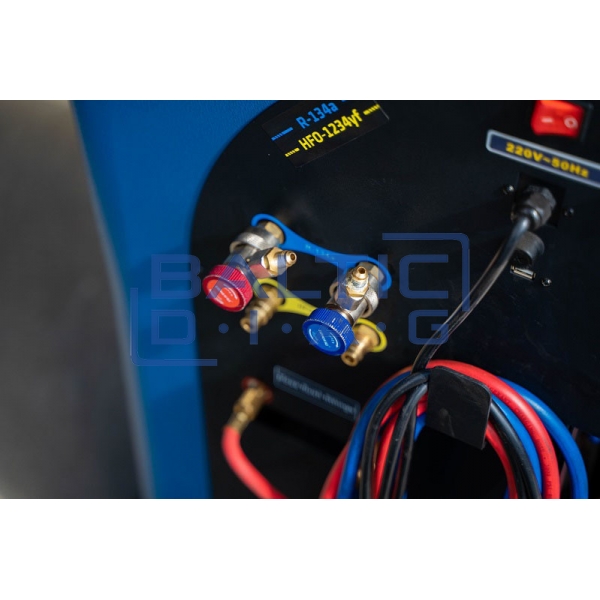

• Manual control valves: 2

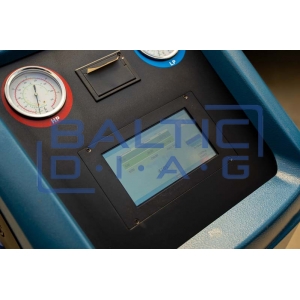

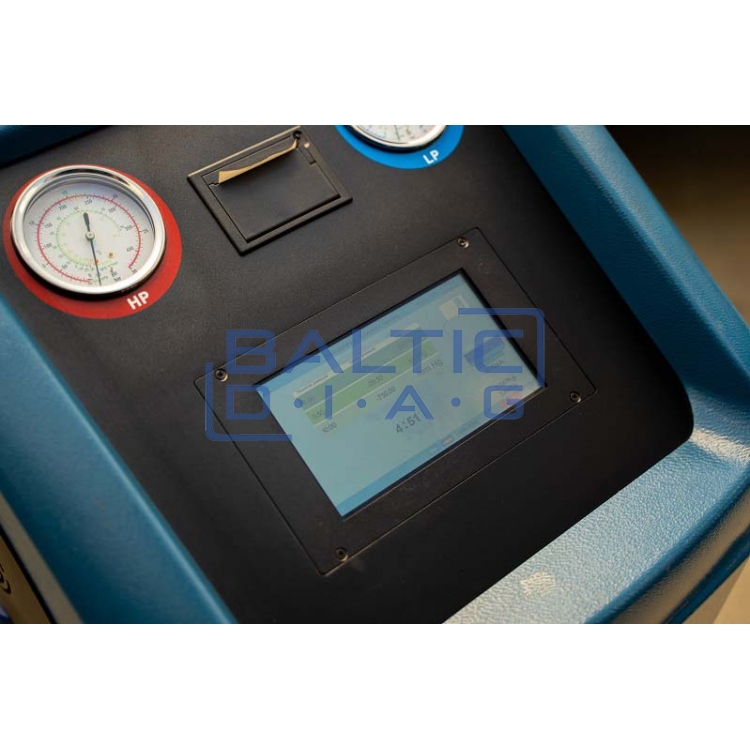

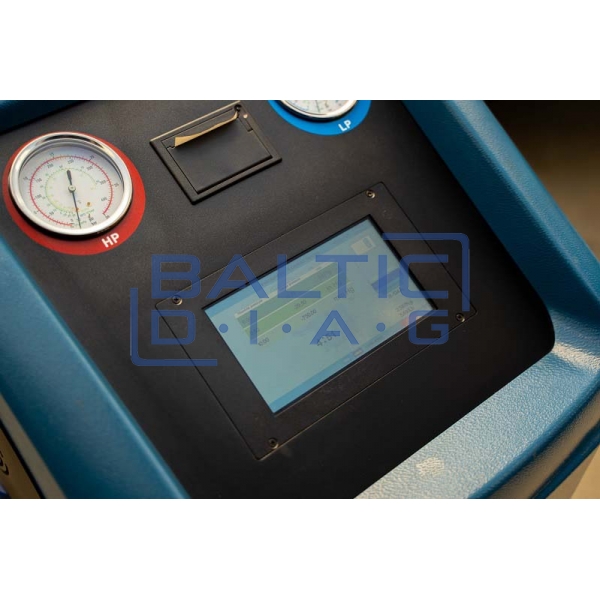

• Screen: 4.3 "color LCD
• Refrigerant volume: 10 kg
• Accuracy: ± 10 g
• Freon filling speed: 2000 g / min
• Recirculation speed: 250 g / min
• HP indicator range: -1 ~ 30 bar
• LP indicator range: -1 ~ 16 bar
• Recovery rate: ≥95%
• Compressor power: 3/8 hp
• Vacuum pump speed: 120 l / min

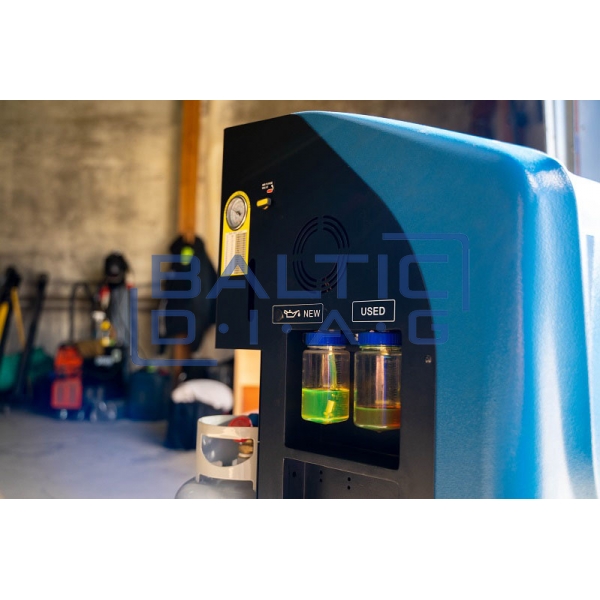

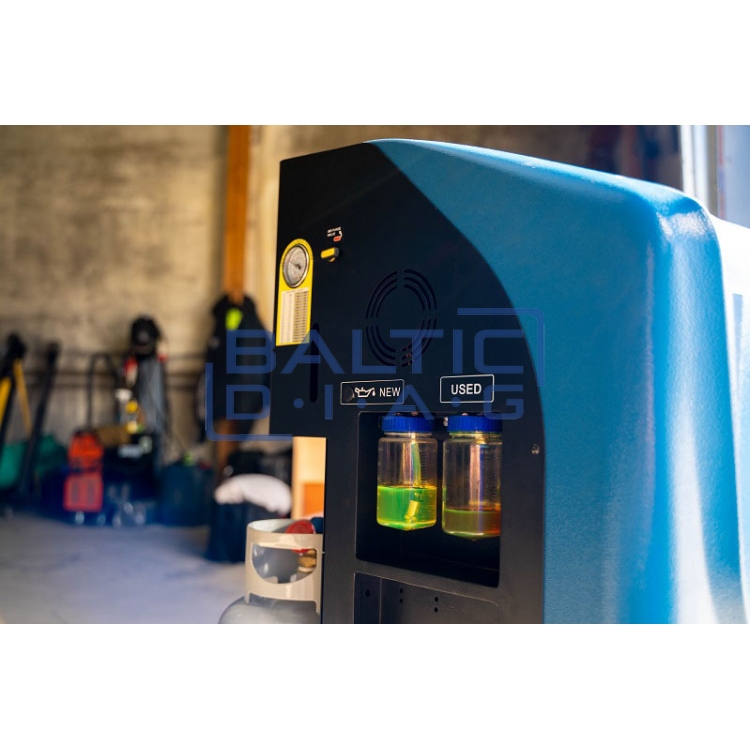

• Number of oil bottles: 2 vnt.
• New oil bottle capacity: 250ml
• Used oil bottle capacity: 400ml
• New / used oil / UV measurement accuracy: ± 5 g
• Power supply: 220V 50 / 60Hz
• Power: 280W
• Max. pressure: 20 bar
• Dimensions: 650x760x1055mm
