Refrigerant R-134a composition identifier BD86

Refrigerant R-134a Structure Identifier BD86

Country of origin: China, 24 months warranty period

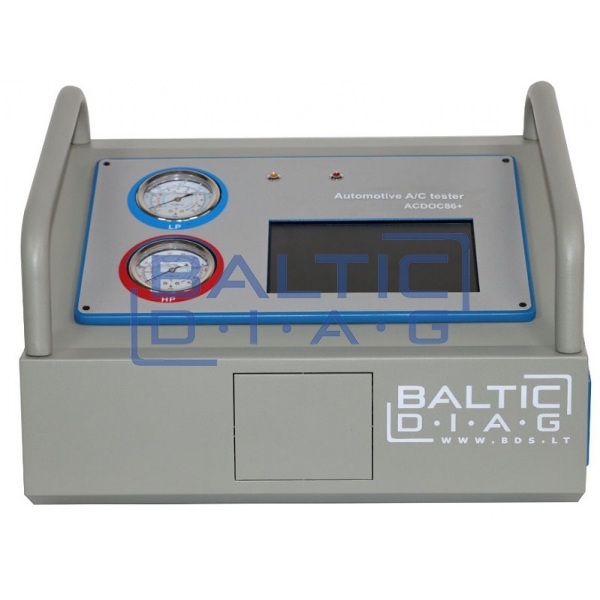

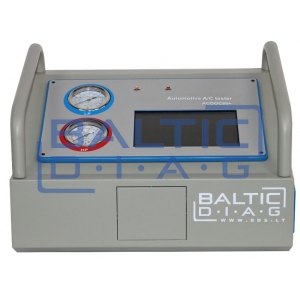

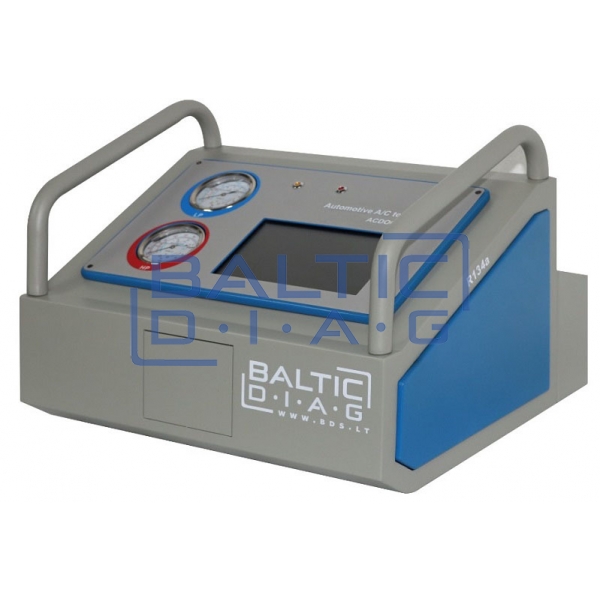

The Refrigerant R-134a Composition Identifier BD86 is an advanced diagnostic device for the inspection of automotive air conditioning systems and the determination of refrigerant composition. It allows accurate identification of R-134a refrigerant in vehicles or tanks, pressure, temperature and ambient humidity measurements and detection of possible system leaks using NDIR technology. An integrated analysis system allows the generation of a digital diagnostic report that helps garages to clearly and professionally inform customers about the status of the air conditioning system. The compact design, precise sensors and fast testing process ensure efficient operation in modern garages.

Technical specifications:

• Power supply: 230 V / 50 Hz / 1 phase or 12 V DC
• Refrigerant identification accuracy: 0,1 %
• Identification time: 120 s
• Suitable ambient temperature range: 20-50 °C
• Operating pressure: -1 to 30 bar
• Pressure measurement accuracy: ±0.1 bar
• Discharge air temperature range: 0-100 °C
• Discharge air temperature accuracy: ±0.1 °C
• Leak detection range: 5 g/year
• Total test time: approx. 6 min
• Estimated leak detection time: 10-15 min
• Type of refrigerant: R-134a
• Weight: 9.9 kg
• Dimensions: 410 × 383 × 280 mm
• Package dimensions: 475 × 440 × 345 mm

The BD86 Refrigerant R-134a Refrigerant Identifier BD86 is a reliable device for professional garages where an accurate and fast diagnosis of air conditioning systems is important. A modern sensor system, detailed analysis and the ability to generate diagnostic reports ensure high efficiency, professional customer service and reliable maintenance of A/C systems.
