Mobile gantry crane 1000 kg UNICRAFT

Mobile gantry crane 1000 kg UNICRAFT

Country of origin: China, warranty period - 24 months

Cranes are sold without winches!

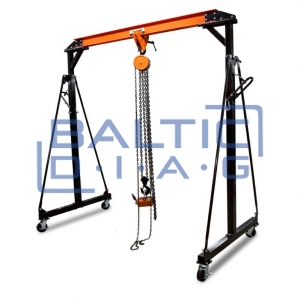

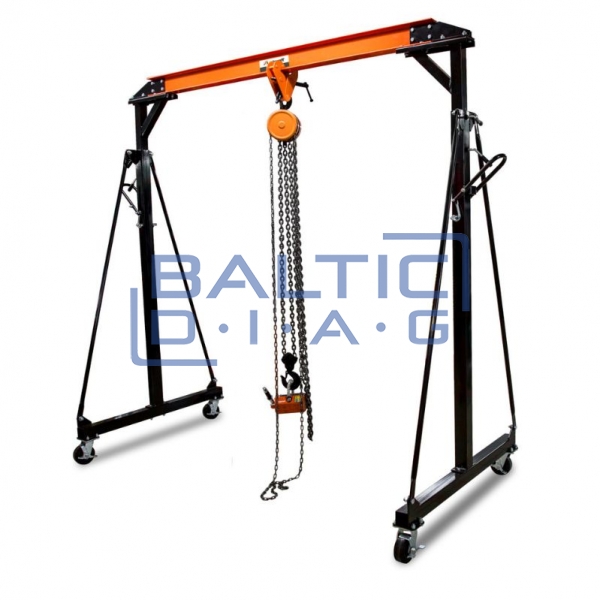

The PK 1 UNICRAFT mobile gantry crane is a robust and mobile lifting solution designed for loading, unloading, assembly, repair, and storage tasks in workshops or industrial facilities. The crane features a high load capacity of 1 ton, easy maneuverability, and safe height adjustment. It is intended for use only on flat, solid surfaces.

Functions:

• Designed for loading, repair, and assembly tasks indoors
• Suitable for use only on flat and solid floors

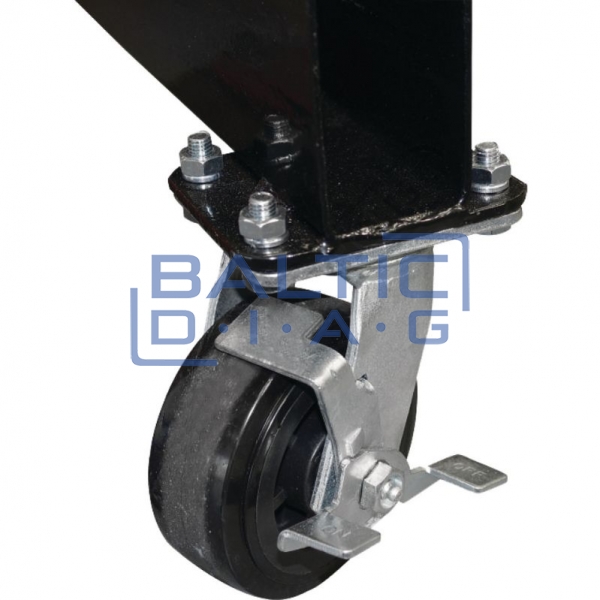

• 4 swivel castors with brakes for easy movement

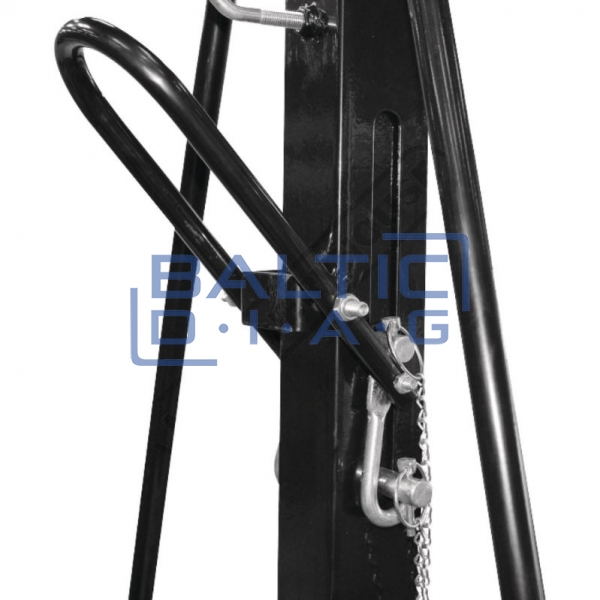

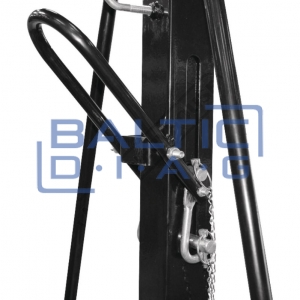

• Safe height adjustment without load using levers and two safety bolts per support

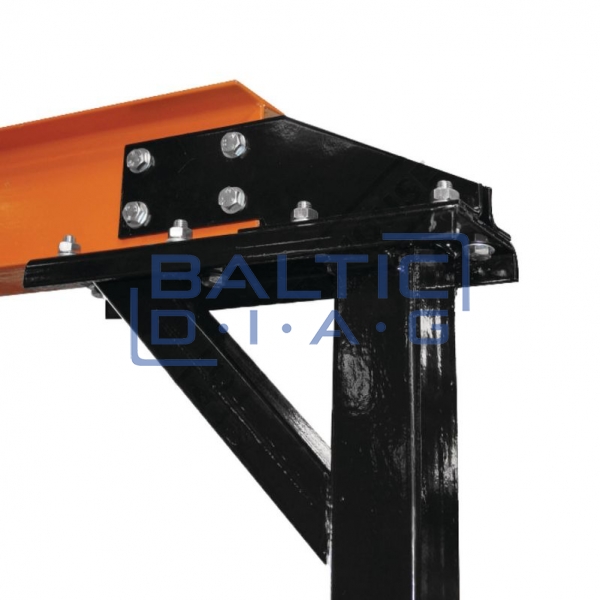

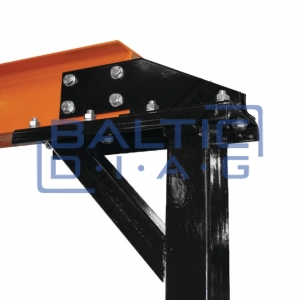

• Additional cross bracing ensures stable and rigid construction

Technical specifications:

• Load capacity: 1 t
• Minimum lifting height: 2200 mm
• Maximum lifting height: 3600 mm
• Clearance width: 2400 mm
• I-beam dimensions: 74 x 120 mm
• Length: approx. 2500 mm
• Width/depth: approx. 1200 mm
• Height: approx. 2520 mm
• Weight: approx. 128 kg
