  • SKU: BD99946
1,880.00 €

Prices shown include tax

Send Message

Description

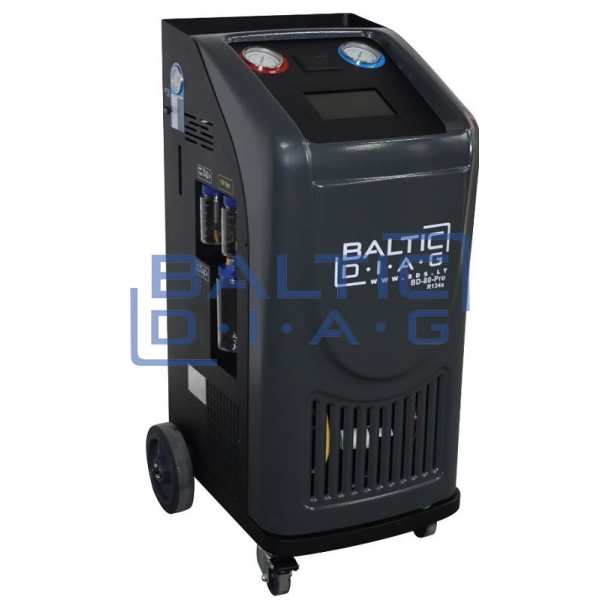

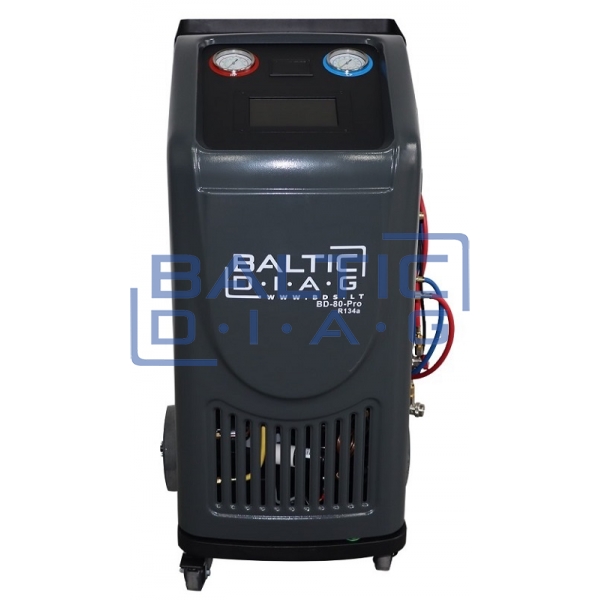

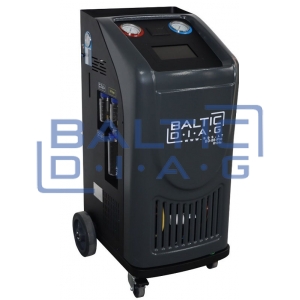

Automatic Air Conditioning Service Station BD-80 PRO
Country of origin: China, warranty period - 24 months

BD-80 PRO is a fully automated air conditioning service station designed for professional use with R-134a refrigerant in both passenger and commercial vehicle A/C systems. The unit features a touchscreen display, integrated printer, automatic control of all main functions, and a built-in database with thousands of vehicle models. It is a highly reliable solution for workshops seeking fast, accurate, and safe A/C system servicing.

The entire interface of the A/C station is available in Lithuanian, and additionally includes over 20 other popular languages: English, Russian, Polish, Estonian, German, French, Spanish, and more.


Functions:
  • Automatic operation mode
  • Automatic refrigerant recovery
  • Automatic refrigerant charging
  • Automatic oil extraction
  • Automatic vacuuming
  • Automatic leak test
  • Automatic service reminder
  • UV agent injection
  • Vacuum leak testing
  • Integrated printer

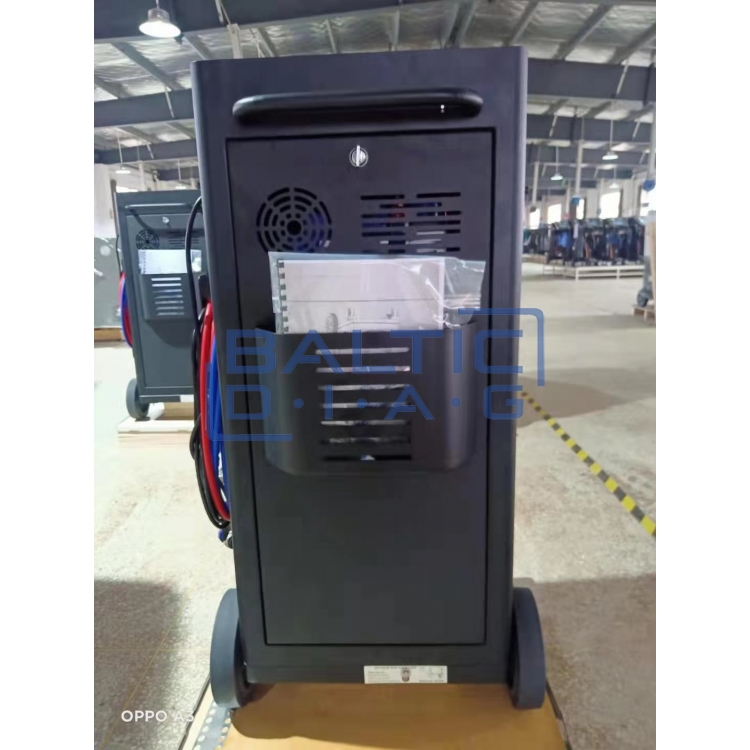

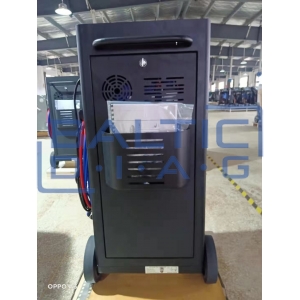

  • Condenser with cooling fan
  • Touchscreen color display
  • Database with free updates
  • Hose cleaning program
  • Integrated electronic oil tank scales
  • Simple calibration of electronic scales
Technical specifications:
  • Refrigerant type: R134a
  • Manual control valves: 2

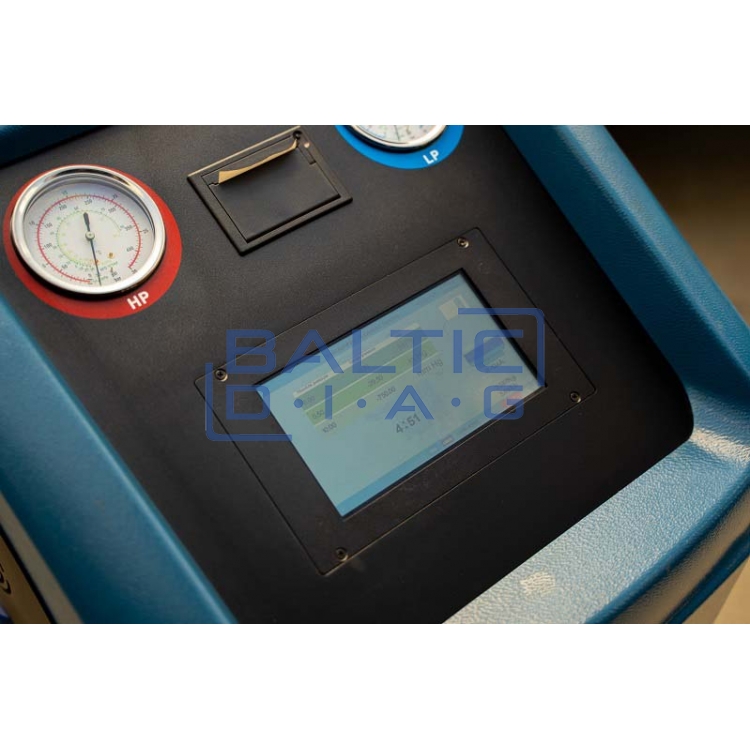

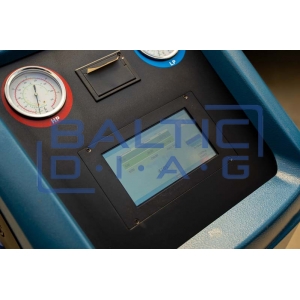

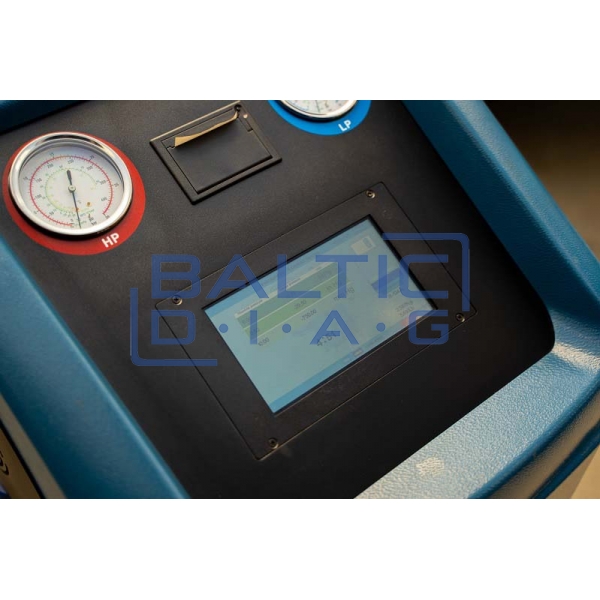

  • Display: 7" color touchscreen
  • Refrigerant tank capacity: 13.6 kg
  • Accuracy: ±10 g
  • Refrigerant charging speed: 2000 g/min
  • Recovery speed: 250 g/min
  • HP gauge range: -130 bar
  • LP gauge range: -116 bar
  • Recovery efficiency: ≥95%
  • Compressor power: 3/8 HP
  • Vacuum pump speed: 120 l/min

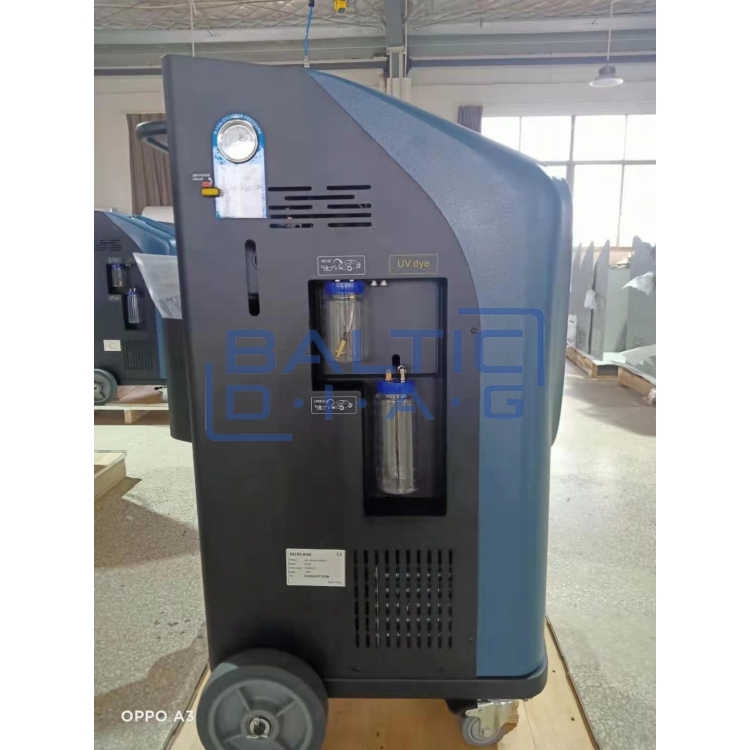

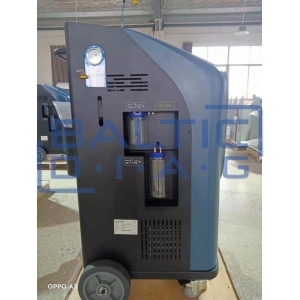

  • Number of oil bottles: 3
  • New oil bottle capacity: 250 ml
  • Used oil bottle capacity: 400 ml
  • Measurement accuracy for new/used oil and UV: ±5 g
  • Power supply: 220V 50/60Hz
  • Power consumption: 280W
  • Maximum pressure: 20 bar
  • Dimensions: 560 x 630 x 1070 mm

BD AC stotelių palyginimai

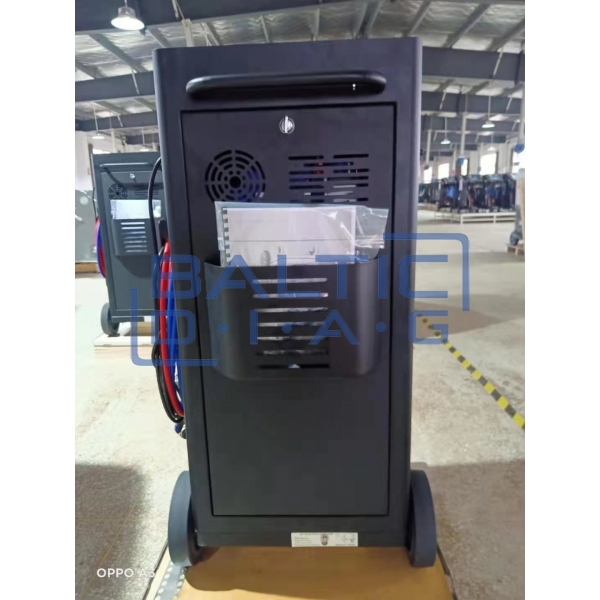

After purchasing and unpacking the A/C service station, it is necessary to loosen the scale locking screw located at the back of the unit. Failure to do so may damage the load cell of the tank.
