Wheel Aligner geoliner® 630 Tilt with quattrolift® 4000 WA Hofmann Lift
Country of origin: Italy, warranty period – 24 months
This is a professional wheel alignment solution supplied with the high-quality quattrolift® 4000 WA Hofmann lift. Despite its compact size, the geoliner® 630 wheel aligner offers numerous productivity-enhancing features and can be easily installed even in limited spaces. Its innovative console-integrated column and support design ensures minimal floor space usage in the workshop. For added convenience, a tablet can be used as a wireless secondary screen. Advanced software with real-time automatic error correction during measurement and an optimized alignment process allows independent workshops to offer profitable and high-quality wheel alignment services.
Set includes:

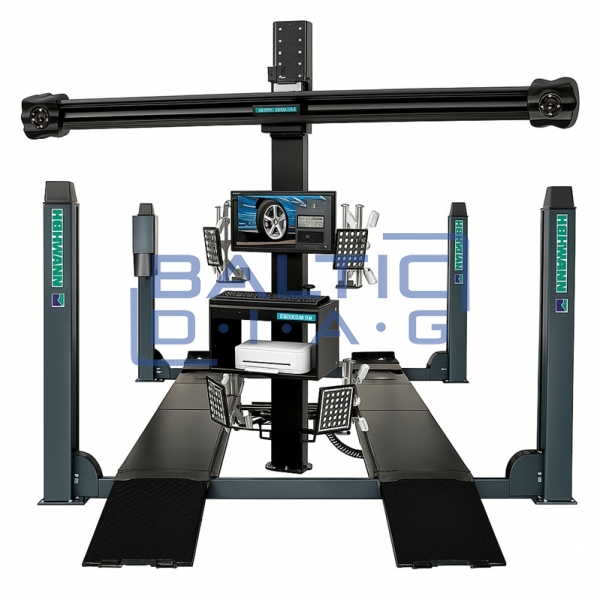

Wheel aligner geoliner® 630 Tilt
Lift quattrolift® 4000 WA Hofmann
Turntables
Features:
Integrated column and support – saves workshop space
Wireless secondary screen (via tablet) – for convenient operation
Advanced software with automatic error correction and optimized measurement process
Compact design – ideal for small to medium-sized workshops
Suitable for vehicles of various sizes
Technical Specifications:
Track width: 122–244 cm (48″–96″)
Wheelbase: 201–457 cm (79″–180″)
Power supply: 110–240V, 50/60Hz
Adjustments:
A-Arm – Suspension component resembling the letter A; crucial for wheel alignment adjustments.
Cradle – Metal frame or structure that holds the engine or chassis components.
Drag Link – Part of the steering system that transmits movement between the steering mechanism and tie rods.
Elevated – Vehicle status when lifted off the ground, e.g., on a lift.
EZ-Toe – Special tool or feature for easy toe adjustments when wheels are removed.
Help Videos – Instructional videos showing how to use tools or perform measurements.
Parts & Tools – All necessary components and tools used for repair or adjustment.
Parts Calculator – Digital tool that helps calculate required parts or their quantities.
Single Tie Rod – Steering configuration with one main tie rod, often used in simpler systems.
Measurements:
Frame Angle – The inclination angle of the vehicle’s body or chassis frame, important for determining chassis geometry.
Manual Ride Height – Manual measurement and adjustment of the vehicle’s ride height according to manufacturer specifications. Essential for correct wheel alignment when the suspension is not automatically adjustable – ensures the vehicle is measured at standard suspension height.
Max Turn – The maximum turning angle of the wheels, used to evaluate the limits of the steering system.
On-Demand Ride Height – Ability to change the chassis height in real-time, using air suspension.
ROMESS (optional) – Professional chassis height measuring device, often used for precision.
SAI (Steering Axis Inclination) – The angle between the vertical and the turning axis, affecting steering stability and returnability.
TIP – Target Ride Height – Manufacturer-specified standard ride height used for correcting geometry settings.
Toe Out On Turns – The difference in toe angles of the inner and outer wheels during a turn, allowing proper wheel rotation based on the Ackermann principle.
Lift quattrolift® 4000 WA Hofmann
Features:
Four-post construction – ensures high stability and safety
Integrated wheel-free lift – simplifies tire replacement and servicing
Long platform – suitable for vehicles of various sizes
Fast lifting and lowering – improves work efficiency
High lifting capacity – suitable for both passenger cars and mid-sized vans
Fully compatible with Hofmann® 3D wheel alignment systems – ensures accurate wheel geometry adjustments
Technical Specifications:
Total length (with ramps): 6,348 mm
Total width: 3,310 mm
Ramp width: 630 mm
Ramp length: 5,280 mm
Maximum lifting height: 1,830 mm
Initial lifting height: 180 mm
Inner width between posts: 2,850 mm
Inner length between posts: 4,838 mm
Outer post length: 5,288 mm
Rear slip plate length: 1,980 mm
Full lifting time: 60 seconds
Full lowering time: 40 seconds
Wheel-free lift capacity: 4,000 kg
Wheel-free lift height: 450 mm
Wheel-free lift platform length: 1,500 mm (with optional 200 mm and 300 mm extensions)
Motor power: 3.0 kW
Power supply: 400V-3PH-50HZ
Smart Messaging System
Maximizes efficiency and accuracy by automatically detecting and correcting issues such as suspension tension or environmental factor errors. Technician input is only required when additional information is needed for corrective actions.
Automatic Error Correction and Optimized Alignment Process
Improves workflow by eliminating unnecessary steps. Real-time automatic error correction and an optimized wheel alignment process allow service centers to increase productivity and the number of alignments performed.
Compact Design
Make the most of your workshop floor space with a compact device that requires minimal room and includes storage for a printer and targets.
VODI™ (Vehicle Orientation Directional Indicator)
Using simple red and green LED signals, the patented VODI™ technology guides technicians through the measuring process even when the monitor is out of view, reducing time spent walking between the vehicle and the aligner.
XD Camera Technology
Advanced high-resolution, high-speed cameras continuously monitor the wheel alignment process, instantly detecting common environmental conditions or vehicle issues that may cause misalignment.
