Description

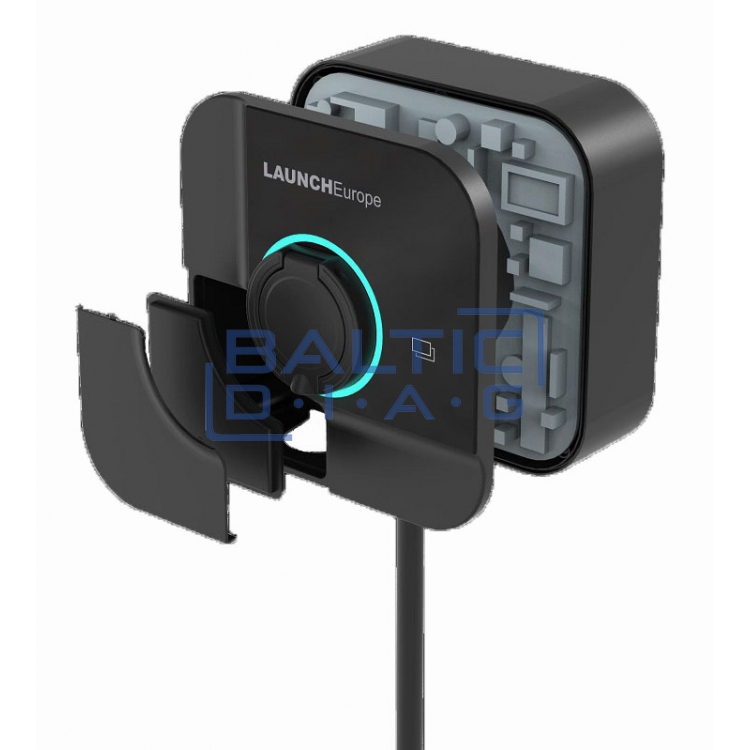

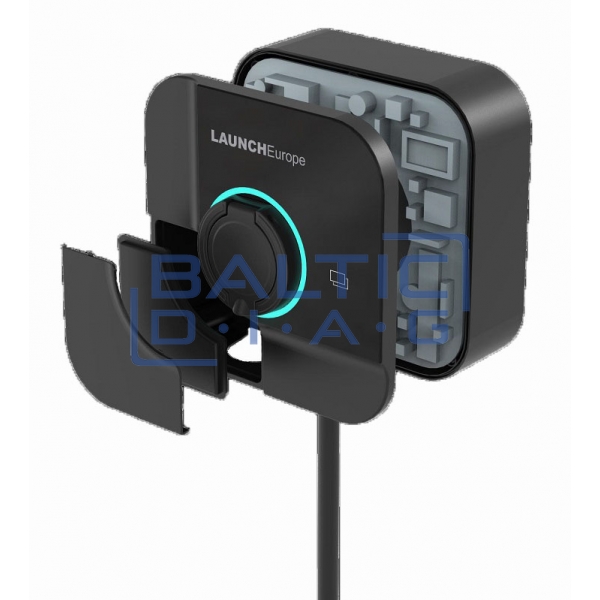

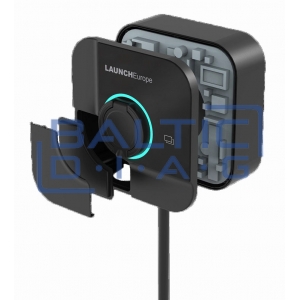

EV charging station Launch Smart EV
Manufacturer: Launch. Warranty: 24 months
Features:
- 11 kW AC smart charger for electric cars (Mode 3)
- Supported functions: Application (Apps), RFID and OCPP
- Load balancing and PV are supported
- Fully complies with EU standards: IEC61851-1:2017; EN IEC61851-1:2019)
Functions:
- Supported connections: Bluetooth / Wi-Fi / Ethernet / 4G / RS485 / CAN
- Control using RFID card and device application
- Load balancing
- Supported, OCPP 1.6
- Multi-level electrical protection
- High water resistance: IP55; IP65
- Impact protection: IK10
Application of charging station "LE Charge":
- Control of the station, configuration using the application
- Charging start, stop using the application
- Setting and changing the charging current using the application
- Creating and setting the charging mode using the application
- Plot of completed charges
- Ability to monitor the charging station's operating status and warning messages
Load Balancing / Charge Management:
- Protects against potential overload
- Charging optimization with a PV system
- Compatible with multiple charging stations
Technical parameters:
- Maximum charging power: 11 kW
- Supply voltage: 400 V / 50 Hz / 16 A or 230 V / 50 Hz / 16 A

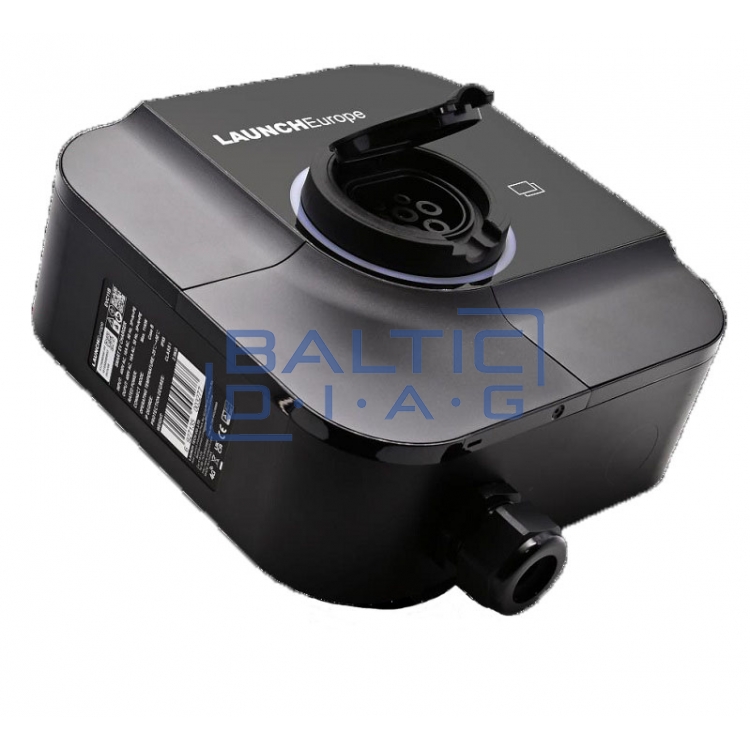

- Two versions of the stations are available: With socket or without socket
- Protection classes: IP65; IP55 (stops with socket); IC10
- Charging cable length: 5 meters (for charging stations that do not have a charging socket in them)
Security systems:
- Overload protection
- Short circuit protection
- Protection against power leakage
- Overvoltage protection
- Protection against excessive temperature
- Protection against excessive electric current
- Rain protection
- Protection against UV rays
- Flame protection, level: UL94 V-0
Design:
- Full black design, a combination of glossy and matte colors
- Compact size: 260 x 260 x 110 mm
- Modern
- Light weight: 4 or 6 kg
The set consists of:
- Charging stations
- Cable holder (for model without charging socket)
- Manual
- Quick Management Guide
- RFID cards x 2 pcs.
- Installation instructions
- Mounting screws x 4 pcs.
- Hexagon key
