Description

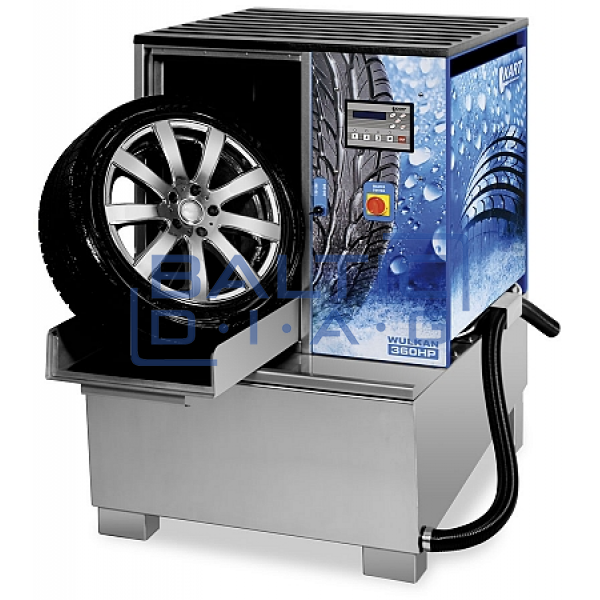

Wheel Washing Equipment Wulkan 360HP
Country of origin: Poland, warranty period - 24 months
WULKAN 360HP is a fully automatic wheel washing system designed for passenger cars and vans with rims and tires up to 360 mm in width. The device utilizes an efficient washing method that combines water, Wulkan MIX granules, and Wulkan Turbo washing concentrate. The closed water system ensures economical and environmentally friendly operation, while the integrated pneumatic wheel stabilization and water heating systems enhance efficiency. A mobile version for wheels is also available.
Features:
- Fully automatic washing process
- Pneumatic wheel stabilization system
- Water heating system
- Uses a natural self-cleaning technology
- Triple sound insulation for quieter operation
- Anti-vibration rubber feet for stability
- Sedimentation tank separated from the washing chamber
- Modern design with an intuitive control system
- Software available in six languages
- Easy to install and operate
- Energy-efficient operation
- Option to order an additional pneumatic wheel lifter
Heating System:
- Heater power: 4 kW
- Water heating time up to 50°C: 60 - 120 min
- Overheating protection
Standard Equipment:
- Wulkan MIX granules – 25 kg
- Granule basket
- Wulkan Turbo washing concentrate – 30 L
- Plastic protective cover
- Rubber anti-slip mat
Technical Specifications:
- Wheel diameter range: 560 - 800 mm
- Wheel width range: 135 - 360 mm
- Maximum wheel weight: 60 kg
- Washing time (adjustable, 3 programs): 20, 40, 60 sec
- Drying time (adjustable, 1 program): 15 sec
- Water heating time up to 50ºC: 60 – 120 min
- Heater power: 4 kW
- Pump drive power: 5.5 kW, 3-phase, 400 V, 50 Hz, 2900 rpm
- Pump capacity: 600 LPM
- Drive wheels: 3-phase, 400 V, 50 Hz, 0.37 kW, 930 rpm
- Total motor and drive power: 6 kW
- Water pressure: 4 bar
- Water capacity: 300 L
- Wulkan MIX granules quantity: 20 kg
- Wulkan TURBO washing concentrate quantity: 3 L
- Compressed air operating pressure: 8 - 12 bar
- Acoustic power level: 87.1 dB
- Dimensions (width x depth x height): 960 x 1212 x 1450 mm
- Weight: 330 kg
- Available colors: red, blue
Dimensions:
