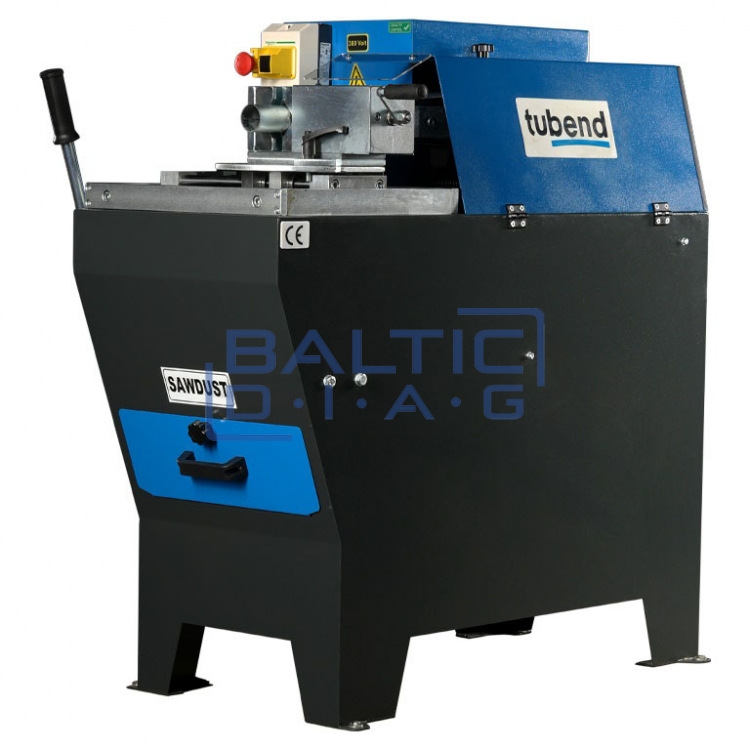

Tube grinding machine TT90

Tube Grinding Machine TT90

Features:

• Ability to create precise tube notches regardless of the tube diameter.

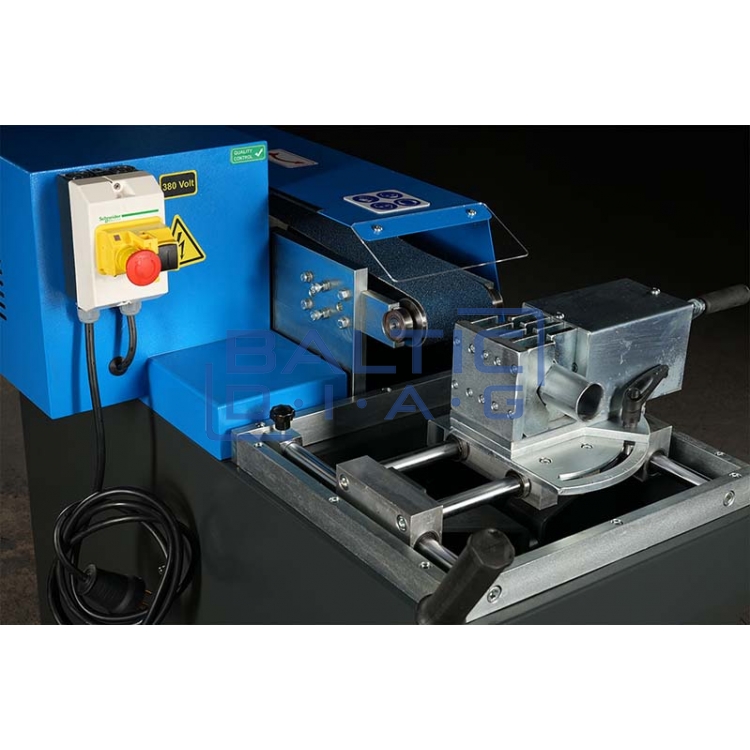

• Quick clamping and release of parts thanks to the movable vise.
• Vise mechanism can move to the left and right for more convenient operation.
• Possibility to perform angled notching up to 50° with the movable clamping mechanism.
• Adjustable rotation speed using an inverter.
• Notching capabilities for tubes up to 3 inches in diameter.
• Equipped with a convenient chip collection drawer.
• Optionally can be equipped with a pneumatic clamp.
• Supplied with standard rollers: Ø19, Ø21, Ø25, Ø32, Ø38, Ø42, Ø48, Ø52, Ø60, Ø76 mm.

Technical specifications:

• Tube clamping range: Ø16–90 mm
• Cutting capabilities: Ø16–90 mm

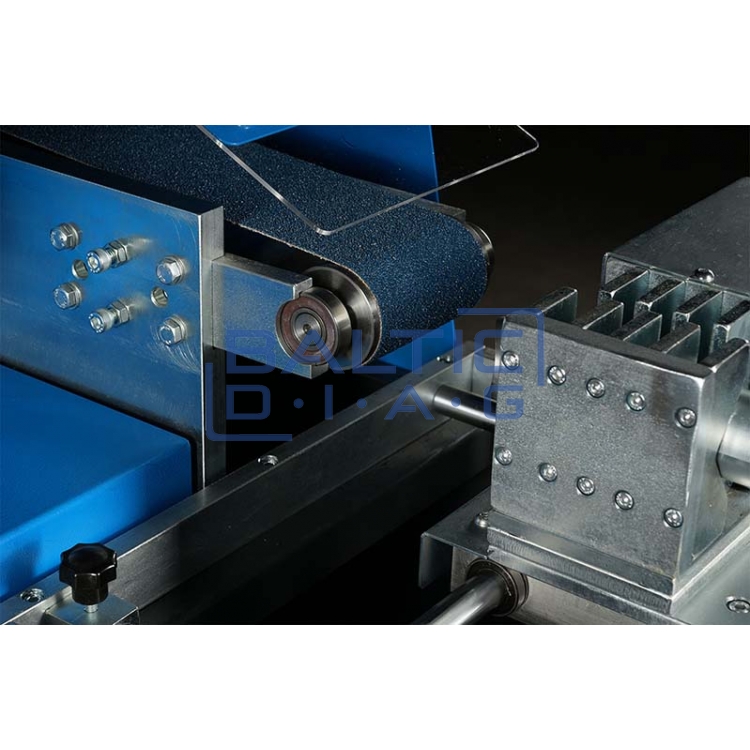

• Grinding belt dimensions: 100 x 1250 mm
• Motor power: 2.2 kW
• Power supply: 400 V / 50 Hz / 3 phases
• Dimensions: 1200 x 600 x 1150 mm
• Weight: 180 kg
