Motorcycle diagnostic equipment OBDStar ISCAN Piaggio Group

Motorcycle diagnostic equipment OBDStar ISCAN Piaggio Group

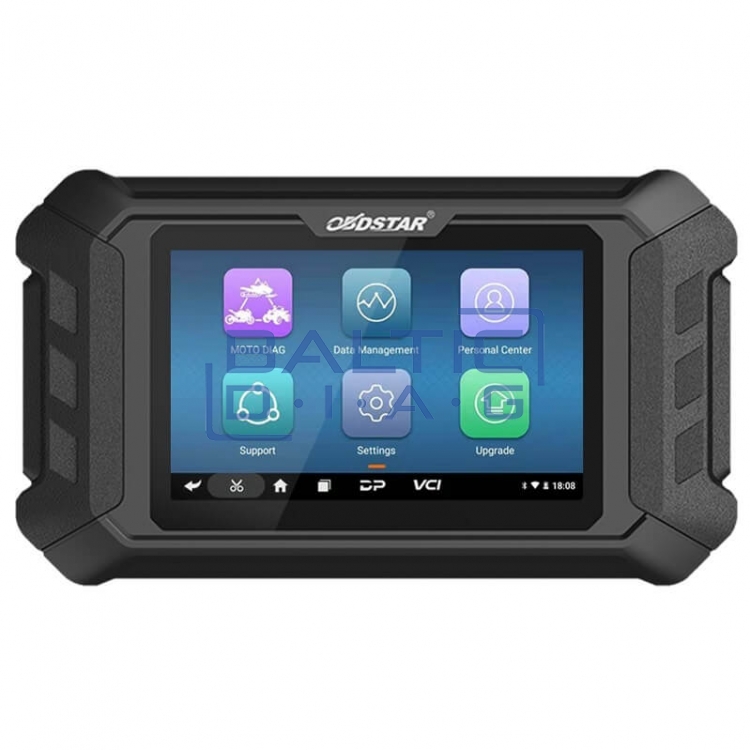

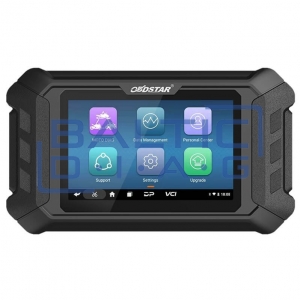

ISCAN Piaggio Group is a portable tablet that has a modern design and is specialized in the diagnostics of motorcycles of the Piaggio Group brand. New generation, intelligent motorcycle diagnostic equipment is adapted for workshops or individual people. It is equipped with RK3128, a quad-core processor and has a 5" touch screen, which conveys the best feeling of professional diagnostics.

Features:

• Piaggio Group motorcycle diagnostics and key programming are supported
• Android 5.1.1 operating system
• Simple and easy to understand art that is easy to understand and use
• Provides full diagnostic functions such as: error scanning, error clearing, live parameter monitoring, various component activation, coding, setting adjustment, etc.
• The possibility to adjust the layout of the working areas according to your wishes and needs
• Monitor, record and view live parameters. This will allow you to quickly and accurately identify malfunctioning sensors or malfunctions of various components
• Wi-Fi access to the Internet, possible equipment updates, at the push of a button
• Ability to have online access to the OBDStar technician team
• Supports error scanning and diagnostics for various motorcycle manufacturers' models

Functions:

• Primary support information, motorcycle connection information, current error information, etc.
• The information source is being changed. Option to choose display method: text, line chart, column chart.
• Automatic data reading, automatic VIN code reading, programming or coding of control modules, ECU parameter setting, dashboard coding, tire pressure sensor monitoring system, service interval warning reset, CO adjustment, idle speed adjustment ABS control module settings, etc.

Technical data:

• Operating system: Android 5.1.1
• Processor: RK3128, quad-core ARM cortex A7
• Battery: 2600 mA, Li-ion
• Supported SD card: 32 GB, Micro SD
• Screen: LDC, 5" inch, touch
• LCD resolution: 800 x 480
• Internet connection: Wi-Fi
• Operating temperature: -20°C ~ +55°C
• Weight: 0.700 kg
• Dimensions: 198 x 115 x 31 mm

Accessories:

• Main diagnostic cable
• Power cables
• Connector Aprilia / Ducati / Honda / KTM / Piaggio / Vespa / Yamaha -4 +6
• Connector OBD-6
• Charger
