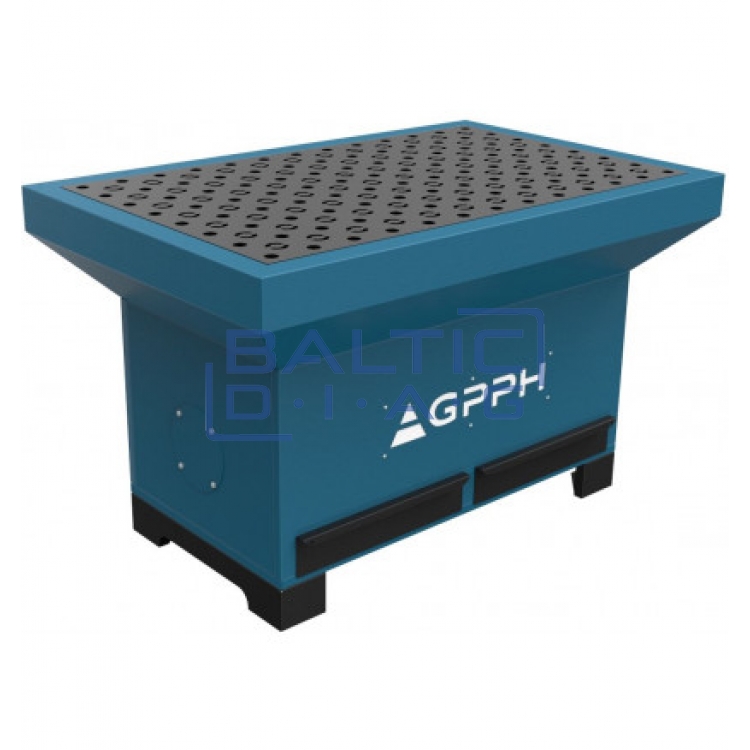

GPPH base of grinding-welding station

GPPH base of grinding-welding station

The grinding-welding station is designed to collect and remove dust and gases generated during manual grinding or during welding and metalworking operations. The station can be used with an exhaust fan or fan-powered filtration equipment.

The base is adapted for mounting and mounting the upper exhaust system

The Ø160mm connection is mounted on the side surface of the exhaust duct

Air can be removed from below through the exhaust tray table

The table top is made of 8 mm sheet with dimensions of 1270x770 - collection openings in the system grid 28 100x100 and additional openings for dust and gas discharge

Weight: 167 kg

Recommended air flow: 3200 m3 / h

Flow resistance: 250 Pa

Net price: € 2,390

S.P.001

The base station contains the following components:

Work table with worktop made of 8 mm sheet

Exhaust tray with drawers

Two 230 V sockets for connecting power tools

Workplace lighting connection system

Exhaust hose connection
