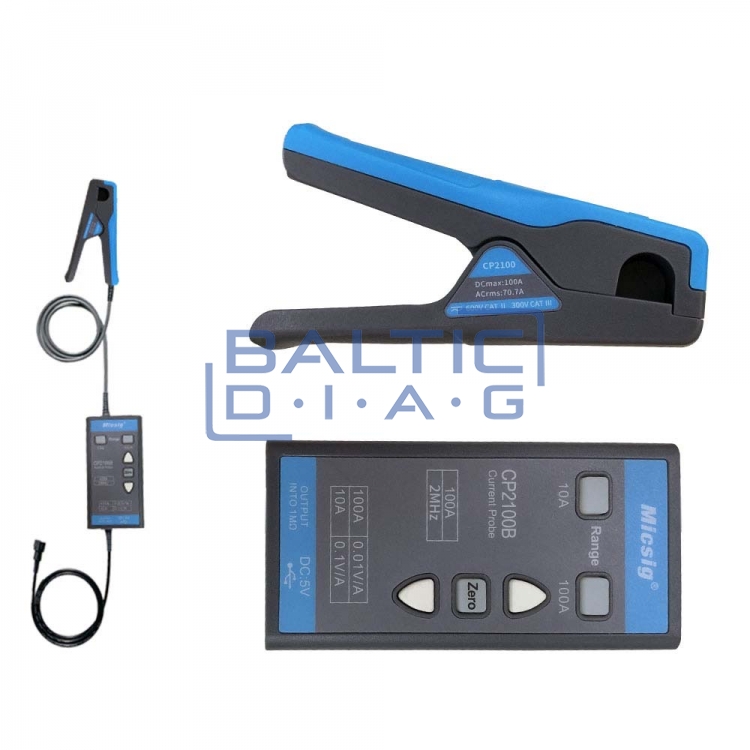

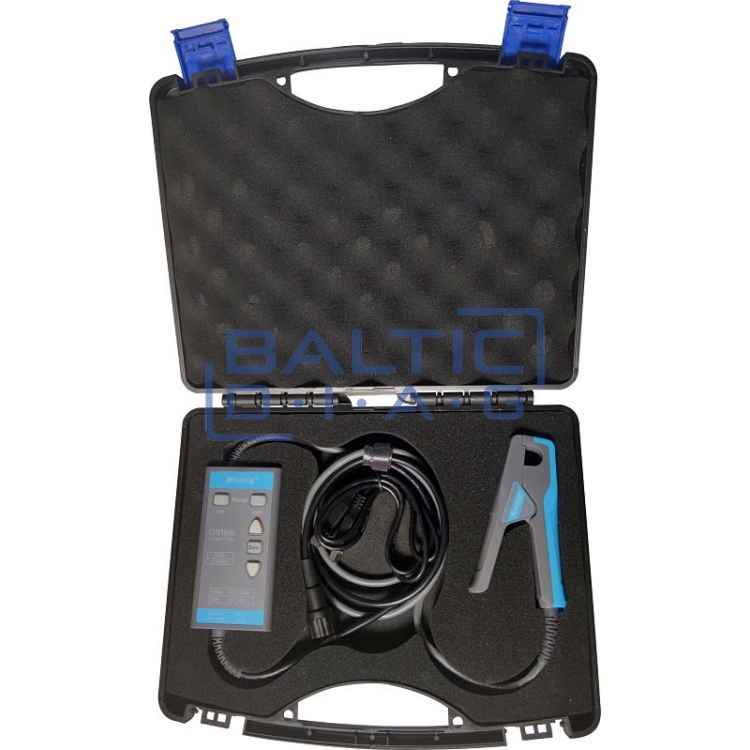

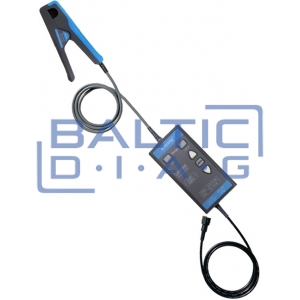

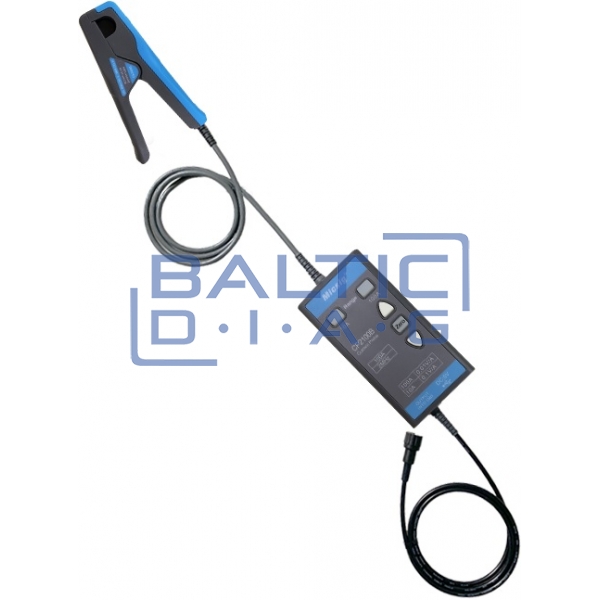

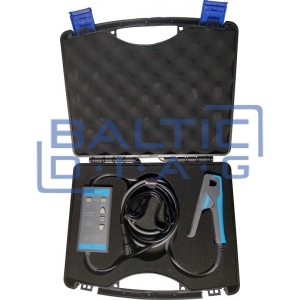

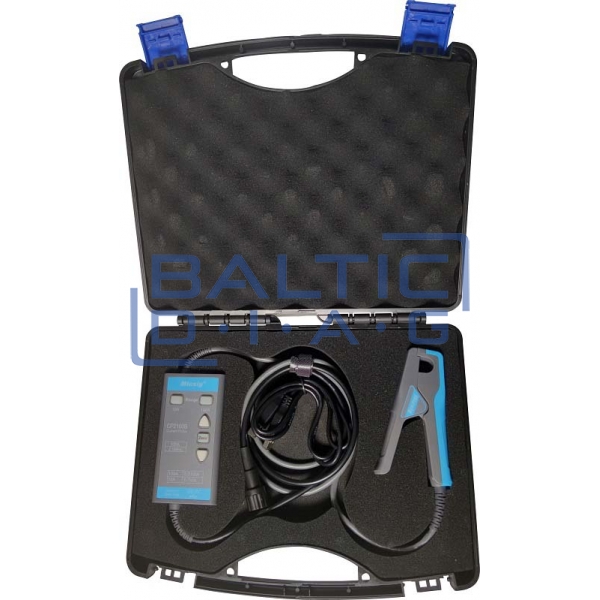

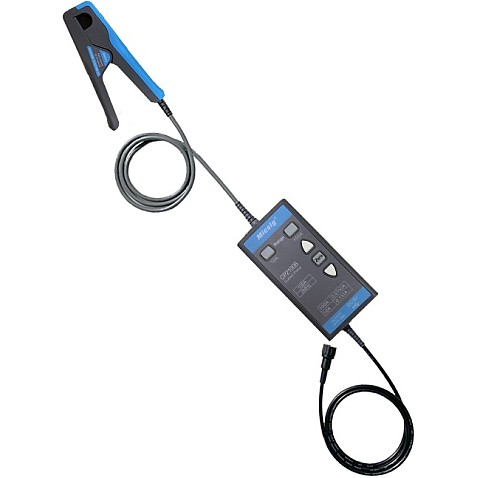

Oscilloscope ultra-low current measuring clamp AC DC, CP2100 series

Oscilloscope ultra-low current measuring clamp AC DC, CP2100 series

SKU: BD16681
SKU:: CP2100

379.00 €

Micsig

Prices shown include tax

Add to Cart

Send Message

Description

Oscilloscope ultra-low current measuring clamp AC DC, CP2100 series

Manufacturer: Micsig

Current measuring clamps are designed for measuring extremely small currents. It is possible to measure direct and alternating current.

Features:

Small and exquisite design
Standard BNC connector, can be used with oscilloscopes and multimeters
Automatic and manual zero value function
The device is powered via a USB connection, no additional adapters are required
A wide range of uses of the device

Technical parameters:

Model	CP2100A	CP2100B
Band width	DC ~ 800 KHz	DC ~ 2.5 MHz
Rise time	≤ 437.5 ns	≤ 140 ns
Ranges	10 A / 100 A	10 A / 100 A
Output sensitivity	0.1 V / A (10 A) 0.01 V / A (100 A)	0.2 V / A (10 A) 0.01 V / A (100 A)
DC accuracy (typical)	3% ±50 mA (10 A) 4% ±50 mA (100 A, 500 mA ~ 40 Apk) 15% (100 A, 40Apk ~ 100 Apk)	3% ±50 mA (10 A) 4% ±50 mA (100 A, 500 mA ~ 40 Apk) 15% (100 A, 40Apk ~ 100 Apk)
Signal delay	< 150 ns (10 A) < 200 ns (100 A)	< 150 ns (10 A) < 200 ns (100 A)
Current measurement ranges	50 mA ~ 10 Apk (10A) 1 A ~ 100 Apk (100A)	50 mA ~ 10 Apk (10A) 1 A ~ 100 Apk (100A)
Max. measuring current	100 Apk, 70.7 Arms (DC + ACpk) 200 Apk-pk, 70.7 Arms (AC)	100 Apk, 70.7 Arms (DC + ACpk) 200 Apk-pk, 70.7 Arms (AC)
Max. working voltage	CAT III 300 V, CAT II 600V	CAT III 300 V, CAT II 600V
Max. float voltage	CAT III 300 V, CAT II 600V	CAT III 300 V, CAT II 600V
Max. conductor diameter	13 mm	13 mm
Overload alarm	Buzzer beeps, Button flashes	Buzzer beeps, Button flashes
Power supply	DC 5 V	DC 5 V
