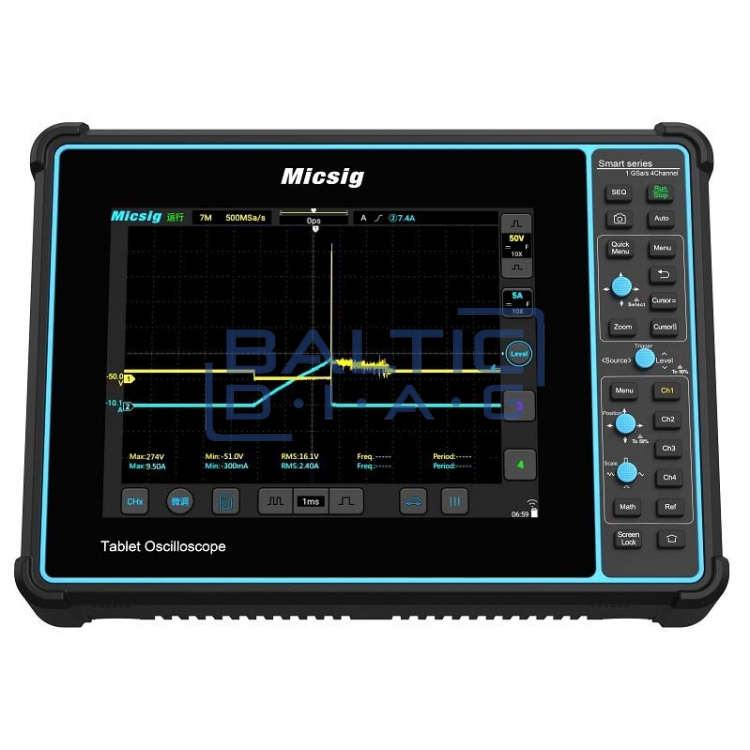

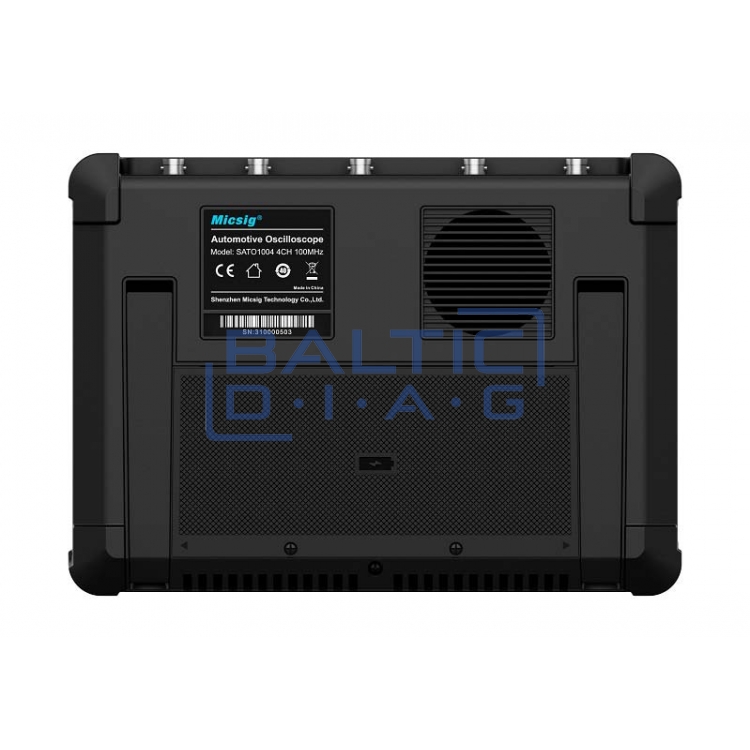

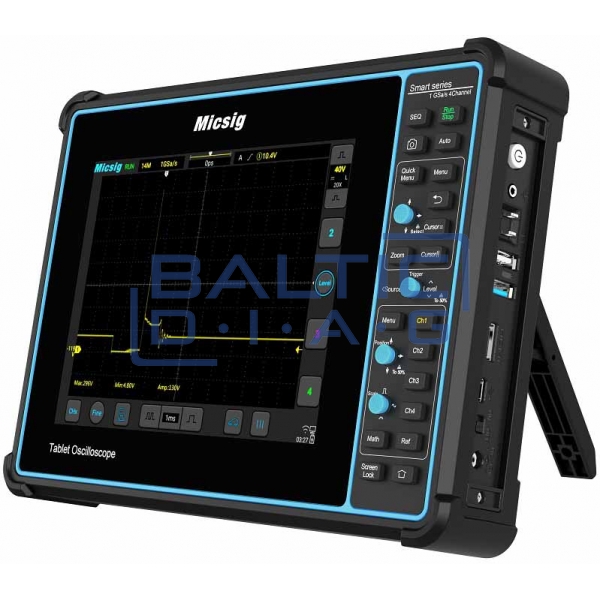

Automotive oscilloscope SATO1004

Oscilloscope for vehicles SATO1004

Manufacturer: Micsig. Warranty: 12 months

Features:

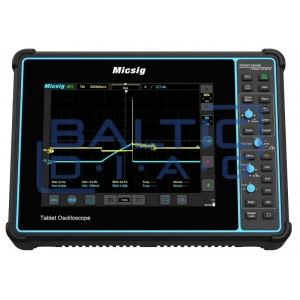

• Unparalleled operating experience - 8" inch, TFT - LCD touch screen that has a resolution of 800 x 600. The device is equipped with new generation technical components and software
• Professional performance - high bandwidth, high sample rate, wide memory spectrum, perfect signal capture results

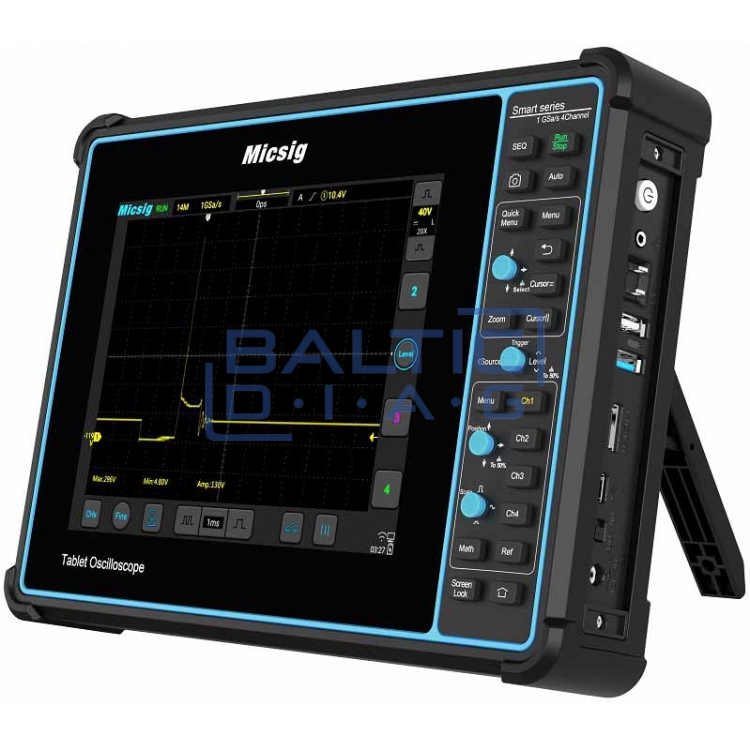

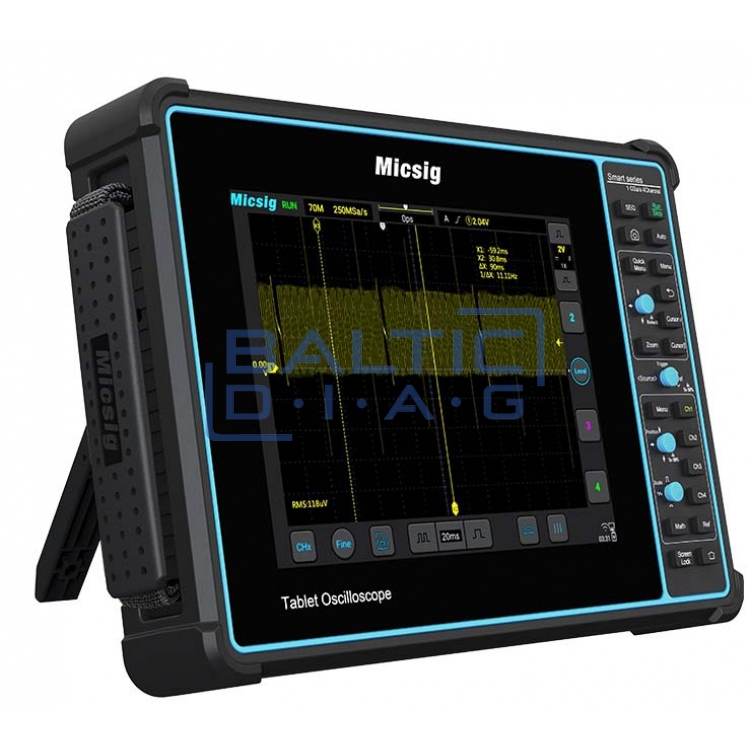

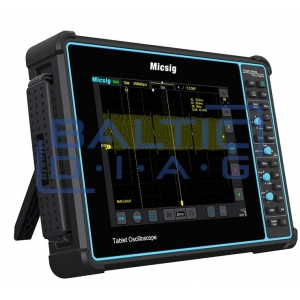

• Convenient for mobile and stationary use - the built-in 7500 mAh Li-ion battery ensures continuous work for up to 5 hours. Power saving mode that allows you to safely carry or store the device. A specially designed leg ensures that the device remains stable when placed on the table and does not complicate its use

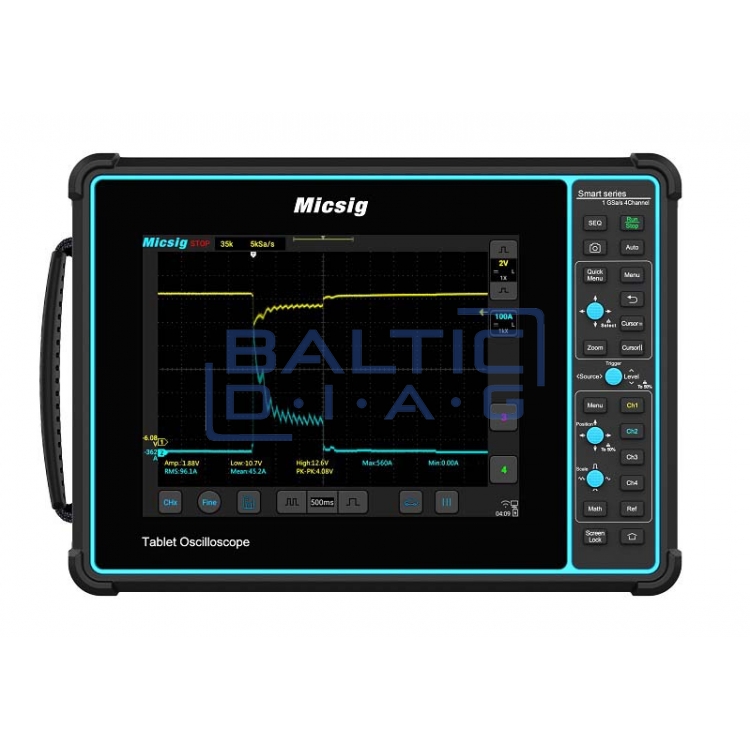

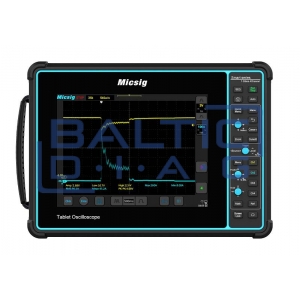

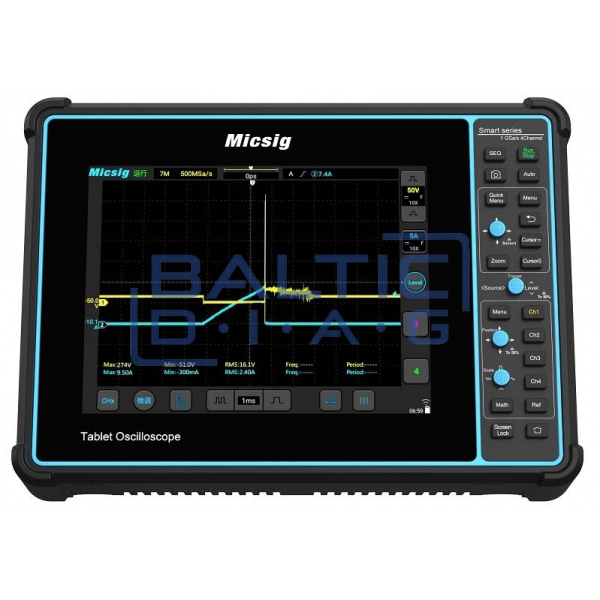

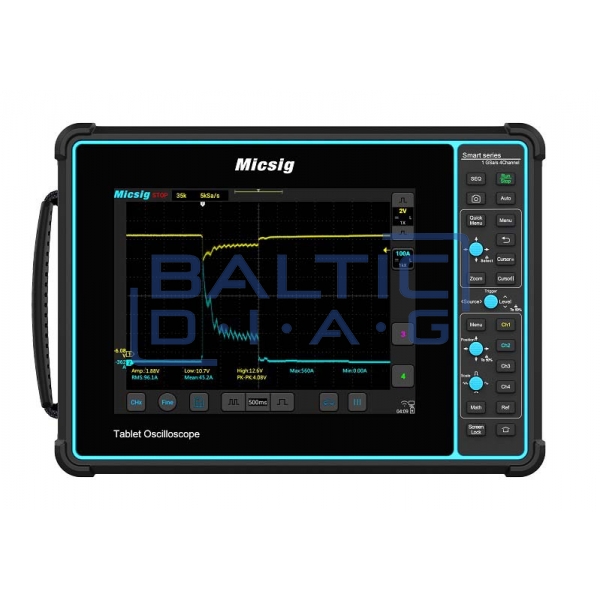

• Capable of charging/starting moment tests - 12V and 24V charging and starting systems are supported. Ability to record charging ripples, starting current and other parameters
• Various sensors test - the ability to check the following sensors: ABS, accelerator pedal, throttle valve, fuel pressure, air flow sensor, crankshaft sensor, camshaft position sensor, detonation knock sensors, MAP sensors, etc.
• Checking of various actuators - the signal of the components is obtained at the push of a button, and in this way the work is done easily and simply. Compatible with the following components: fuel injectors, their voltages and current, fan control current, variable valve timing, EGR valves, etc.
• Ignition performance test - possibility to perform primary, secondary and combined ignition tests
• Communication, signal scanning - CAN (CAN High / CAN Low), CAN FD, LIN, FlexRay and K line scanning
• Combined testing - the device is equipped with several scanning channels, which allow reading the readings of several components and sensors at the same time and combining them into common results. For example perform a general test of the sensors of the crankshaft and camshafts and the like
• Multi-function button panel - built-in multi-function buttons, 5-way innovative control, providing fast and high-precision control, which facilitates the performance of various tasks
• Increased Internal Memory – The memory is increased to 32 GB, which allows the user to store and access important files and data, such as specific signals, captured screenshots or recorded videos
• Smart connectors - PC software + mobile phone application (Android / IOS) for remote control using Wi-Fi, USB. The device has the ability to connect to the Internet and thus perform updates to its equipment. Various oscilloscope readings can be displayed on the screen using the HDMI output

Technical parameters:

• Bandwidth: 100 MHz

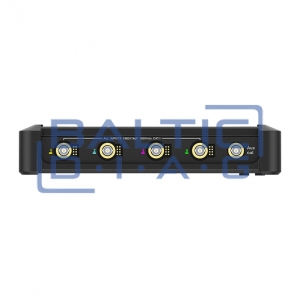

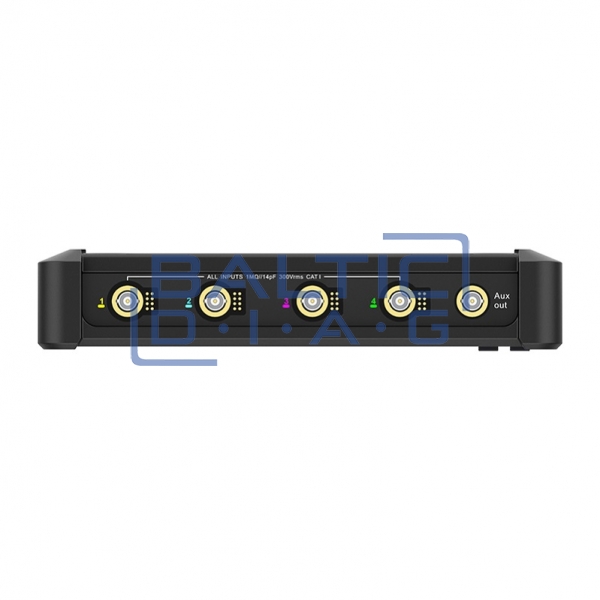

• Number of analog input channels: 4 channels
• Real-time sampling rate: 1 GSa/s (single channel)
• Memory depth: 70 Mpts (single channel)
• Band width Capture rate: 130,000 wfms/s
• Supported test: charging/starting current, sensors, components, ignition, communications (CAN L/H, CAN FD, LIN, Flexray, K line), combined checks
• Band width filter: full wavelength and weak signal

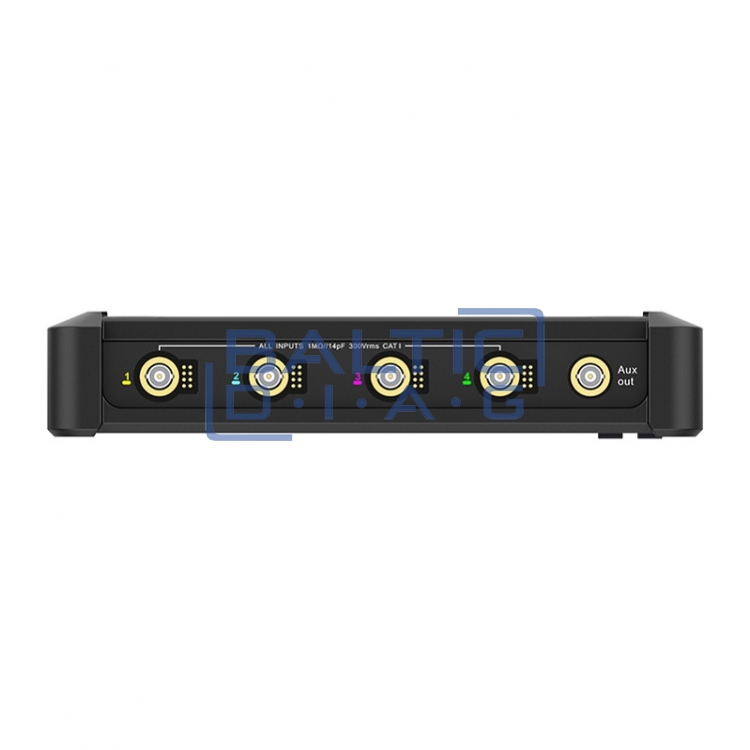

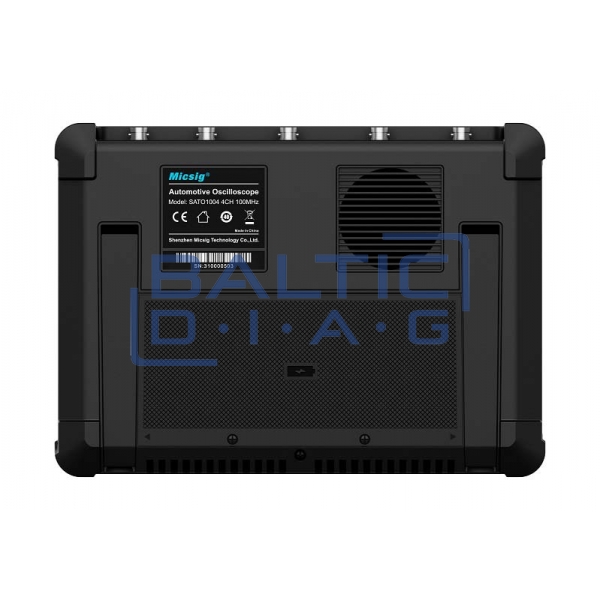

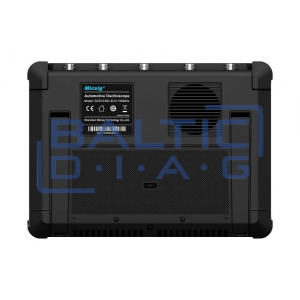

• I/O port connection: Wi-Fi, USB 3.0 / 2.0, USB Type-C, ground, HDMI, power button
• Screen: 8" inch, TFT - LCD touch screen, resolution - 800 x 600 Mp
• Dimensions: 265 x 192 x 50 mm
• Weight: 1.9 kg (with battery pack)

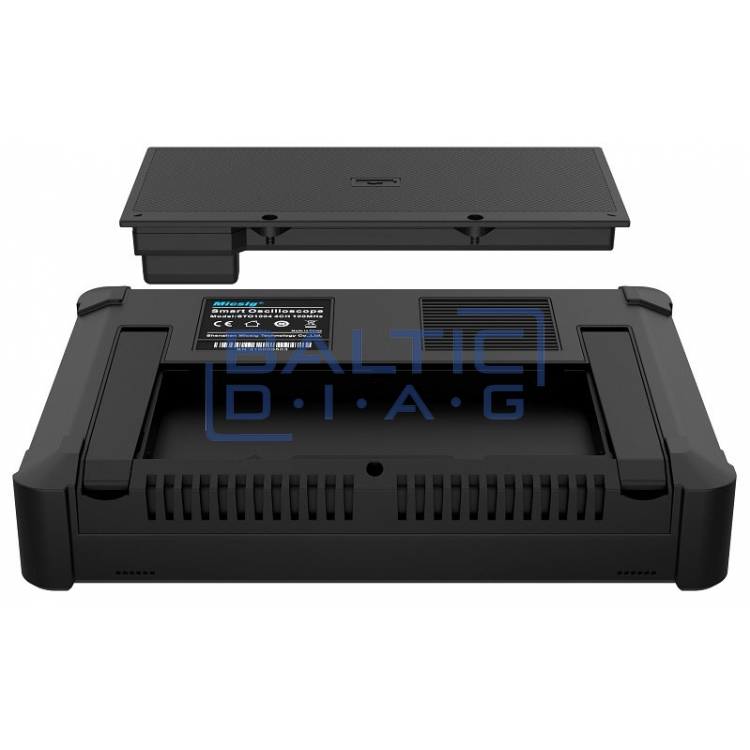

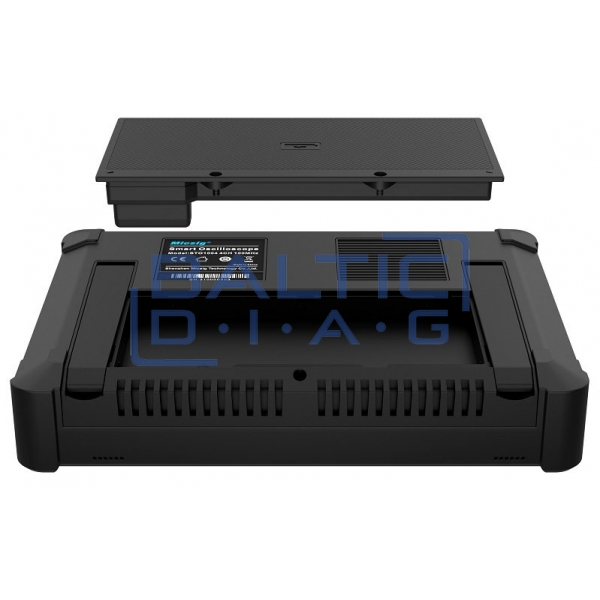

• Battery pack: 7.4 V, 7500 mAh, Li-ion battery

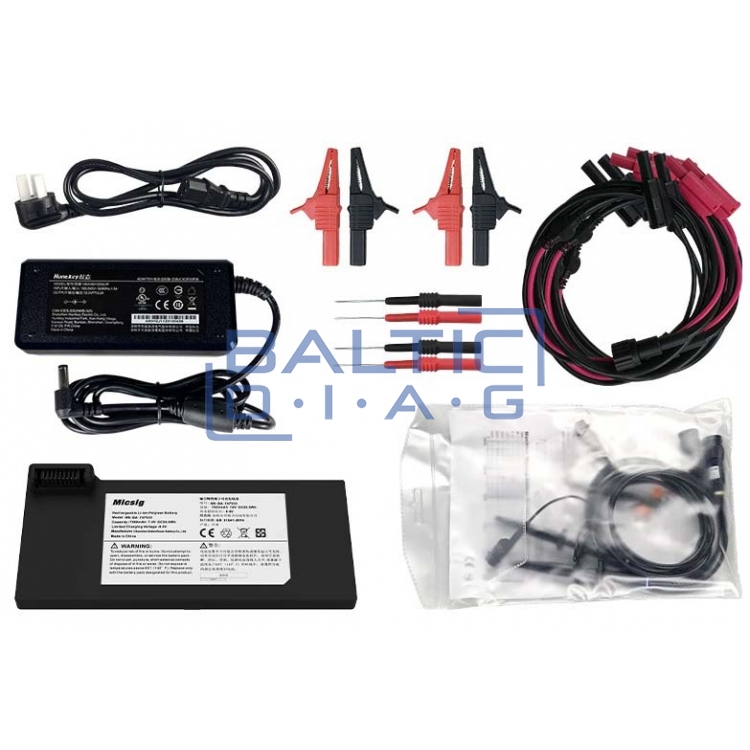

Optional accessories:

• Suitcase
• Equipment transport bag
