USB Autoscope Lite Automotive Diagnostic Oscilloscope for Beginners

Country of origin: Ukraine, warranty period - 24 months

The USB Autoscope Lite is an automotive diagnostic oscilloscope designed for beginners. It is intended for displaying, recording, and analyzing signals from vehicle sensors and electrical systems. The kit includes various automotive accessories, neatly packed in a compact cardboard box to minimize shipping costs. It is ideal for workshops and technicians starting out in vehicle diagnostics.

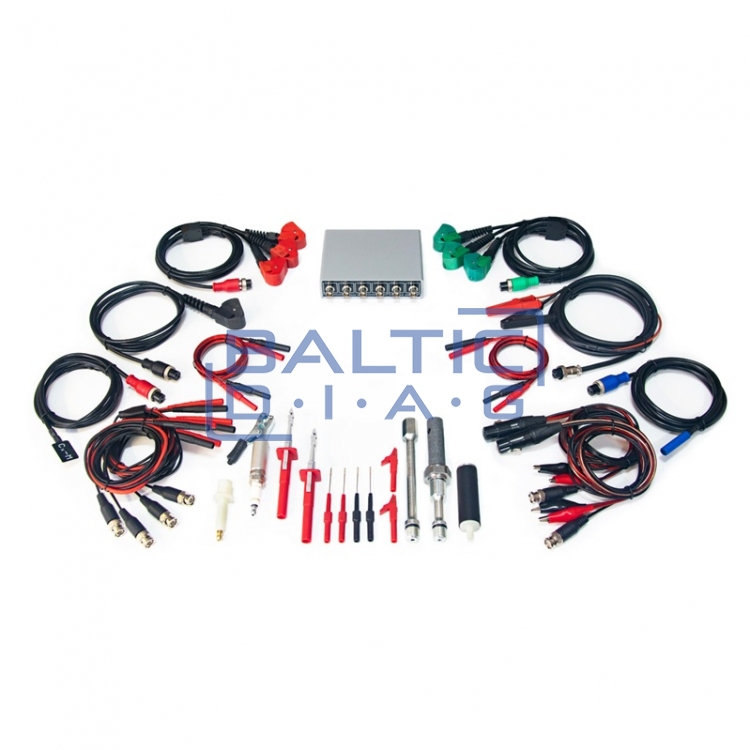

Features:
  • USB Autoscope Lite – a basic version of an 8-channel analyzer oscilloscope
  • Oscilloscope probes (4 pcs) – used to transmit signals from vehicle wiring to the oscilloscope
  • Needle probes (4 pcs) – for connecting to the electrical contacts of the vehicle
  • Crocodile clips (2 pcs) – for connecting to exposed terminals without damaging the wiring
  • DIS Cx6 capacitive probes – for diagnosing DIS and distributor ignition systems in 4- and 6-cylinder engines
  • Synchronization transducer – for cylinder synchronization via spark plug wire
  • Cx-M universal capacitive probe – for capturing secondary voltage waveforms from unshielded coil systems or systems with internal distributors
  • Lx-M universal inductive probe – for capturing voltage waveforms from shielded ignition coil systems or DIS systems located above spark plugs
  • Px8 in-cylinder pressure transducer – displays pressure waveforms in the cylinder ranging from -0.95 to +6 bar (-14 to 87 psi)
  • PxLonger M14 adapter – for deep spark plug wells (thread size M14x1.25)
  • Spark gap tester – used in place of the spark plug during in-cylinder pressure tests or ignition system diagnostics
  • Dx vacuum transducer – measures vacuum in the intake manifold, crankcase, and exhaust system in the range of -0.95 to +0.15 bar (-14 to 2.2 psi)
  • Insulation piercing probes (2 pcs) – for wire testing with minimal damage
  • XLR-BNC cables (2 pcs) – for connecting to Px8, Px35, Dx, Laser, CTi-M, and Piezo amplifier transducers
  • High voltage adapter – used to connect the ignition coil to the spark plug through an additional high-voltage wire
Technical specifications:
  • Connection type: USB
  • Power supply: via USB port
  • Number of channels: 8
  • Main diagnostic applications: analysis of signals from sensors, ignition systems, pressure, and vacuum
  • Kit type: full standard set for beginners
