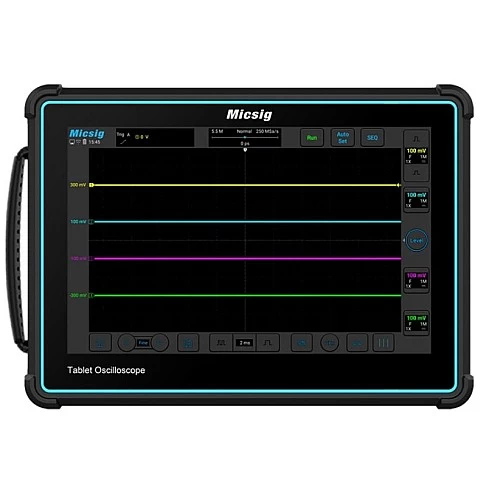

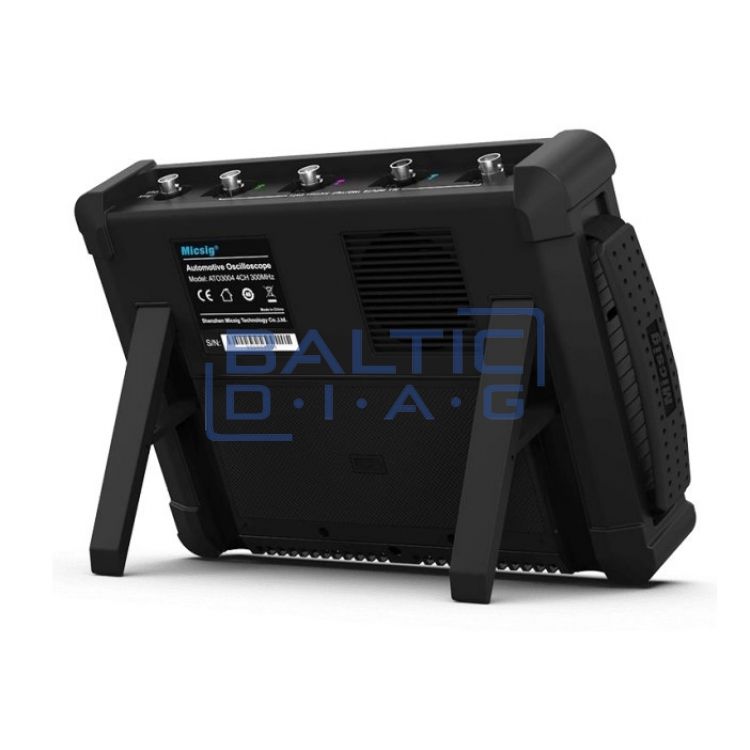

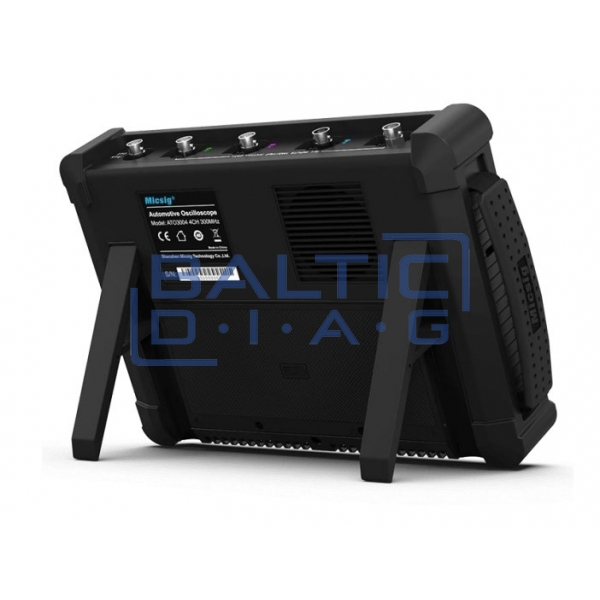

The Micsig ATO1004 is an oscilloscope from Micsig specially designed for the automotive industry. This model features a 1 GSa/s result scan rate, 110 Mpts memory depth and 100 MHz signal bandwidth. With various interfaces installed on the device, such as: WIFI, USB and HDMI, 4 channels and a 10.1" touch screen, you will be able to perform various tests and get clear and accurate results of these tests. Also, you will find special functions with the help of which you will be able to perform tests on various car systems: charging/starting circuits, ignition, etc. With 32 GB of internal memory, you can easily save the waveforms or screenshots of the tests performed, and these waveforms can be displayed on your phone or screen.

Features:

• Bandwidth: 100 Mhz
• Results scan rate: 1 GSa/s (single channel)
• Memory depth: 110 Mpts (single channel)
• Locking frequency: 78.000 wfm/s

Technical parameters:

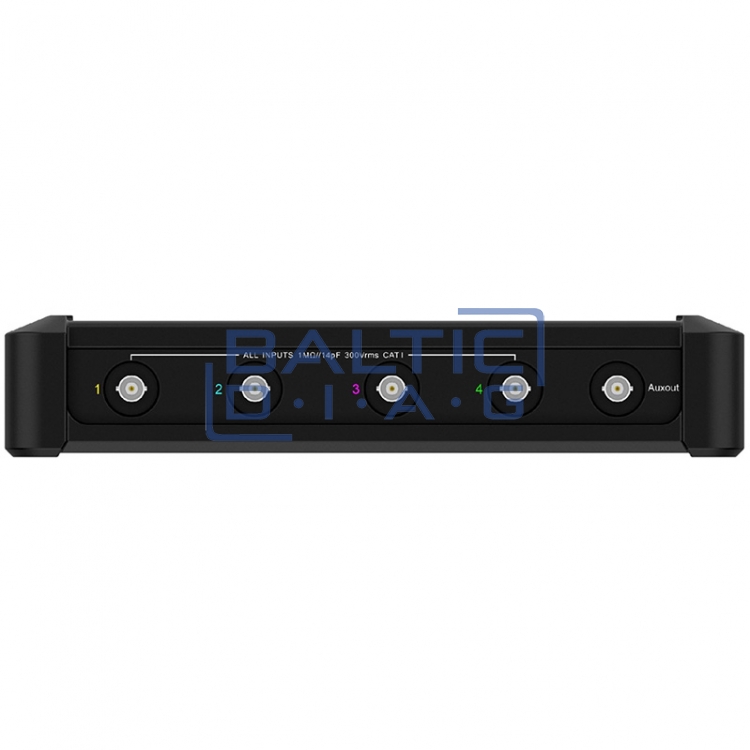

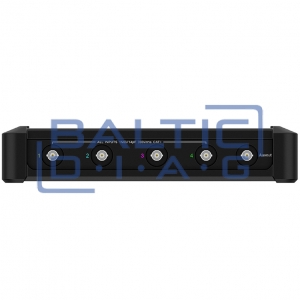

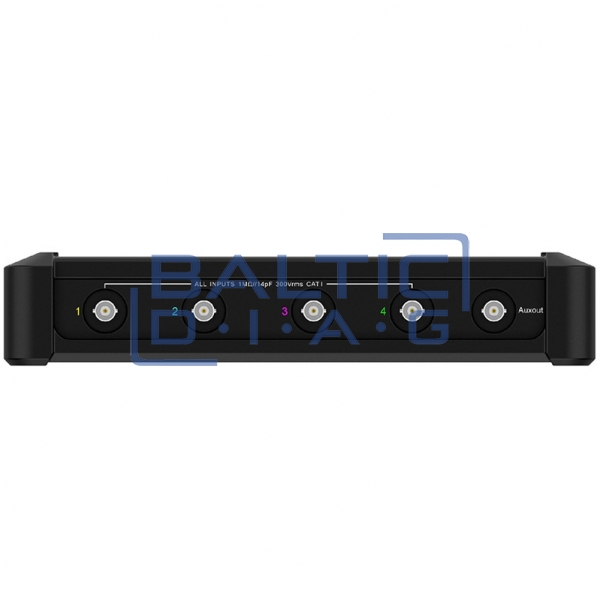

• Analog input channels: 4
• Results rendering speed: ≤3.5 ns
• Vertical scale: 1 mV/div - 10 V/div
• Horizontal scale: 2 ns/div - 1 ks/div
• Encryption type: UART, CAN, CAN FD, LIN, SPI, PC

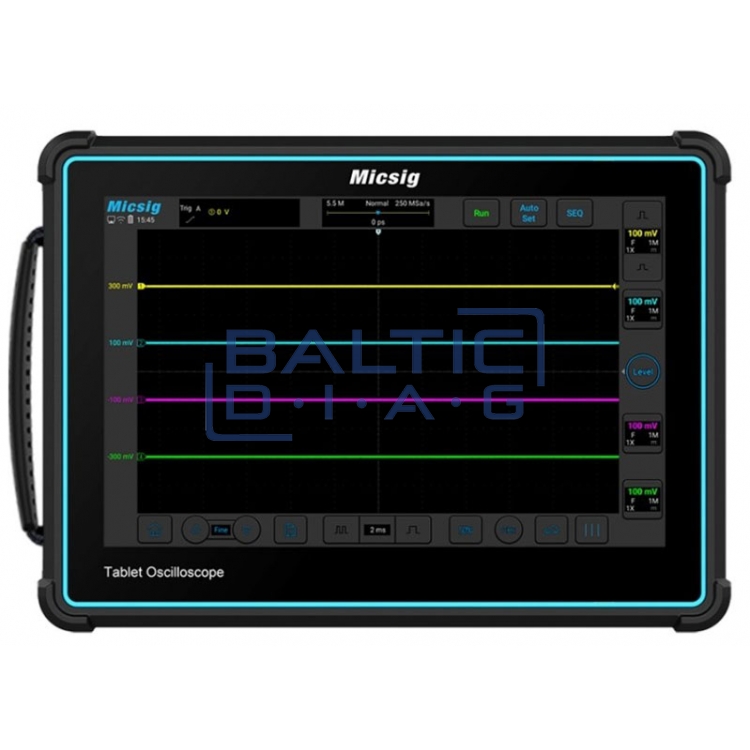

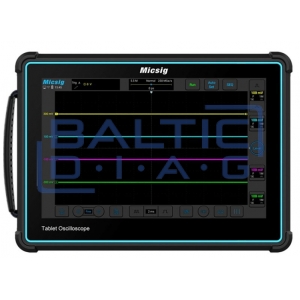

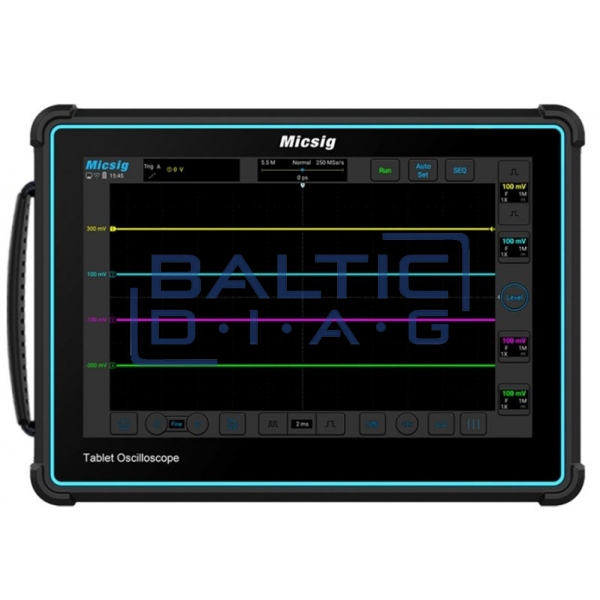

• Screen: 10.1” Touch LCD screen, 1280 x 800 pixels
• Internal memory: 32 GB
• Interfaces: Wi-Fi, USB 3.0/2.0 Host, USB Type-C, Grounding, HDMI, external power
• Battery: 7500 mAh
• Working time, with a fully charged battery: about 5 hours.
• Dimensions: 265 x 192 x 50 mm
• Weight: 1.9 kg (with battery)

Complete set:

• Equipment charger
• Oscillograph ATO1004
• Battery (integrated)
• Passive BNC probes x 2 pcs.
• BNC - "banana" cables x 4 pcs.
• Flexible needle probes x 4 pcs.
• Crocodile clips x 2 pcs.
