Professional digital multimeter JT2003 Jaltest

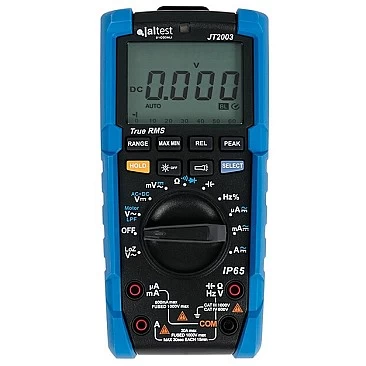

Professional Digital Multimeter JT2003 Jaltest

Country of Origin: Spain, warranty period - 24 months

The JT2003 professional digital multimeter is an industrial-grade measuring instrument designed to withstand demanding working conditions. It features true RMS measurement accuracy, IP65 protection, and shock resistance, making it ideal for various professionals, including electrical engineers, technicians, and other specialists. The JT2003 multimeter is an advanced device capable of accurately measuring AC/DC voltage and current, resistance, capacitance, temperature, and many other parameters. It meets high safety and durability standards with an IP65 protection rating and a 2-meter drop resistance, making it suitable for use in industrial and strong electromagnetic field environments. Its precision and multifunctionality help solve problems in industries such as chemical, petroleum, aviation, and other challenging work environments.

Safety Certifications:

• CE, TUV/GS certifications:
• EN 61010-1:2010
• EN 61010-2-030:2010
• EN 61010-2-033:2012
• EN 61010-031:2015
• EN 61010-1:2013
• CAT III 1000 V, CAT IV 600 V
• Pollution degree: 2
• Double insulation safety standard

Technical Specifications:

• Overload Protection: 1000 V between various input terminals and ground.
• 20 A Terminal (CE): FF 11 A H 1000 V fast-blow fuse (Φ10x38 mm).
• mA/µA Terminal (CE): FF 600 mA H 1000 V fast-blow fuse (Φ6x32 mm).
• Maximum Display Range: 6000 digits.
• Update Rate: 5 times per second, displays "0L" when out of range.

Additional Details:

• Range: MANUAL/AUTOMATIC
• Polarity: Automatic
• Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F)
• Storage Temperature: -10°C ~ 50°C (14°F ~ 122°F)
• Relative Humidity: 0°C ~ 30°C ≤75%, 30°C ~ 40°C ≤50%
• Operating Altitude: 0 ~ 2000 m
• Battery Type: 6F22 9V
• Low Battery Indicator: LED or symbol warning
• Dimensions: Approx. 195x95x58 mm
• Weight: Approx. 473 g (with batteries)

Electromagnetic Compatibility:

• Under RF field <1 V/m: Total accuracy = specified accuracy + 5% of range; no specifications provided for RF fields >1 V/m.
