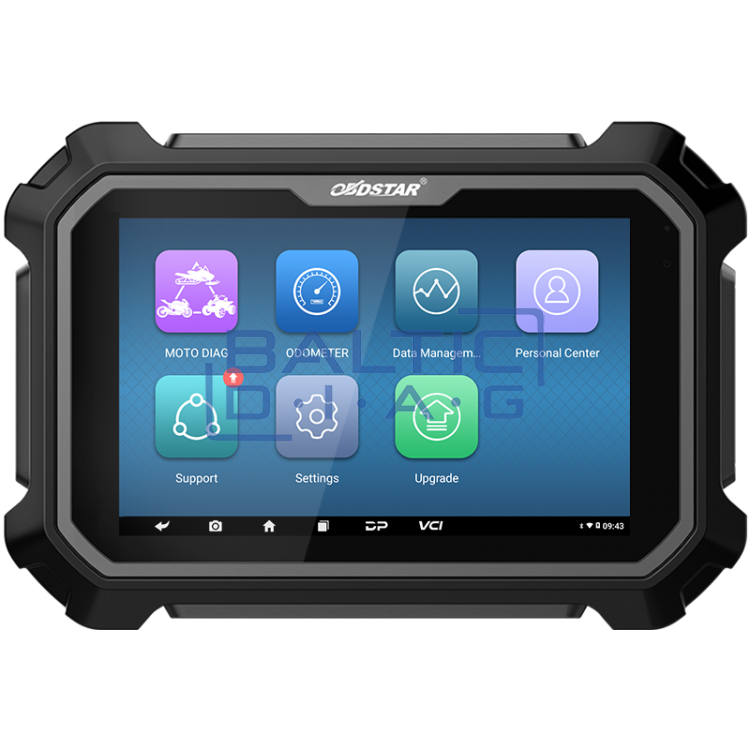

Motorcycle diagnostics OBD Star MS80 BASIC

Motorcycle diagnostics OBD Star MS80 BASIC

The MS80 BASIC has professional-grade intelligent diagnostics that provide unprecedented intelligent diagnostic and maintenance experience - first-time troubleshooting instructions, a technical bulletin, data flow assistance, a diagnostic socket, and other features to help diagnose accurately and efficiently; exclusive interactive circuit diagram and electrical interrogation system, easy troubleshooting so you don’t have to worry about in-vehicle diagnostics.

Functions:

• New android 5.1.1 operating system;
• Simple and intuitive menu control allows you to quickly master the operation of the equipment;
• Provide all diagnostic functions, including code reading, code clearing, data flow, action test, setting, coding, etc .;
• Arbitrary menu selection is more convenient and faster;
• Record and restore data traffic in real time, quickly and accurately detect sensor and component failures;
• Wi-Fi internet connection, one-click software update;
• One-click remote function, remote assistance from OBDSTAR technical staff;
• Support fault diagnosis of most luxury locomotives and tens of thousands of models in the world.

Advanced feature:

• First fault instructions, help data, technical bulletin, diagnostic socket, etc. helps to diagnose accurately and efficiently;
• Exclusive interactive circuit diagram and electrical description query function for trouble-free diagnosis;
• Various data flow display modes such as text, waveform diagram and device diagram for easy fault analysis;
• Auto Scan, Automatic VIN Recognition, Control Module Programming and Coding, ECU Setup, Device Coding, Tire Pressure Monitoring System, Maintenance Lamp Reset, CO Adjustment, Idle Adjustment, A / F Reset, ABS Control Unit Setting, EOL Mode, Transmission resetting memory, clearing computer memory, and more.

Technical parameters:

• Operating system: Android 5.1.1
• Processor: Exynos4418, quad-core, ARMcortex A9
• Battery capacity: 3700 mAh
• Battery: lithium polymer
• Additional memory card: up to 32 GB, SD TF
• Internal memory: 32 GB
• Screen: 8", LCD, touch sensitive
• Screen resolution: 1280 x 800
• Wi-Fi interface: available
• Camera: 5 Mpx rear camera
• Operating temperature: -10 °C ~ 55 °C
• Storage temperature: -20 °C ~ 70 °C
• Weight: 1 kg
• Dimensions: 254 x 174 x 35 mm

Motorcycle / Snowmobile / ATV / UTV Diagnostic Support Series:

• ASIA:

AEON, BAJAJ, BENELLI (DSK), DAELIMMOTOR, HARTFORD, HERO, HONDA, HYOSUNG, KAWASAKI, KYMCO, PGO, ROYAL ENFIELD, SUZUKI, SYM, TGB, TV, YAMAHA

• EUROPA:

ADIVA, AJP, APRILIA, BENELLI, BETAMOTOR, BMW, BRIXTON MOTORCYCLES, BROSE, BROUGH SUPERIOR, DERBI, DUCATI, FANTIC MOTOR, FBMONDIAL, GASGAS, GG TECHNIK, GILERA, GOES, HM, KJTOVARNNAG, HM. , KVN MOTORS, LAMBRETTA, MACBOR, MALAGUTI, MASH, MBK, MGK HM, MH, MINSK, MOTO GUZZI, MOTO MORINI, MV AGUSTA, ORCAL, OVERBIKES, PEUGEOT, PIAGGIO, QOODER, QUADIX, RIEQUADROOYAL, SW, STEL TRIUMPH, VERVE MOTO, VESPA, WOTTAN

• AMERICA:

ACELLERA, ARCTICAT, BRP, BUELL, COLEMAN, CSC MOTORCYCLES, DAFRA, HARLEY-DAVIDSON, INDIAN, KELLER, POLARIS, VICTORY

• CHINA:

ARIIC, BAODIAO, BENDA, CFMOTO, CHINA ABS, CHINESE ENGINE, CQZONGSHEN, CYCLONE, DAYANG, DAYUN, DONGFANG, FYM, GAOKIN, GEELY MOTOR, GENERIC, GEON, GUOWEI, HAOJIANG, HAHAIVANG, HAHAOJEINWICH, HA LONGJIA, QJBENELLI, QJMOTOR, REGAL RAPTOR, RIYA, SHINERAY, SINNIS, TARO, TIANMA, VOGE, WYHONDA, XDZHONDA, ZONTES

Odometer recalibration support series:

• EUROPA:

APRILIA, BENELLI, BMW, CAGIVA, DUCATI, GENERIC, KTM, MV AGUSTA, PEUGEOT, PIAGGIO, TRIUMPH

• AMERICA:

BUELL, HARLEY-DAVIDSON

• ASIA:

HONDA, KAWASAKI, SUZUKI, YAMAHA

• CHINA:

HAOJUE, KYMCO

Supported motorcycle manufacturers and features:
