Motorcycle diagnostic equipment OBDSTAR MS80

Motorcycle diagnostic equipment OBDSTAR MS80

MS80 next-generation motorcycle (motorcycle / PWC / snowmobile / ATV / UTV, etc.) diagnostic equipment developed by OBDSTAR Technology Co., Ltd, running with Samsung Exynos processor, extremely fast and efficient. Equipped with an 8-inch touch screen. The OBDSTAR MS80 has professional-grade intelligent diagnostics that provide intelligent diagnostic and maintenance experience - first fault indication, technical bulletin, help database and other functions that will help you perform diagnostics accurately and efficiently. Exclusive interactive chart and electronic query system, easy to troubleshoot, so you don’t have to worry about motorcycle diagnostics.

Features:

• New Android 5.1.1 operating system
• Simple and intuitive menu control allows you to quickly master the operation of the equipment
• All diagnostic functions are provided, including error code reading, fault code deletion, data flow, action testing, setting, coding, and more.
• Menu selection is more convenient and faster
• Record and recover real-time data streams, quickly and accurately diagnose sensor and component failures
• Wi-Fi connection to the Internet, one-click software update
• Remote assistance of OBDSTAR technical staff
• Thousands of motorcycle models

Advanced features:

• The first troubleshooting instructions, help data, technical bulletin will help diagnose accurately and efficiently.
• Exceptional interactive schema and electronic description query function for trouble-free diagnostics.
• Various traffic display modes, such as text, waveform diagrams, and diagrams for easy fault analysis.
• Automatic scan, automatic VIN recognition, control module programming and coding, ECU setting, instrument coding, tire pressure monitoring system, maintenance light reset, CO adjustment, idle speed adjustment, A / F value reset, ABS control unit setting, EOL mode, reset transfer memory, clear computer memory, and more.

Motorcycle / snowmobile / ATV / UTV support:

• Europe - Adiva, AJP, Aprilia, Benelli, BMW, Brixton Motorcycles, Derby, Ducati, Fbmondial, Gasgas, Gilera, Goes, Husaberg, KSR Moto, KTM, KVN Motors, Lambretta, Macbor, Malaguti, MBK, MH, Minsk, Moto Guzzi, MV Agusta, Peugeot, Piaggio, Qooder, Quadro, Sherco, Stels, Triumph, Verve Moto, Vespa.
• America - Coleman, CSC Motorcycles, Dafra, BRP, Harley Davison, Indian 、 Keller, Victory.
• Asia - CFMOTO, Royal Enfield, Hero, TVS, Bajaj, Aeon, Benelli (DSK), Daelimmoto, Honda, Hondamontesa, Kawasaki, Kymco, PGO, Suzuki, SYM, Yamaha.

Supported motorcycle brands for key programming:

• Gilera, Harley Davison, Peugeot, Piaggio, Triumph, Vespa.
• PWC supporting vehicle series:
• BRP, Honda, Kawsaki, Yamaha

Technical data:

• Operating system: Android 5.1.1
• CPU: Exynos4418 Dual Core ARM Cortex A9
• Battery: 3700mA

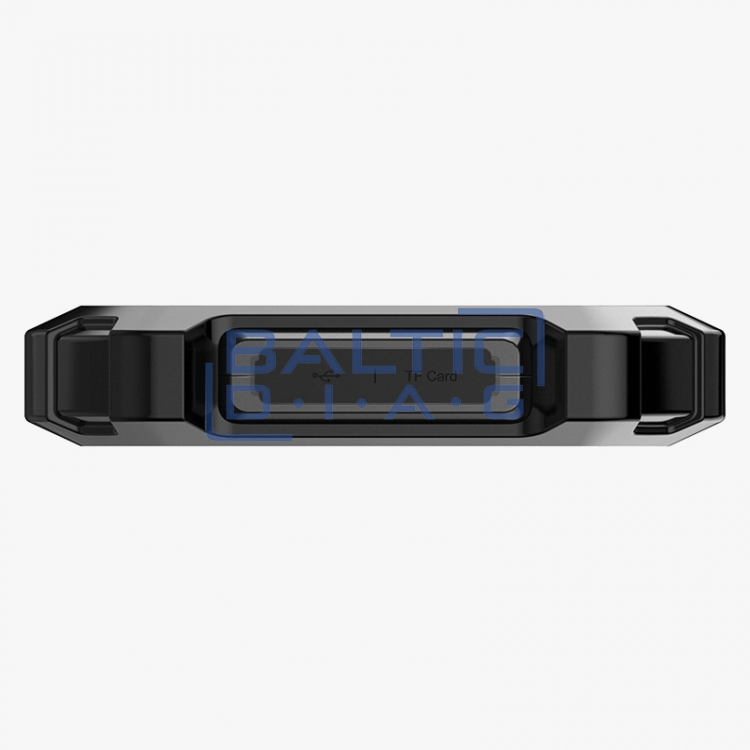

• Additional memory card: 32G Micro SD (TF)
• Memory: 32GB

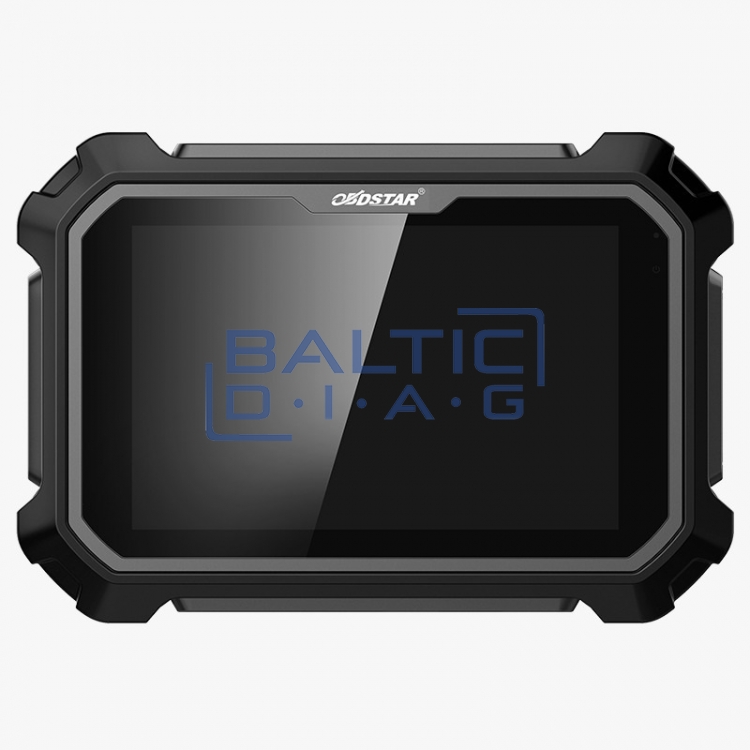

• LCD screen: 8.0 "
• LCD resolution: 1280 x 800
• Touch screen:
• Wifi: supported

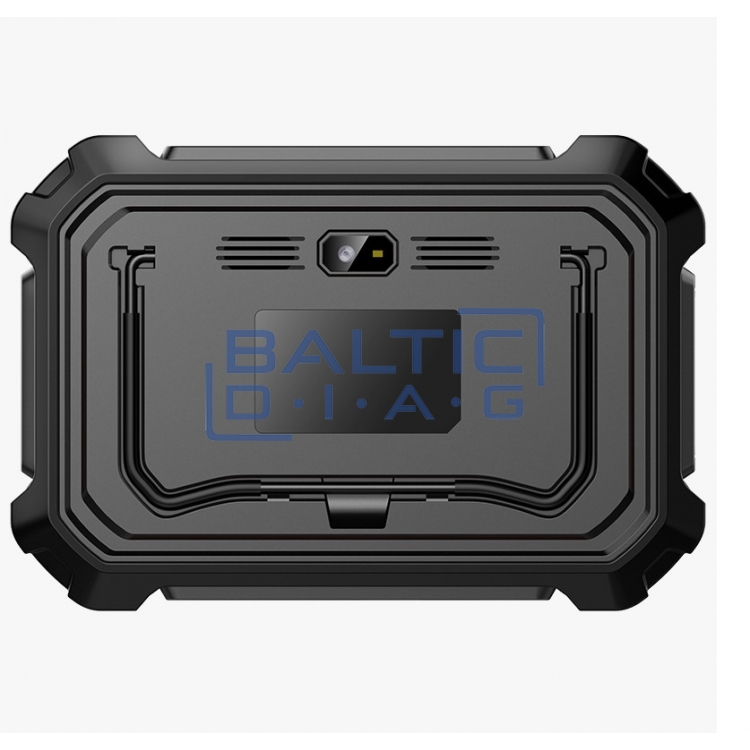

• Camera: 5 megapixels
• Operating temperature: -10 ～ ～ 55 ℃
• Storage temperature: -20 ～ ～ 70 ℃
• Weight: 1 kg
• Dimensions: 254 x 174 x 35 mm

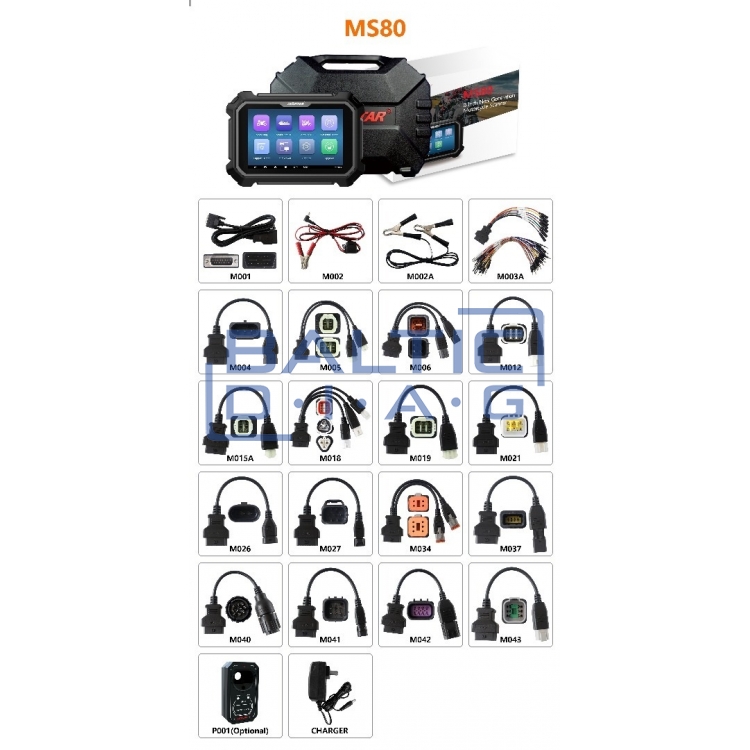

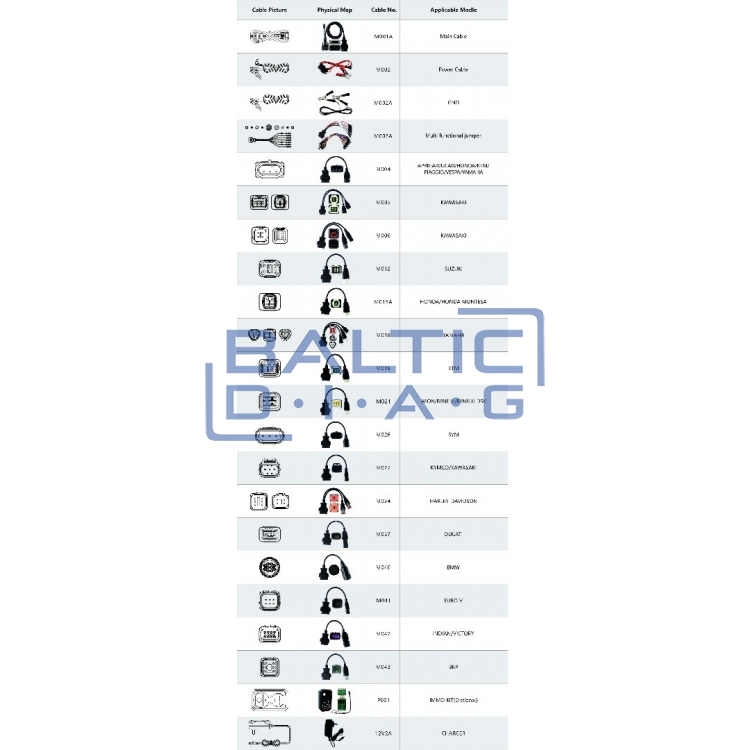

Accessory set:

• M001A - main cable
• M002 - charging cable
• M002A - GND
• M003A - multifunction cables
• M004 - Aprilia / Ducati / Honda / KTM / Piaggio / Vespa / Yamaha
• M005 - Kawasaki
• M006 - Kawasaki
• M012 - Suzuki
• M015A - Honda / Honda Montesa
• M018 - Yamaha
• M019 - KTM
• M021 - Aeon / Benelli / Benelli DSK
• M026 - SYM
• M027 - Kymco / Kawasaki
• M034 - Harley-Davidson
• M037 - Ducati
• M040 - BMW
• M041 - Euro V
• M042 - Indian / Victory
• M034 - BRP
• P001 - IMMO KIT (optional)
• 12V2A - charger

Supported motorcycle manufacturers and features:
