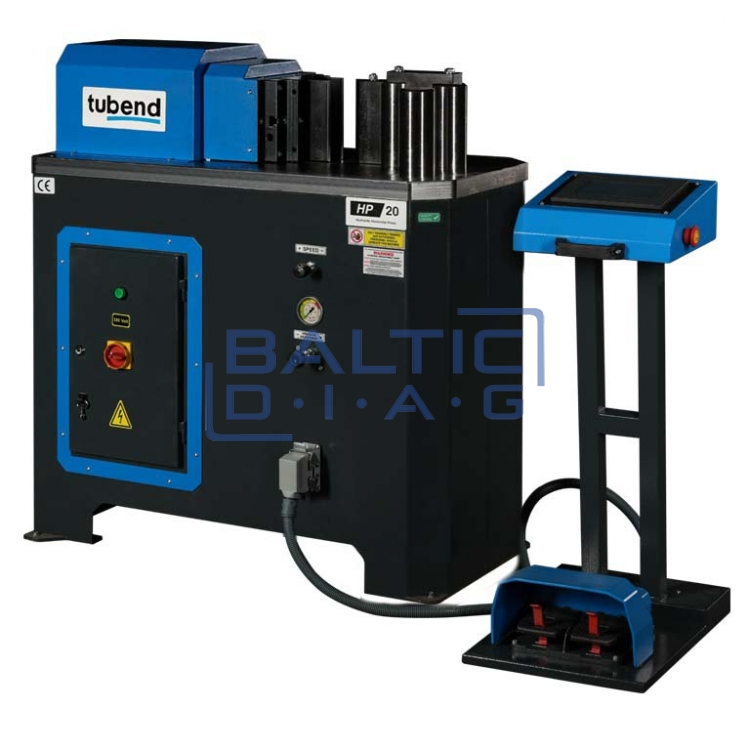

Horizontal forming press HP20

Horizontal forming press HP20

This hydraulic horizontal forming press can easily perform the following jobs - bending, shearing, punching, forming, etc. It uses standard or optional accessories and molds. The press ensures high-quality work with extreme precision. It is the perfect choice for professionals looking for efficiency, precision and durability in their molding operations. Thanks to advanced functions and an easy-to-use design, the machine makes it extremely easy to achieve high-quality results.

Features:

• Ergonomic
• Hydraulic pressure and speed regulation

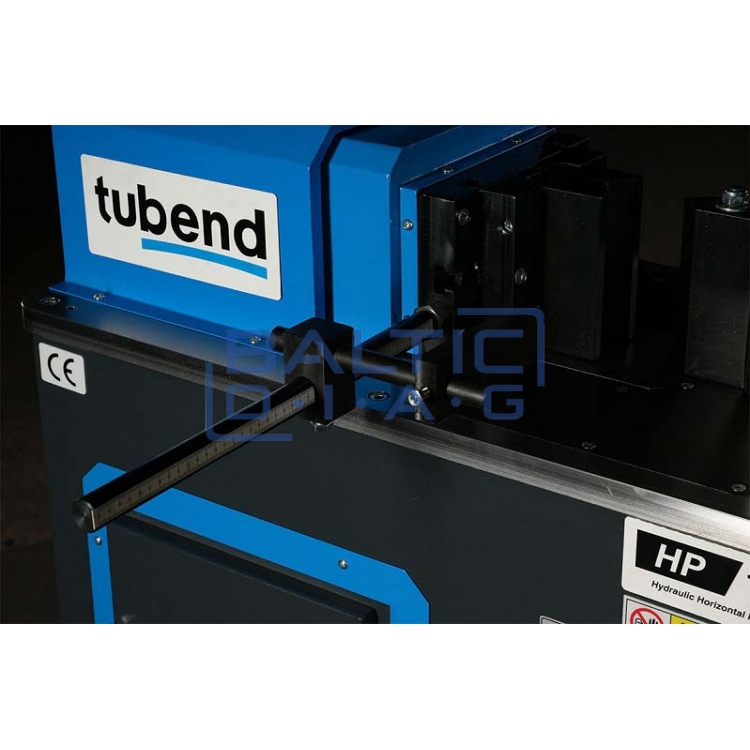

• Easy rear support adjustment
• Induction hardened pins
• NC control panel

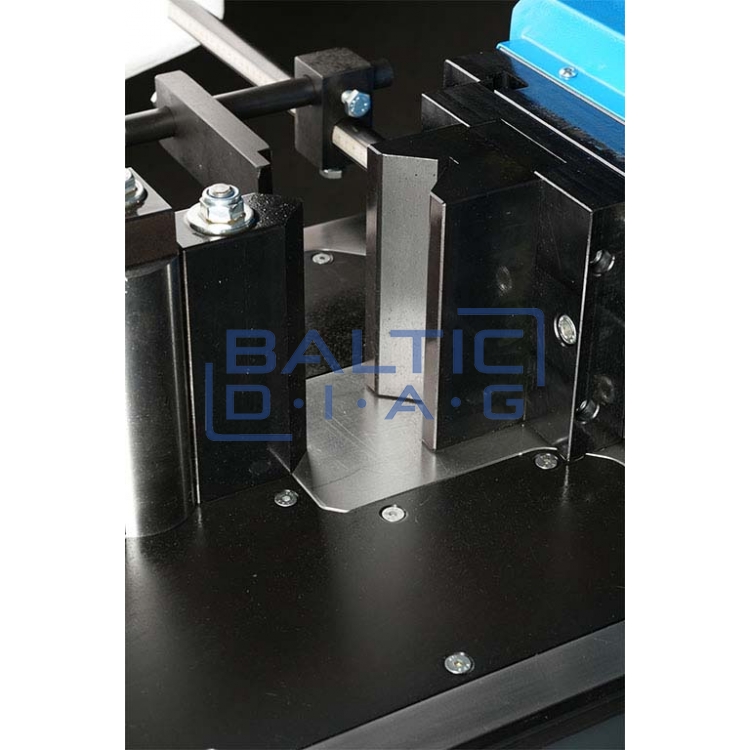

• Easy tool change

Technical parameters:

• Maximum pressing power at 200 bar pressure: 20 tons
• Bending of flat materials: 200 x 10 mm
• Maximum stroke: 200 mm
• Tool mounting height: 200 mm
• Working speed: 10 mm/sec
• Electric motor power: 2.2 kW
• Dimensions: 600 x 1100 x 1220 mm
