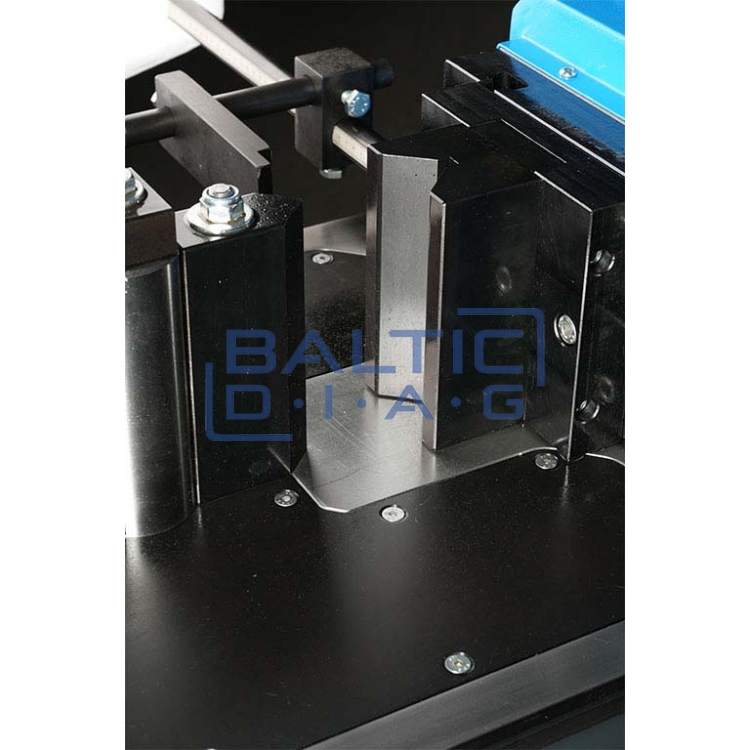

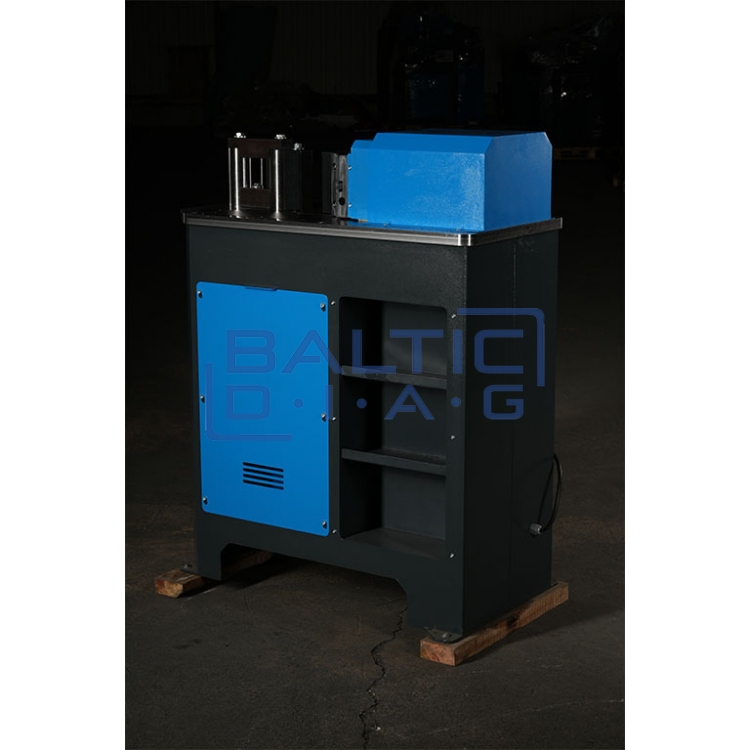

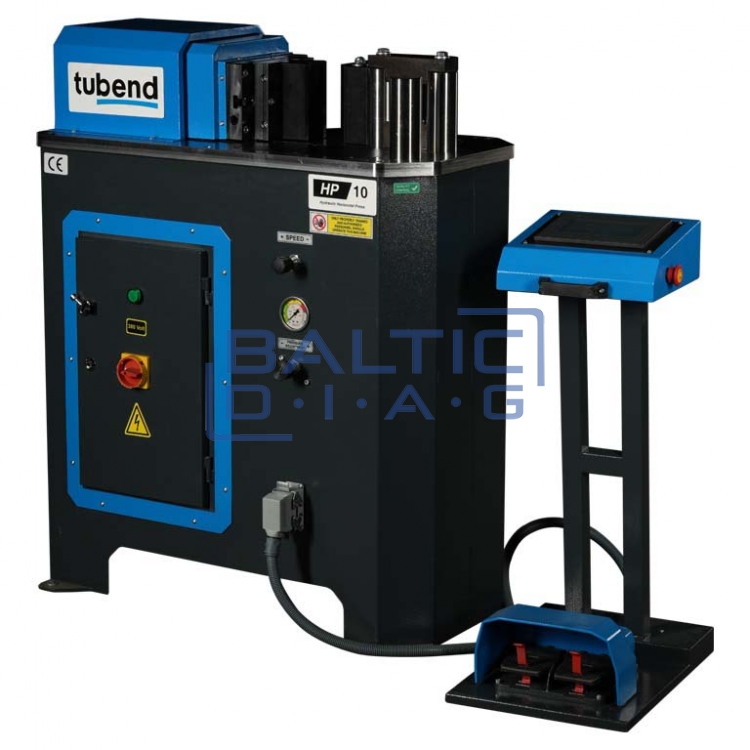

Horizontal forming press HP10

Horizontal forming press HP10

This hydraulic horizontal forming press can easily perform the following jobs - bending, shearing, punching, forming, etc. It uses standard or optional accessories and molds. The press ensures high-quality work with extreme precision. It is the perfect choice for professionals looking for efficiency, precision and durability in their molding operations. Thanks to advanced functions and an easy-to-use design, the machine makes it extremely easy to achieve high-quality results.

Features:

• Ergonomic
• Hydraulic pressure and speed regulation

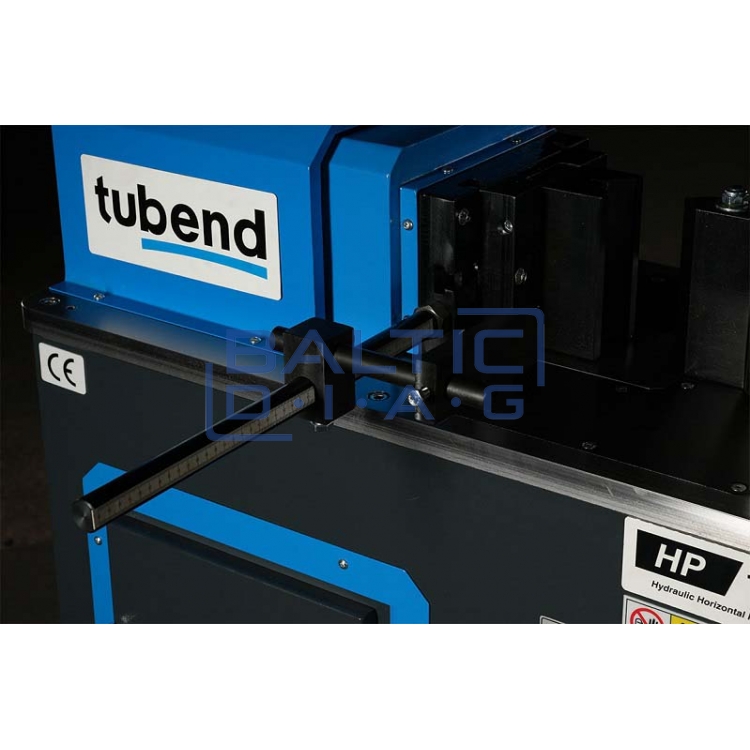

• Easy rear support adjustment
• Induction hardened pins
• NC control panel
• Easy tool change

Technical parameters:

• Maximum pressing power at 200 bar pressure: 10 tons
• Bending of flat materials: 150 x 6 mm
• Maximum stroke: 200 mm
• Tool mounting height: 150 mm
• Working speed: 10 mm/sec
• Electric motor power: 1.1 kW
• Dimensions: 500 x 900 x 1150 mm
• Weight: 400 kg
