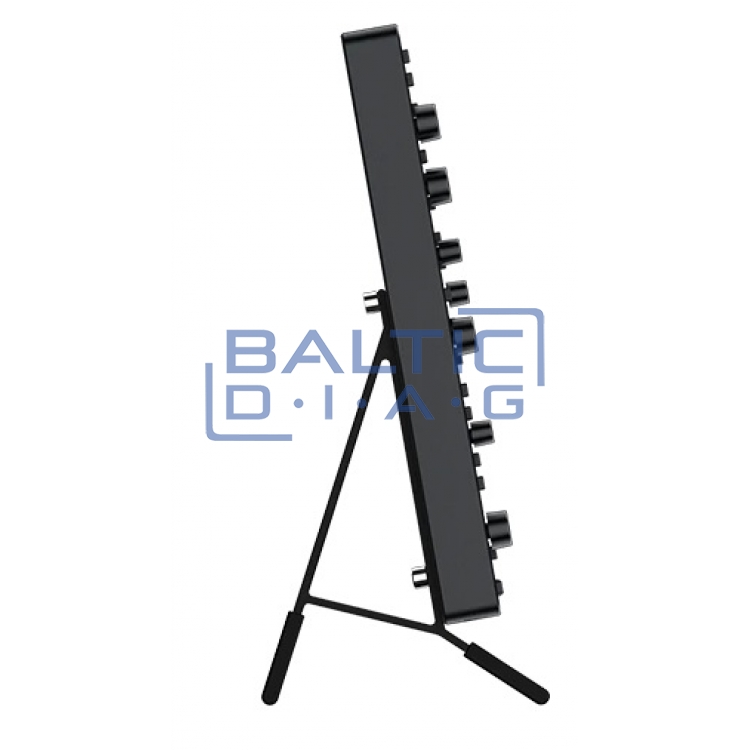

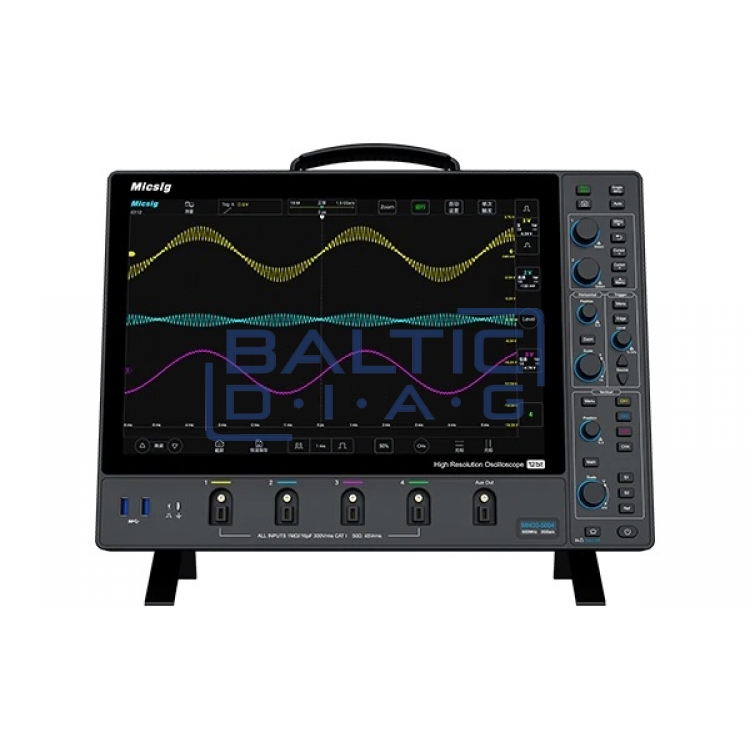

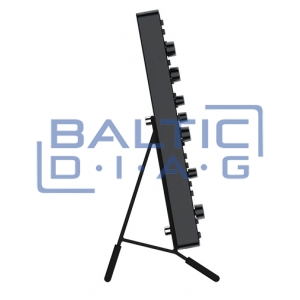

The MHO 3 Series is a high-resolution oscilloscope that has 12-bit vertical resolution, allowing you to look at test signal results in even greater detail. It also has 250 MHz bandwidth, 3 GSa/s data readout rate, 4 analog input channels, memory depth reaching 360 Mpts and an ultra-slim design of 3.58 cm, which allows the device to be easily hung on a wall or on a table. a special holder for it. The integrated 14" touch-sensitive screen with a resolution of 1920 x 1200 will give you the clearest and most understandable display of various waves.

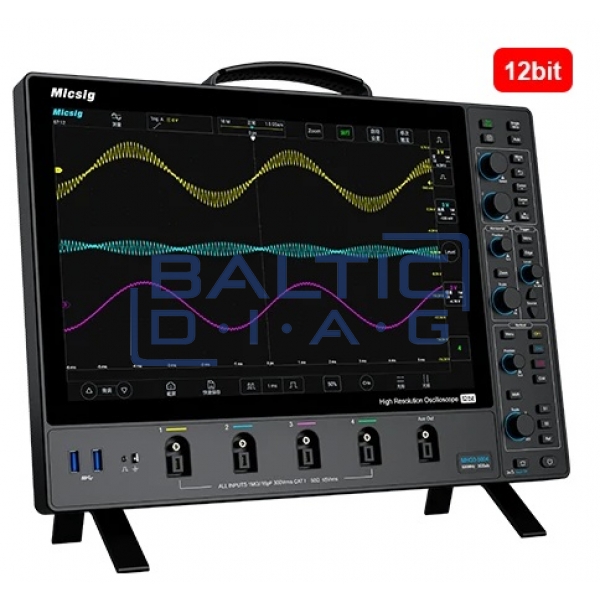

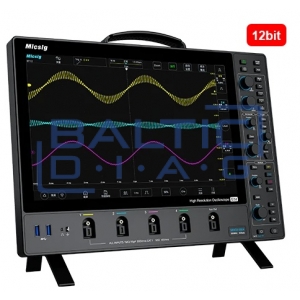

The Micsig MHO 3 oscilloscope is particularly distinguished by its high ADC 12-bit resolution with a quantization level of 4096, which is 16 times more than traditional 8-bit ADCs. Therefore, users can observe the waveforms and their details of the generated signals much more thoroughly and clearly. By combining the SigTestUI™ operating system with 10 years of experience and user feedback, the MHO 3 Series has been created, allowing the user to enjoy a simplified user interface that novice users can learn in minutes. The original Mic-OPI™ probe interface automatically detects passive probe attenuation and performs automatic calibration at the touch of a button. The MHO 3 Series noise is less than 80 μVrms at full 500 MHz bandwidth, allowing engineers to accurately capture weak but important signals during daily system testing and debugging.

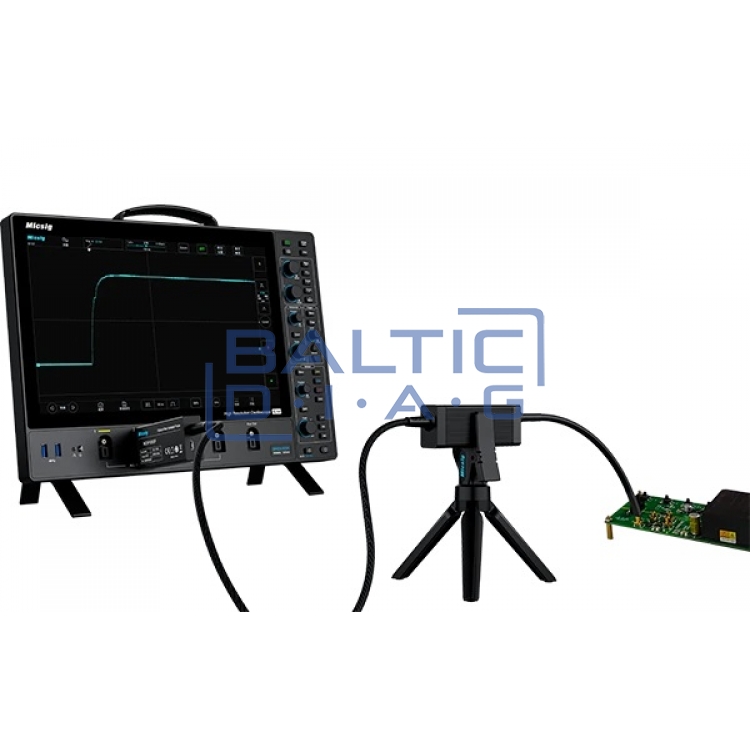

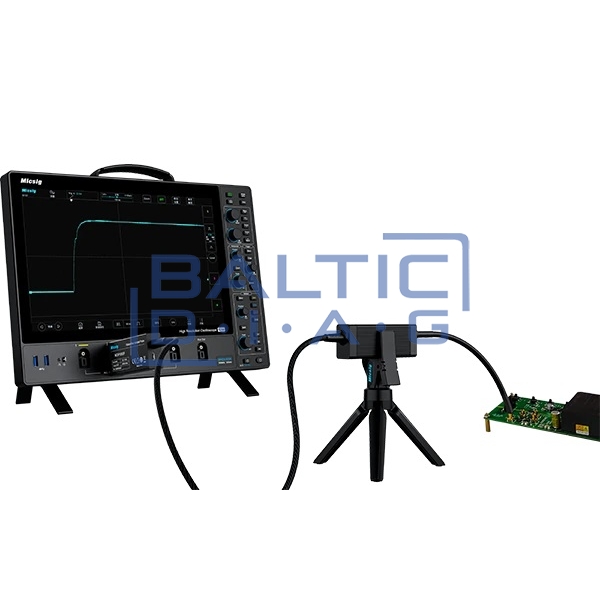

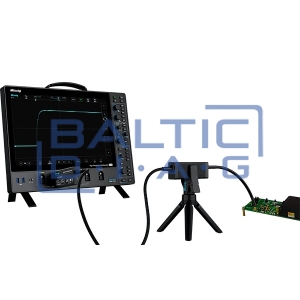

Memory depth of up to 360 Mpts ensures excellent signal fidelity. Segmented storage divides the limited memory space into several smaller segments and collects several generated pulses into one storage location. Very effectively captures target signals, many times over a long period of time and allows them to be played back for further analysis. In software, digital filtering can selectively skip or block signal components within a certain frequency range. This is very useful for analyzing specific frequency bands of a signal or monitoring changes in specific frequency components. In addition to standard passive probes, the MHO series communicates with all Micsig probes: fiber optic isolated probe, high voltage differential probes and AC/DC probes. Such instrument compatibility can maximize the performance and versatility of the probe and oscilloscope.

Technical parameters :

• Bandwidth: 250 MHz
• Rise - Time: ≤ 1.4 ns
• Analogue channels: 4
• Memory depth: 360 Mpts (breaks down depending on active channels)
• Real-time sampling rate: 3 GS/s (breaks down depending on active channels)
• Maximum waveform capture speed: 230,000 wfm/s
• Vertical resolution: 12-bit
• Vertical scale: 1 mV/div - 10 V/div
• Horizontal scale: 1 ns/div - 1 ks/div
• Noise: < 80 µVrms
• Input interfaces: USB 3.0, USB type C, HDMI, LAN, power socket
• Decoding: RS-232/422/485/UART, CAN, CAN FD, LIN, SPI, I2C, ARINC429, 1553B
• Display: 14" TFT LCD (1920x1200)
• Dimensions: 400 x 280 x 35.8 mm
• Weight: 4.3 kg

Compaction:

• 4x MSP500 passive probes
• 4x MSP-BNC adapters
• 1x Power supply unit
