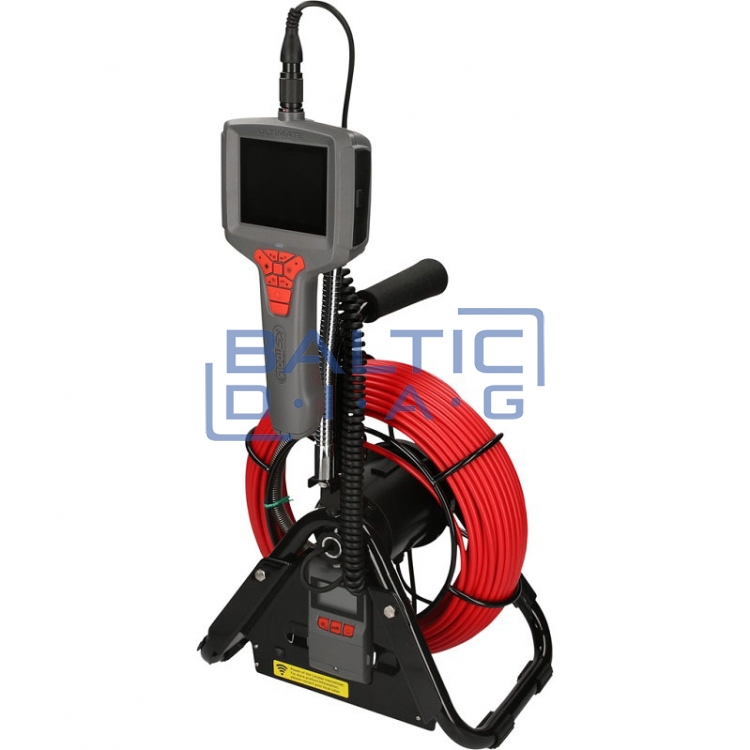

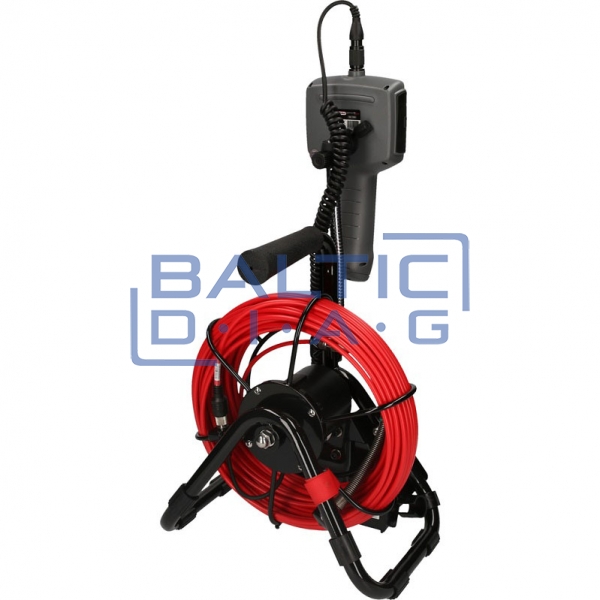

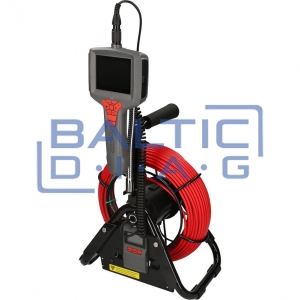

Endoscope with coil KS Tools Master, 6 mm

Endoscope with coil KS Tools Master, 6 mm

The KS Tools Master Endoscope is an advanced monitoring device designed for field professionals who require accurate and detailed visual inspections that are extremely difficult to achieve on site. With a 6 mm probe and an impressive 30 meter long coil, this endoscope provides unparalleled image detail in its various applications. It doesn't matter whether I'm working with this device on automotive, plumbing, construction or industrial objects, this endoscope will always give you the precision and reliability you need after examination and efficiency.

Features:

• Probe with a stable body structure
• Flexible probe head for optimal flexibility

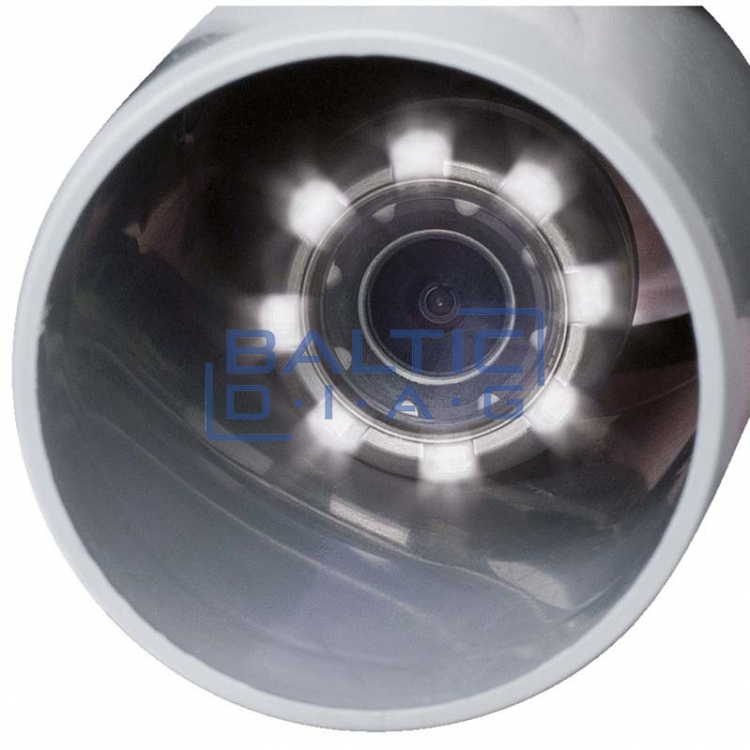

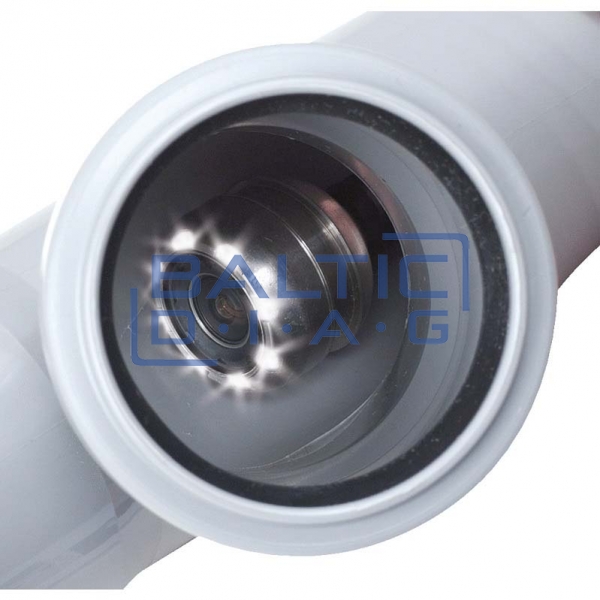

• 8 LEDs with adjustable brightness
• A mobile and independent system

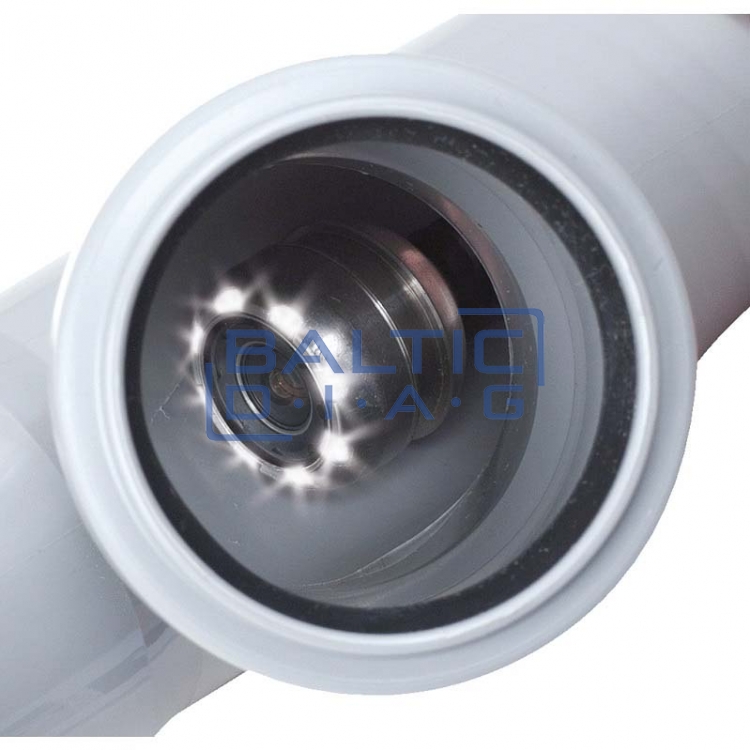

• The probe is wear-resistant and its tip is made on a spring-type tip
• Excellent image quality and recording through a special video camera on the probe tip
• 1.5x digital zoom function
• Horizontal image reflection function
• Receiving photos in JPEG format
• Videos in MPEG4 format
• Ability to view footage on a large screen using the AV connector
• Data transfer is possible using a USB stick
• SD plug for SD memory card
• Multilingual art (14 languages)
• A wide range of applications
• 2-component housing protects against light impacts

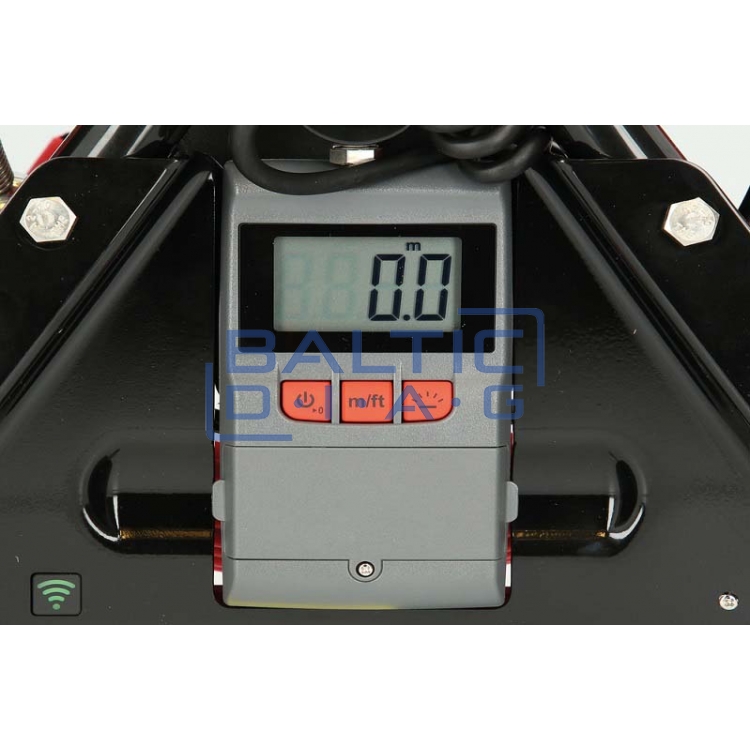

• Complete with a digital counter

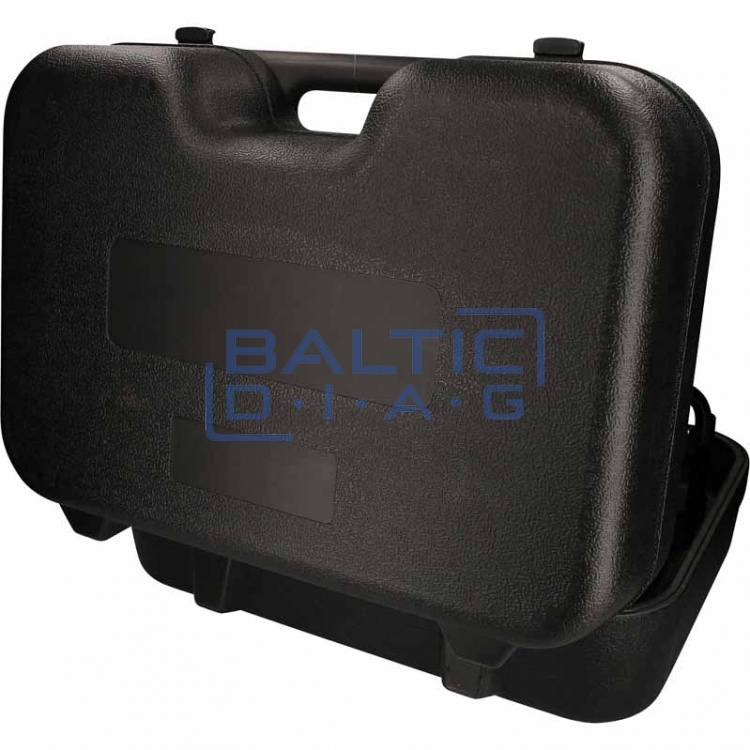

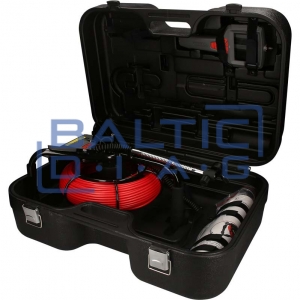

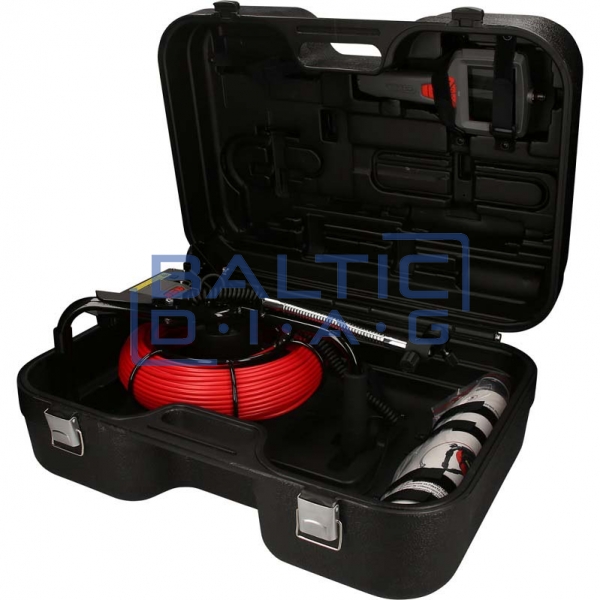

• The endoscope is sold with a specially designed case

Technical parameters:

• Probe length: 30 m
• Probe diameter: 6 mm
• Reel diameter: 300 mm
• Weight: 10.6 kg
• Video format: AVI
• Internal memory: SD card up to 2 GB
• Battery type: alkaline
• Battery type: AA
• Package dimensions: 613 x 457 x 266 mm
• Current consumption: 5.5 V - 1.8 A / DC
• Protection class: IP65
• Body material: plastic
• Light source: 8 adjustable brightness LEDs
• Application: 40 – 100 mm - 90° bending possible for diameters greater than 50 mm
• Output format: NTSC and PAL
• Optimum focus range: 10mm
• Brightness: 33 lux
• Video camera resolution: 320 x 240 = 76800 pixels
• Probe materials: stainless steel and tempered glass
• Lens angle: 150.8° diagonal
• Compression format: MPEG 4
• Management languages: German, English, French, Spanish, Italian, Danish
• Endoscope rechargeable battery: Li-polymer, 3.7 V (230 V / 50 Hz)
• Operating time: about 4 hours when the battery is fully charged
• Operating temperature: -10 °C - + 70 °C
• Bending angle: 150 mm
• Screen: 3.5" (TFT LCD QVGA)
• Photo save format: JPEG (640 x 480)
