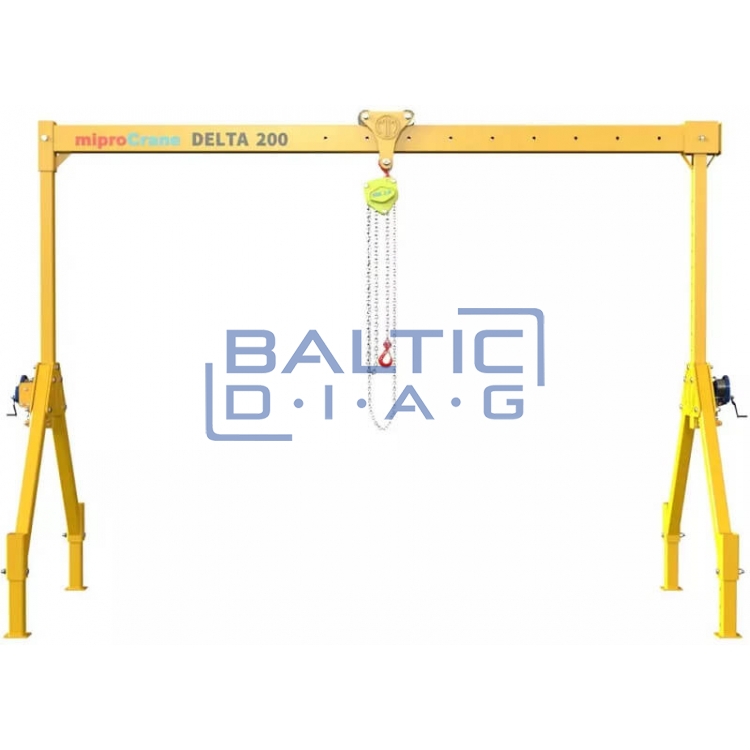

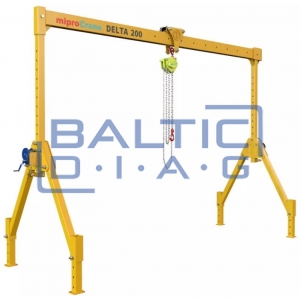

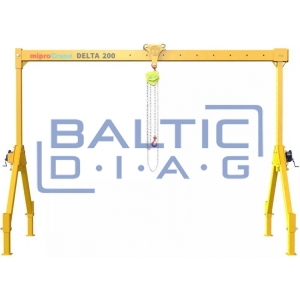

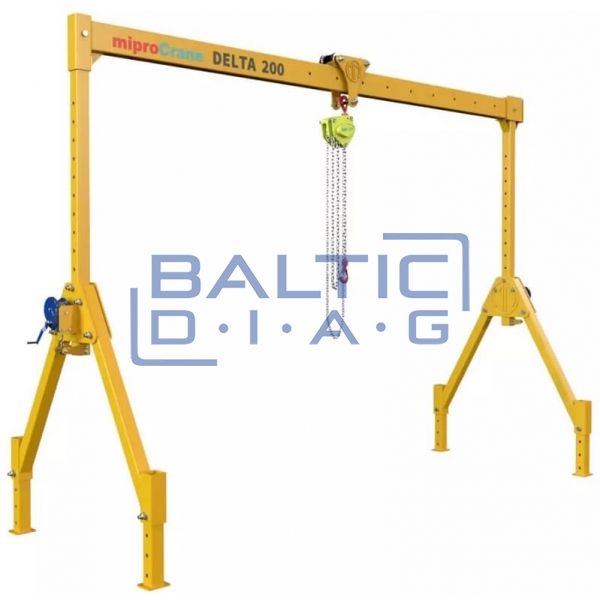

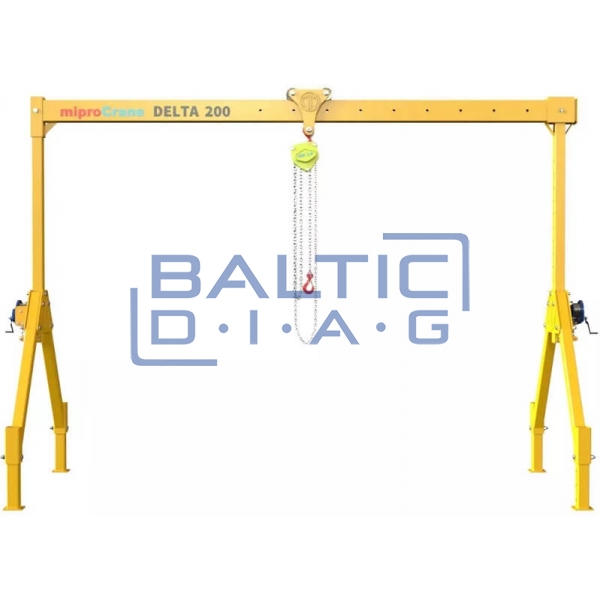

Disassembled gantry crane Delta 200

Disassembled gantry crane Delta 200

Manufacturer: Mipromet, Poland

Selectable gantry crane Delta 200 - designed for moving, lifting and lowering objects in various workplaces. The lifting capacity of the crane is determined in general, it includes the length of the beam and is independent of the position of the lifting winch as a whole on it.

Gantry crane Delta 200 allows for adjustment:

• The height of the support beam
• The height of the supports
• The length of the working part of the support beam
• The gantry crane can be folded or disassembled into simple components, making it easier to service, transport or store

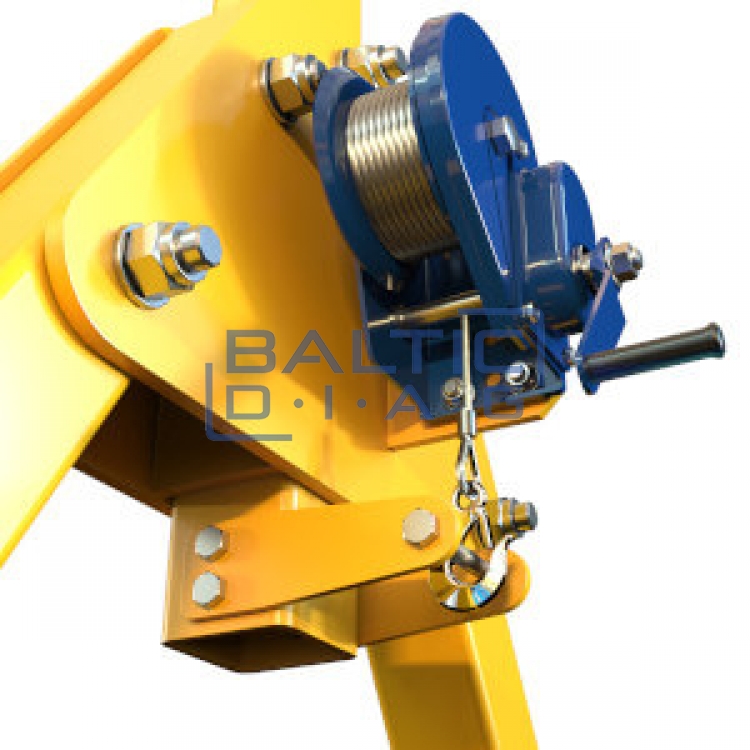

High adjustment mechanism:

• Lifting / lowering with a crank, locking with a screw

Additionally purchased:

• Mechanical chain winch: EUR 150.00 + VAT

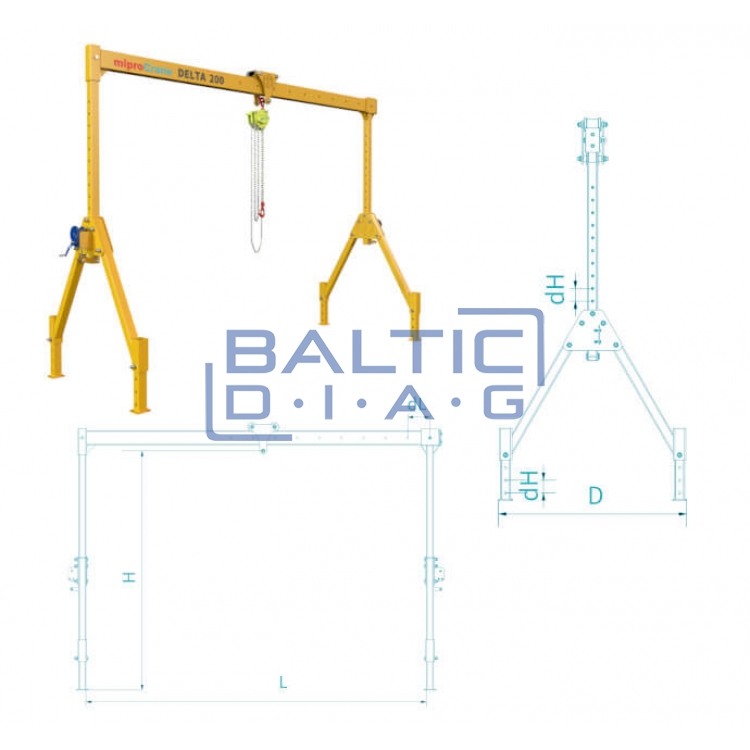

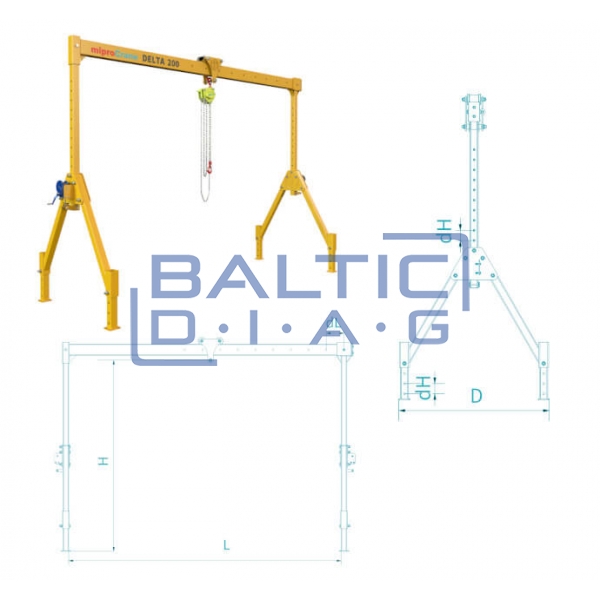

Technical parameters:

• Carrying capacity of goat edge: 1500 kg
• Crane height from the ground to the beam, "H": 1607-2707 mm
• Working width of the crane, "L": 1600 - 3850 mm
• Distance between crane support legs, "D": 1488 mm

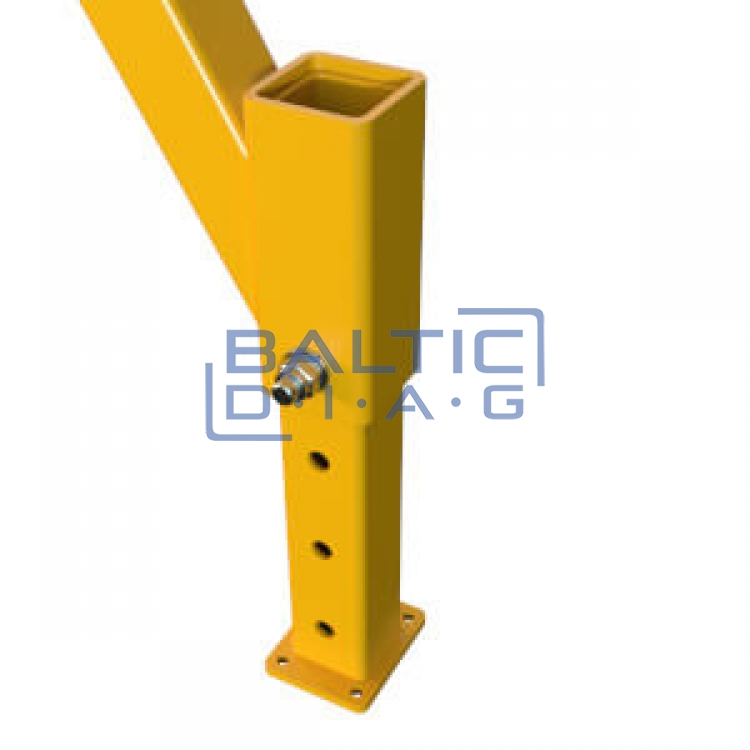

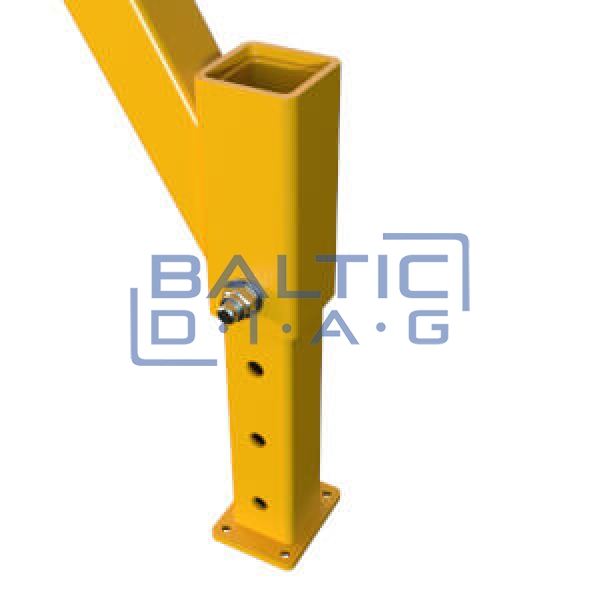

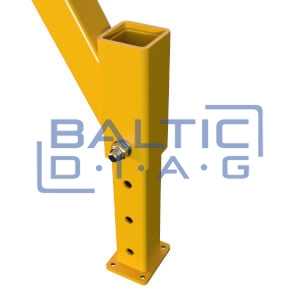

• Adjustable leg height includes each, "dH": 100 mm
• Adjustable working width of the crane, in "dL" steps: 250 mm
