Universal diagnostic tool Autel MaxiDAS DS900TS

Universal Diagnostic Tool Autel MaxiDAS DS900TS

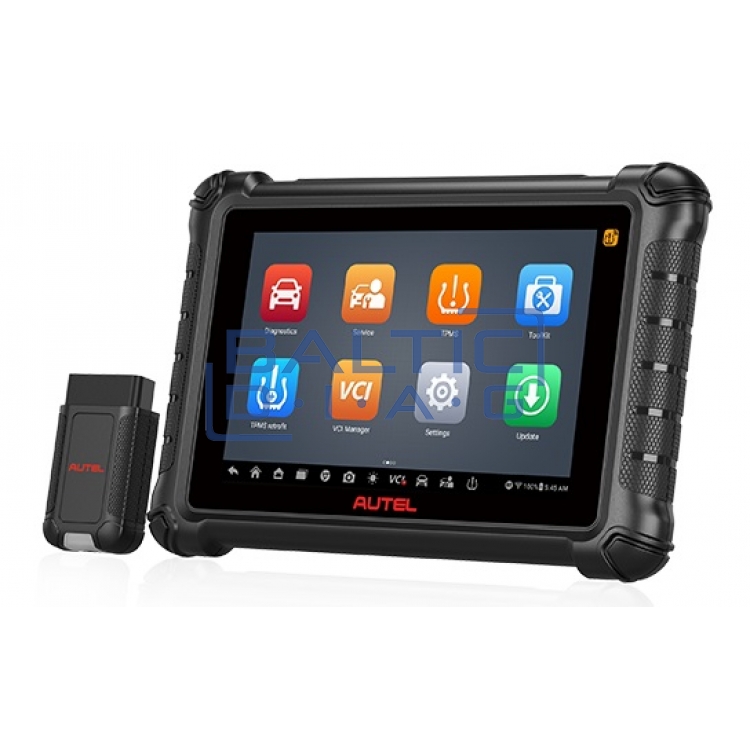

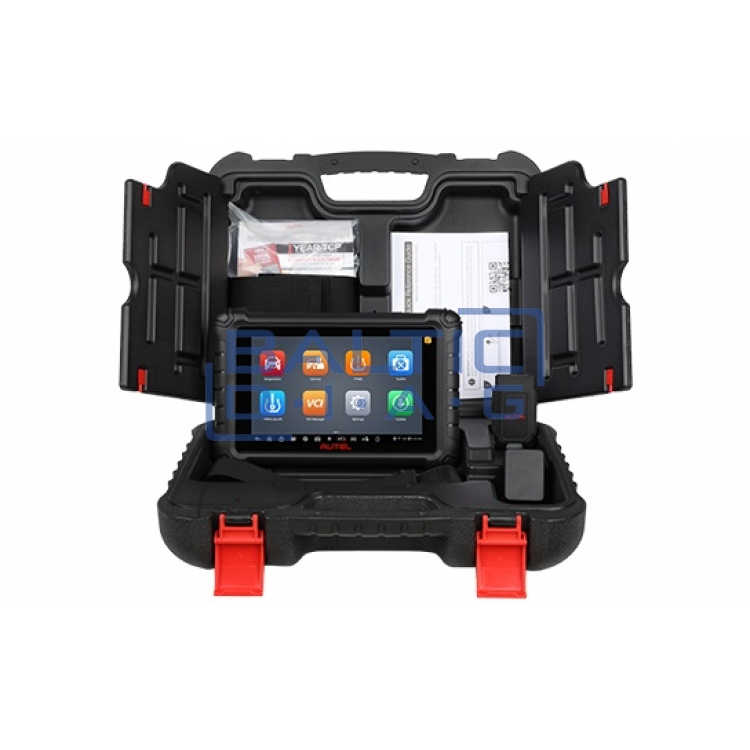

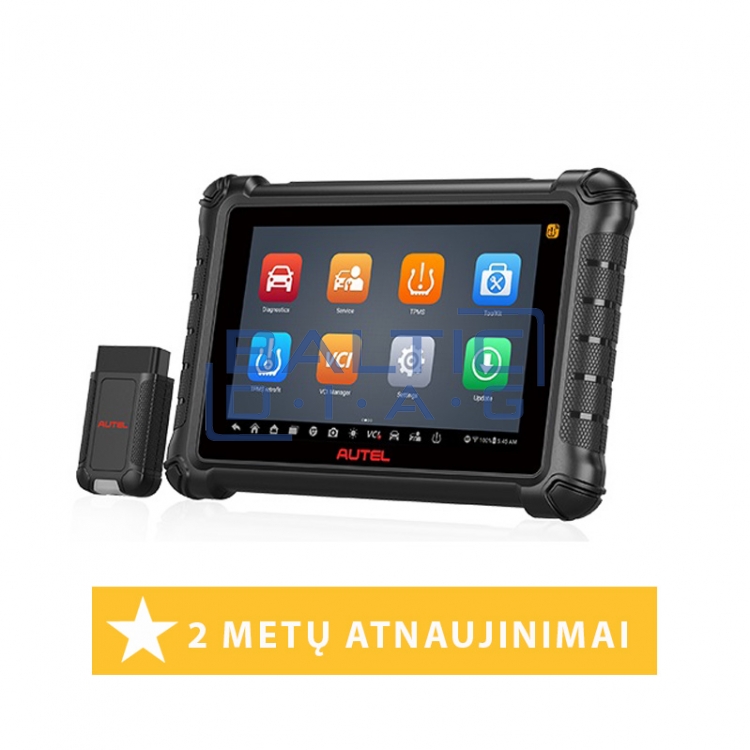

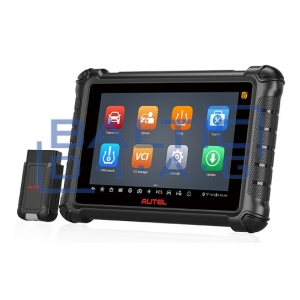

Autel MaxiDAS DS900TS is an intelligent, all-in-one diagnostic tool enhanced with advanced TPMS features, allowing efficient servicing of tire pressure sensors. By combining full-system diagnostics with TPMS capabilities, this device becomes a reliable solution for workshops seeking flexibility, speed, and functionality in a single compact platform.

Manufacturer: AUTEL, warranty period – 24 months

Why Choose Autel MaxiDAS DS900TS?

• Wireless Vehicle Connectivity
• The included MaxiVCI V150 adapter enables seamless Bluetooth connection to the vehicle — providing more convenience without additional cables.
• OE-Level Diagnostic Precision
• Reads fault codes from all systems, performs active tests, monitors real-time data, and accesses the ECU — all in one powerful device.
• Advanced TPMS Sensor Management
• Performs fast TPMS sensor reading, diagnostics, and programming — reliably and without needing additional equipment.
• Smart AutoVIN Technology
• Automatically identifies the vehicle’s make, model, and year using the VIN — saving time and reducing manual errors.
• Wi-Fi Updates and Remote Support
• The device is continuously updated via Wi-Fi, and remote technical support is available in case of issues.
• Convenient Data Management
• A unified environment for diagnostics, client history, and reports — keeping all your service information well organized.

Features:

• Extremely wide vehicle coverage for models from Europe, the United States, and Asia
• MaxiVCI V150 wireless adapter
• Exclusive OE-level electronic system for fault code scanning
• Comprehensive fault code reading, real-time parameter monitoring, ECU engine control access, active tests, adaptations, and more
• Supports DoIP and CAN FD protocols
• Smart AutoVIN technology for fast and precise vehicle identification
• Automatic system and software updates via internet connection
• Fast remote support in case of technical issues
• Advanced TPMS diagnostics with DTC descriptions
• One-touch TPMS sensor health check
• Ability to program Autel MX sensors
• Extensive OBD learning coverage
• Multifunctional single-interface design to manage diagnostics, data, customer records, and more
• Support for pre- and post-repair diagnostic reporting

Technical Specifications:

• Operating System: Android 11
• Processor: Quad-core 1.8 GHz
• RAM: 4 GB
• Storage: 64 GB ROM
• Display: 8" LCD touchscreen with 1280 x 800 resolution
• Camera: Rear-facing 8 MP
• Interfaces: USB Type C; USB 2.0; Wi-Fi; Bluetooth; Mini SD card (up to 64 GB supported)
• Audio Output: Speaker
• Battery: 3.7 V / 7700 mAh Li-ion
• Charger: 5V / 3A / DC
• Operating Temperature: 0°C to +50°C
• Storage Temperature: -10°C to +60°C
• Dimensions: 168.9 x 259.8 x 33.6 mm (W x H x D)
• Weight: 925 g
• Supported Protocols: ISO9141-2; ISO14230-2; ISO15765; K/L-Line; Flashing Code; SAE-J1850 VPW; SAE-J1850PWM; ISO11898 (High-speed, Middle-speed, Low-speed, and Single-wire CAN, fault-tolerant CAN), SAE J2610, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6, DoIP, CANFD
• VCI Communication: BR + EDR
• VCI Wireless Frequency: 2.4 GHz
• VCI Input Voltage: 8 – 30 V DC
• VCI Power Consumption: 150 mA @ 12 V DC
• VCI Operating Temperature: 0°C to +50°C
• VCI Storage Temperature: -10°C to +60°C
• VCI Dimensions: 77.47 x 46.8 x 21.38 mm (L x W x H)
• VCI Weight: 51.5 g

Who Is This Device For?

• Autel MaxiDAS DS900TS is designed for professional automotive workshops, diagnostic specialists, and maintenance technicians who require a universal diagnostic system with integrated TPMS functionality. It’s the ideal solution for those who want to combine complete vehicle system analysis with tire pressure sensor management in one convenient tool.

Why Buy from Us?

• We are the only official AUTEL distributor in Lithuania.
• Original equipment with the broadest data coverage in Europe.
• Russian and English languages integrated into the device.
• Fast delivery — 95% of products are in stock.
• Option to test the device before purchase.
• Full warranty and post-warranty support.
• Free replacement device provided during repair service.

Ready to Work Smarter, Faster, and with TPMS Control?

• Try the Autel MaxiDAS DS900TS — the diagnostic tool that brings everything a modern workshop needs into one powerful package. Contact us now — we’ll help you find the best solution for your business!
