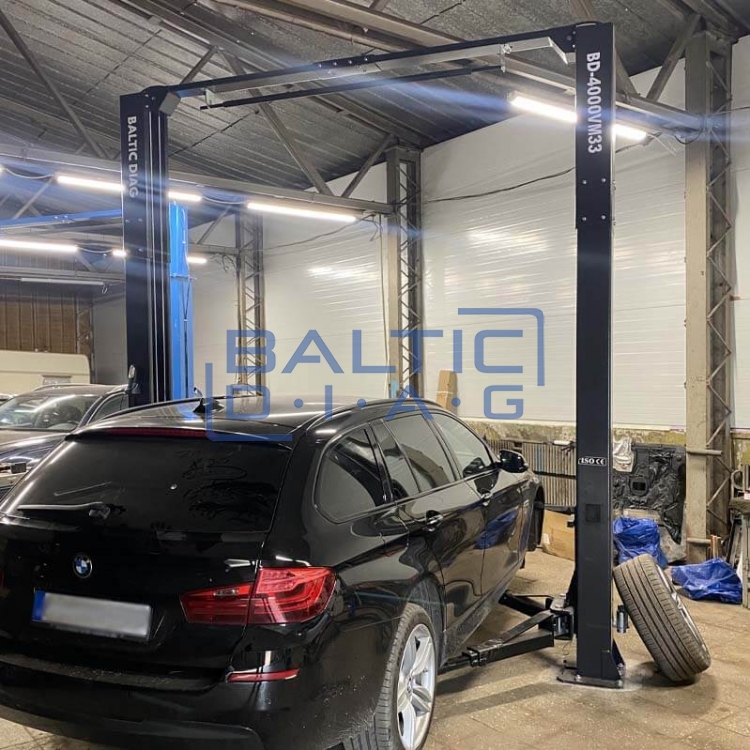

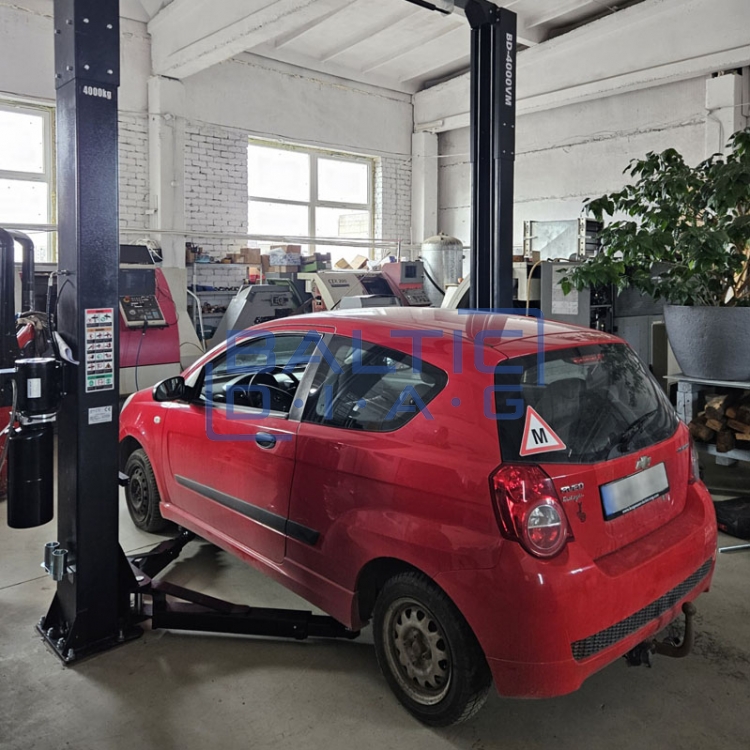

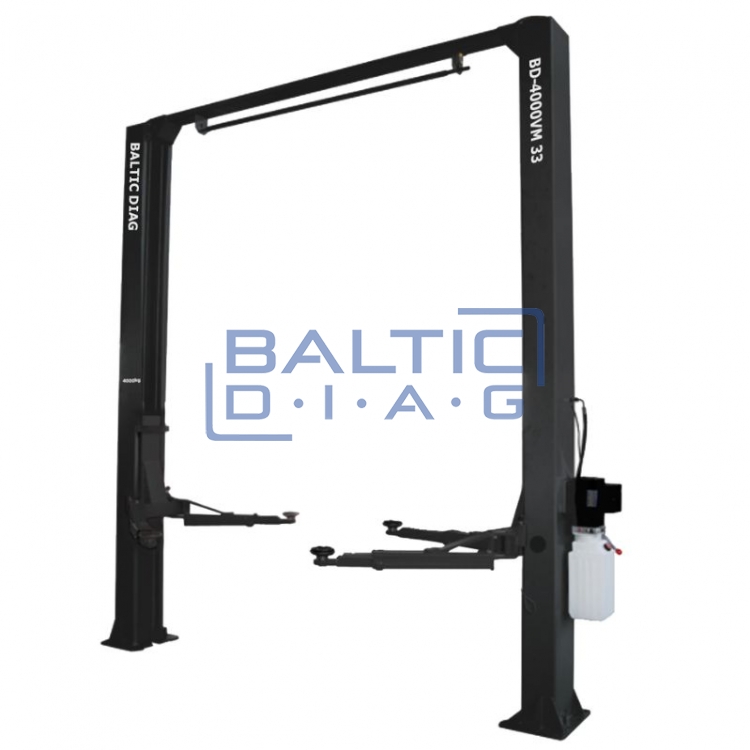

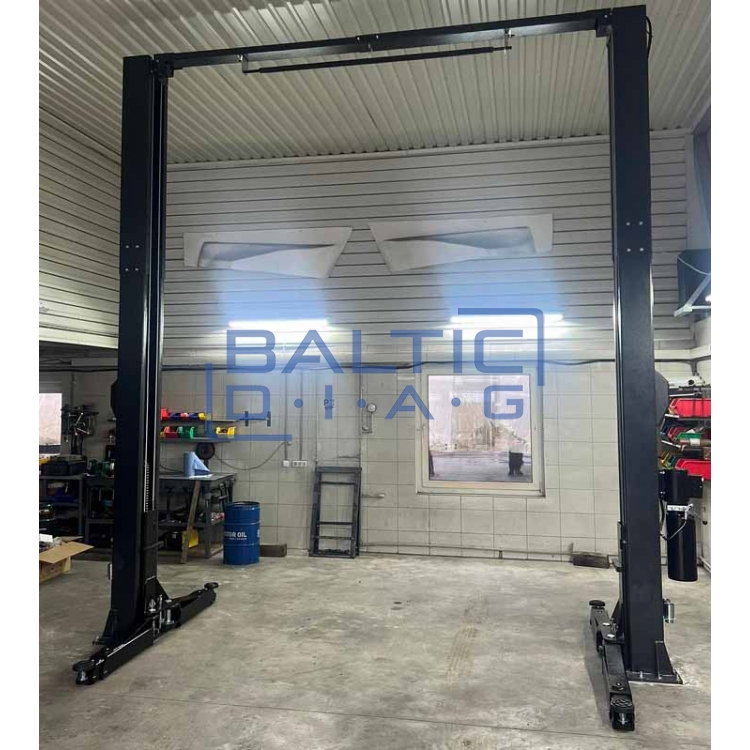

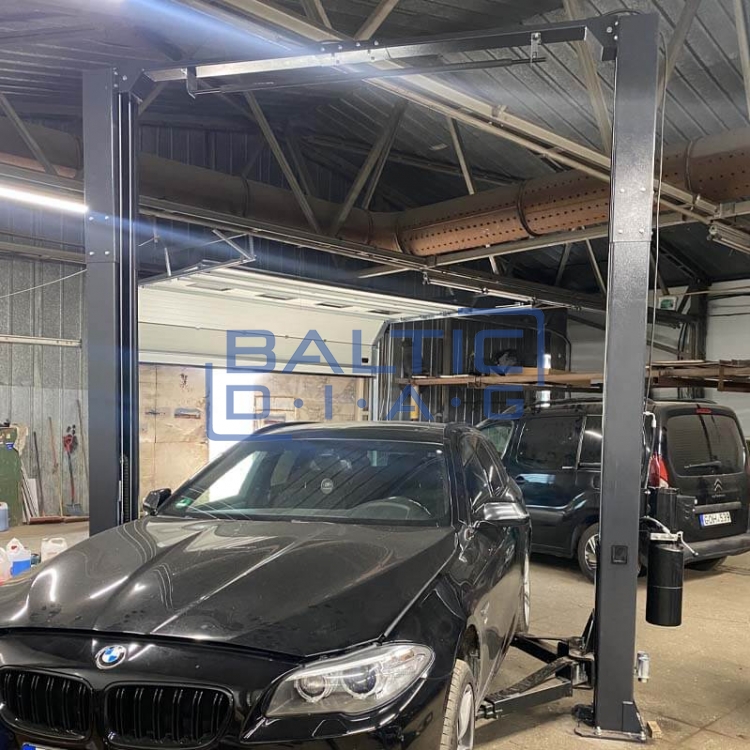

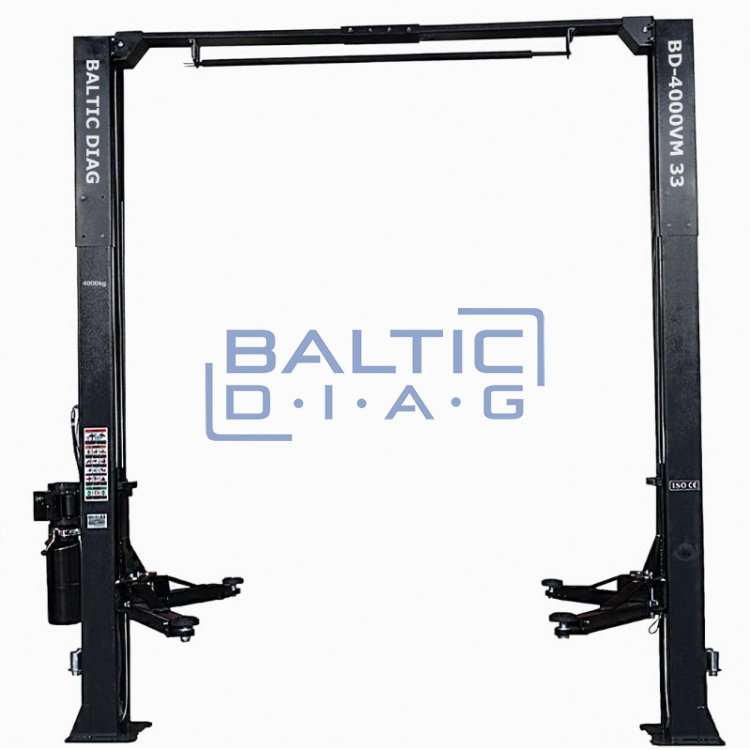

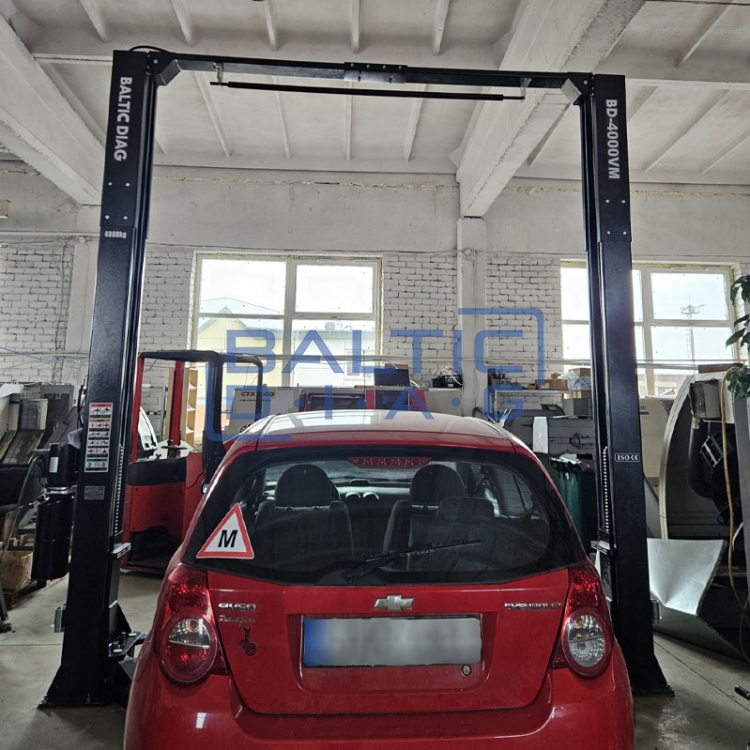

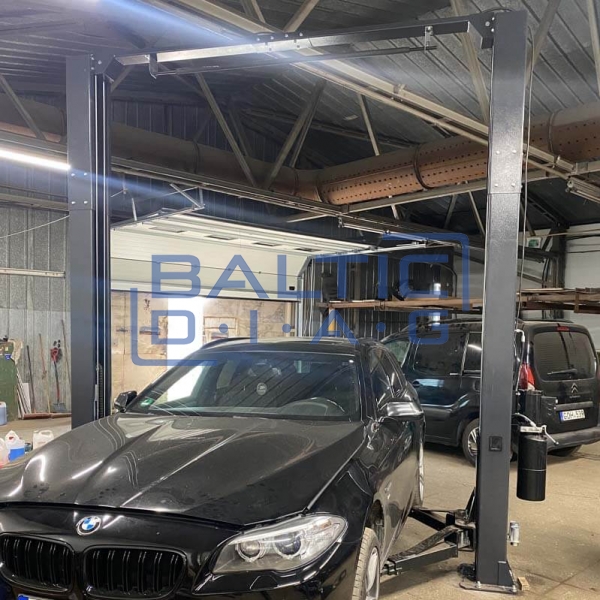

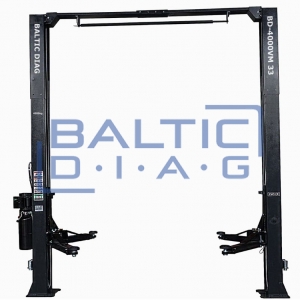

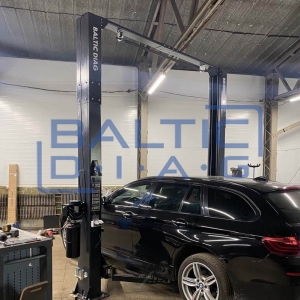

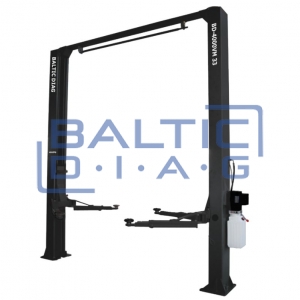

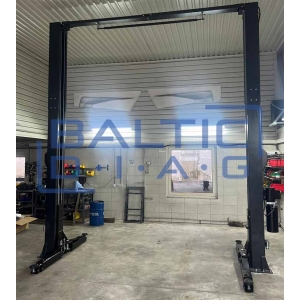

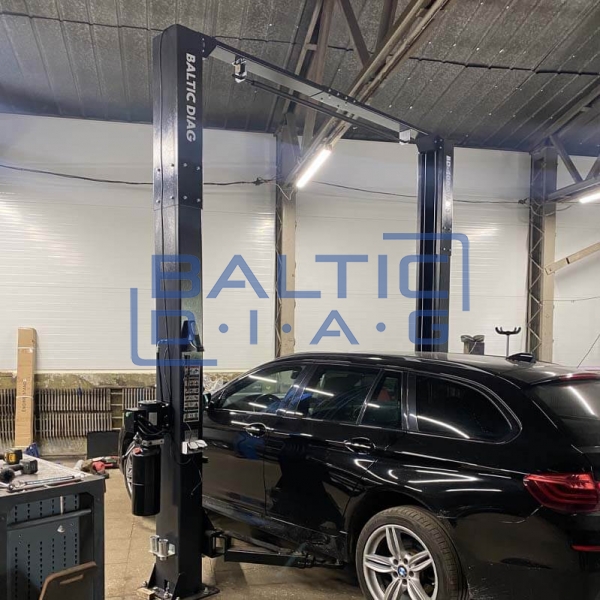

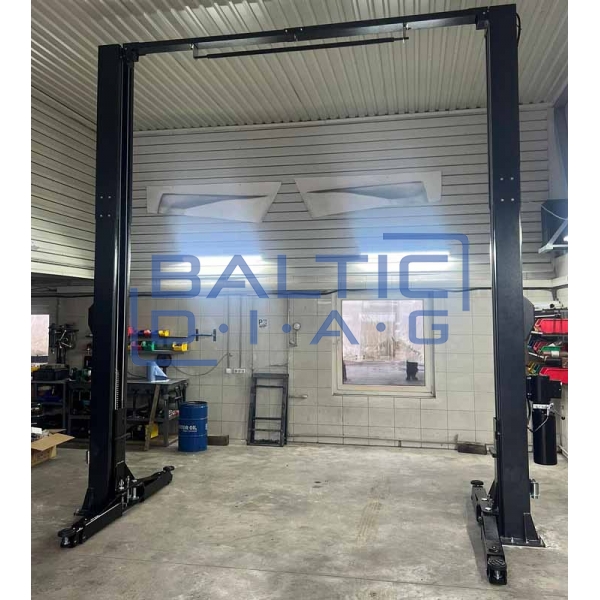

Double post lift with over top synchronization and 3 + 3 arms, 4T BD-4000VM33

Double column lifter with mechanical locking, synchronized over the top, 4T BD-4000VM33

Description:

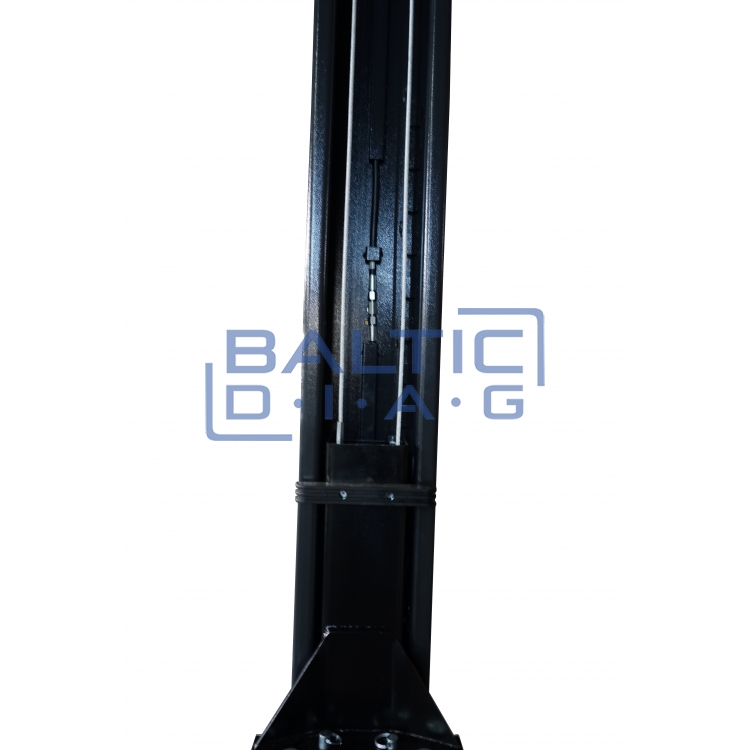

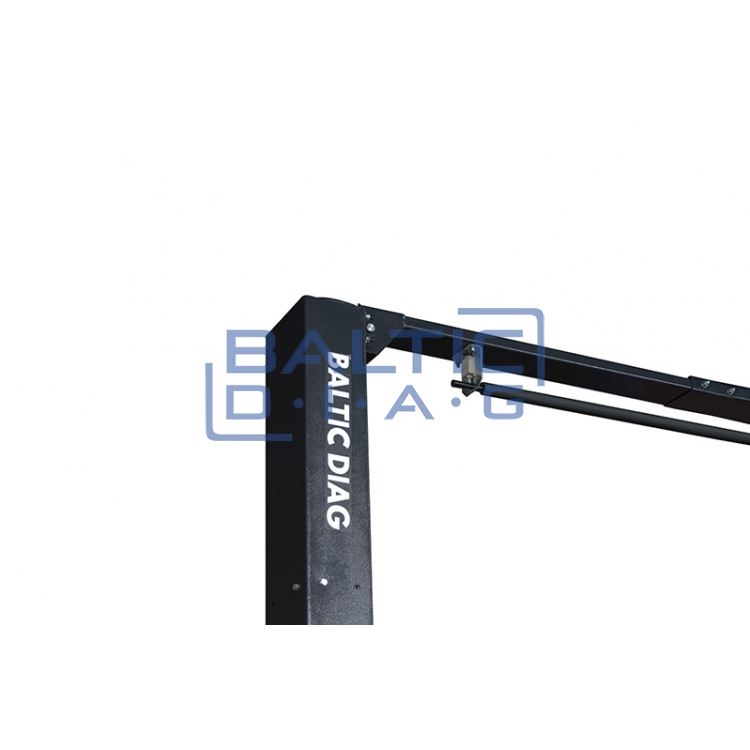

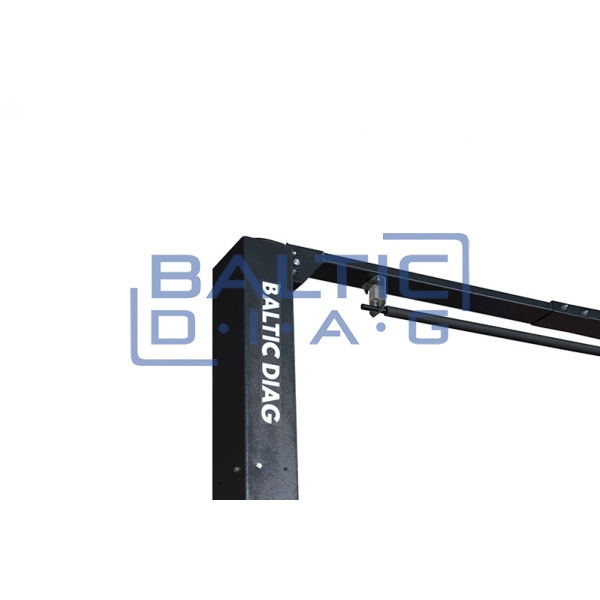

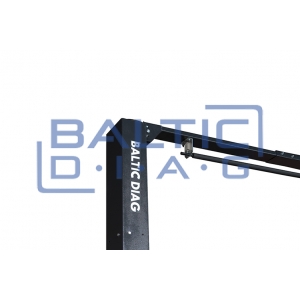

• The lift columns are synchronized through the top

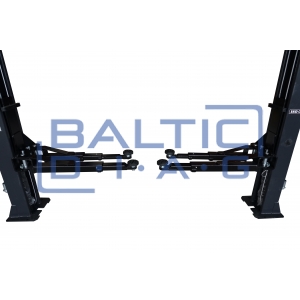

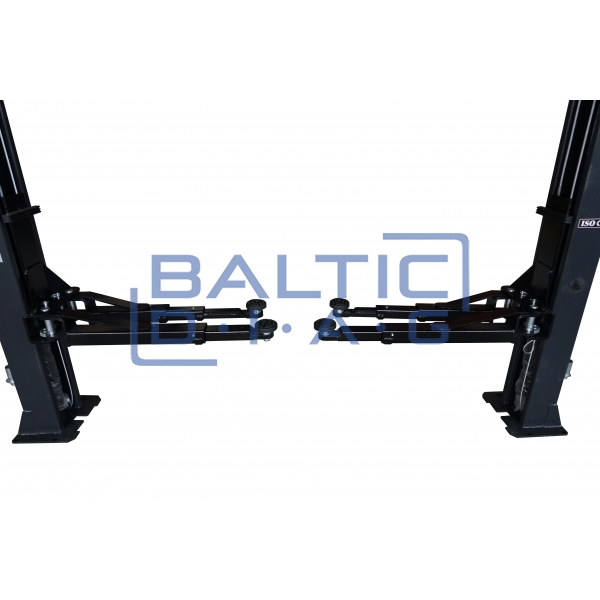

• The lift is sold with 3 + 3 step claws
• The lifter has a compact design, reduced wear and tear of parts and minimized probability of breakdowns.
• Columns use hydraulic cylinders designed and manufactured according to ANSI standards.
• Self-lubricating UHMW polyethylene sliders and brass bushings.

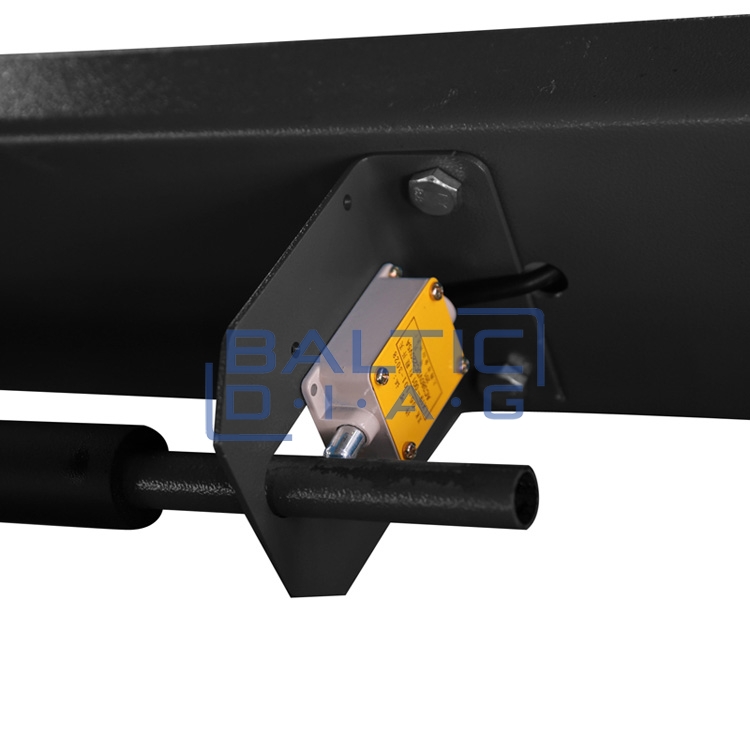

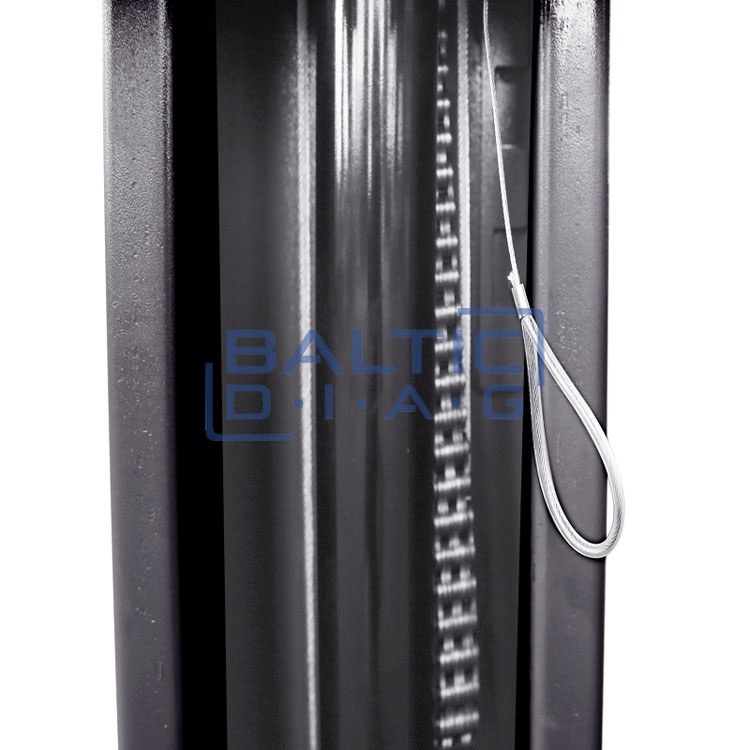

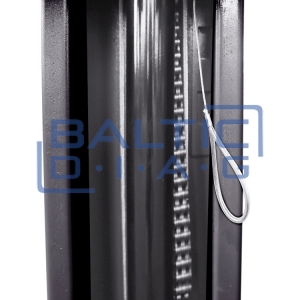

• Two-point release mechanism, manufactured to the standard of double protection.
• The standard extra-symmetrical lifting pawls offer the option of being used as symmetrical or asymmetric pawls.

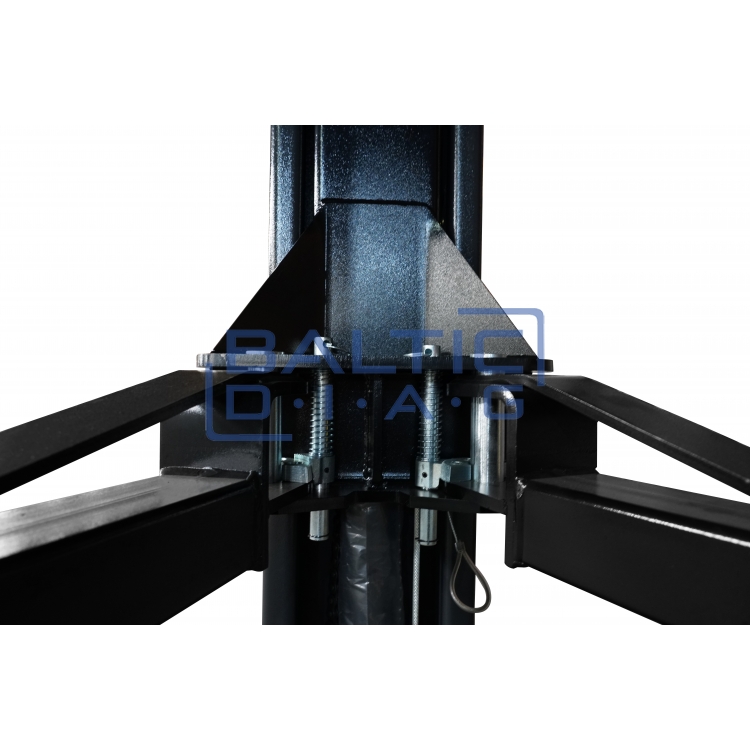

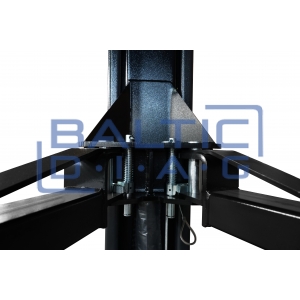

• Reinforced paw attachment "carriage"

Technical parameters:

• Lift capacity: 4000 kg
• Lifting time: 60 - 65 sec.

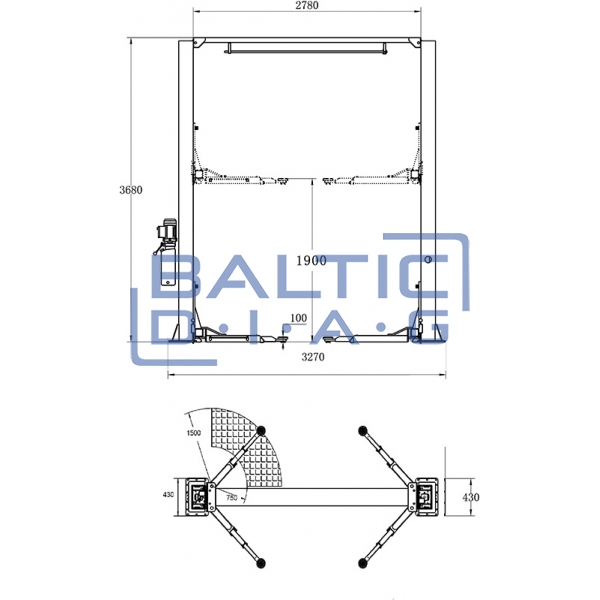

• Lift height: 1900 mm
• Total width of the lift: 3270 mm
• Width between columns: 2780 mm
• Maximum width of serviced car: 2530 mm
• Minimum height of soles: 100 mm
• Total lift height: 3680 mm
• Lift weight: 562 kg

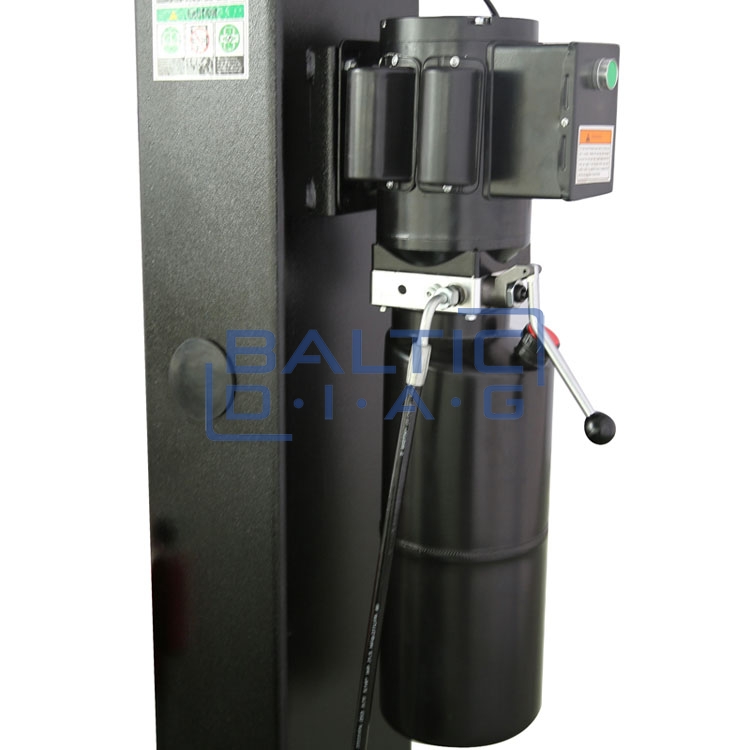

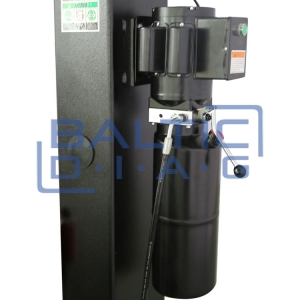

• Electric motor power: 2.2 kW
• Main voltage: 380 V / 50 Hz / 3 phases
• Color code: RAL7021

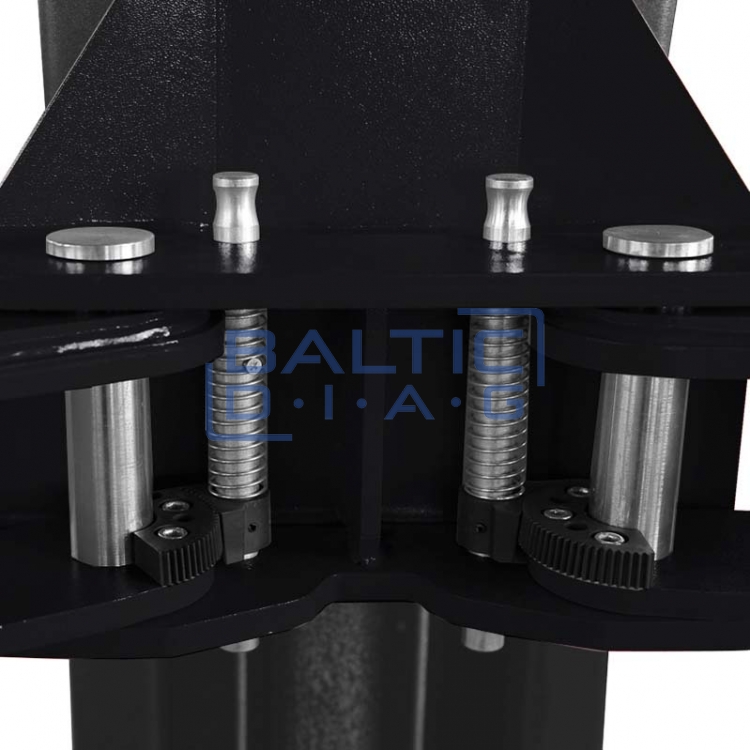

• Arms protection: manual arms release, on two sides.

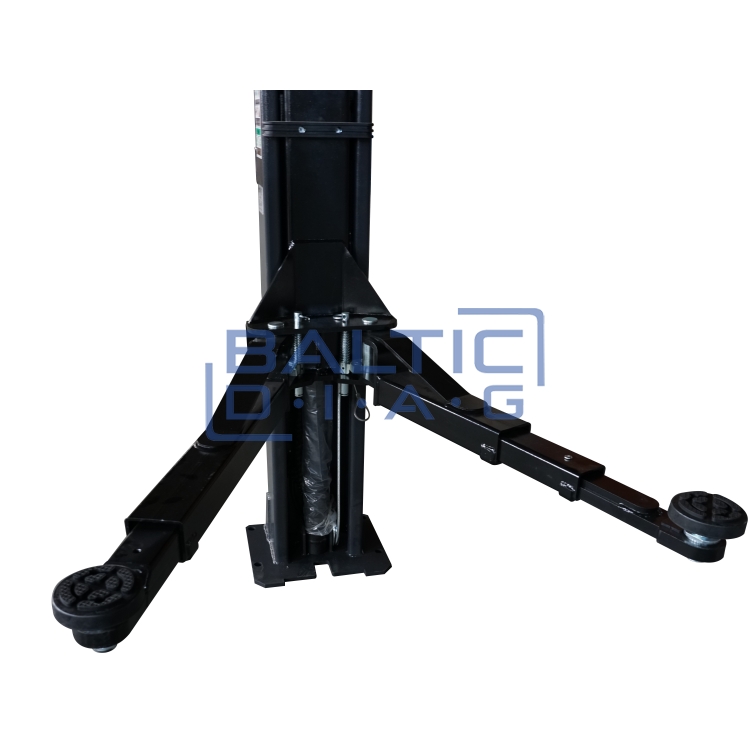

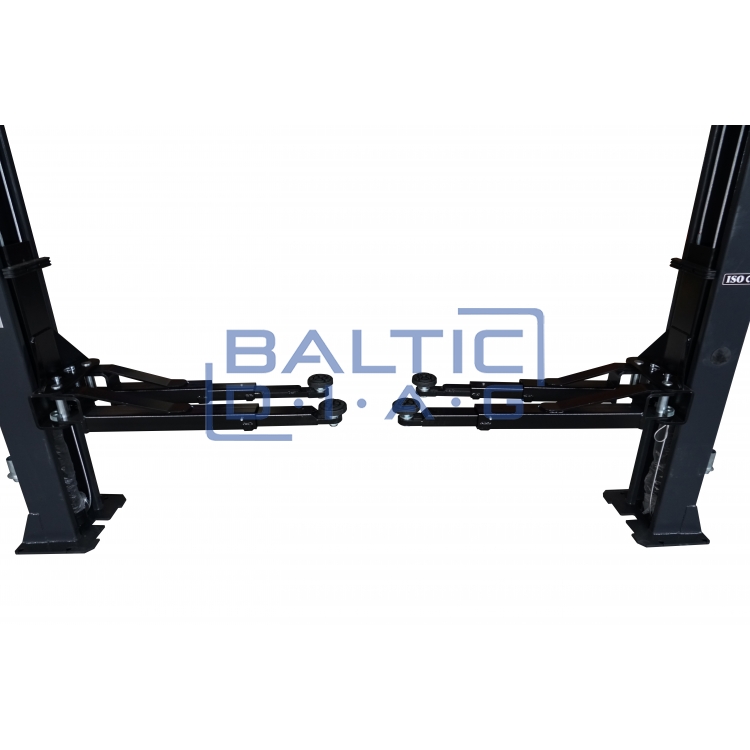

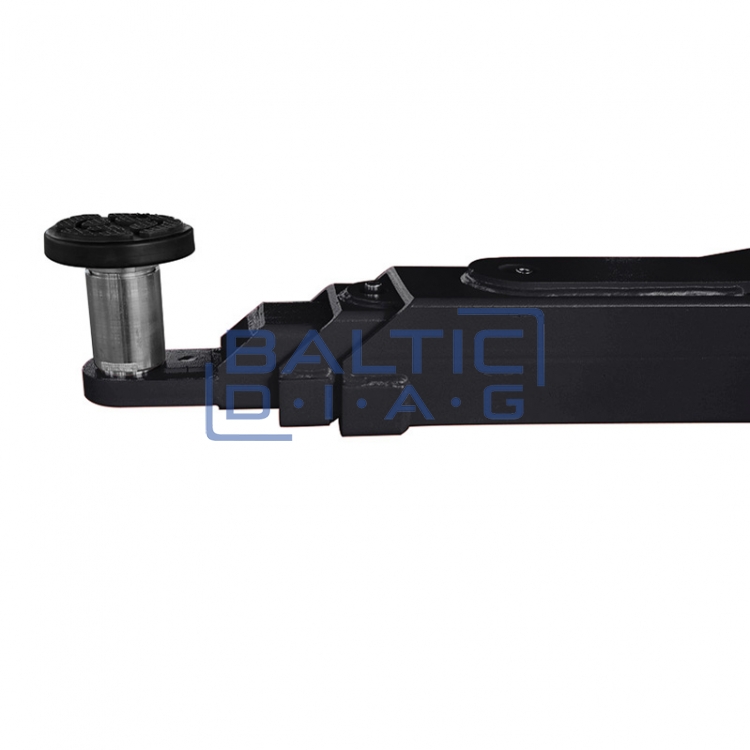

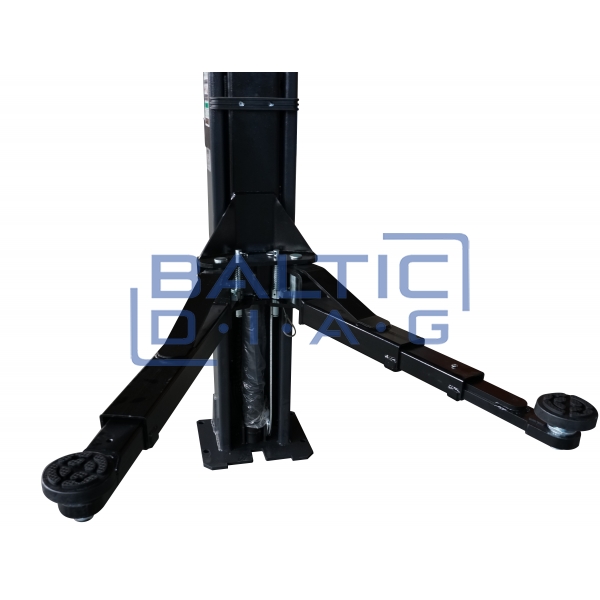

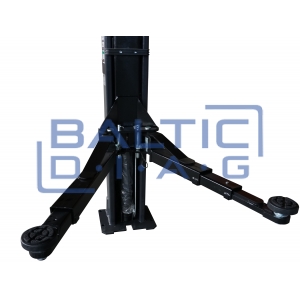

• Arms length of 3 stages: 750 - 1500 mm
• CE certificate
