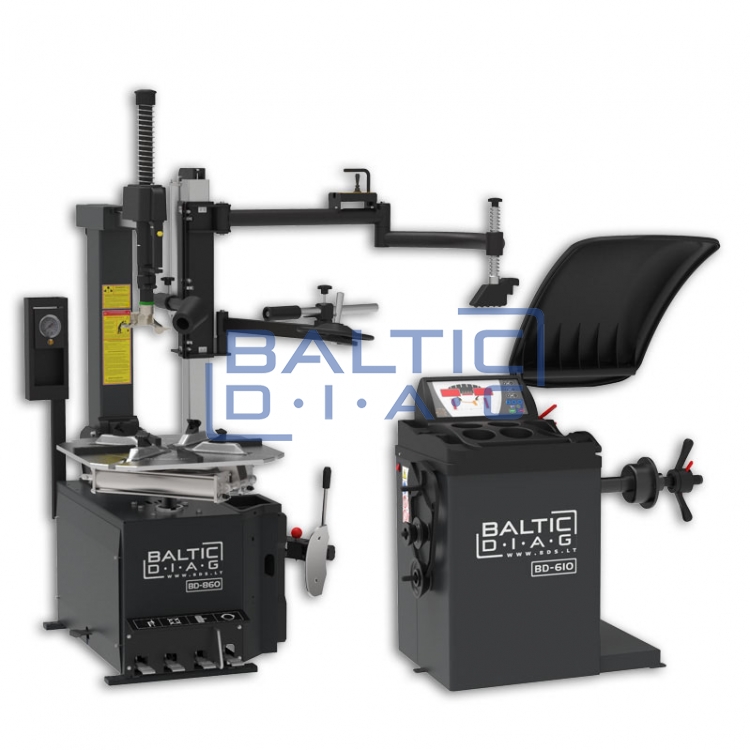

Set of tire changer and wheel balancing machines BD-860 + BD-610

A set of BD-860 + BD-215 tire changer and BD-610 automatic wheel balancing machines

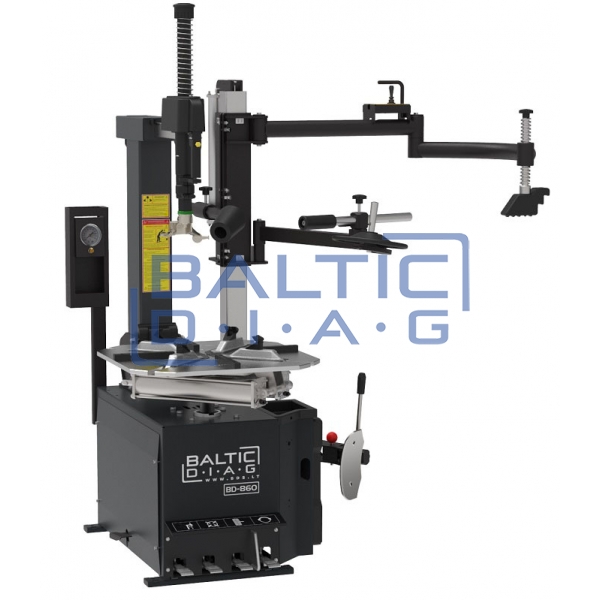

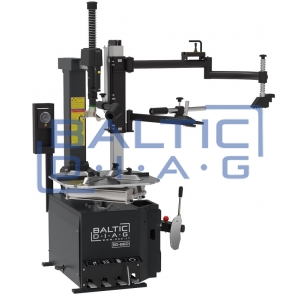

Tire changer BD-860 + BD-215 helper arm

Features:

• Steel tire mounting head - This head ensures durability and has replaceable plastic guards to protect rims from scratches.
• Rim Clamps are self-centering rim clamps that use two pneumatic cylinders to ensure a safe and secure locking of rims.
• The tire inflator is a self-contained tire inflator that has its own gauge, inflation hose and inflation button.
• The position of the mounting head is pneumatically fixed - with the help of the foot pedal, you will be able to fold back or open the tire mounting head to the required position. And when you find the most suitable one, you can place it in a horizontal and vertical position by pressing one button.
• Filter and pressure regulator set - top quality, pressure regulator with water collector and equipment lubrication tank.
• Auxiliary tire mounting handle - a particularly strong auxiliary tire mounting handle, in which you will find tire pressure rollers, an auxiliary tire lifting disc and a pressure head.

Technical parameters:

• Inner rim clamping diameter: 15" - 28"
• Outer rim clamping diameter: 13" - 26"
• Maximum wheel diameter: 1200 mm
• Maximum wheel width: 3" - 15" | 76 - 380 mm
• Tire bead breaker force: 2700 kg (27000 N)
• Working pressure of the machine: 8 - 10 bar
• Two mounting speeds
• Motor power: 1 kW
• Power supply voltage of the machine: 380 V / 50 Hz / 3 fz

Standard equipment:

• Bucket for tire mounting paste x 1 pc.
• Tire mounting paste brush x 1 pc.
• Mounting head plastic protection x 1 pc.
• Tire bead breaker plastic protector x 1 pc.
• Gripper claws plastic protection x 4 pcs.
• Mount / Lever x 1 pc.

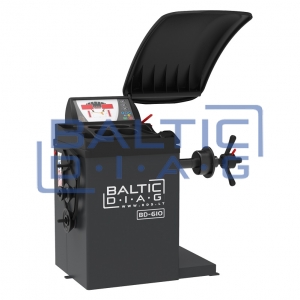

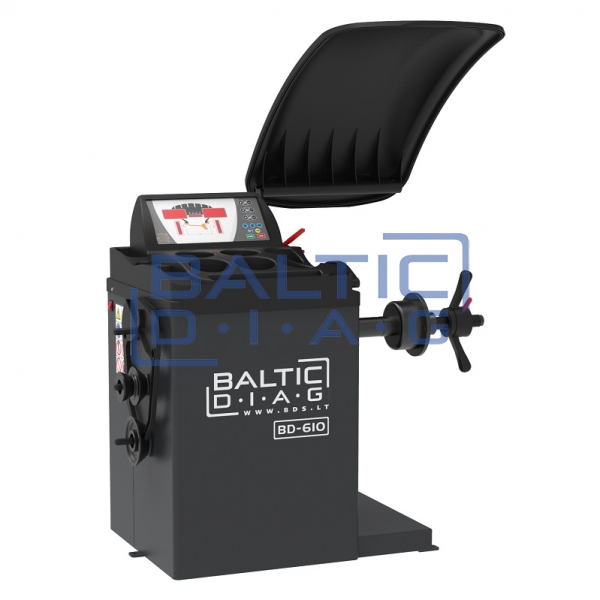

Automatic wheel balancing machine BD-610

Features:

• The main wheel balancing shaft is 40 mm in diameter. Longitudinal surface grinding and an excellent heat treatment process were applied to its processing. The aluminum drive pulley is corrosion resistant. For these reasons, the main shaft can be used safely and reliably for many years.
• Side storage pins - Allows easy access to balance cones and other accessories.
• Control panel - it is equipped with an LED screen with special buttons, with the help of which you can enter the necessary data or select a balancing program. Also, other LEDs will show you the parameters and results of the wheel imbalance and the location of the balance.
• The 2D ruler is made of aluminum alloy and has extremely accurate measurement parameters, so with its help you can get very accurate measurement results and automatically enter wheel data into the balancing machine. Also, using this ruler, you will be able to more easily mark the place where the balancing weight should be glued.
• Wheel guard is a standard guard that can be used to control the start and stop operations of the balancing machine.
• Balancing Operations – The balancer has full wheel balancing operations such as dynamic balancing, static balancing, 3 ALU rim balancing modes and freely adjustable OPT function.

Technical parameters:

• Diameter of balancing rims: 10" - 28"
• Maximum wheel diameter: 1000 mm
• Wheel width: 1.5" - 20" | 38 - 510 mm
• Rotation speed, during balancing: 200 rpm
• Maximum wheel weight: 70 kg
• Balancing accuracy: ± 1 g
• Motor power: 0.25 kW

Standard equipment:

• Balancing cones of different dimensions x 4 pcs.
• Wheel width measuring ruler x 1 pc.
• Quick fixing nut x 1 pc.
• 100 g calibration weight x 1 pc.
• Pliers, for working with weights x 1 pc.
• Cone spring x 1 pc.
• Mounting adapter with pressure protection x 1 pc.
