MIG MAG welding machine 160A

MIG MAG welding machine 160A

Warranty: By registering your equipment at www.soldatech-welding.com, you can extend the warranty period up to 5 years.

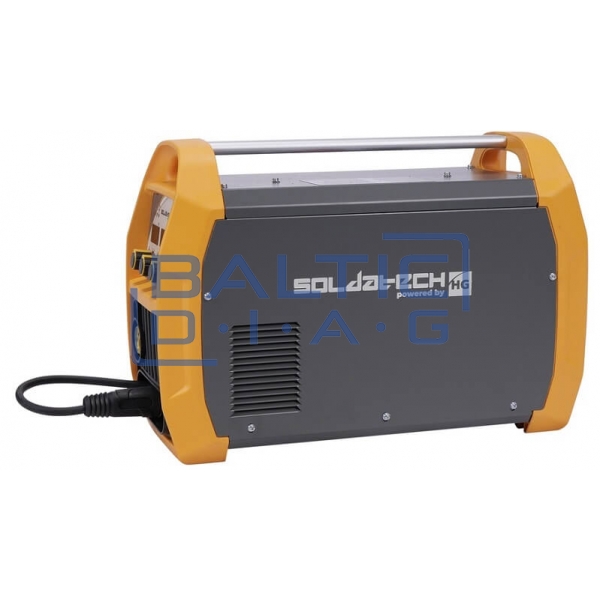

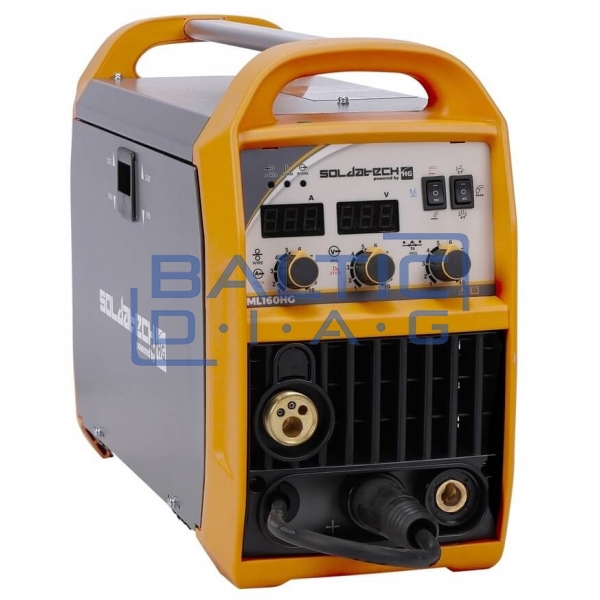

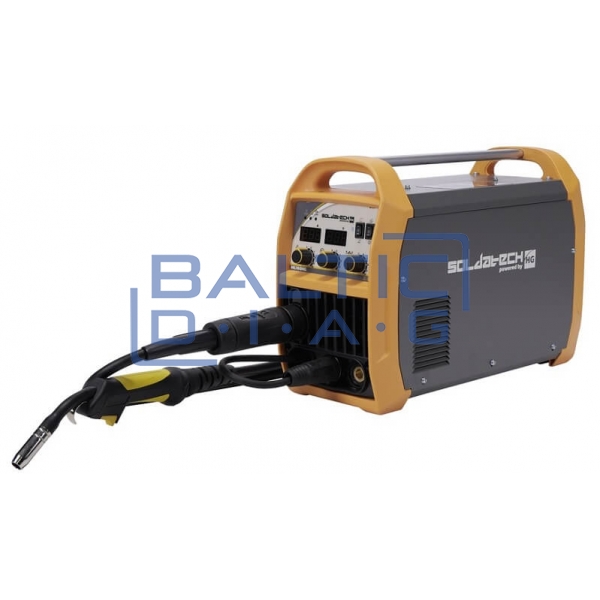

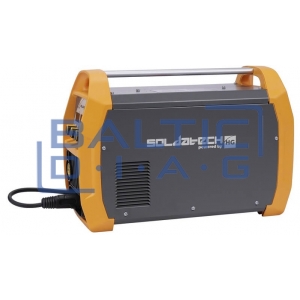

This Soldatech machine is portable, convenient and versatile. It can easily perform a variety of welding processes including MIG welding, Lift-TIG and electrode welding. The wire speed is automatically adjusted according to the set current. State-of-the-art IGBT technology ensures that the ML160HG operates with higher power and a very high duty cycle. The ML160HG also features thermal protection as standard, which together with the built-in fan prevents overheating and ensures high-quality welding performance for a long time. The hot start/anti-stick function rapidly increases the welding current to prevent the electrode from sticking to the workpiece during ARC welding. Ideal for welding stainless steel, carbon steel, low alloy steel and aluminum (MIG).

Standard equipment:

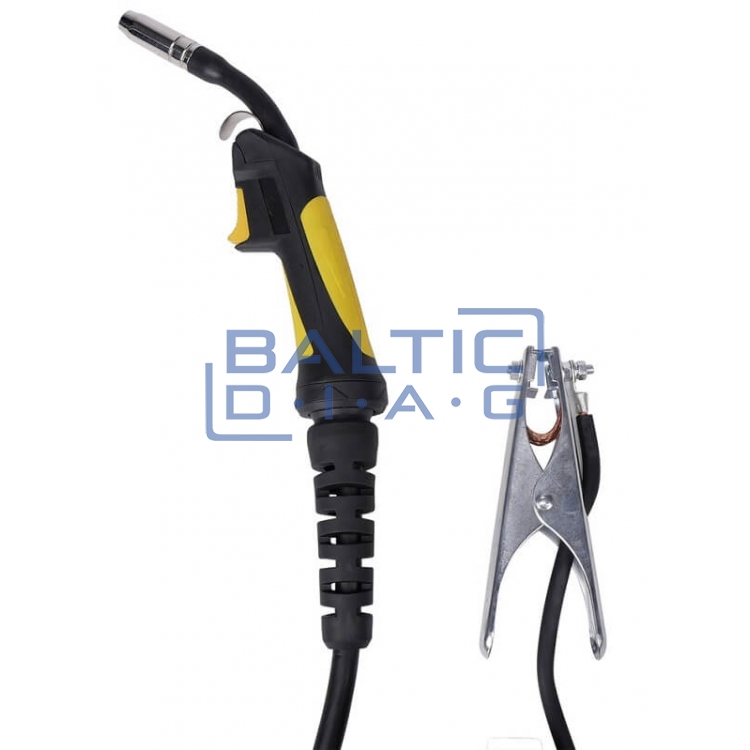

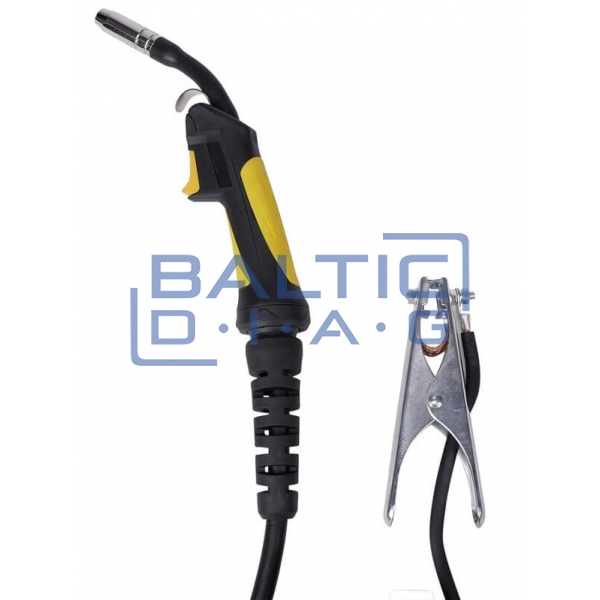

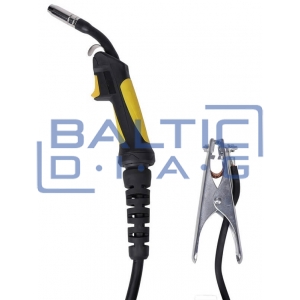

• Soldatech MLT15M3 MIG torch with Euro connector and 3m cable
• Welding earth terminal with 2 m 16 mm² cable
• Neoprene power cable with 2 m 3x2.5 mm² cable
• European Dinse couplings 13 mm
• Gas line with NW5 quick connector 3 m
• 1x Wire feed roll: 0.8 + 1.0

Technical specifications:

• Voltage = 230 V - 1 phase
• Frequency = 50/60 Hz
• Fuse protection = 16 A B-char
• Input power = 6.84 kVA
• No load voltage = 68V
• Duty cycle (at 20°C ambient temperature) = 40% - 160 A
• Duty cycle (at 40°C ambient temperature) = 20% - 160 A
• Welding current range MIG/MAG = 30 - 160 A
• Welding current range MMA = 30 - 130 A
• Raising the welding current range TIG = 20 - 160 A
• Weldable welding wire = 0.6 / 0.8 / 1.0 mm
• Protection class = IP21S
• Dimensions = 490 x 200 x 335 mm
• Weight = 11 kg
