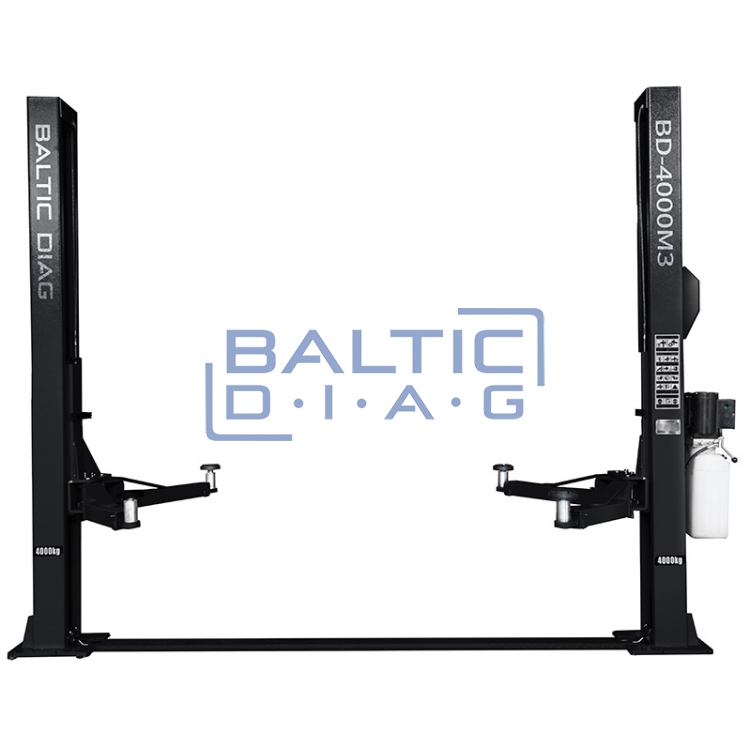

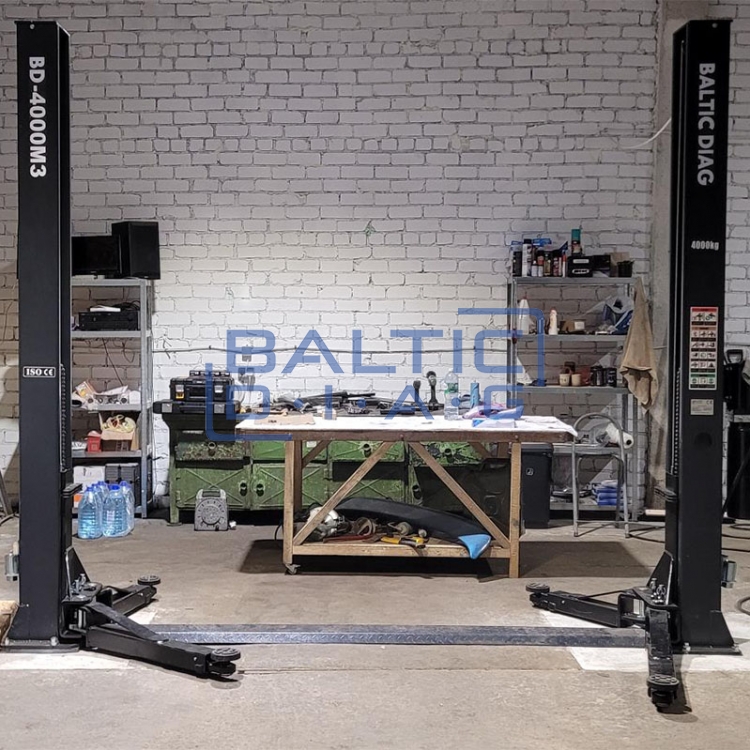

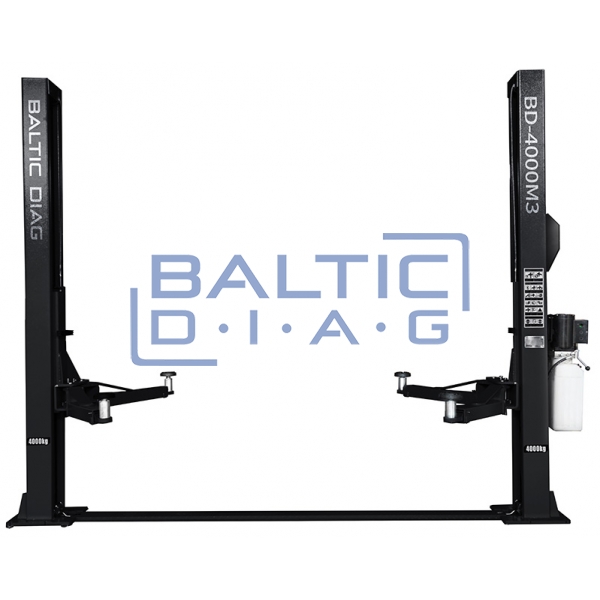

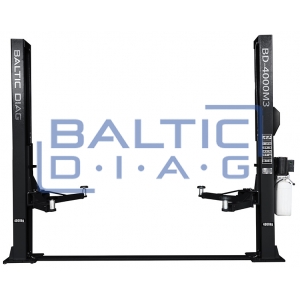

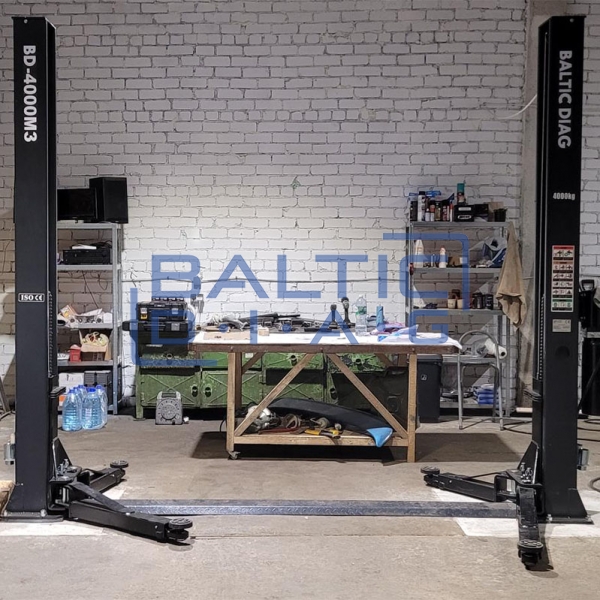

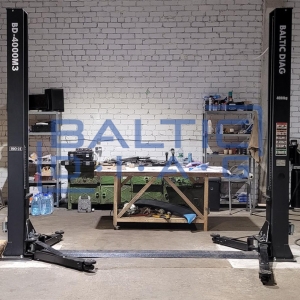

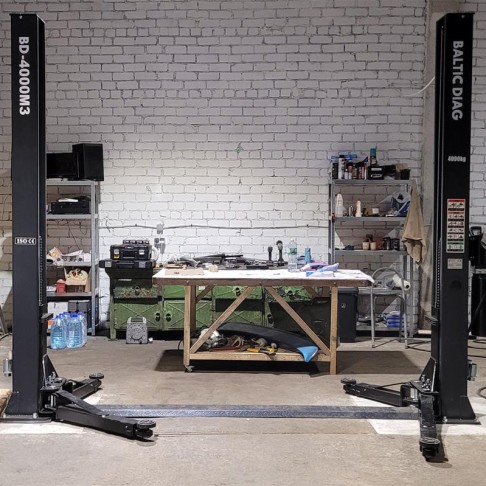

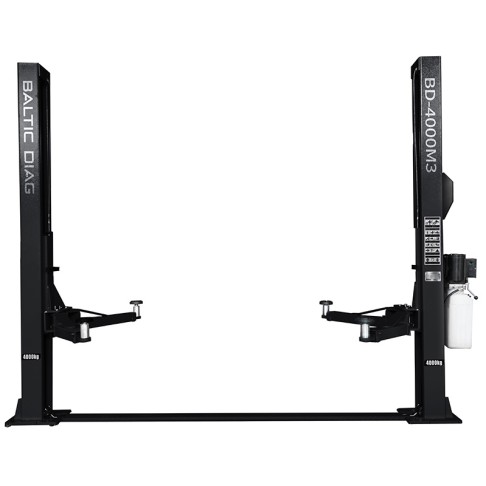

Double column lifter with mechanical claw locking and 2 + 3 stage claws, 4T BD-4000M3
230 V or 400 V version available
- SKU: BD67039
1,433.85 €
1,699.99 €
Send Message
Description
Double column lifter with mechanical claw locking and 2 + 3 stage claws, 4T BD-4000M3
Description:

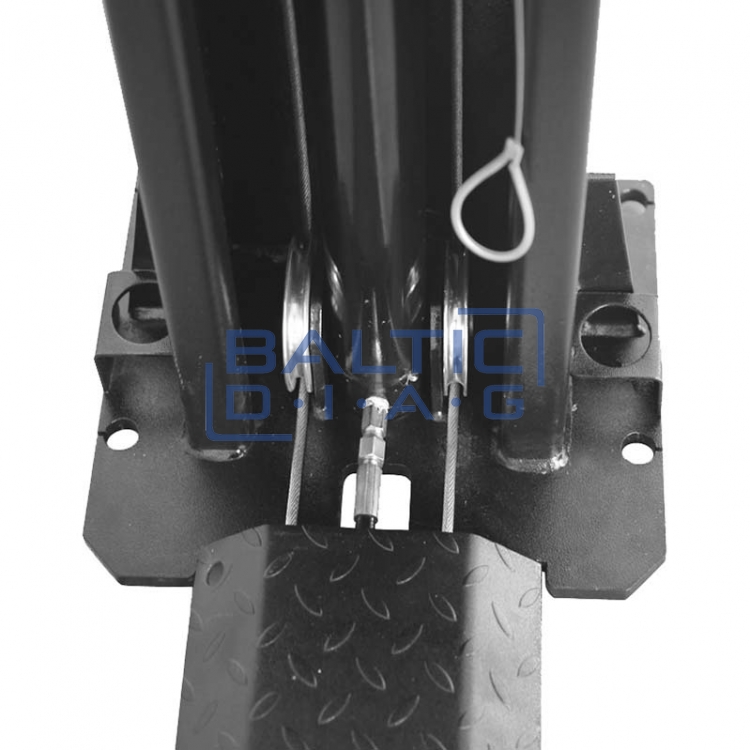

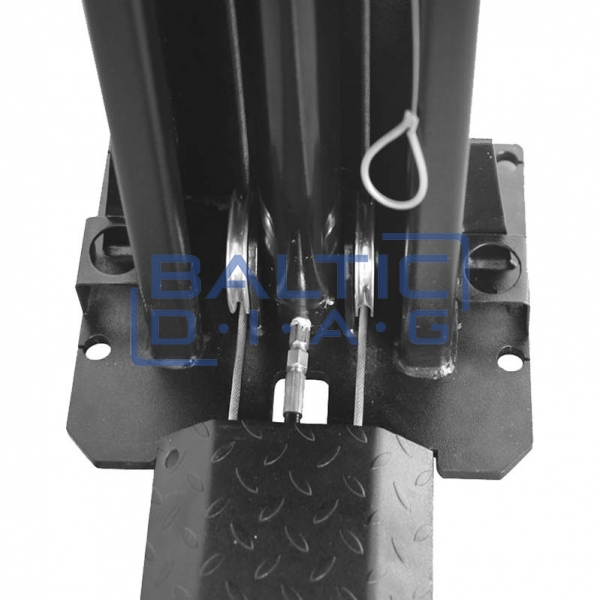

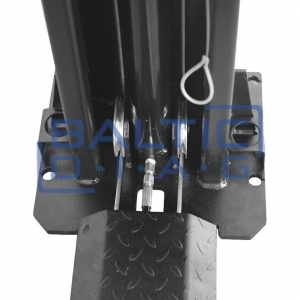

- The elevator columns are synchronized through the bottom.
- The lifter has a compact design, reduced wear and tear of parts and minimized probability of breakdowns.
- Columns use hydraulic cylinders designed and manufactured according to ANSI standards.

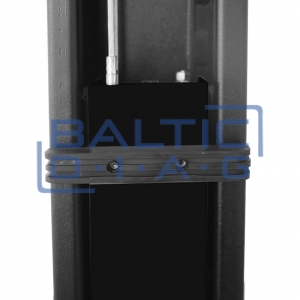

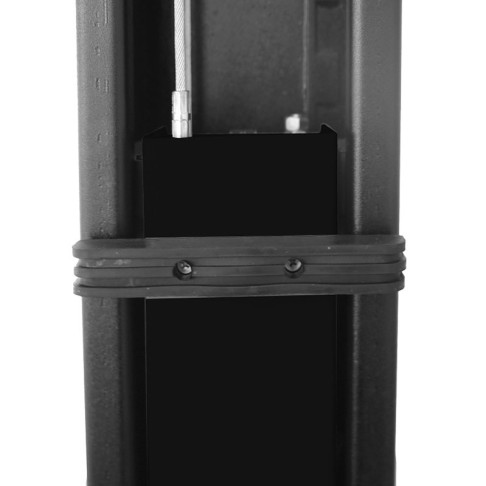

- Self-lubricating UHMW polyethylene sliders and brass bushings.

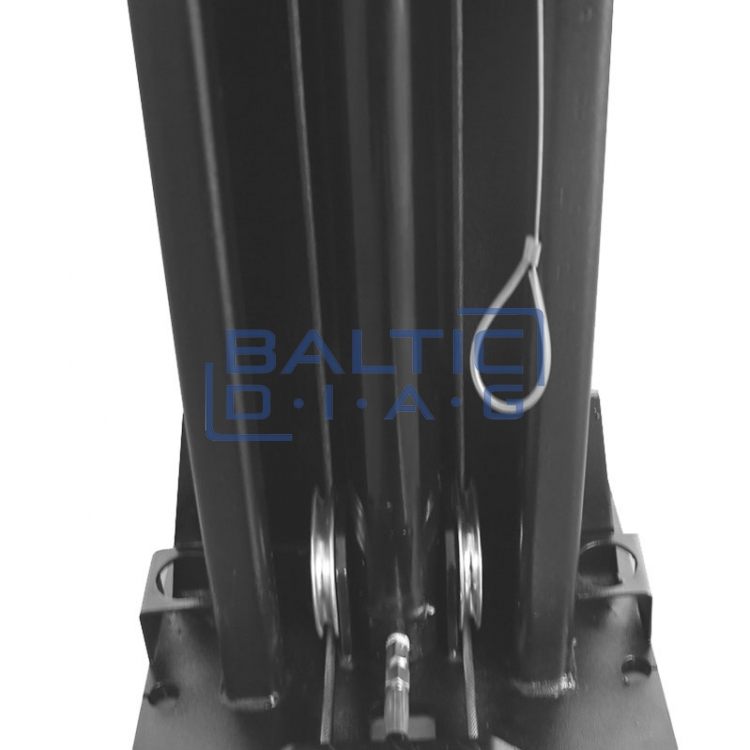

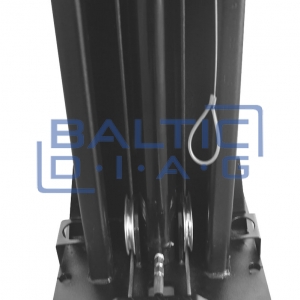

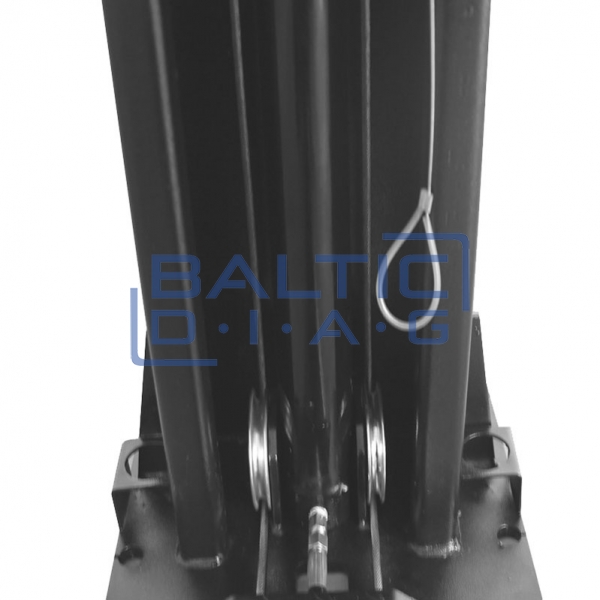

- Two-point release mechanism, manufactured to the standard of double protection.

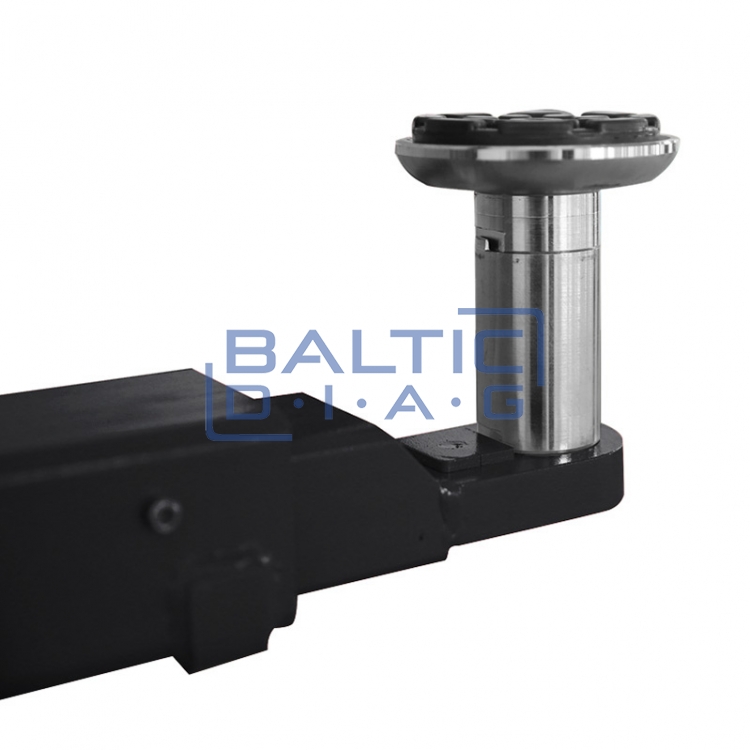

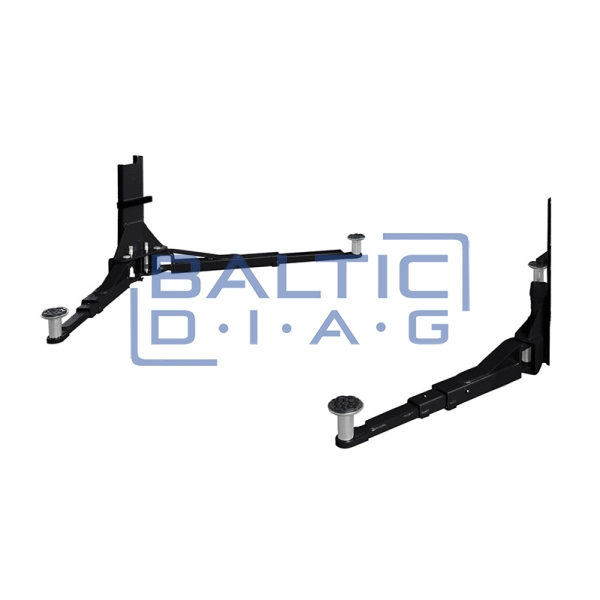

- The standard extra-symmetrical lifting pawls offer the option of being used as symmetrical or asymmetric pawls.

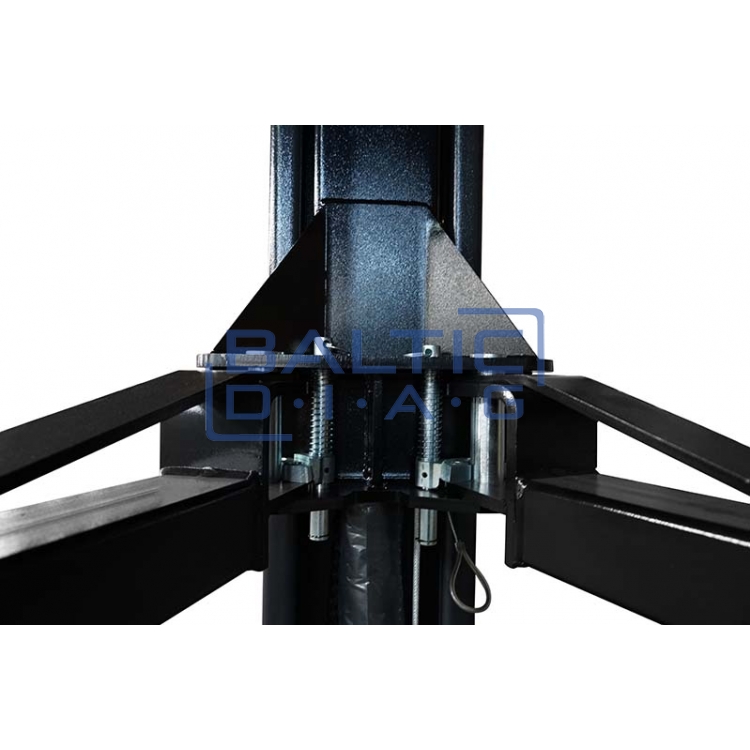

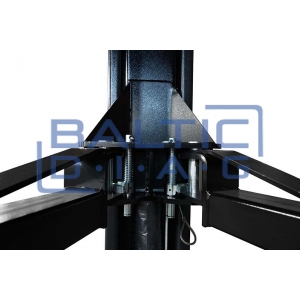

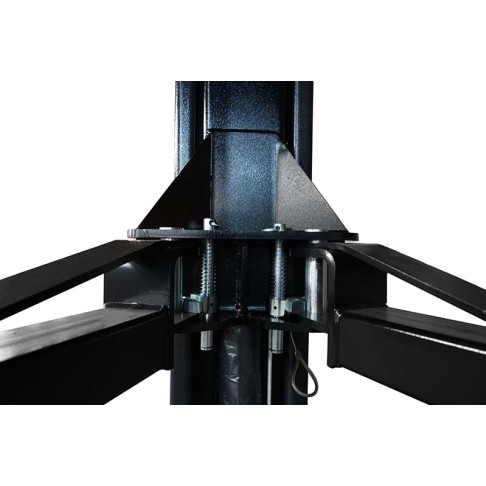

- Reinforced paw attachment "carriage"
Technical parameters:
- Lift capacity: 4000 kg
- Lifting time: 55 sec.

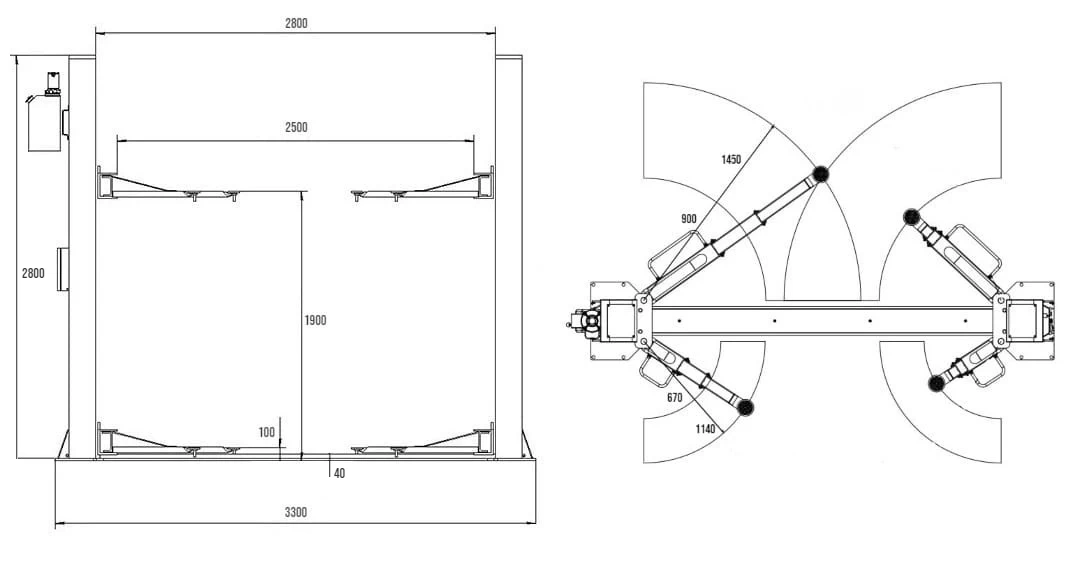

- Lift height: 1900 mm
- Total width of the lift: 3300 mm
- Width between columns: 2800 mm
- Maximum width of serviced car: 2500 mm

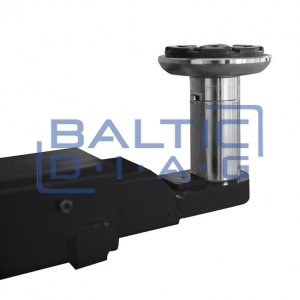

- Minimum height of soles: 100 mm
- Lift weight: 504 kg

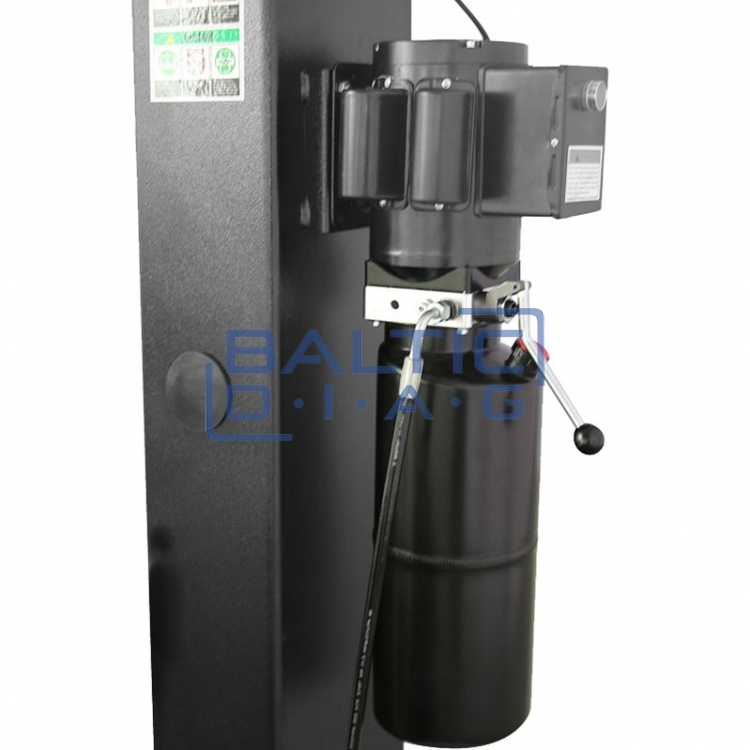

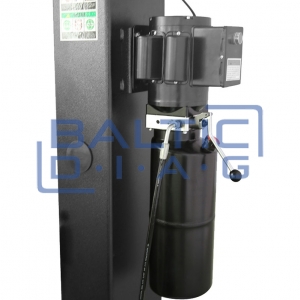

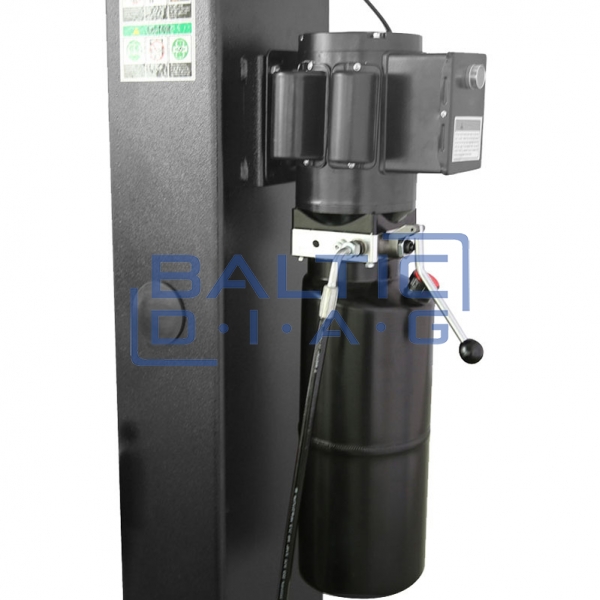

- Electric motor used: 2.2 kW
- Power supply voltage: 380 V / 50 Hz / 3 phases or 230 V / 50 Hz / 1 phase
- Color code: RAL7021
- Paw protection: manual paw release, on two sides.

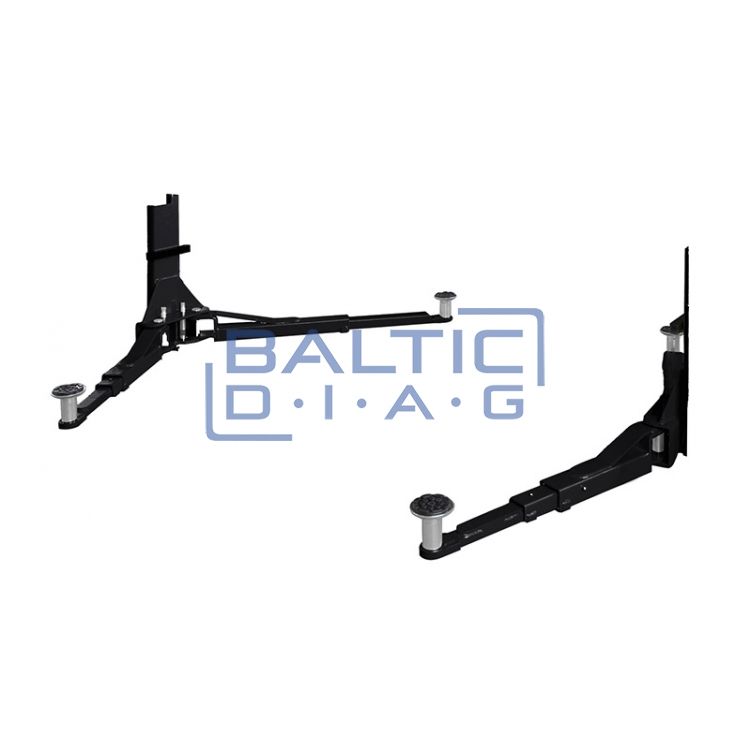

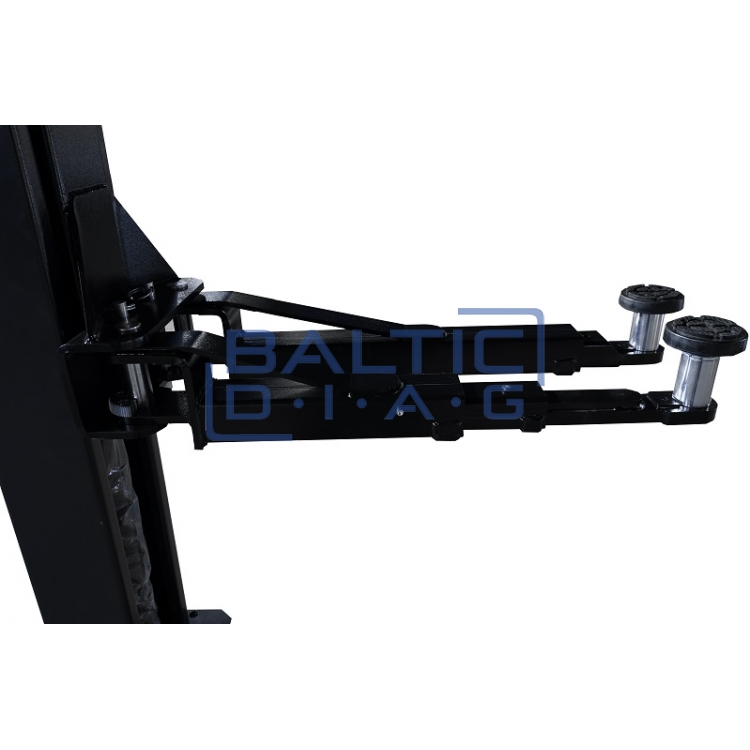

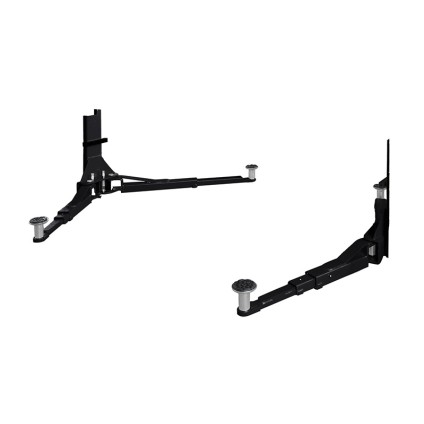

- Length of long arms, 2 steps: 900 - 1450 mm
- Length of short arms, 3 steps: 670 - 1140 mm
- CE certificate
