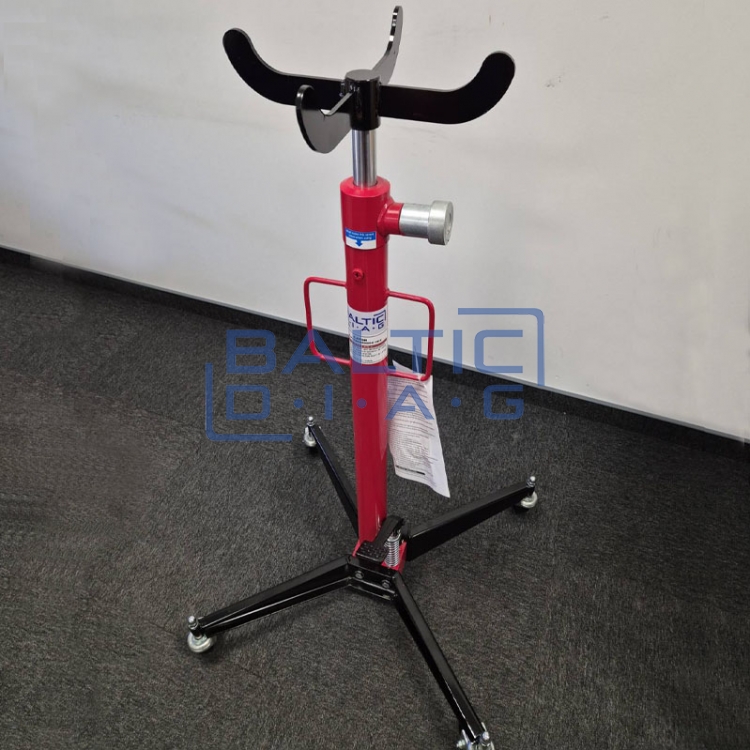

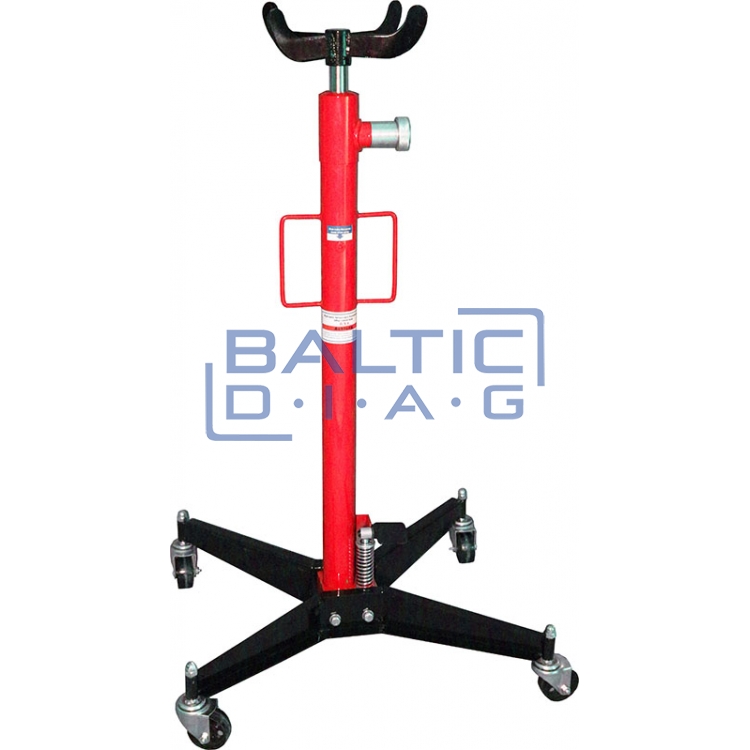

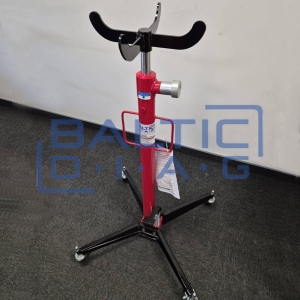

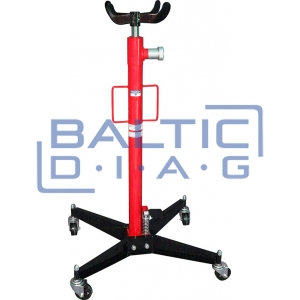

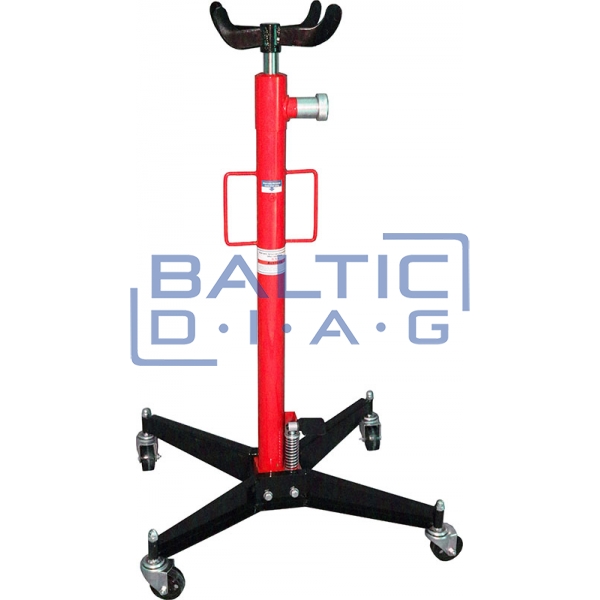

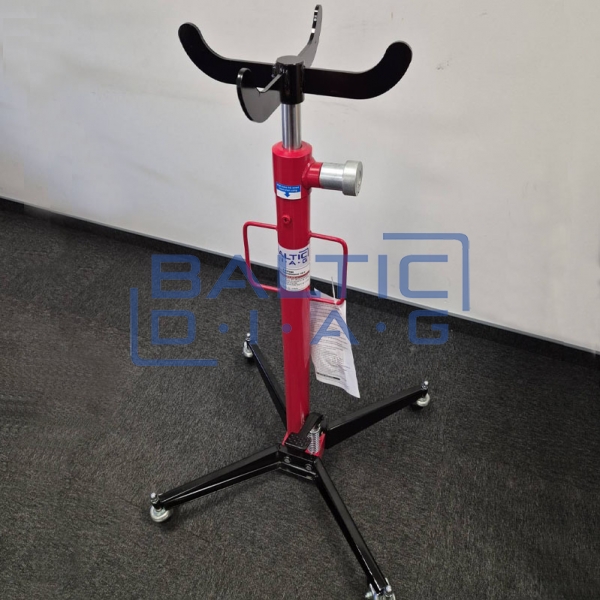

Transmission Jack 600 kg

Features:

• Strong and reliable construction for safe operation.
• Compact design ensures easy transportation and storage.
• Adjustable lifting height allows adaptation to different working conditions.
• Wide saddle ensures stable support of components.
• Ideal for installing or removing transmissions, clutches, and other assemblies.
• Convenient for use by both professionals and hobbyists.

Technical Specifications:

• Lifting capacity: 600 kg
• Minimum height: 1100 mm
• Maximum height: 1900 mm
• Base dimensions: 600 x 550 mm
• Saddle dimensions: 340 x 340 mm
• Cylinder diameter: 30 mm
• Weight: 30 kg
• Packaging dimensions: 1080 x 290 x 165 mm

Before using the jack, make sure to loosen the breather screw on the hydraulic pump!
