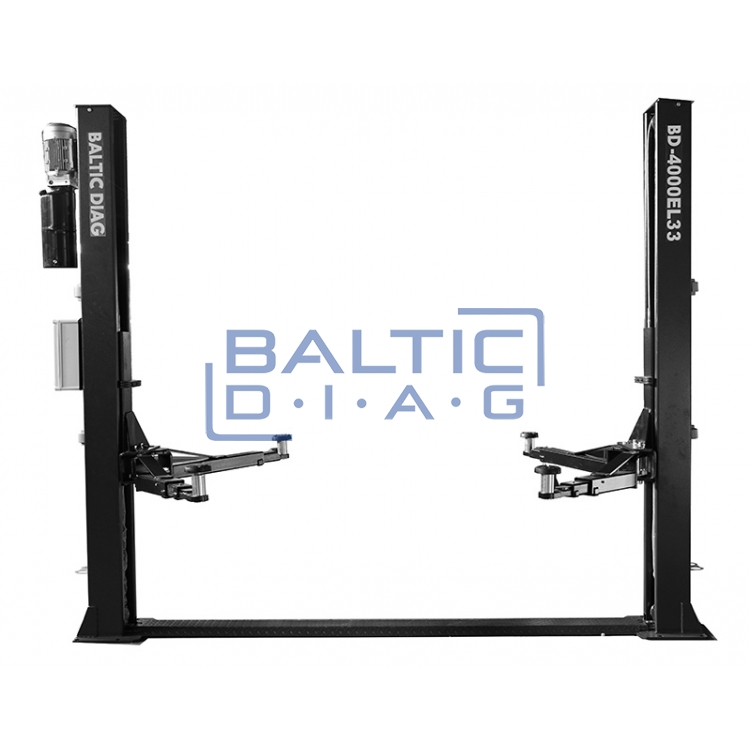

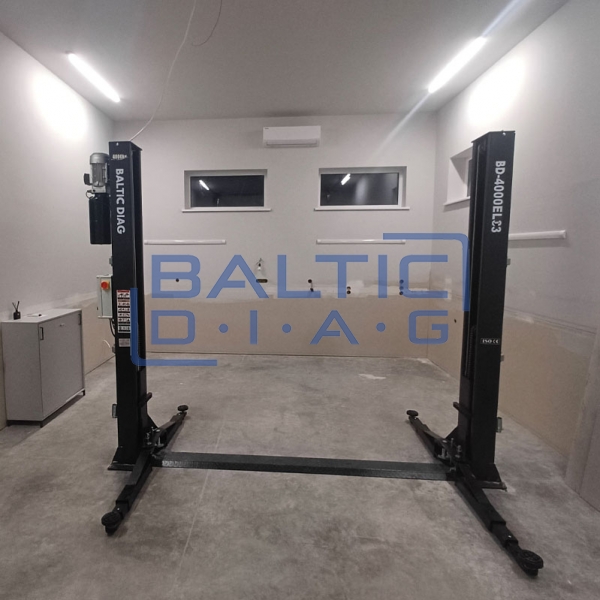

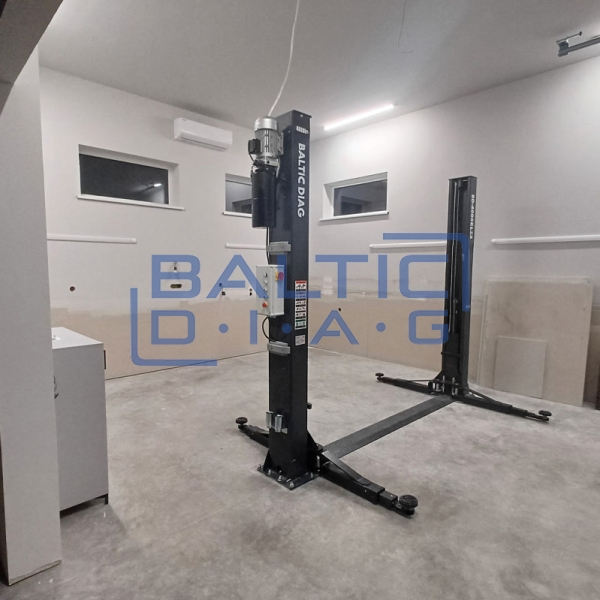

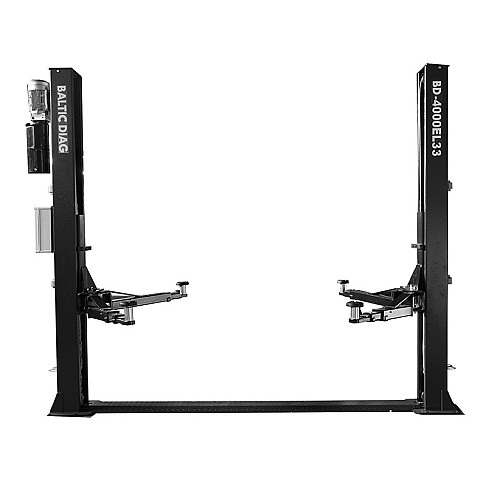

Double post lifter with electromagnetic safety locking, 3 + 3-steps arms 4t BD-4000EL33
- SKU: BD67009
1,699.00 €
1,899.00 €
Send Message
Description
Double post lifter with electromagnetic safety locking, 3 + 3-steps arms 4t BD-4000EL33

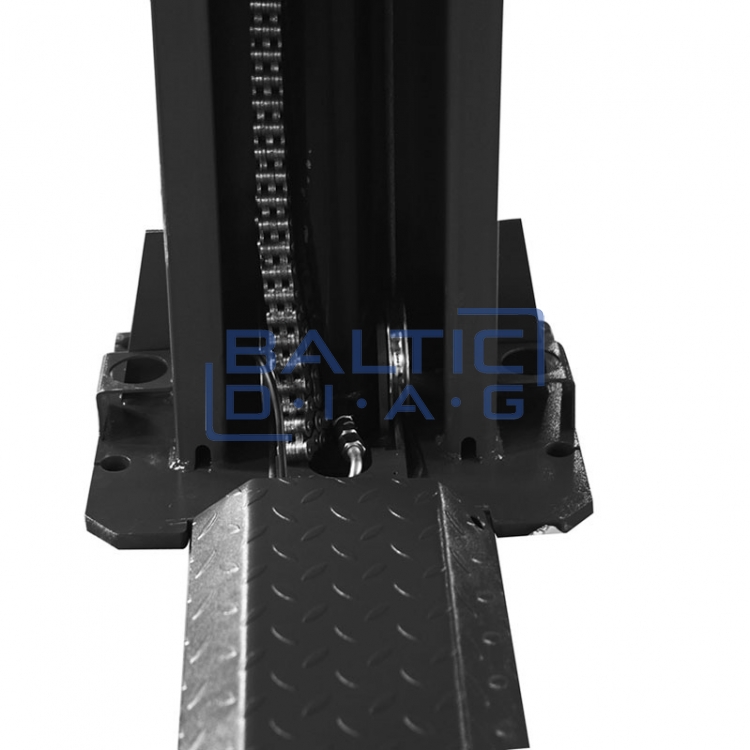

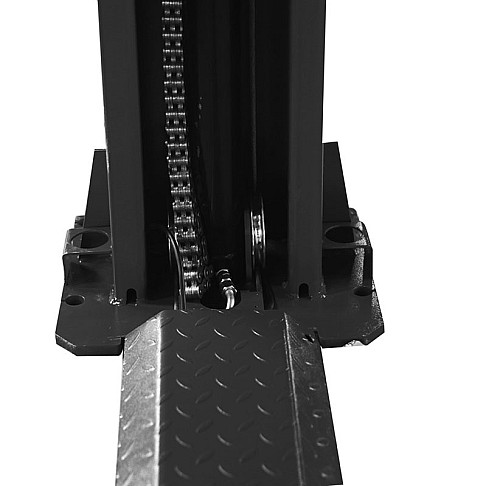

- The elevator columns are synchronized through the bottom

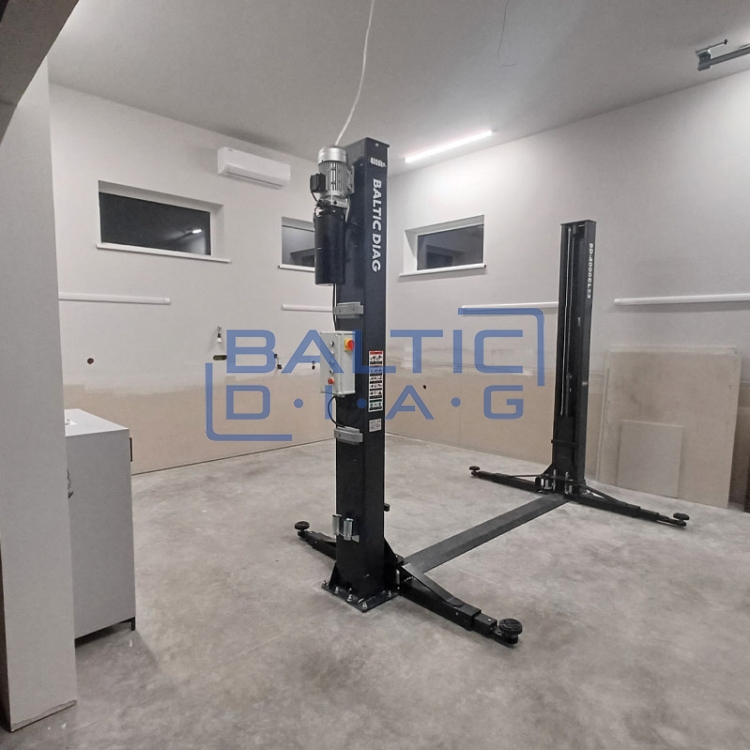

- The complete set of the lift consists of the following components: two columns, lifting arms, electric motor and hydraulic cylinders

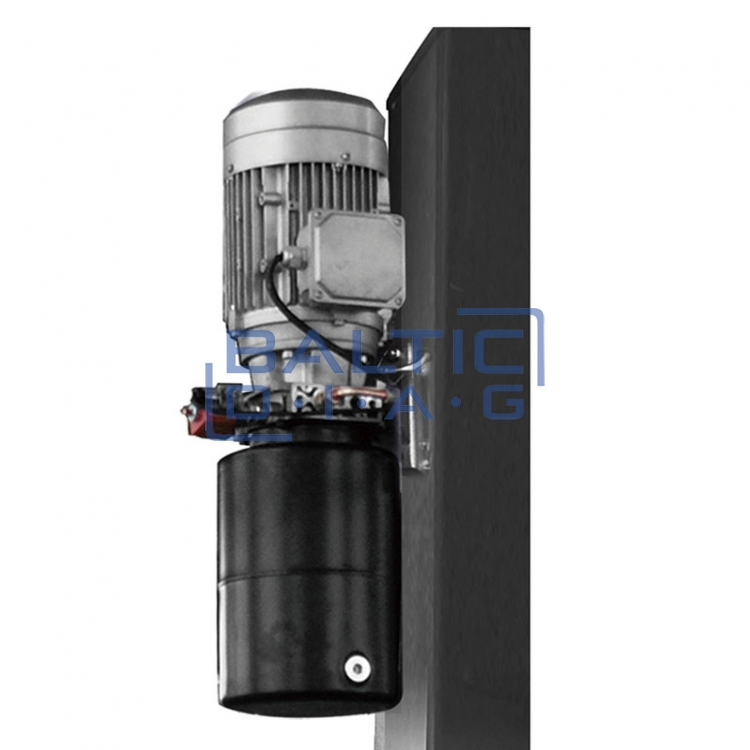

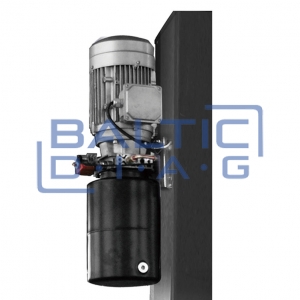

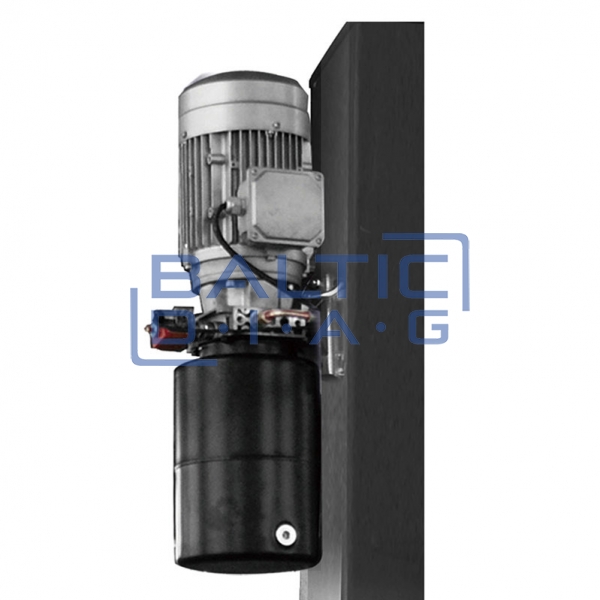

- The hydraulic pressure for lifting is generated in the hydraulic pump and from there is supplied to the lifting cylinders. The supplied hydraulic fluid pressure is regulated by electromagnetic valves
- The lifting arms are attached to the lifting cylinders, so when the cylinder rises, the pawls are also lifted directly

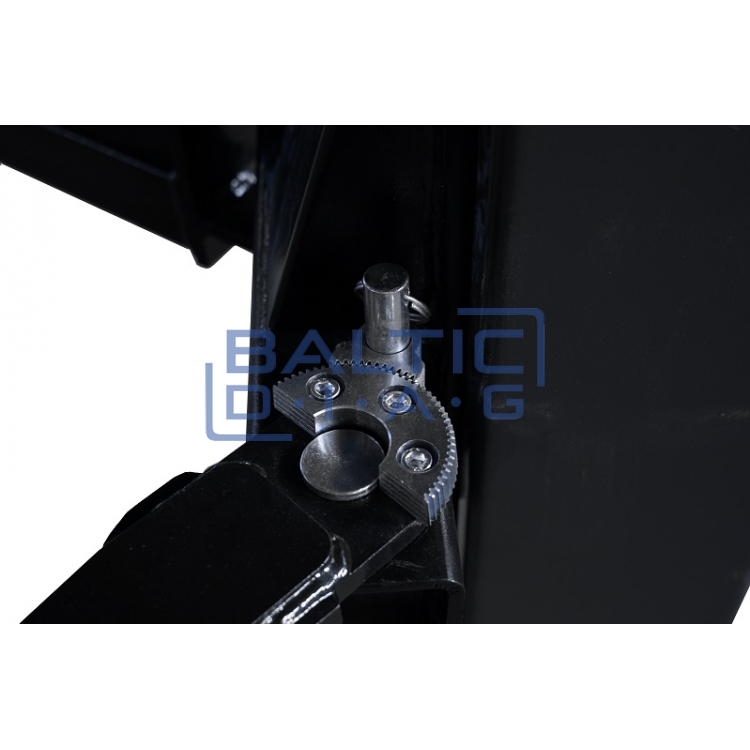

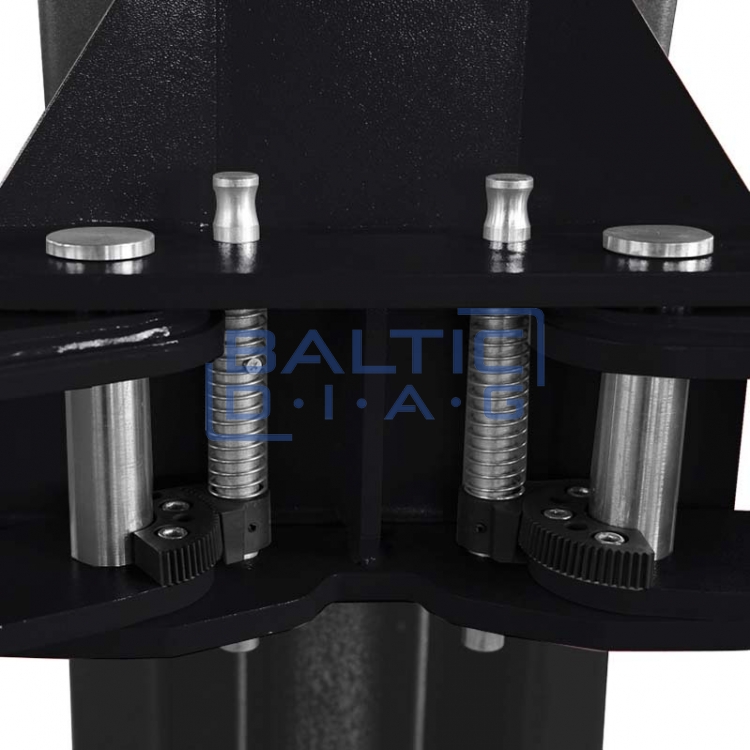

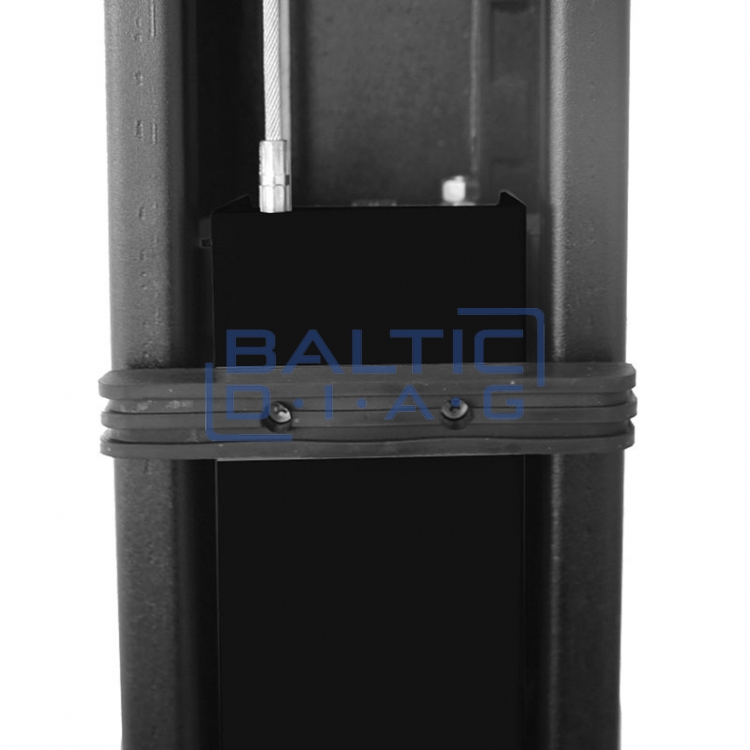

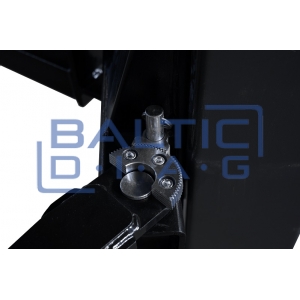

- When the lifter's arms are raised, their protection mechanism automatically locks into the protective positions. This protects the lift from a sudden drop of the arms in the event of a failure in the hydraulic system and a loss of pressure

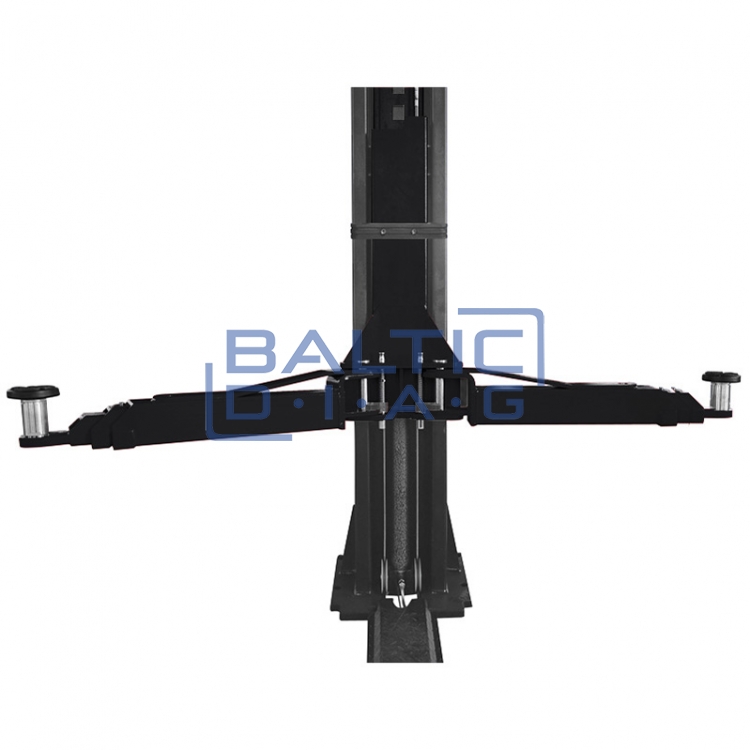

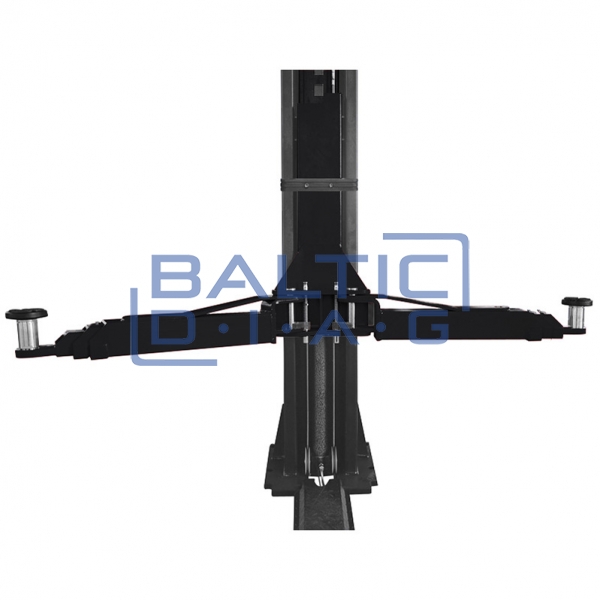

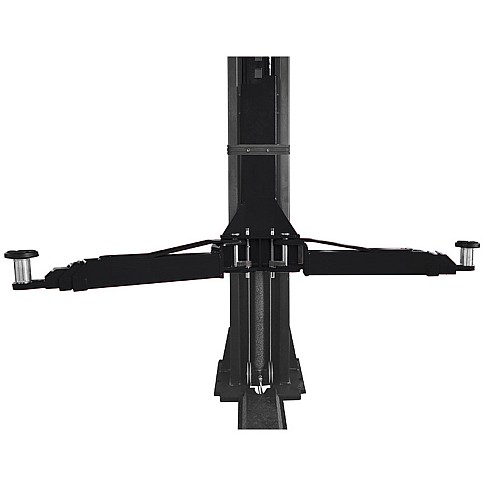

- Reinforced arm attachment "carriage"

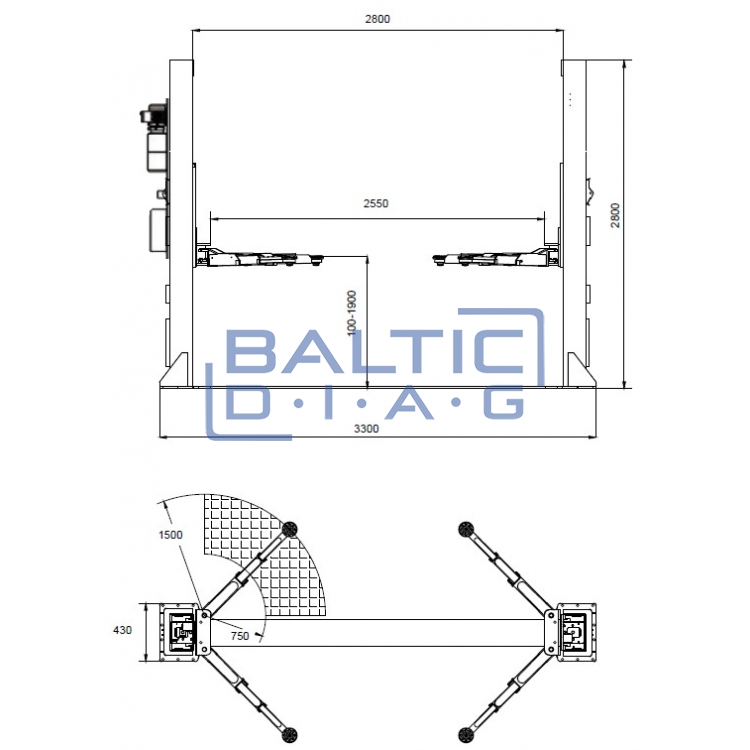

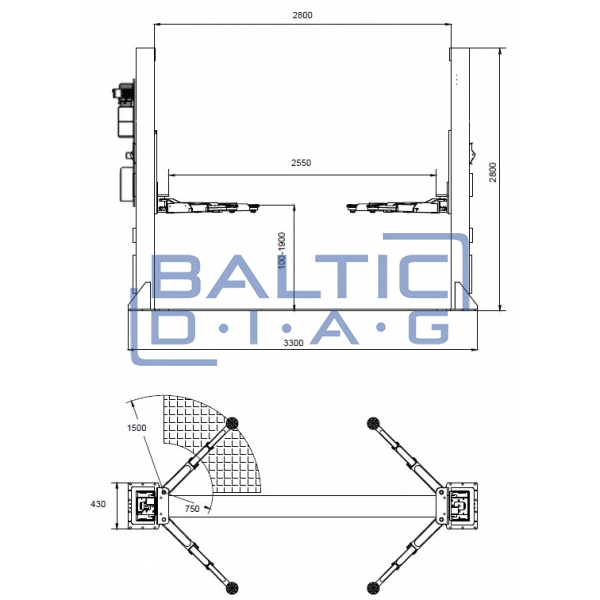

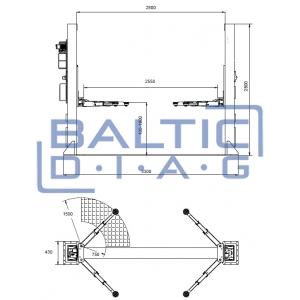

Technical parameters:
- Lift load capacity: 4000 kg
- Lifting time: 45 s
- Lift height: 1900 mm
- Total width of the lift: 3300 mm
- Width between columns: 2800 mm
- Post height: 2800 mm
- Maximum width of serviced car: 2500 mm
- Minimum height of arms: 100 mm
- Electric motor: 2.2 kW
- Power supply voltage: 400 V / 50 Hz / 3 phases
- Color code: RAL7021
- Arm fall protection: Electromagnetic paw release

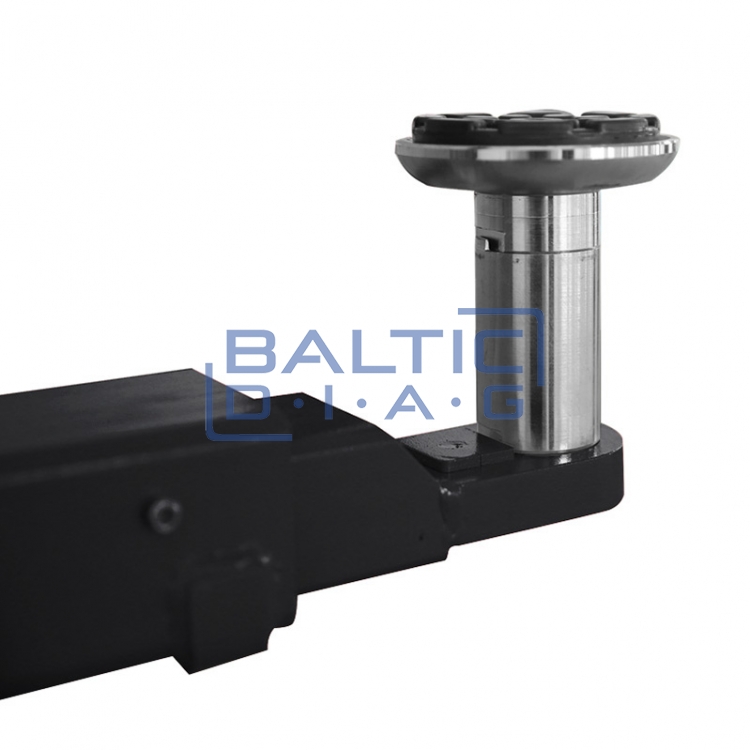

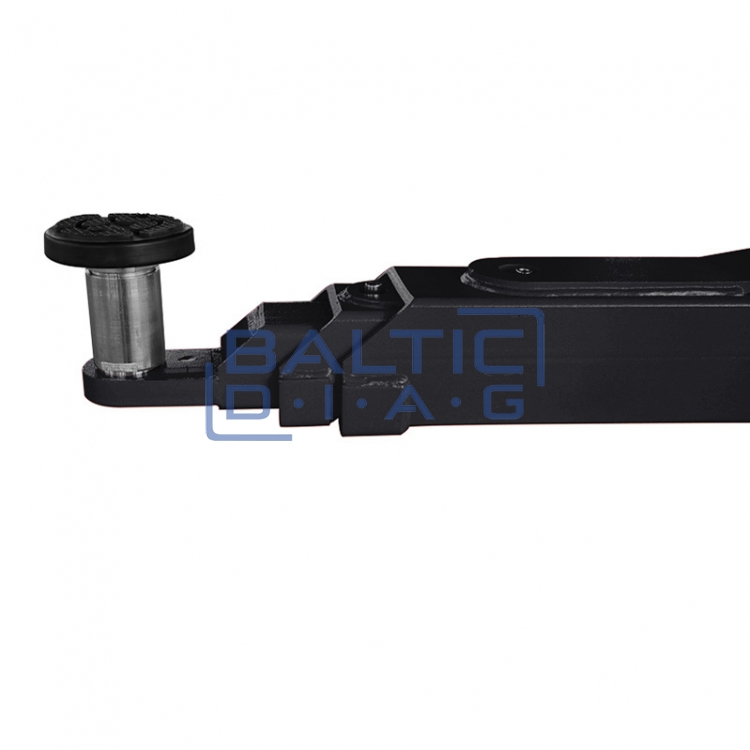

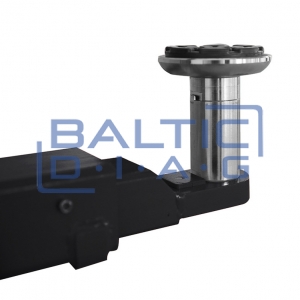

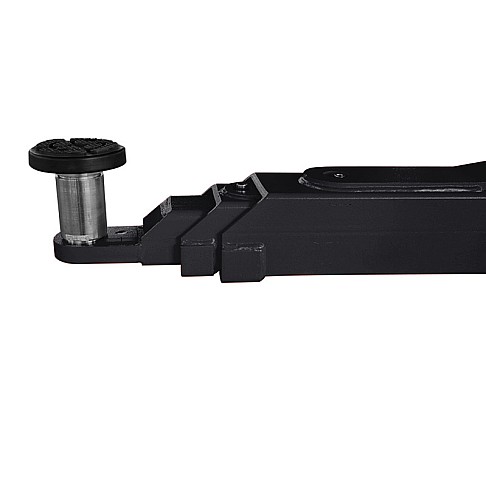

- Length of arms: 750 - 1500 mm, three stages
- CE certificate
