Automatic wheel alignment stand Autool XC508 3D

Automatic wheel alignment stand Autool XC508 3D

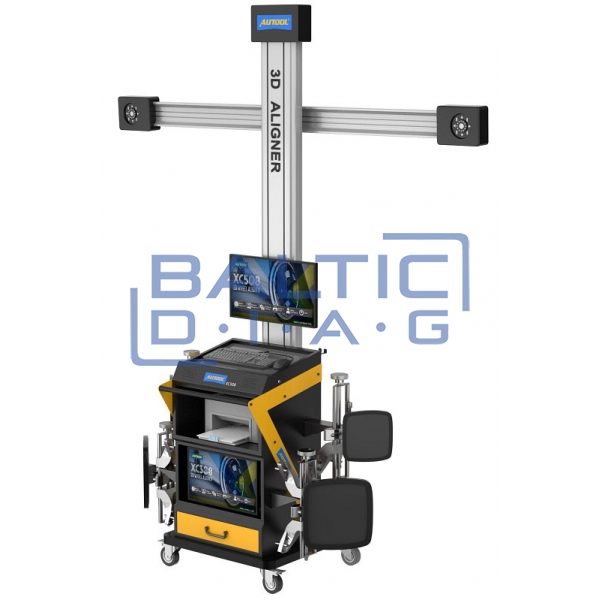

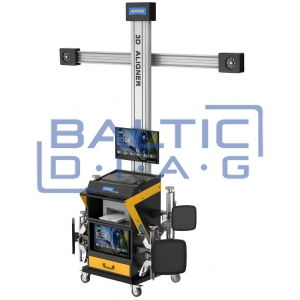

This is the Autool XC508 3D all-wheel alignment adjustment stand. It is used to detect the parameters of the car's wheel position and compare them with the original parameters provided by the manufacturers. This helps the user of the stand to adjust the wheel positions accordingly, so that they meet the initial parameters and requirements set by the car manufacturer. This results in ideal vehicle handling, high stability and reliable driving and reduces partial, inappropriate tire wear.

Features:

• A database with more than 50,000 car models is hosted
• Intelligent target tracking system with lifting system
• Dual display design
• Mobile work cart
• Comes with a printer, so work reports can be printed immediately
• High precision, water and drop resistant
• Includes a comprehensive vehicle measurement system
• 3D camera measurement technology is used
• Multilingual art is supported
• Integrated stroller design
• Software update is supported
• Provides continuity and adjustable rolling distance with short adjustment settings.
• The expert mode allows you to perform wheel alignment works in a time-saving manner
• The special functionality of traffic accident measurement systems is equipped
• Provides full voice control. This control is synchronized with the LED indicators, which help to perform the measurement work

Functions:

• Comprehensive and large database: Autool XC508 3D wheel alignment equipment supports more than 100 car manufacturers and more than 50000 car models, and the manufacturer can add their own desired cars to the manual. In addition, the software has a special auxiliary function that helps to quickly summarize the desired vehicle data.
• The latest in 3D camera measurement technology: The stand uses an industry-leading four-wheel alignment system and uses a 5-megapixel high-end and high-resolution lens. The distance from the cameras to the targets can be: 1500 - 2800 mm. When using the device, you do not need to move the cameras, which does not cause any interference and extends the service life of the equipment.
• Short-distance roll compensation: Using the Autool XC508 wheel alignment stand, push the car back 8-12 cm for the equipment to collect the necessary data. Also, the stand is adapted to work with rims with a height of 13" to 23" inches. Data compensation is deducted without the required stop.
• Dual Display Design: Comes with an additional display. This display can be positioned at various angles to suit the user's requirements.
• Integrated printer: the stand is sold with a printer that is adapted to the wheel alignment system. With its help, you will be able to quickly and easily print the results of the current parameters and the results after the work is done.
• Detailed and comprehensive measurement system: Autool wheel alignment stand has left various measurement methods: alignment, camber, caster, camber deviation, track difference, axle distance and wheel base difference.
• Mobile wheel alignment bench: the entire crossbar of the bench is removable, so wheel alignment can be done from different sides. In addition, there is no need for special leveling space in the workshop. This versatile design maximizes space efficiency.
• Professional level equipment.
• Voice-controlled commands.
• Multilingual management skills.
• Moisture and impact resistant.
• Intelligent target tracking system: The camera beam has a special automatic tracking system that moves with the height of the targets, thus increasing the measurement accuracy. With the height tracking function, the environment is monitored and if an obstacle appears, the equipment is simply stopped.
• Long warranty period.

Technical parameters:

• Supply voltage: 230 V / 50 Hz
• Number of control languages: 8
• Number of screens: 2
• Voice control: Yes
• Precise positioning: Yes
• Safe and stable: Yes
• Car database: Yes
• Fast and efficient: Yes
• Printing reports: Yes
• Mobile use: Yes
• All in one stand: Yes
• Integrated printer: Yes
• Smart Hoist Lift Tracking: Yes
• Screen: double, 19" LCD
• Resolution: 1920 x 1080 px
• Measured wheel sizes: 10 ~ 23"
• Tolerable, height difference between sides: left - right < 5 mm
• Lighting conditions: must be protected from direct infrared rays reaching the targets.

Measurement range and precision:

• Wheel Alignment: Accuracy = ± 0.01° | precision sections = ± 2° | maximum measuring range = ± 20°
• Camber: accuracy = ± 0.01° | precision sections = ± 2° | maximum measuring range = ± 20°
• KingPin: Accuracy = ± 0.02° | precision sections = ± 15° | maximum measuring range = ± 20°
• Caster: Accuracy = ± 0.02° | precision sections = ± 10° | maximum measuring range = ± 20°
• Thrust Angle: accuracy = ± 0.02° | precision sections = ± 2° | maximum measuring range = ± 20°

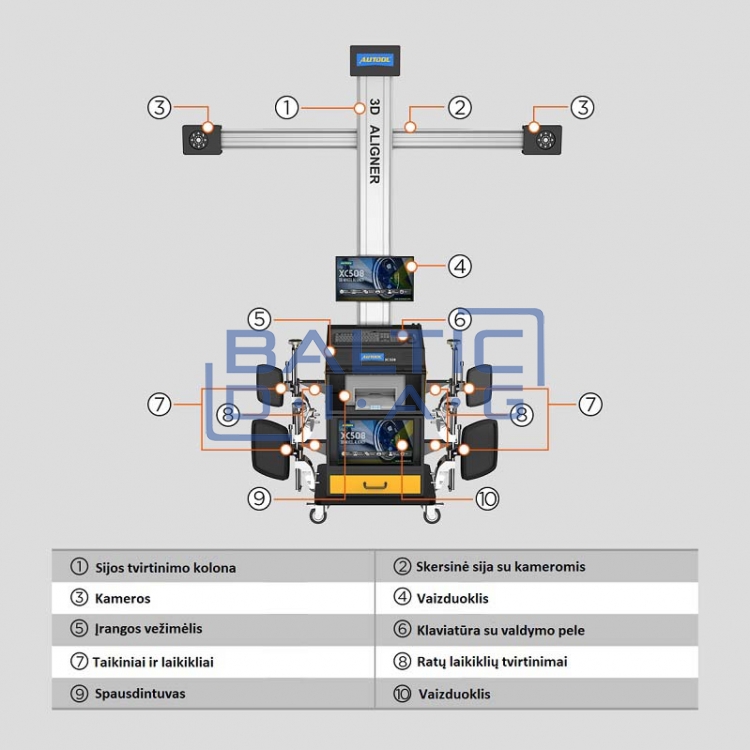

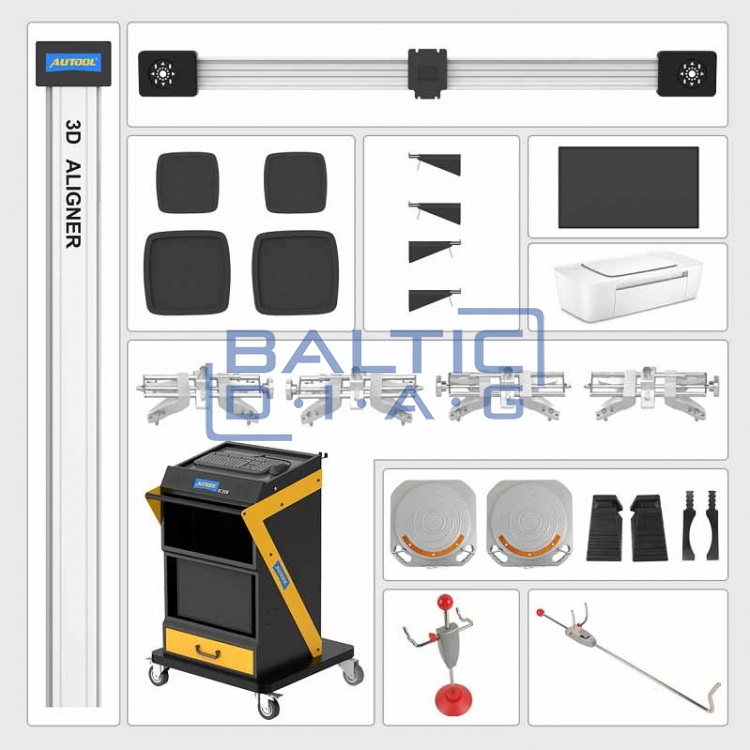

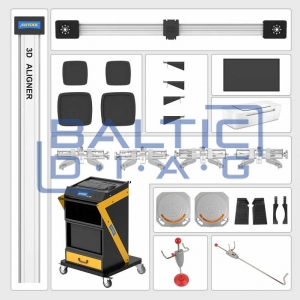

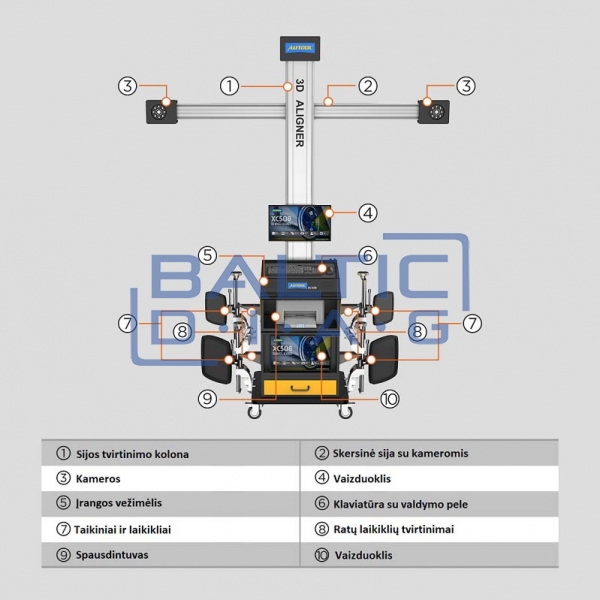

Complete set:

• Autool XC508 main unit
• Beam mounting column
• Cross beam with cameras
• Monitors x 2 pcs.
• Stationary computer cart
• Keyboard
• Control mouse
• Targets and mounts x 4 pcs.
• Wheel bracket mounts x 4 pcs.
• Printer
• Sliding wheel alignment plates x 2 pcs.
• Wheel locking tabs x 2 pcs.
• Transition blocks x 2 pcs.
• Steering wheel position locking mechanism
• Brake pedal locking mechanism
