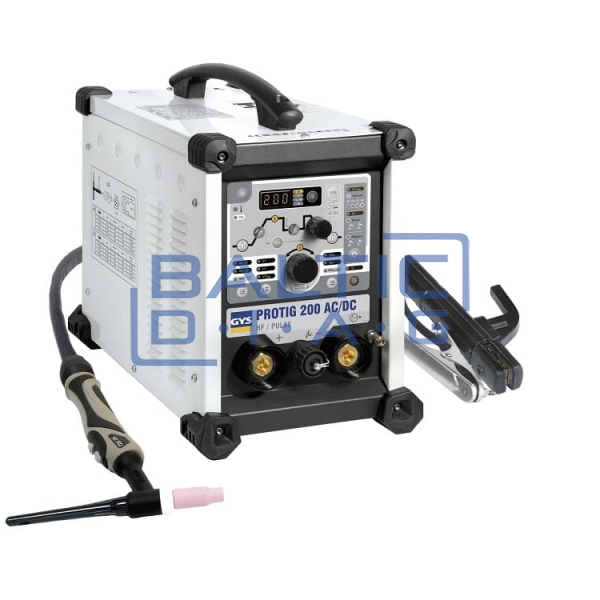

Welding equipment GYS PROTIG 200 AC/DC with accessories

Welding equipment GYS PROTIG 200 AC/DC with accessories

Manufacturer: GYS, France; Warranty: 24 months

The GYS PROTIG 200 AC/DC (200 A) is a compact, portable and versatile dual-process welding machine for AC/DC TIG welding and MMA welding. It can be used to join all types of metals up to 4 mm thick (steel, stainless steel, aluminum, copper, magnesium and even titanium). Advanced, secondary regulation guarantees optimal stability of the welding arc and a constant welding current.

Five modes of TIG welding:

Standard DC: DC welding for most ferrous metals

Impulse DC: limits the temperature rise of the parts to be welded. Ideal for very thin sheet metal.

Standard AC: for welding aluminum and its alloys (Al, AlSi, AlMg and AlMn, etc.).

Pulsed AC: limits the temperature rise of the parts to be welded. Ideal for very thin sheet metal.

Easy AC: preset user settings make using the welding machine as simple as possible. The user only has to select the diameter of the tungsten electrode in the user interface of the device.

Advantages:

Reinforced chassis and anti-shock protection

Compact and convenient design

Welding current/voltage display (DMOS/QMOS)

One device can store up to 50 programs

Connection for remote controls

Technical data:

Power supply: 230V 50/60Hz

Fuses: 16A

TIG AC: 10-200A

TIG DC: 10-160A

MMA: 10-160A

TIG DC: 0.1 - 900 Hz

TIG AC: 0.1 - 20 Hz

Dimensions: 24 x 43 x 35 cm

Power: 7.5kW

Protection class: IP21

Weight: 12.5 kg

Code: 068742
