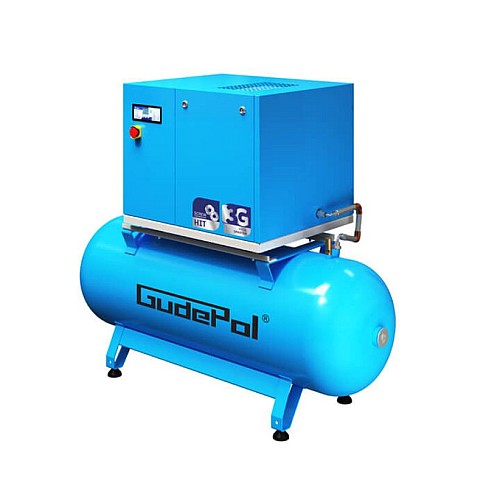

Screw air compressor 270 l, 750 l/min, 10 bar GudePol

Screw air compressor 270 l, 750 l/min, 10 bar GudePol

Functions:

• Microprocessor control panel L26S – a clear LCD display provides information about operating modes, temperature, working hours, and maintenance intervals
• Automatic fault diagnostics – notifies of malfunctions, displays error codes, and includes a memory function
• Adjustable pressure – allows setting minimum and maximum pressure with an accuracy of 0.1 bar
• Protection system – protects against voltage drops, phase loss, incorrect rotation direction, motor overload, and oil temperature fluctuations
• Oil and air filtration system – ensures an extremely low oil content in compressed air (<4 ppm)
• Belt drive – provides reliable, smooth, and quiet power transmission
• Galvanized air tank – protection against corrosion both inside and outside according to PN-EN ISO-1461 standard
• High-efficiency screw module – optimal power-to-performance ratio and reduced energy consumption
• LTE/5G Cloud system – allows monitoring and controlling the compressor 24/7 via computer, tablet, or smartphone
• Integrated clock – allows setting up to 3 work schedules per day
• RS485 port and GSM module support – enables connection to a computer and receiving SMS notifications about operation
• Proven reliability – each unit is factory-tested according to strict quality standards
• Quiet operation – only 68 dB noise level

Technical specifications:

• Air delivery: 750 l/min (45 m³/h)
• Maximum pressure: 10 bar
• Motor power: 5.5 kW (7 HP)
• Noise level: 68 dB
• Power supply: 400 V
• Tank capacity: 270 l
• Connection: 1/2"
• Dimensions (width x depth x height): 160 x 66 x 126 cm
