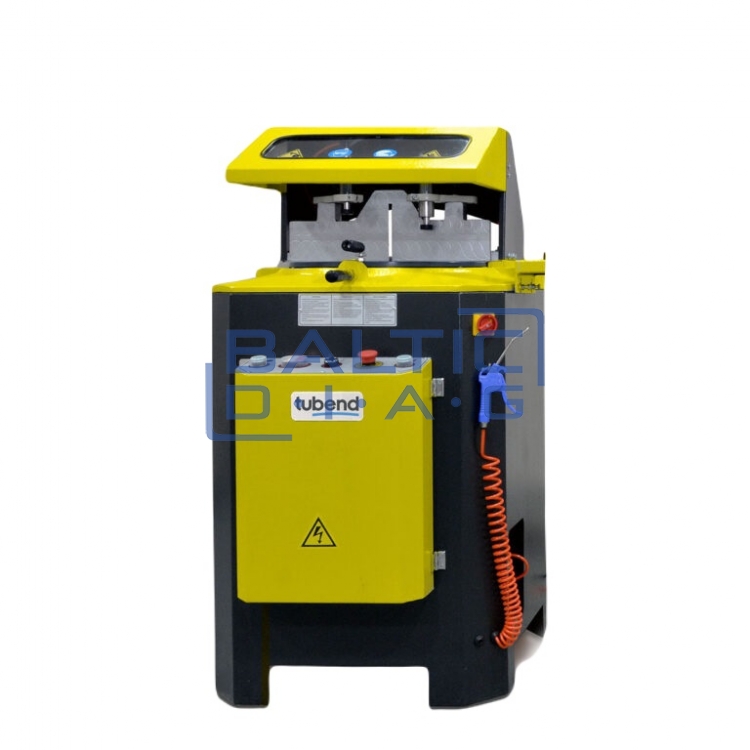

Automatic aluminum cutting machine AC400

Automatic aluminum cutting machine AC400

This automatic aluminum cutting machine AC400 is a high-quality, reliable and precise device for efficient and precise cutting of aluminum profiles. This equipment is perfect for metalworking workshops, manufacturing plants and industrial applications. It performs various cutting tasks reliably and easily. Cutting machines, a necessary choice of equipment for professionals who seek precision, durability and quality in their work. Its advanced features and rugged design make it the perfect choice for people who seek the highest quality in any manufacturing or metalworking project.

Features:

• Fixed positions: 15°; 22.5°; 30°; 45°; 67.5°; 90°
• Locking handle for convenient change of position
• Adjustable cutting speed, for different types of profiles
• Saw cover with safety switch
• Belt driven saw
• Two-handed safety control system
• Easily replaceable saw blade
• Two, vertical pistons with clamps are installed
• One blow gun is equipped

Technical parameters:

• Electric motor power: 1.5 kW
• Electric motor power: 2.0 Ag
• Main voltage: 400 V / 50 Hz / 3 fz
• Electric current used: 3.3 A
• Cutting disc diameter: 400 mm
• Cutting disc mounting hole: 32 mm
• Cutting disc thickness: 4 mm
• Rotation speed: 3580 rpm
• Cutting a square profile at a 45° angle: 100 x 100 mm
• Cutting a square profile at a 90° angle: 120 x 120 mm
• Cutting a rectangular profile at an angle of 45°: 130 x 80 mm
• Cutting a rectangular profile at a 90° angle: 150 x 100 mm
• Working air pressure: 6 - 8 bar
• Required air flow: 25 l/min
• Dimensions: 720 x 760 x 1330 mm
• Weight: 132 kg
• Package dimensions: 740 x 780 x 1350 kg
• Package weight: 162 kg
