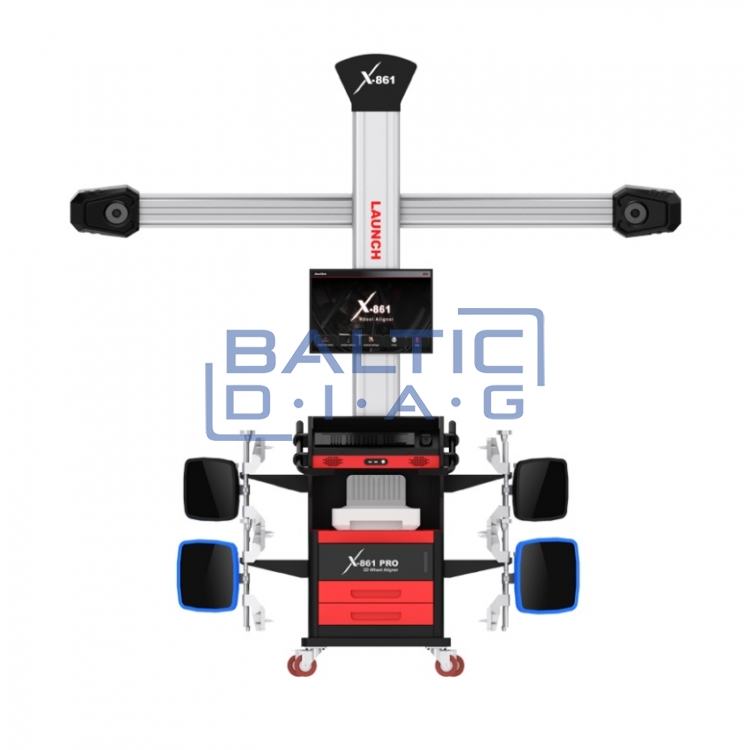

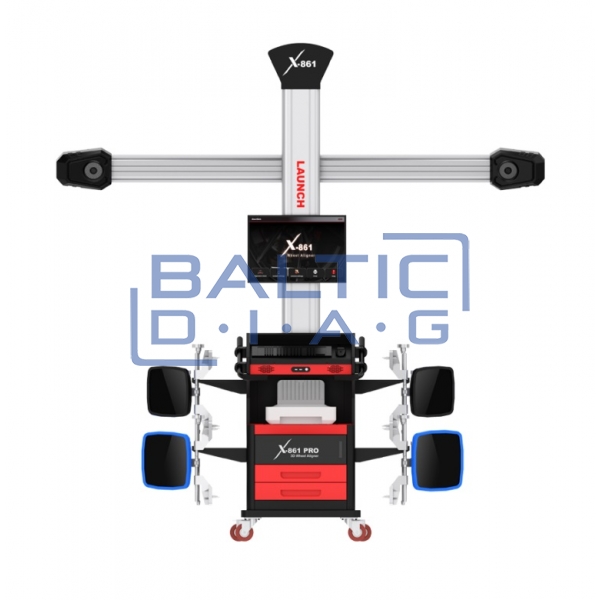

Wheel alignment stand Launch X-861 PRO 3D

Wheel Aligner Launch X-861 PRO 3D

Functions:

• Automatic camera height adjustment – adapts to the height of the vehicle
• High-resolution 5 MP cameras – for precise and stable 3D measurements
• USB 3.0 interface – for ultra-fast data transmission
• High-resolution cameras that automatically adjust to temperature changes – stable results under all conditions
• Wide measurement angle range – ensures accurate results without additional vehicle repositioning
• Intuitive control system – with computer voice reminder and easy calibration
• Ability to measure various vehicle types – suitable for passenger cars, vans, SUVs, and trucks

Technical specifications:

• Operating system: Windows 11
• Operating voltage: AC 220 V (10 A)
• Frequency: 50–60 Hz
• Power: 0.5 kW
• Screen: 27 inches
• Total weight: 204 kg

Measurement parameters:

• Total track: measurement range ±40°, accuracy ±2'
• Single track: measurement range ±40°, accuracy ±2'
• Camber: measurement range ±10°, accuracy ±2'
• Caster: measurement range ±20°, accuracy ±4'
• King pin: measurement range ±20°, accuracy ±6'
• Axle angle: measurement range ±10°, accuracy ±2'
• Toe difference angle: measurement range ±40°, accuracy ±2'
