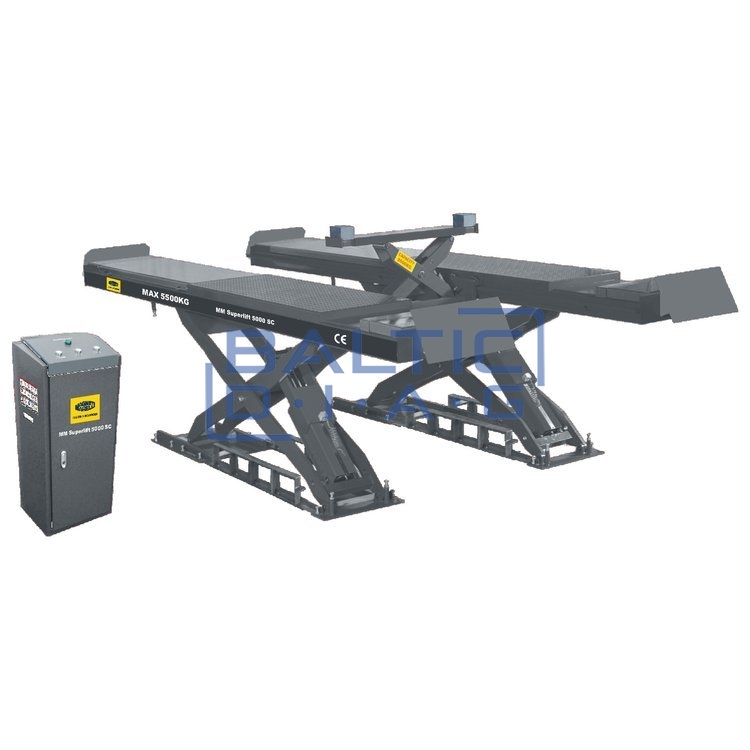

Scissor lift for wheel alignment Magneti Marelli Superlift 5000 SC

Scissor lift for wheel alignment Magneti Marelli Superlift 5000 SC

Warranty period: 24 months

Robust and ergonomic scissor lift, designed for working with vehicles up to 5500 kg, with an additional wheel alignment function. Precise laser machining and robotic welding, as well as special materials in moving parts, ensure a long service life and reduce maintenance costs. The lift has alignment plates, rear suspension release plates, and a pneumatic, sliding axle jack with a 3000 kg lifting capacity. The electro-hydraulic drive allows for comfortable and economical operation, with a lifting time not exceeding 55 seconds. Lowering, after releasing the safety pins, is performed without electricity. Additionally equipped with LED workspace lighting and a wired remote control for convenient operation. A high level of safety is ensured by a double-lock safety system, an emergency lowering system in case of power failure, and safe lowering with a warning signal.

Functions:

• Suitable for wheel alignment
• Alignment plates and rear suspension release plates
• Pneumatic, sliding axle jack
• LED workspace lighting
• Wired remote control
• Double-lock safety system
• Emergency lowering system in case of power outage
• Safe lowering with warning signal
• Two installation methods available: on-floor (with additional ramps) or in-floor

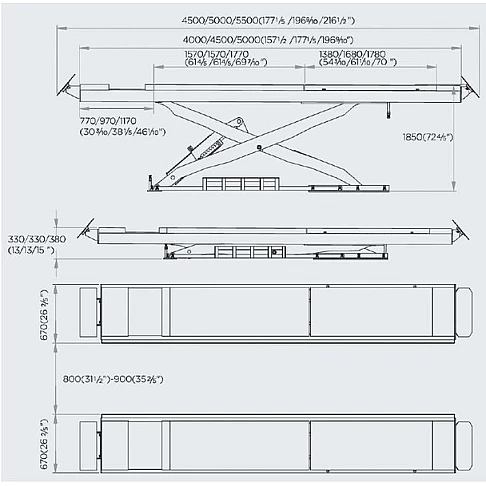

Technical specifications:

• Lifting capacity: 5500 kg
• Drive type: electro-hydraulic
• Lifting height: 1850 mm
• Minimum ramp height (when mounting on floor): 380 mm
• Ramp length: 5000 mm
• Ramp width: 670 mm
• Lifting time: ≤ 55 s
• Lowering time: ≤ 55 s
• Total lift length: 5500 mm
• Total lift width: 2140 ~ 2240 mm
• Axle jack capacity: 30001 kg
