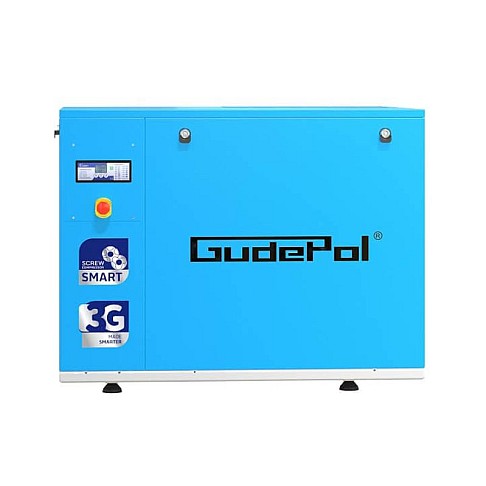

Screw air compressor 720 l/min, 10 bar, 5.5 kW GudePol SMART-3G

Screw air compressor 720 l/min, 10 bar, 5.5 kW GudePol SMART-3G

Functions:

• Modern frameless housing – reduces vibration and ensures smooth operation
• Improved cooling system – efficient cooling even in demanding environmental conditions
• Automatic protection system – safeguards against voltage drops, phase loss, incorrect motor rotation, and overload
• Microprocessor control panel – displays operating mode, temperature, error codes, maintenance time, and includes fault memory
• Ability to adjust minimum and maximum pressure directly from the control panel – displayed with 0.1 bar precision
• Quiet operation – sound insulation and structural solutions ensure only 68 dB noise level
• Efficient oil and air filtration system – residual oil content in compressed air less than 4 ppm
• Reliable drive – electric motor and belt drive system ensure stable performance and long service life
• Option to integrate dryer and filters – for clean air supply even in demanding conditions
• Energy efficiency – significantly reduces electricity consumption
• L26S control panel – LCD display, support for 8 languages, RS485 port, GSM notifications, and automatic restart after power restoration

Technical specifications:

• Version: 3G
• Capacity: 43 m³/h
• Capacity: 720 l/min
• Motor power: 5.5 kW
• Noise level: 68 dB
• Maximum pressure: 10 bar
• Air preparation station: none
• Power supply voltage: 400 V / 50 Hz
• Air connection: 1/2''
• Dimensions (width x depth x height): 1100 x 790 x 880 mm
• Weight: 145 kg
