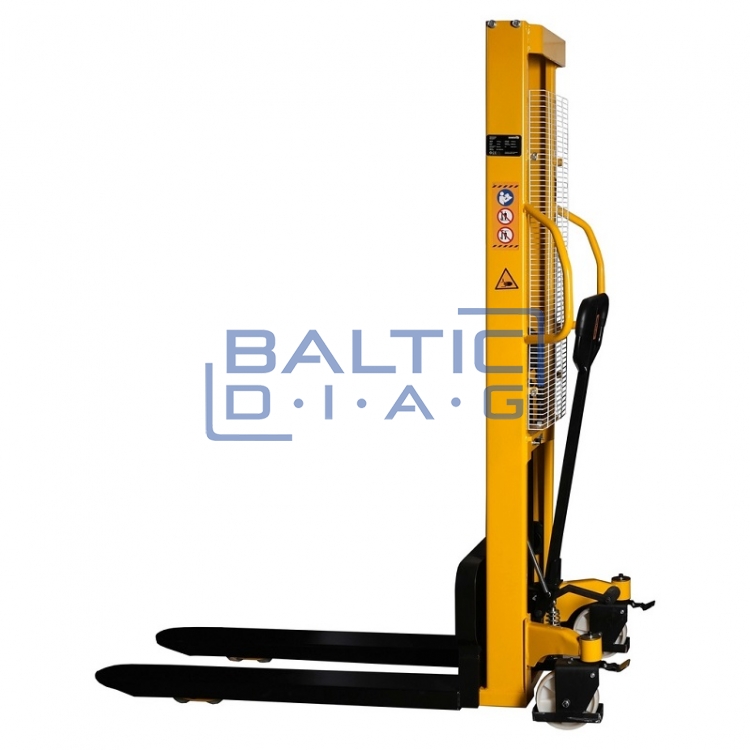

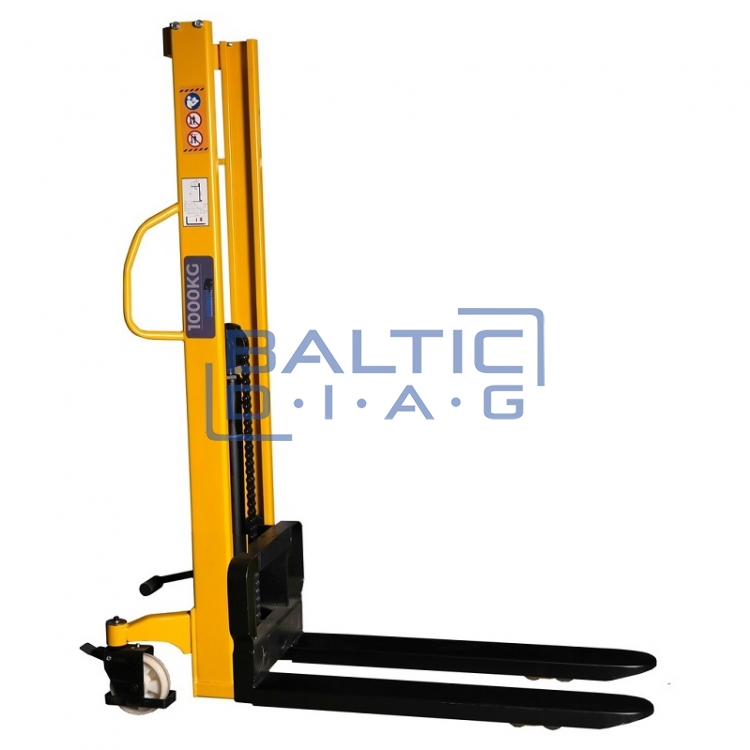

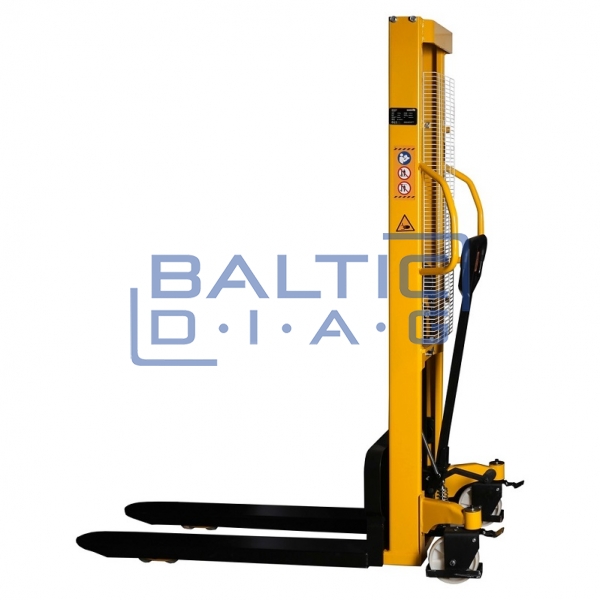

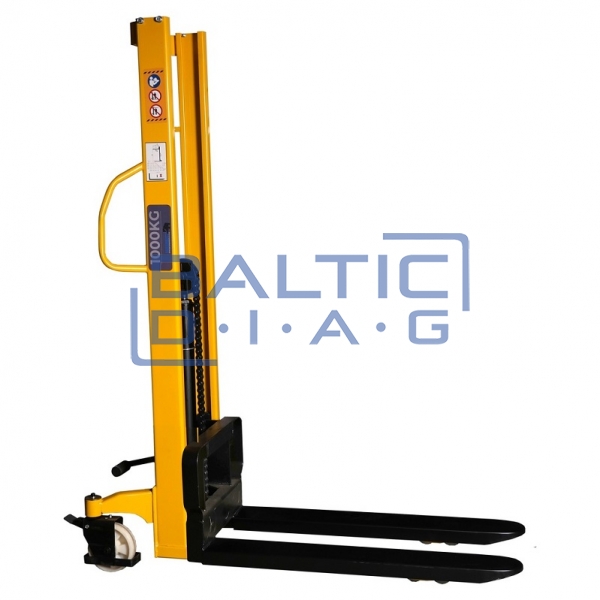

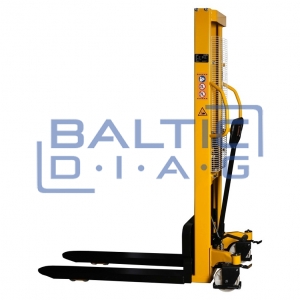

Mechanical pallet jack Mammuth PS10M16

Manual Pallet Stacker PS10M16 Mammuth

Functions:

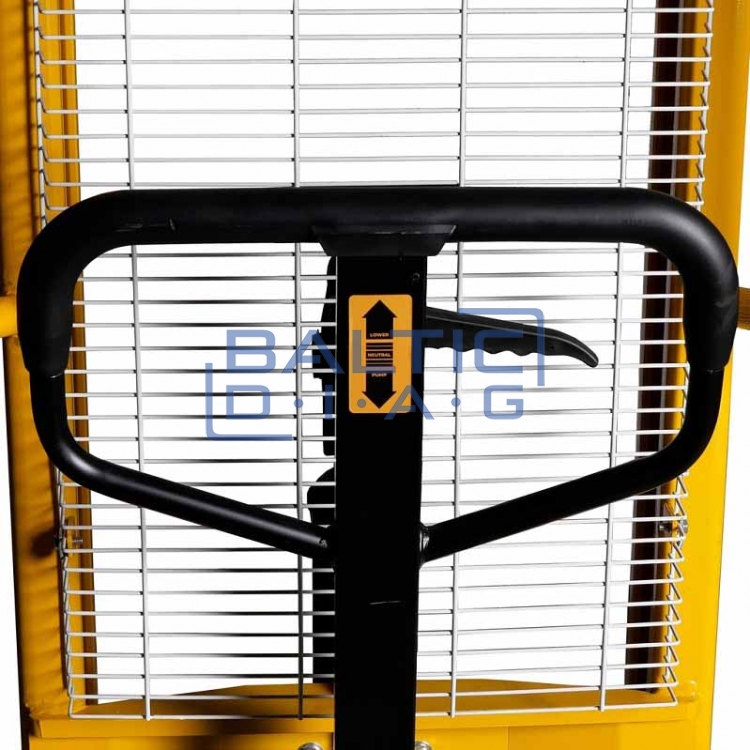

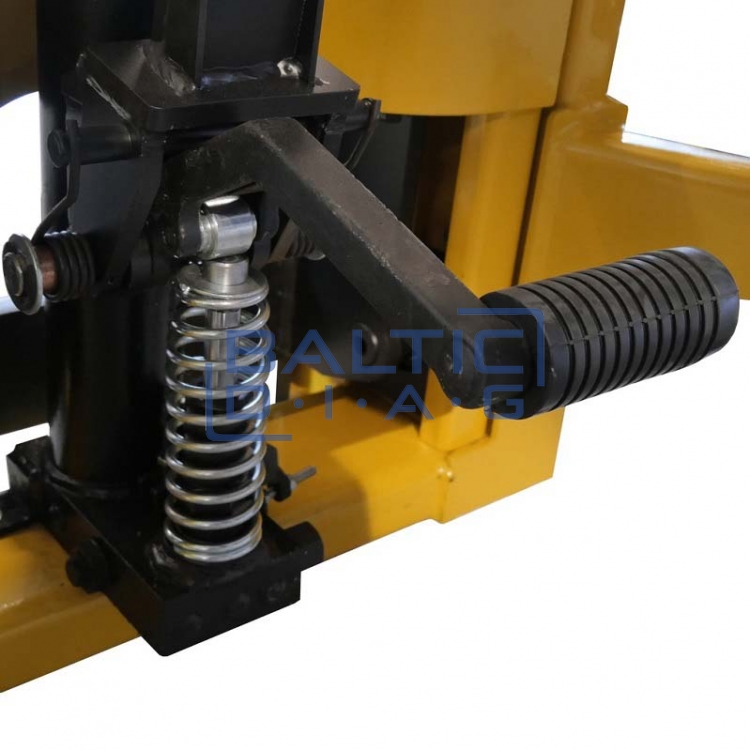

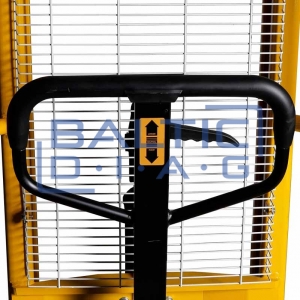

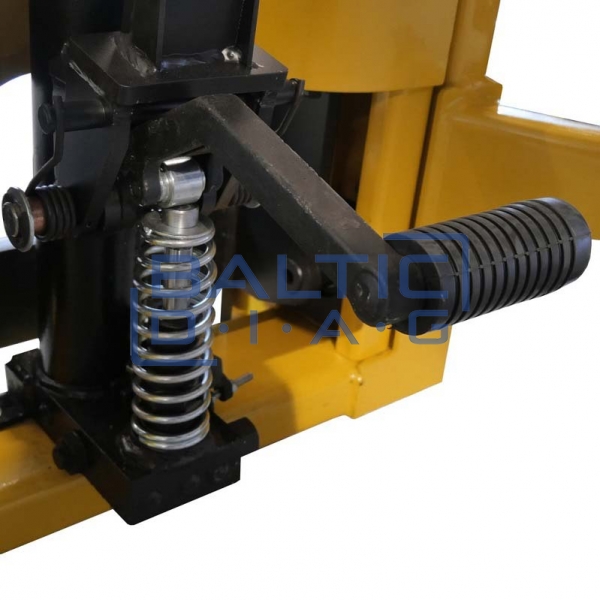

• Manual lifting with handle or foot pedal
• Compact design – convenient for use in tight spaces
• Wheels with parking brake ensure stability
• Durable C-profile mast for longevity
• Made of high-strength steel
• Protective frame for additional operator safety

Technical specifications:

• Lifting capacity: 1000 kg
• Fork dimensions (length x width x height): 1150 x 160 x 55 mm
• Total fork width: 565 mm
• Wheel material: nylon
• Lifting speed (loaded): 16 mm/s
• Turning radius: 1600 mm

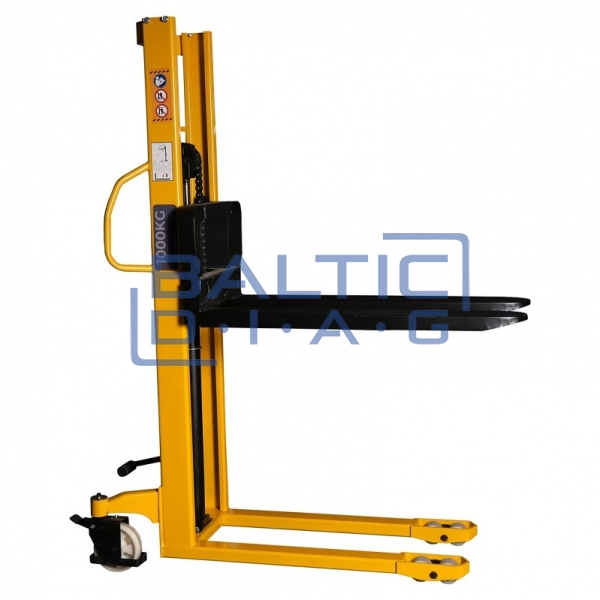

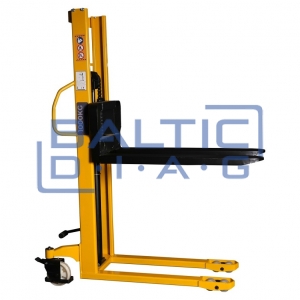

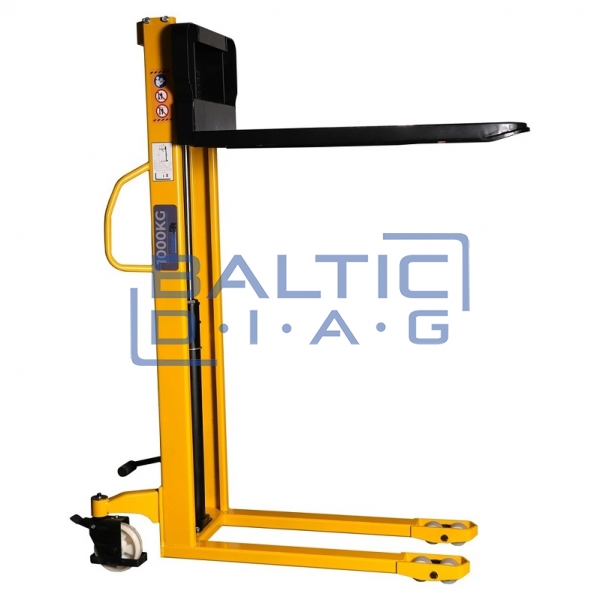

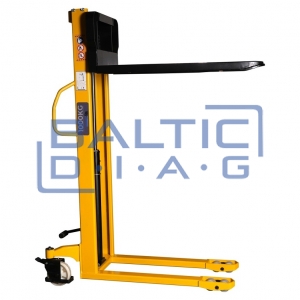

• Lifting height: 85–1610 mm
• Total length: 1750 mm
• Total width: 750 mm
• Lowering speed (loaded): adjustable
• Mast height (lowered/extended): 2005 mm

Product dimensions:

• Length: 1600 mm
• Width: 730 mm
• Height: 2020 mm
• Weight: 155 kg

Package dimensions:

• Length: 1600 mm
• Width: 735 mm
• Height: 2020 mm
• Weight: 155 kg
