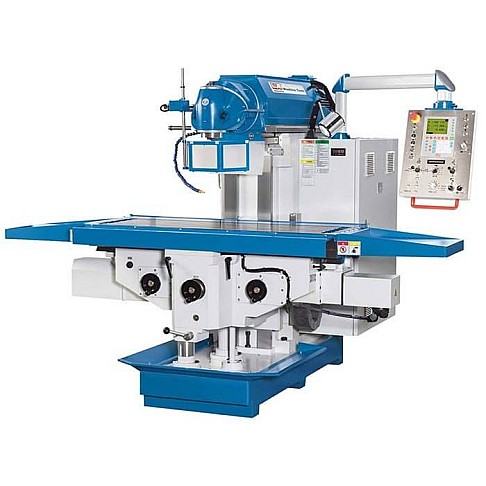

Universal milling machine, Knuth Servomill UWF 12

Universal milling machine, Knuth Servomill UWF 12

Manufacturer: Knuth, Germany

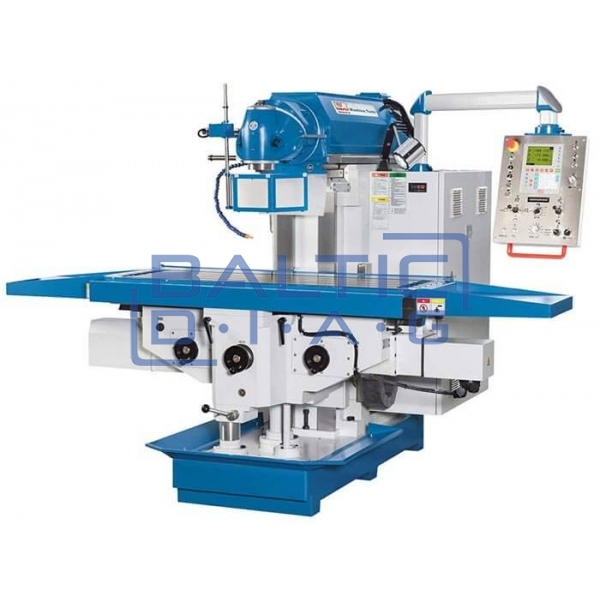

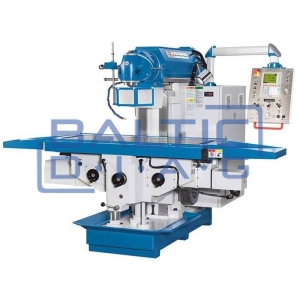

This versatile Servomill UWF 12 machine with servo feed technology and a universal milling head that can be tilted in two directions. This machine has a very wide adaptability, for various tasks and work places, and has one of the most powerful main drives. They have electronic braking, electronic hand-controlled wheels for workpiece positioning and additional milling functions. Servomill machines allow you to achieve the advantages of large-scale CNC machine technology without programming. They are most widely used in the production of tools and in the training and production sectors.

• Wide adaptability and particularly high power of the main drive
• Traditional servo motor feeding technology
• Electronic hand operated wheels

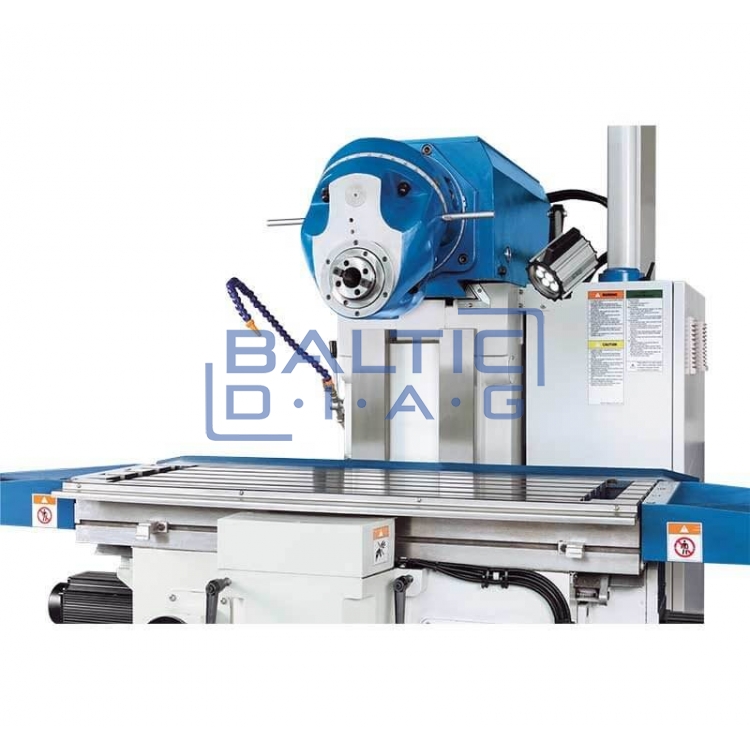

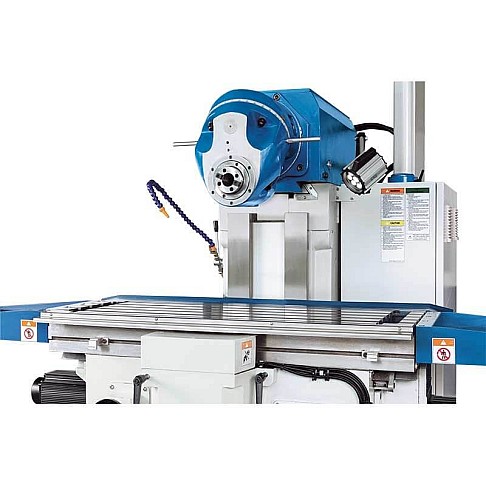

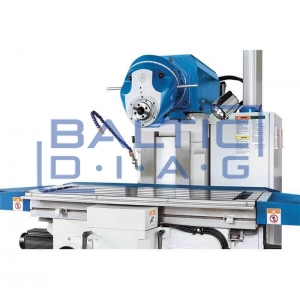

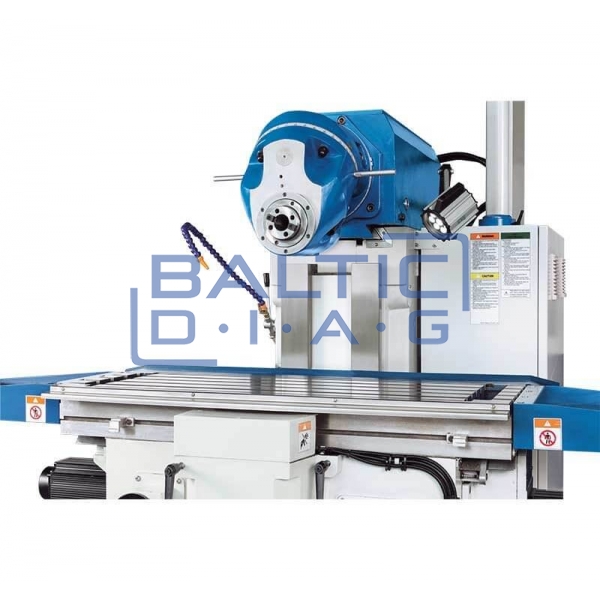

• Universal milling head, with the possibility of tilting in two directions

More detailed description:

• Traditional milling is much simpler, more precise and much more productive with this machine thanks to the integrated electronics
• Servomill machines represent the latest generation and most advanced milling machines, which are controlled like traditional machining machines.
• This device has a user-friendly design, a significantly higher level of accuracy and an increased processing capacity
• Characterized by a very high level of reliability and a long service life, all components of the device have a significantly extended service life
• Strong, torsion-resistant construction with X-axis guide and wide square Y- and Z-axis guides
• Large work table and wide movement of parts in all axes
• All guide rails are packed, hardened and provided with a central lubrication system
• The universal milling head can be easily tilted to a horizontal position
• Widely adjustable feed rates that have the ability to be synchronized with spindle speed at the touch of a button
• Robust construction drive mechanism with hardened and tempered gears

Highlights of Servomill:

• The control is designed and manufactured in Germany
• Positioning control is applied in all possible directions
• Zero milling "jump"
• Servo-motors are equipped in all axes, feeding and control speed are widely adjustable
• Electronic shaft load sensor
• Electronic, manually operated pulleys on all axles
• X, Y and Z axis movement using joystick technology
• Integrated position indicator with precise glass scale

Advantages:

• Easy to use: intuitive control - practical layout of controls and direct milling function
• Automatic feed in all axes, and widely adjustable feed speed
• Set stop points for all axes at the touch of a button - 3 different stop positions can be stored on one axis
• Much more precise: controlled by electronic controllers, the axes are controlled by high-quality servo drives, which convey the movements of the operator's hand with the special precision and dynamism that modern CNC machines are characterized by.
• Much more reliable: gears, shaft and measuring system, these components are covered almost everywhere to prevent various debris from entering them and they require almost no additional maintenance
• The electronics are made in Germany
• These machines use only the highest quality components that are specially designed for long and frequent work.
• No service is required for all machine feed mechanisms.
• Advanced filing system
• Ball screw drives on all axles
• Significantly fewer mistakes would be made due to the looseness of the details, which provides a much more accurate production process
• Reduced friction, no sliding effect, reduced heat generation and wear
• Micro-precision control, thanks to electronic components, but the ease of control is equal to a traditional machine, only much more precise and convenient
• Joystick control
• Maximum comfort when adjusting movements in all directions
• Easy handling, during sequential processing
• Set 2 stops, on three positions, at the touch of a button - these buttons are arranged around the feed switches for convenient use
• High repeatability is ensured for drilling and pocket cutting. Much more options for positioning compared to standard machines
• Electronic shaft load sensor
• Helps the operator to make the most efficient use of the capabilities of machines and tools
• Reliable sensors help prevent damage that may occur due to excessive loads

X.Pos Plus - Controller:

• Standard coordinates
• Calculation of the modulus of the hole to be produced
• Vibration filtering option
• Mm / inch dimension change
• A choice of 8 control languages is available
• Calculator function
• High resolution screen and excellent readability
• State-of-the-art electronics and a very robust, fully sealed housing ensure maximum safety and optimal production conditions
• During the production of the machine, the main focus was on the selection of electronic components. Select high quality and electronic components, provide maximum resistance against possible external interference and can maintain low temperatures during operation
• Screen colors can be changed according to needs and wishes
• The protective membrane of the keyboard has a high level of resistance against external hazards and is extremely comfortable to touch
• The control unit also has a one-button function, the press of which allows you to change the displayed parameters from radius to diameter and vice versa
• Axis positioning is maintained even when the display is turned off
• Graphical support that provides on-screen representation of residual path and sketch drawings
• Linear and non-linear length correction is possible
• Easy installation of the controller, connection of all electronics and extremely low need for maintenance

Technical data:

• Table dimensions: 1600 x 500 mm
• Table load capacity: 1000 kg
• Number of T - slots: 5 positions
• T - slots, width: 18 mm
• T - slots, spacing: 80
• Travel, X - axis: 1200 mm
• Travel, Y - axis: 700 mm
• Travel, Z - axis: 500 mm
• Two speed ranges: 30 - 390 / 390 - 2050 1/min
• Spindle mount: SK 50 / DIN 2080
• Swivel angle: 360°
• Spindle center - to - table distance: 50 - 550 mm
• Rapid feed, X - axis: 2200 mm/min
• Rapid feed, Y - axis: 2200 mm/min
• Rapid feed, Z - axis: 1100 mm/min
• Feed speed, X - axis: 10 - 1000 mm/min
• Feed speed, Y - axis: 10 - 1000 mm/min
• Feed speed, Z - axis: 5 - 500 mm/min

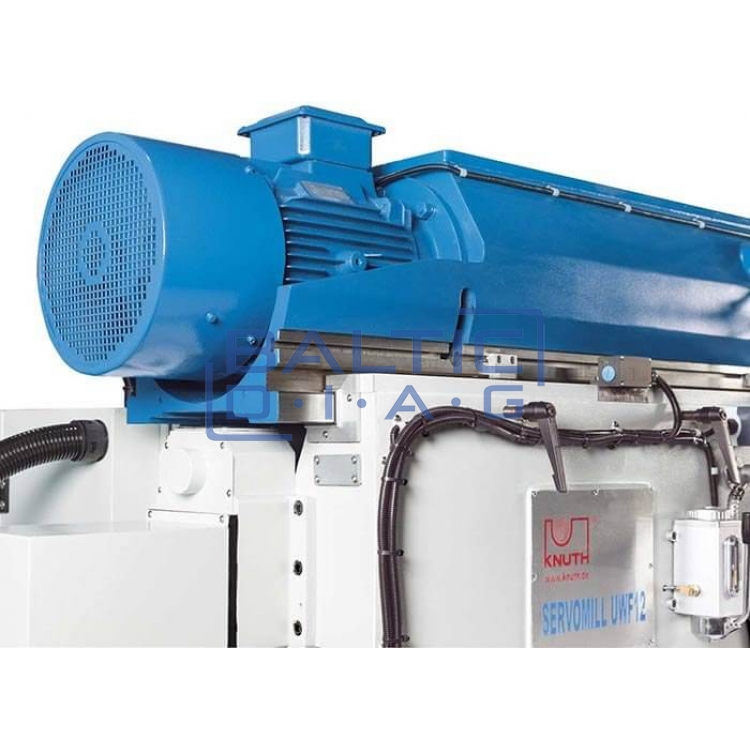

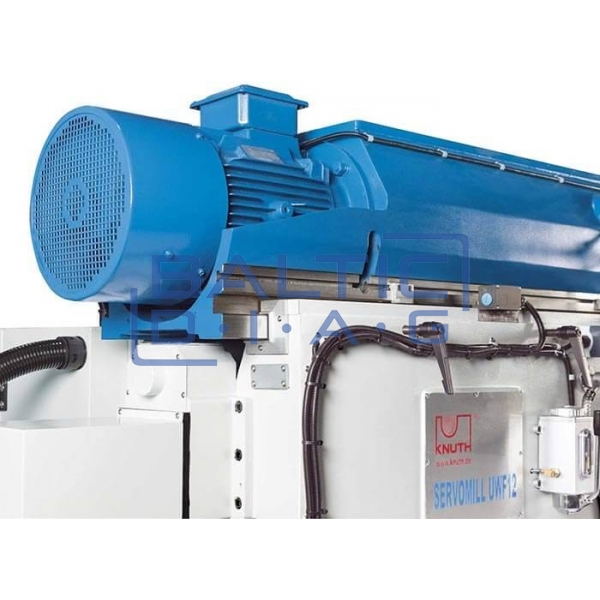

• Motor rating main drive: 11 kW
• Overall dimensions: 2200 x 2500 x 2100 mm
• Svoris: 4500 kg

Standard equipment:

• 3 axis position indicator, X.Pos 3.2
• Electronic, hand operated controls
• LED workplace lighting
• Centralized lubrication
• Cooling System
• Service tools
• Operator's manual
