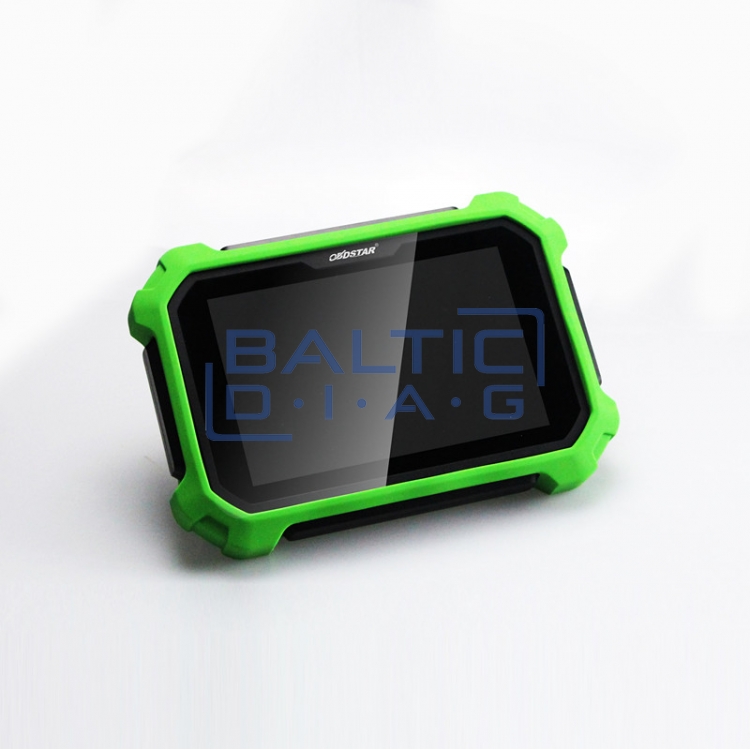

Universal key programmer OBDstar DP-Plus C

Universal Key Programmer OBDstar DP-Plus C

Country of origin: China, warranty period - 24 months

The OBDstar DP-Plus C is a new and modern Android-based diagnostic device that works with internet applications. This device is manufactured using advanced OBDstar software technology.

It supports a wide range of vehicles, offers advanced features, and delivers highly accurate results. Using the OBD connection, you can scan vehicle blocks and receive a precise system report.

Thanks to its internet connectivity, this device enables access to features such as a maintenance database, remote technical support, and more.

The device is built on a smart and modern portable tablet platform, making it mobile and convenient to use. Its additional protections make it suitable for industrial environments.

C Configuration Features:

• 8" touch screen
• Ability to program, update, and synchronize vehicle immobilizers
• Dashboard calibration and precise mileage adjustment
• Full system diagnostics and error detection
• Oil reset: resetting oil change intervals
• ABS (anti-lock braking system) calibration
• Battery binding to the vehicle system
• ECU programming and configuration
• Activation and calibration of the electronic parking brake (EPB)
• Throttle adjustment
• Airbag (SRS) reset
• TPMS (tire pressure monitoring system) calibration
• SAS (steering angle sensor) calibration
• OBDII diagnostics
• DPF (diesel particulate filter) regeneration and reset
• Injector coding
• Suspension adjustment
• Transmission adaptation
• CVT (continuously variable transmission) data accumulation
• EEPROM data reading and writing
• Key programming and updating
• ECU cloning – copying data and transferring it to another ECU unit

Adapters and Accessories:

P001 programmer:

• EEPROM adapter
• RFID adapter
• Key updating adapter

C001 and C002 boards:

• Designed for chip data reading and programming

Data cables:

• W001 data cable
• W002 data cable
• W003 data cable

Toyota smart key emulator:

• Enables emulation and programming of Toyota smart keys

Additional accessories:

• Coil for immobilizer induction testing
• Remote tester for extending diagnostic functions

Technical Specifications:

• Operating system: Android 5.1.1
• CPU: Exynos4418 Dual Core ARM Cortex A9 1.4GHz
• Battery: 3700mA rechargeable lithium polymer
• Memory card: 32G Micro SD (TF)
• RAM: 1GB
• Storage: 32GB
• LCD: 8.0-inch touchscreen
• LCD resolution: 1280*800
• Camera: 5 MP
• Wi-Fi: Supported
• Operating temperature: -10℃ ~ 55℃ (14℉ ~ 131℉)
• Storage temperature: -20℃ ~ 70℃ (-4℉ ~ 158℉)
• Weight: Approximately 1.0 kg
• Dimensions: 254mm x 174mm x 35mm
