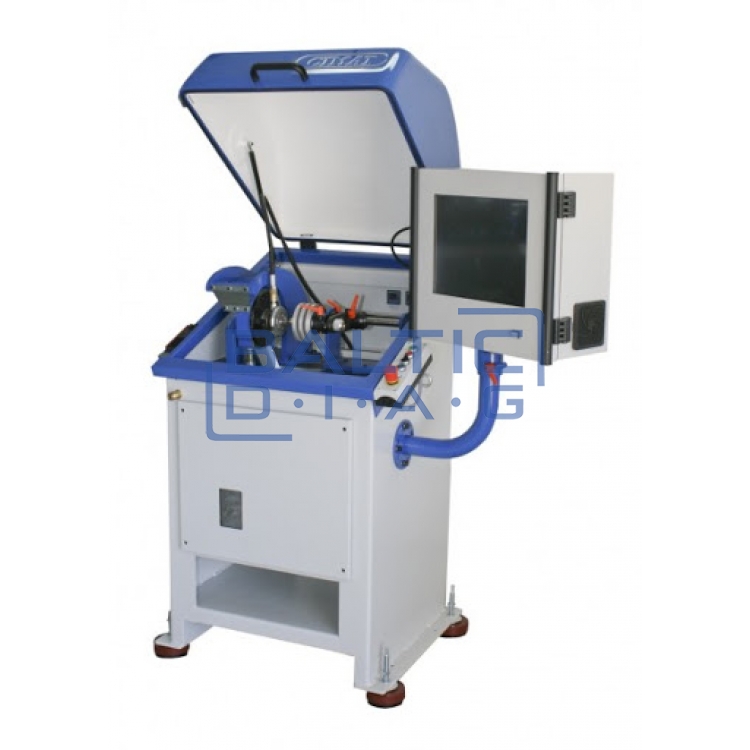

Turbine repair equipment CIMAT CMT-48 VSR

Turbine repair equipment CIMAT CMT-48 VSR

Manufacturer CIMAT (Poland), warranty 12 months.

The CIMAT CMT-48 VSR is the latest technological product equipment designed to perform the most accurate areas of in-service turbine repairs that are extremely accurate, efficient and convenient to use. With the help of this equipment, you can easily balance the cores of turbochargers of cars, vans and other vehicles. CIMAT has developed an energy-saving adapter system consisting of a plate and a bushing for its VSR equipment lines. The plate attaches the core bearing housing to the machine and the bushing drives the turbine wheel with compressed air.

"Adapter system":

Different turbochargers mean sieve dimensions - bearing housings and rotors can come in different sizes. This means that if you use a single-element adapter, almost every CHRA will buy ever new adapters. The CIMAT two-element adapter can be used in pairs, so there can be different configurations. Different configurations mean fewer adapters. Fewer adapters mean less overhead.

With this adapter system developed by CIMAT, 10 plates and 10 special bushings equals 100 traditional adapter configurations to purchase if you use other machines from the manufacturer. In addition, each plate and each bushing is universal and fits up to a dozen bearing housings and rotors - meaning fewer adapters will work with more assemblies. This innovative solution saves you time and money at the right time.

Unique features:

Technology is recognized in this world

Core oil leakage tests

Balancing speed - up to 300,000 rpm.

Oil temperature and pressure control to prevent the turbine from drying out

Space-saving equipment

Automatic air control valve

Energy and cost saving adapter system

Adapter replacement time is less than 25 s.

Five-stage oil filtration system

Free warranty and post-warranty remote technical online support

The balancing interface is available in almost all languages

ISO 21940-23: 2012 (old: ISO 7475 DIN 45690)

Safety protection with safety interlocks and CE mark

Technical characteristics:

Balancing speed (depending on turbine model): ≤ 300,000 rpm

Balancing Results: Graph G

Max. turbine wheel diameter: 85 mm

Number of balanced plates (two plane correction possible): 1

Power supply: 230 V +/- 10%, 50/60 Hz

"Machine weight": 350 kg

Dimensions: 1250 x 1050 x 1600 mm

Required air hose diameter: 1 "

Required air compressor pressure: 6 bar

Required air tank volume: 1/2 m3
