Hydraulic profile steel shears, Knuth HPS 45 H

Hydraulic profile steel shears, Knuth HPS 45 H

Manufacturer: Knuth, Germany

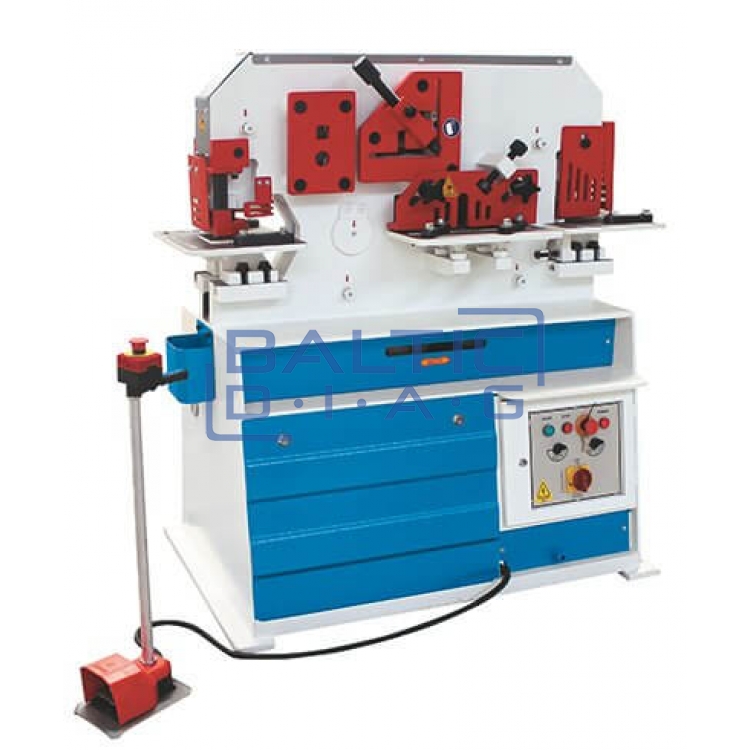

The HPS H hydraulic machine for cutting various shapes, forges and cuts flat steel, rods and profiles with high precision and efficiency. This type of machine is mostly used in locksmith workshops, repair shops and vehicle manufacturing. Machine tools with one or two cylinders, characterized by multi-functionality. Steel shears for flat, notch, hole and profile production are combined in one device. HPS series machines work with common punches and dies, which expands the range of applicability of the device.

More detailed description:

Cutting of flat steel sheets:

• For strip steel, flat steel, wide flat steel
• Table with angular and linear stops
• Adjustable hold-down
• Lower knife provides 4 cutting edges

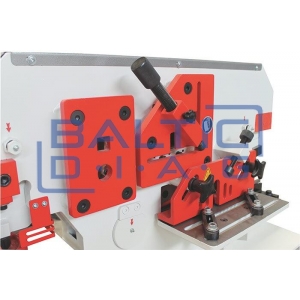

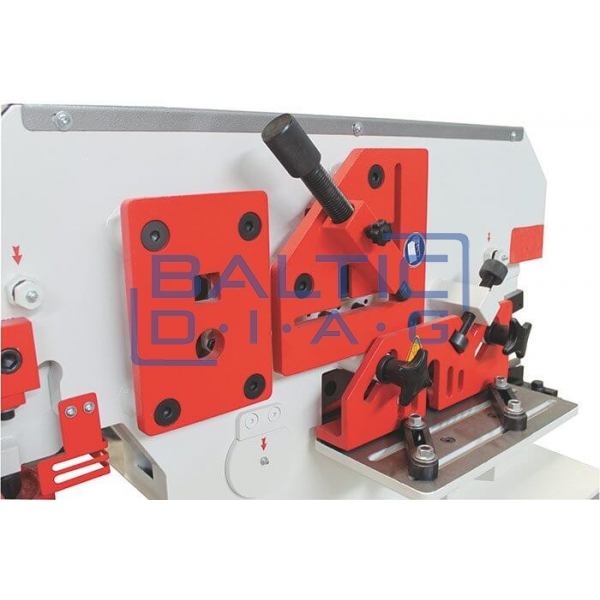

Angular profile steel cutters:

• For angle steel sections
• Cutting angle 90° and 45°
• Adjustable material guide plate

Rod steel station:

• For round and square steel
• Robust material guide plate

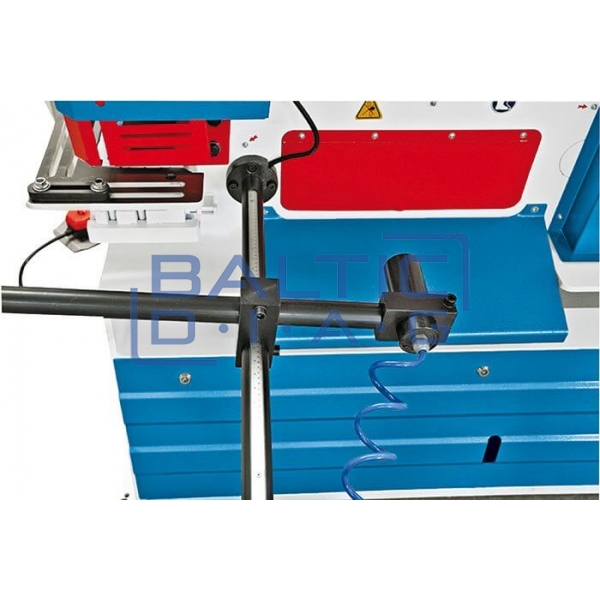

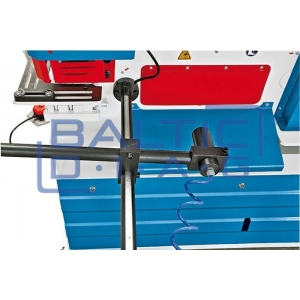

• Rear gauge
• Including swing broom
• For use on flat steel, angular steel and rod steel stations

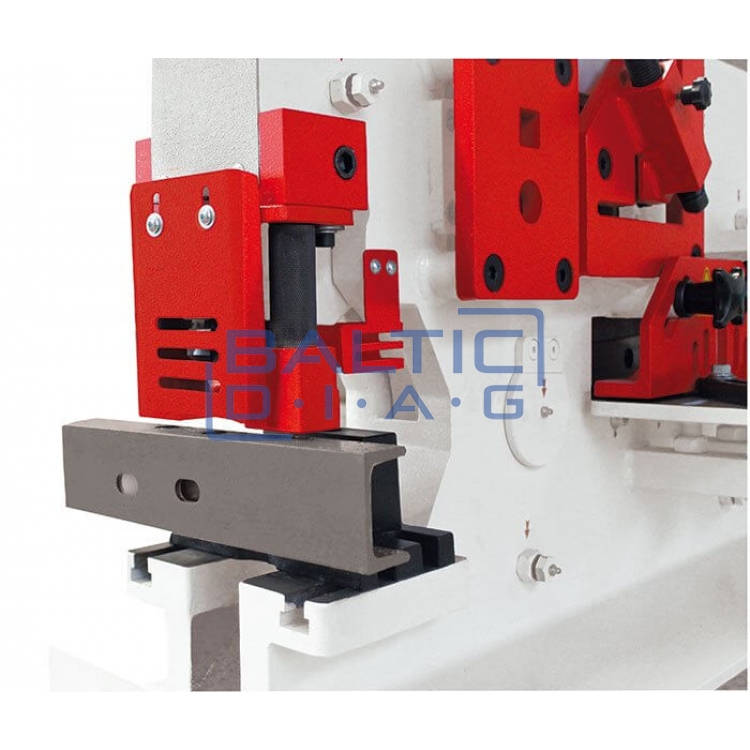

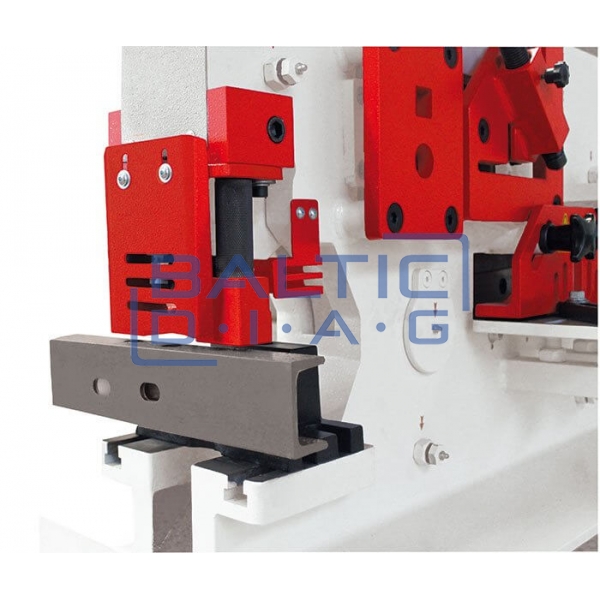

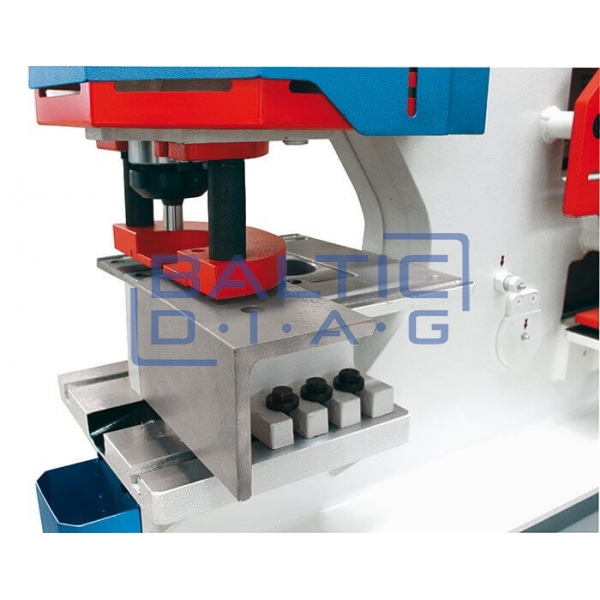

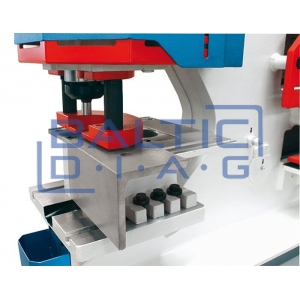

Hole punch stations:

• Ability to punching round holes and cutouts of various shapes, in sheet metal, flat steel and U-shaped steel
• Table with adjustable angular stops
• Infinitely variable stroke adjustment
• Kingsland tools of the highest quality
• Hydraulic overload protection
• Rigid support table with adjustable stops

Technical parameters:

Hydraulic cutting mechanism:

• Number of hydraulic cylinders: 1 cylinder
• Pressure force: 45 tons
• Punch capacity max: 22 x 15 mm
• Diameter and thickness: 38 x 8 mm
• Throat: 190 mm
• Stroke: 35 mm
• Number of strokes (with 20 mm stroke): 20 H/min
• Working height: 935 mm

Steel cutting:

• Flat cutting option (width): 300 x 12 mm
• Flat cutting option (thickness): 200 x 15 mm
• Blade length: 320 mm
• Cutting capacity round: 30 mm
• Cutting capacity square: 25 mm
• Steel cutting working height: 940 mm

Profile cutting:

• Cutting capacity 90°: 100 x 100 x 10 mm
• Cutting at a 45° angle: 60 x 6 mm
• Profile cutting working height: 1135 mm

Cutting the hole:

• Plate thickness max: 8 mm
• Width: 35 mm
• Depth: 100 mm
• Motor rating hydraulic pump: 4 kW
• Overall dimensions: 1330 x 770 x 1460 mm (L x W x H)
• Weight: 1200 kg

Standard equipment:

• Easy replaceable punch holder
• Stamps and dies
• Angle cutting blade
• Flat bar cutting blade
• Notching blade
• Solid bar cutting blade
• Manual controller backgauge (1000 mm)
• Foot pedal with emergency stop button
• Hook spanner wrench
• Workplace lamp
• Operator's manual
