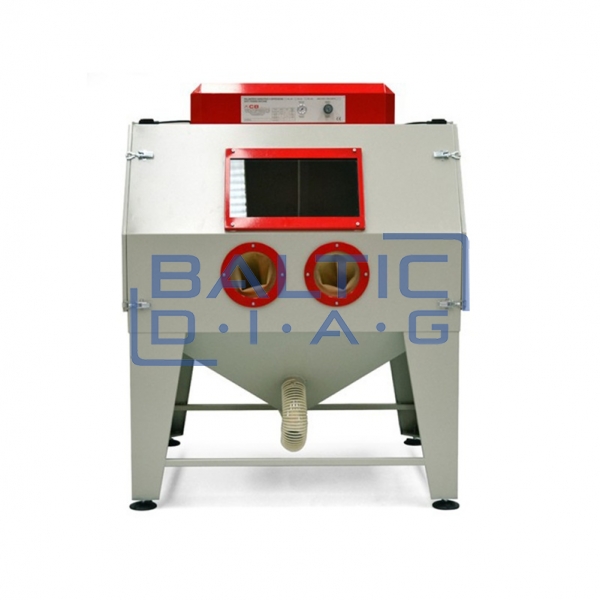

Venturi type blasting booth PAL4-XL Sabbiatrici

Venturi type blasting booth PAL4-XL Sabbiatrici

Country of origin: Italy, warranty period - 24 months

Possible additional modifications and different accessories are available upon request.

The PAL4-XL Venturi-type vacuum blasting and shot peening booth is designed for professional surface treatment in various industrial sectors. It allows for shot peening, decorative sandblasting, metal hardening, deburring, surface preparation, and cleaning. Depending on the abrasive used (corundum, sand, glass microspheres, synthetic or vegetable granules, metal abrasives), the system can be precisely adapted to different materials – from aluminum to stainless steel. The booth can be optionally equipped with a dust collector, rotary table, loading cart, or abrasive recovery cyclone. If necessary, the equipment can be converted to a pressure system, allowing even faster and more efficient processing.

Functions:

• Suitable for shot peening, sandblasting, hardening, cleaning, polishing
• Compatible with various abrasives – corundum, sand, glass microspheres, metal or vegetable granules
• Convertible to a pressure system
• Optional accessories: dust collection system, rotary table, loading cart, cyclone
• Can be used with various materials – aluminum, iron, glass, stainless steel
• Provides deep engraving or light polishing
• Protects the workpiece from damage

Technical specifications:

Internal dimensions:

• Front – 1440 mm
• Side – 1090 mm
• Height – 800 mm

External dimensions:

• Front – 1480 mm
• Side – 1600 mm
• Height – 1900 mm

Booth access: side, from both left and right

• Dust extractor: 400 V, 50 Hz, 0.75 kW
• Lighting: LED 20 W

Air consumption:

• Injector ∅ 3 mm – 600 l/min
• Injector ∅ 3.5 mm – 800 l/min
• Injector ∅ 4 mm – 1200 l/min
• Operating pressure: from 1.5 to 8 bar
• Tungsten carbide nozzle: ∅ 6, 8, or 10 mm
• Weight: 300 kg
