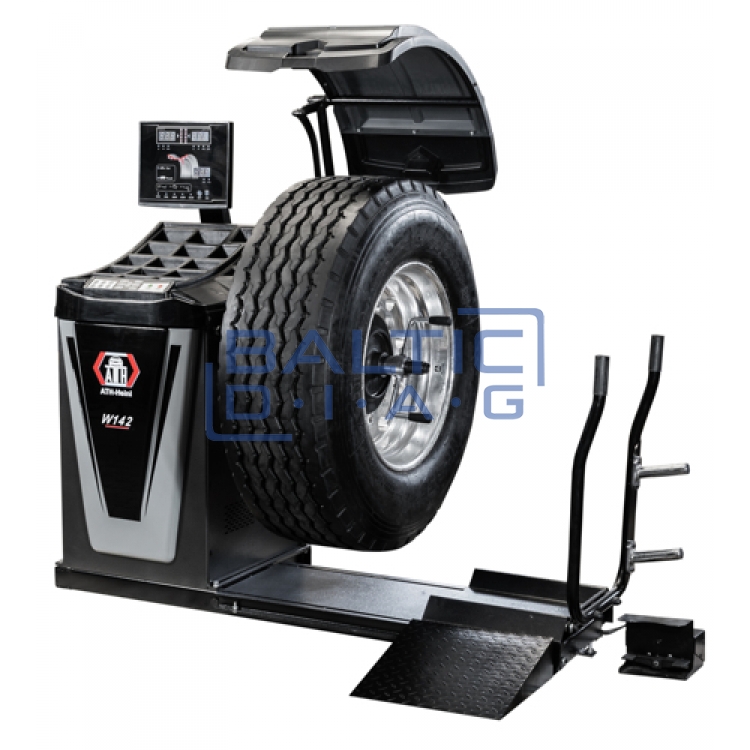

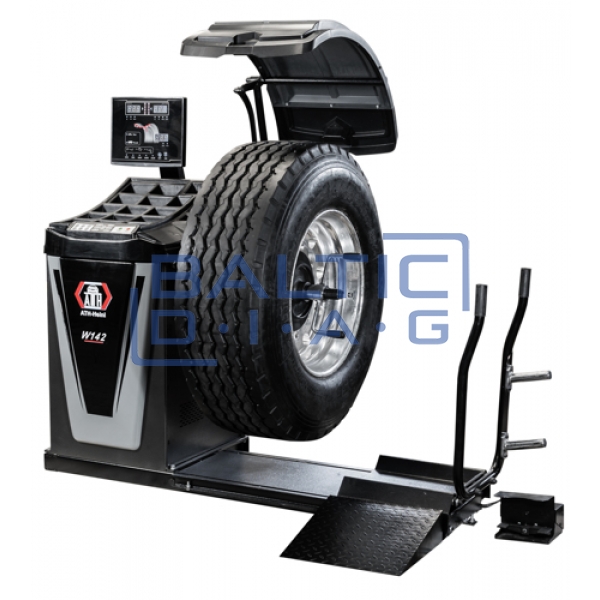

Wheel balancing machine ATH W142

Wheel balancing machine ATH W142

Country of origin: ATH-Heinl (Germany); Warranty 3 years

Description:

• Damage-resistant construction that is cut from a high-precision laser, and precise welding of the frame was performed by robots.
• Automatic distance and rim diameter measurement, manual rim width input (2D function).
• Ergonomically arranged front panel, large counterweight holder
• Adjustable: weight position indicator with LED and laser (LPS)
• Precise work is controlled by a microprocessor
• Wide range of applications: automatic movement with pneumatic brakes and 11 balancing program options (static / dynamic / light alloy wheels in truck and car mode)
• The motor works with a pneumatic wheel lift, the weight is easily attached using a measuring ruler or laser.
• Wheel protection with automatic start-stop function
• Scope of delivery: Centering cones between supports 45-290 mm, rim width gauge, nut for passenger cars, nut for trucks, calibration weights 100 and 200 g, weight pliers, alloy wheel clamping cap, shaft spring
• Optional: 3/4/5 point universal centering flange (Art. No .: RSF0009) for standard truck rims
• Great wheel balancer for trucks, buses, commercial vans and car wheels

Technical data:

• Supply voltage: 400 V / 50 Hz
• Power: 3/400 V / 50 Hz
• Weight: 350 kg
• LCD screen
• Entering wheelbase: automatically
• Enter the width of the wheels: automatically
• Wheel diameter is entered: automatically
• Rim width: 5-20 "
• Rim diameter: 12 "-24"
• Measurement tolerance: +/- 1.0 g (for light transport) / +/- 10.0 g (for heavy transport)
• Max. wheel diameter: 1200 mm
• Wheel weight max .: 160 kg
• Shaft diameter: 40 mm
