Key and Immobilizer Programming Device Autel MaxiIM IM508S Kit

A universal solution for advanced key programming and diagnostics

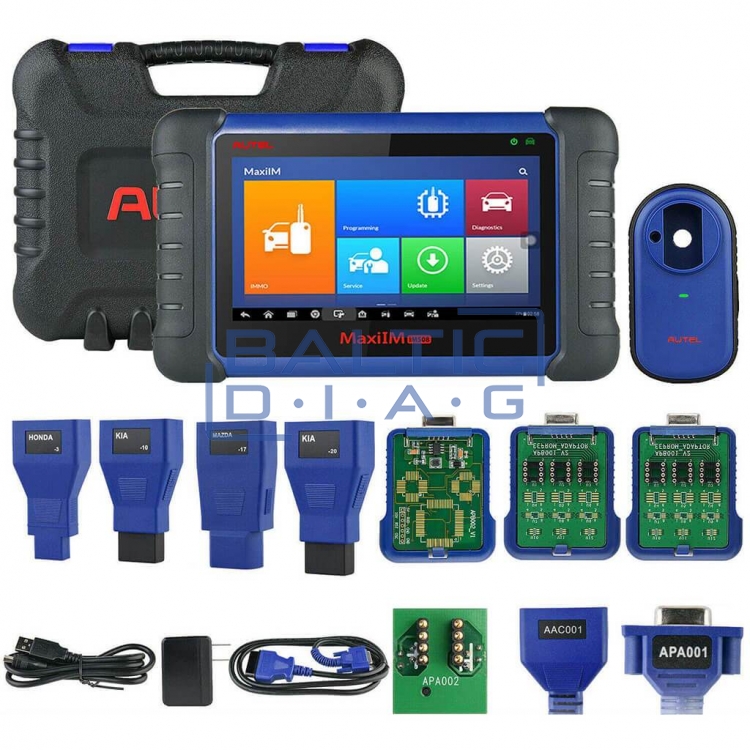

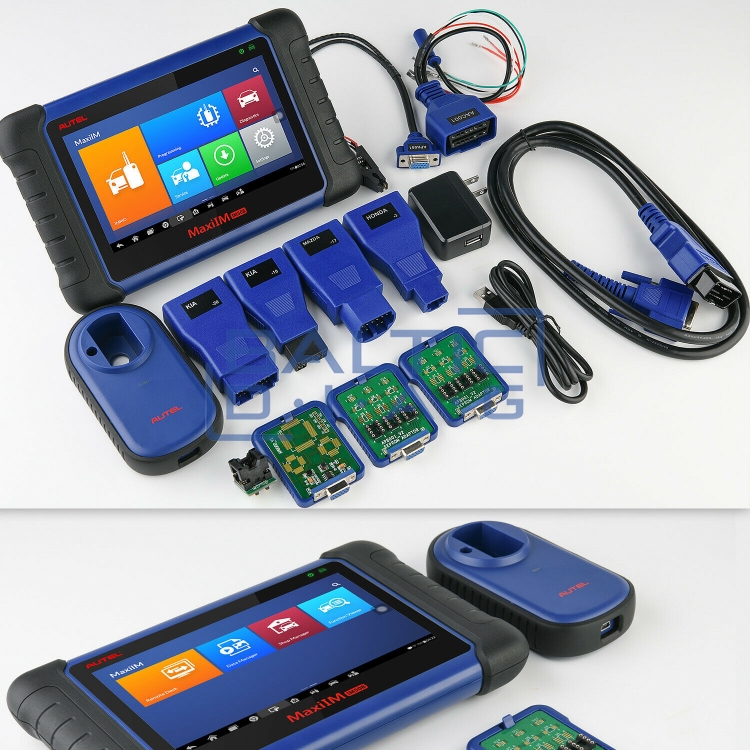

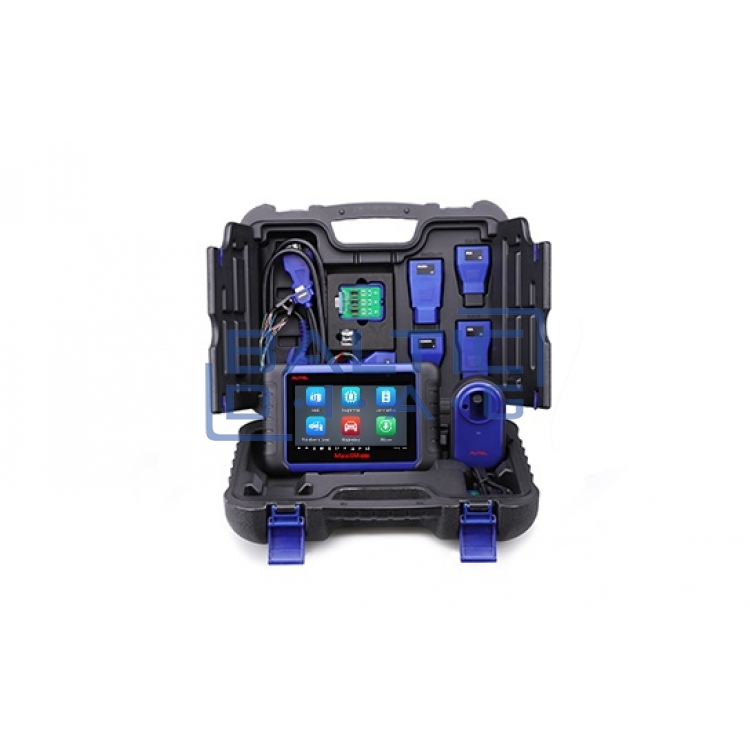

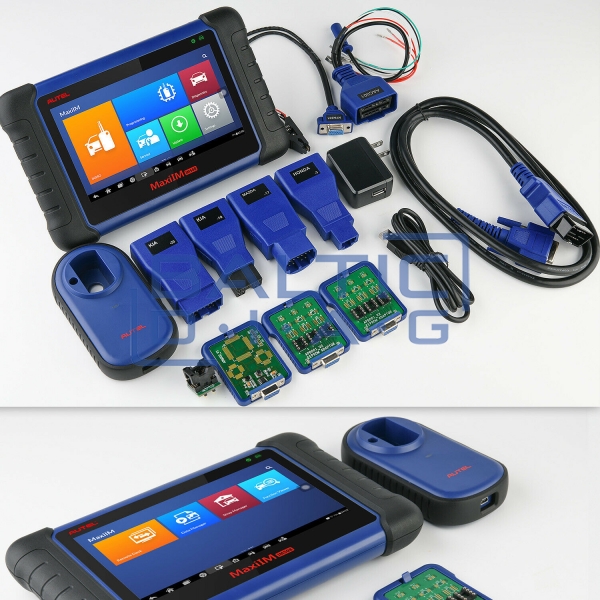

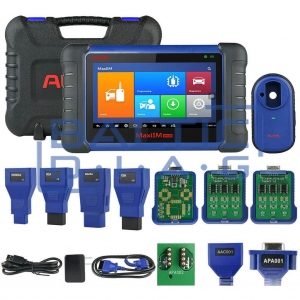

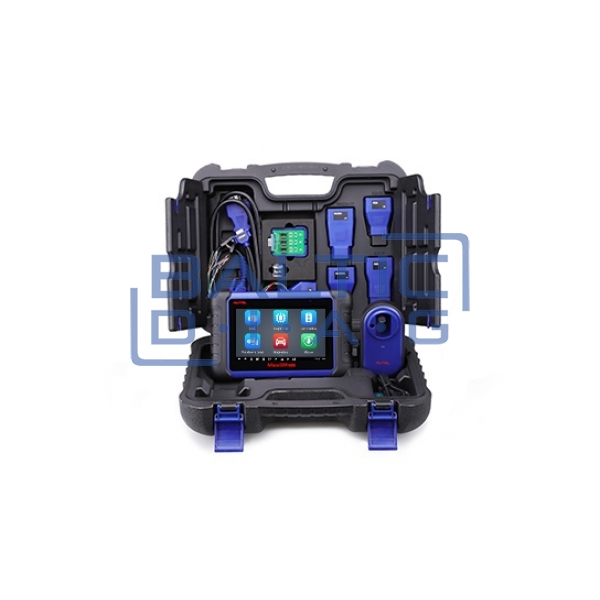

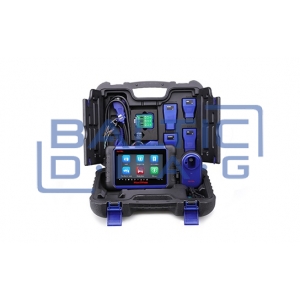

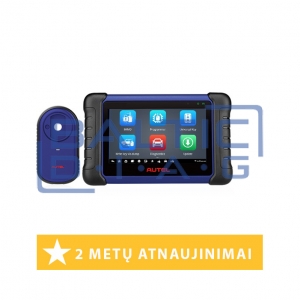

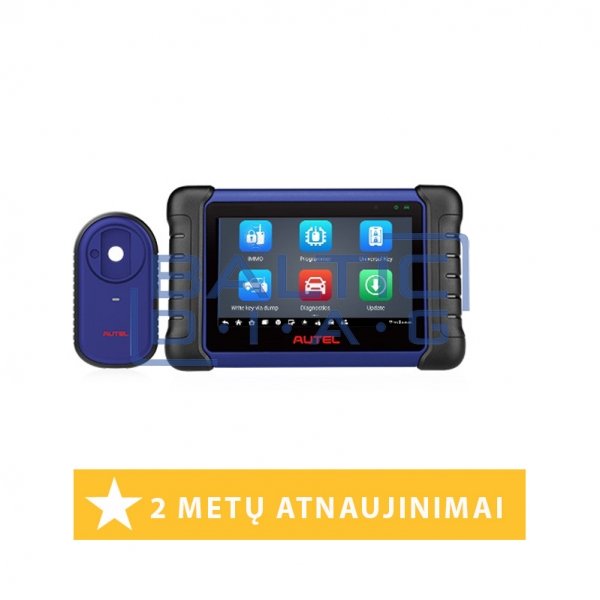

The Autel MaxiIM IM508S Kit is a complete solution for key programming and immobilizer system servicing, combining the IM508S tablet device with the advanced XP400 programmer. This set allows you to perform both routine and complex IMMO and diagnostic tasks without the need for additional equipment. It’s the perfect choice for those looking for a reliable, efficient, and cost-effective tool in one comprehensive package — without compromise.

Why Choose the Autel MaxiIM IM508S Kit?

• Full IMMO Functionality in One Kit
• The device supports the entire range of key programming, transponder writing, PIN code reading, ECU adaptation, and more.
• XP400 Programmer Included
• No need to purchase separately — the XP400 enables advanced chip and key programming functions right out of the box.
• Professional Diagnostics for Over 80 Vehicle Brands
• OE-level diagnostics for all essential automotive modules — fast and accurate.
• User-Friendly and Intuitive Operation
• A 7-inch touchscreen, Android OS, and smart interface let you start working immediately with minimal learning curve.
• Mobile and Reliable Solution
• Compact and lightweight, equipped with a powerful processor and durable battery — ideal for use in workshops or on-site.
• Built-In Service Functions
• Oil reset, DPF, EPB, SAS, BMS and more — expanding your capabilities without extra tools.

Features:

• Powerful tablet-grade processor
• 7" 1024 x 600 LCD touchscreen
• 64 GB internal memory
• Android operating system for fast boot and multitasking
• Impressive combination of key programming, full-system diagnostics, and advanced service functions
• Smart Mode for guided, step-by-step key learning
• Advanced Mode for expert-level key programming
• Reads PIN/CS (All keys lost), key count, key programming, remote learning
• IMMO ECU reset/adaptation, restore/coding
• Transponder reading/writing, EEPROM/MCU reading/writing
• Strong OE-level diagnostics for more than 80 vehicle brands from the US, Asia, and Europe
• Advanced service functions including EPB, DPF, SAS, oil reset, and BMS services

Technical Specifications:

• Operating System: Android 11.0
• Processor: Quad-core, 1.8 GHz (A55)
• Storage: 64 GB
• Display: 7-inch LCD capacitive touchscreen, 1024 x 600 resolution
• RAM: 4 GB
• Interfaces: Mini USB 2.0; USB 2.0; Wi-Fi; Micro SD card (up to 64GB)
• Sensors: Light sensor for automatic screen brightness adjustment
• Audio I/O: No audio input, output via buzzer
• Power and Battery: 3.7V / 5000 mAh lithium-polymer battery, charged via 5VDC power supply
• Operating Time: Approximately 4.5 hours of continuous use
• Charging Voltage: 12 V
• Power Consumption: 500 mA (standard screen brightness, Wi-Fi enabled)
• Operating Temperature: 0 - 50°C
• Storage Temperature: -20 - 60°C
• Humidity: 5 - 95%, non-condensing
• Weight: 0.788 kg
• Supported Protocols: ISO9141-2, ISO14230-2, ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, ISO11898 (Highspeed, Middlespeed, Lowspeed, Singlewire CAN, fault-tolerant CAN), SAE J2610, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6

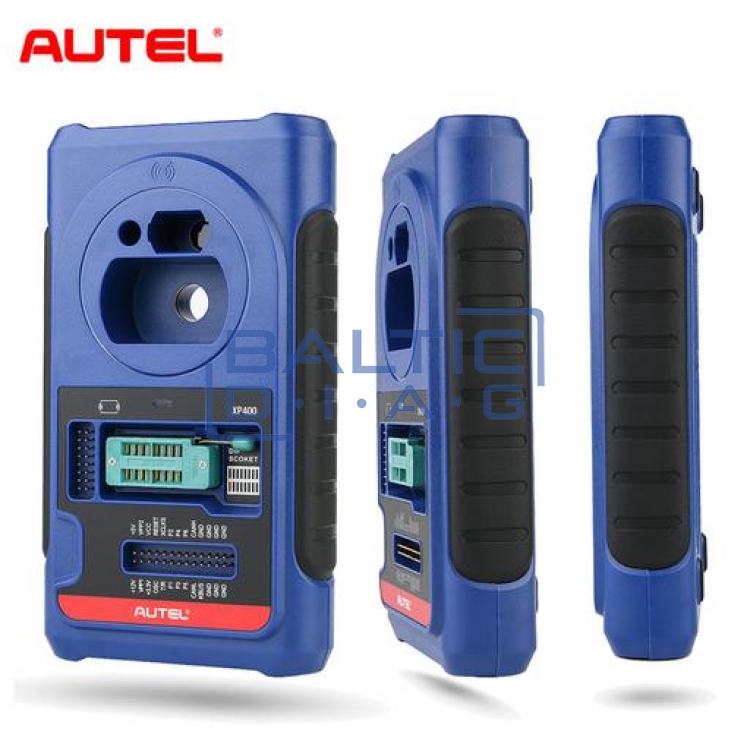

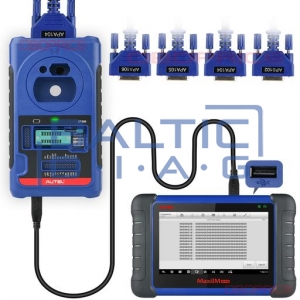

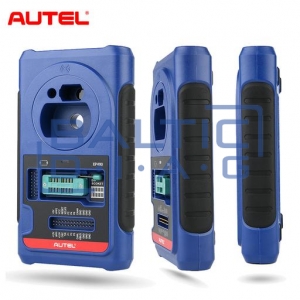

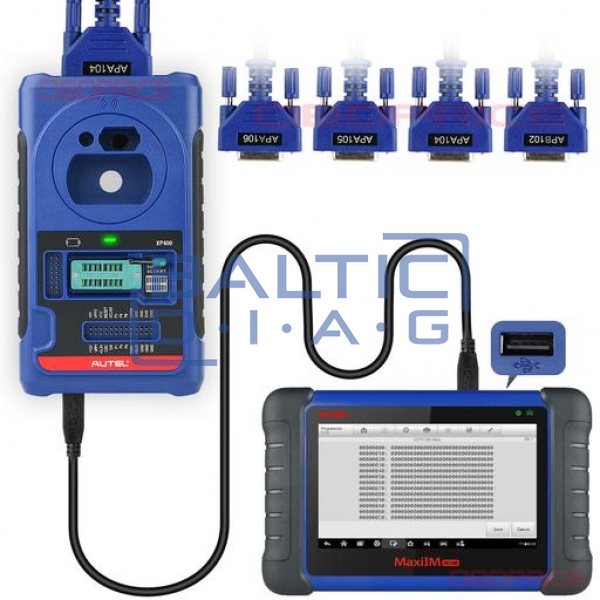

XP400 Programmer Description:

• PC interface supported
• MCU / EEPROM chip reading and writing
• ECU reading and writing
• MC9S12 encrypted chip reading and writing
• Key reading and writing
• Mercedes infrared key reading and writing
• Frequency detection
• IC card reading and writing

Who Is This Device For?

• The Autel MaxiIM IM508S Kit is designed for auto workshops, independent technicians, and key/immobilizer programming specialists. It’s the ideal solution for daily tasks and more complex procedures requiring precision, full functionality, and speed — all in one device.

Why Buy from Us?

• We are the only official AUTEL distributor in Lithuania.
• Original equipment with the widest data coverage in Europe.
• Russian and English languages integrated in the device.
• Fast delivery — 95% of products are in stock.
• Option to test the device before purchase.
• Full warranty and post-warranty service.
• Free replacement device during repair service.

Work more efficiently — with a tool that brings together all the essential features!

• Try the Autel MaxiIM IM508S Kit in your workshop — a smart and practical solution for professional IMMO and key programming. Contact us — we’ll help you choose the perfect set for your business!
