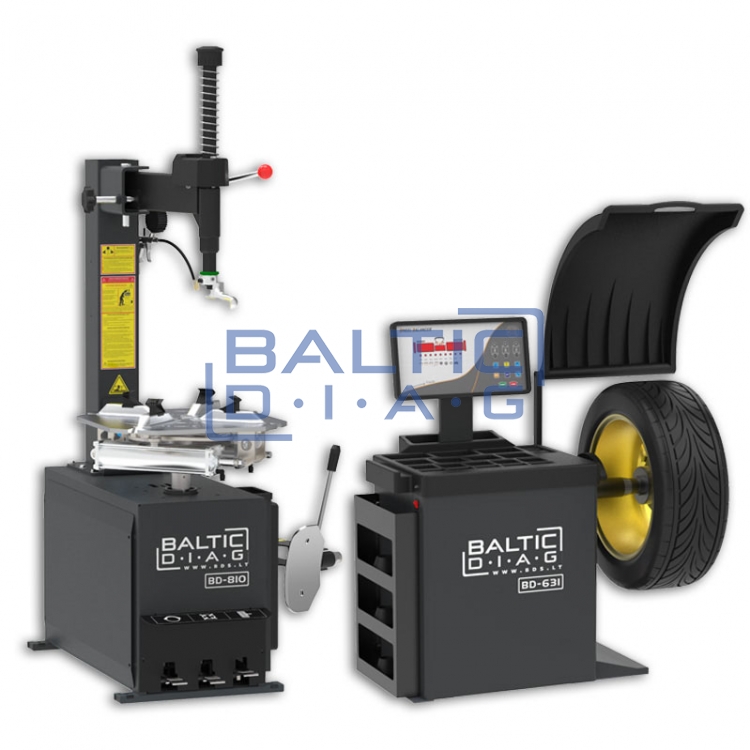

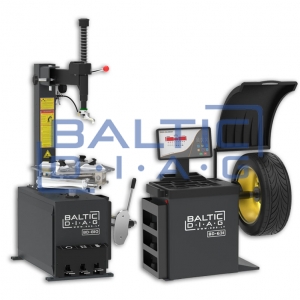

Set of tire changer and wheel balancing machines BD-810 + BD-631-1

Semi-Automatic Tire Mounting Machine BD-810 and Automatic Wheel Balancing Machine BD-631 Set

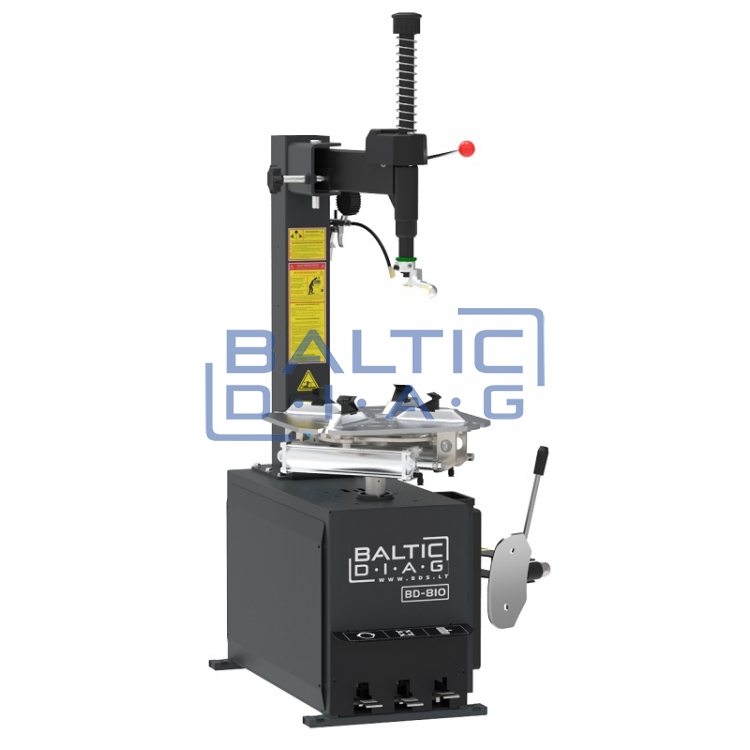

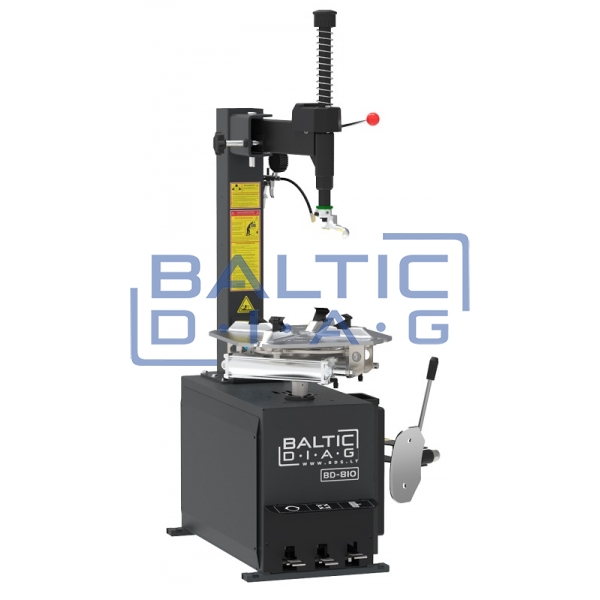

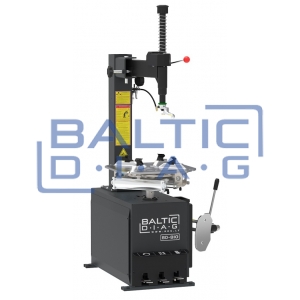

Tire Mounting Machine BD-810

• Steel tire mounting head – ensures durability and includes replaceable plastic protectors to prevent rim scratches.
• Rim clamping jaws – self-centering rim clamps use two pneumatic cylinders to ensure secure and reliable rim fixation.
• Removable pedal mechanism – enables easier and faster maintenance.
• Swiveling mounting arm – the arm moves horizontally and has a 36 mm hexagonal shaft with a locking handle.
• Powerful bead breaker blade – generates a force of up to 2700 kg.
• Tire inflation gun with a pressure gauge – allows convenient and quick tire inflation and pressure control.

• Clamping inner rim diameter: 12" – 24"
• Clamping outer rim diameter: 10" – 22"
• Maximum wheel diameter: 960 mm
• Maximum wheel width: 3" – 15" | 76 – 380 mm
• Bead breaker force: 2700 kg (27000 N)
• Operating pressure: 8 – 10 bar
• Electric motor power: 1.1 kW
• Machine power supply: 230 V / 50 Hz / 1-phase

• Tire mounting paste bucket x 1 unit
• Tire mounting paste brush x 1 unit
• Plastic protector for mounting finger x 1 unit
• Plastic protector for bead breaker blade x 1 unit
• Plastic protectors for clamping jaws x 4 units
• Mounting lever x 1 unit

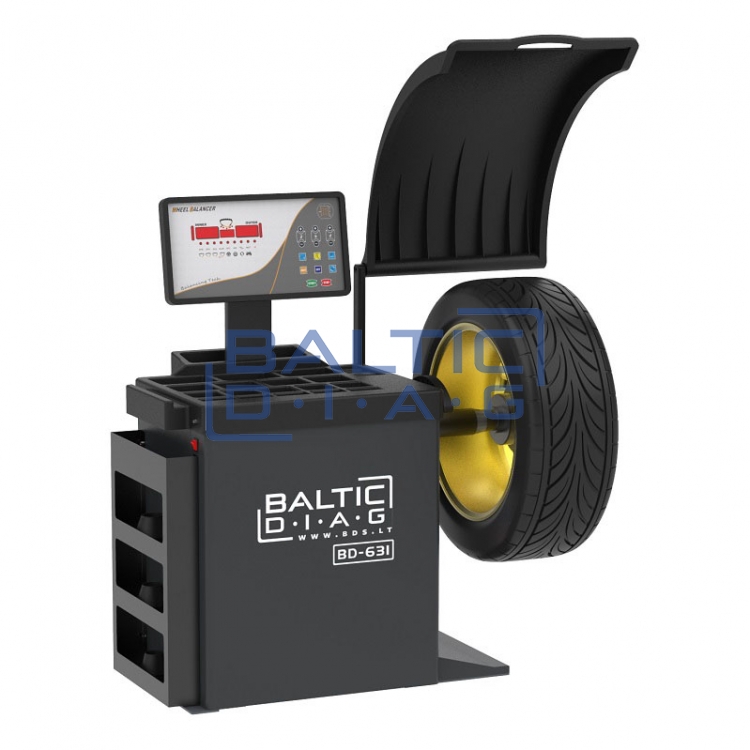

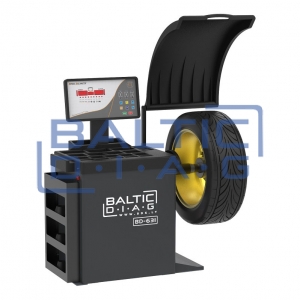

Automatic Wheel Balancing Machine BD-631

• Work area lighting – LED lighting facilitates work, making it easier to inspect the rim, clean it, and properly attach balancing weights.
• Laser marker – helps quickly and precisely identify the exact location for placing the balancing weight.
• Automatic wheel stop – the machine automatically stops the wheel at the position where the balancing weight should be attached.
• Main wheel balancing shaft – 40 mm diameter shaft with longitudinal surface grinding and high-quality thermal treatment. The aluminum drive pulley is corrosion-resistant, ensuring safe and reliable use for many years.
• 2D ruler – made of aluminum alloy with high precision measurement parameters, providing highly accurate results. The ruler also helps identify the exact location for attaching balancing weights and allows automatic input of wheel diameter and distance.
• Control panel – equipped with an LED screen and specialized buttons for entering necessary data and selecting balancing programs. Additional LED indicators display wheel imbalance parameters, results, and balancing positions.
• Side storage compartments – convenient for storing machine accessories within easy reach.
• Protective wheel cover – used to control the start and stop operations of the balancing machine.
• Balancing operations – includes all necessary balancing functions, such as dynamic balancing, static balancing, three ALU rim balancing modes, and an adjustable OPT function.

• Balancing rim diameter: 10" – 28"
• Maximum wheel diameter: 1000 mm
• Wheel width: 1.5" – 20" | 38 – 510 mm
• Rotation speed during balancing: 200 rpm
• Maximum wheel weight: 70 kg
• Balancing accuracy: ± 1 g
• Electric motor power: 0.25 kW

• Balancing cones of different sizes x 4 units
• Wheel width measurement ruler x 1 unit
• Quick-release clamping nut x 1 unit
• 100 g calibration weight x 1 unit
• Pliers for working with balancing weights x 1 unit
• Mounting adapter with spindle protection x 1 unit
