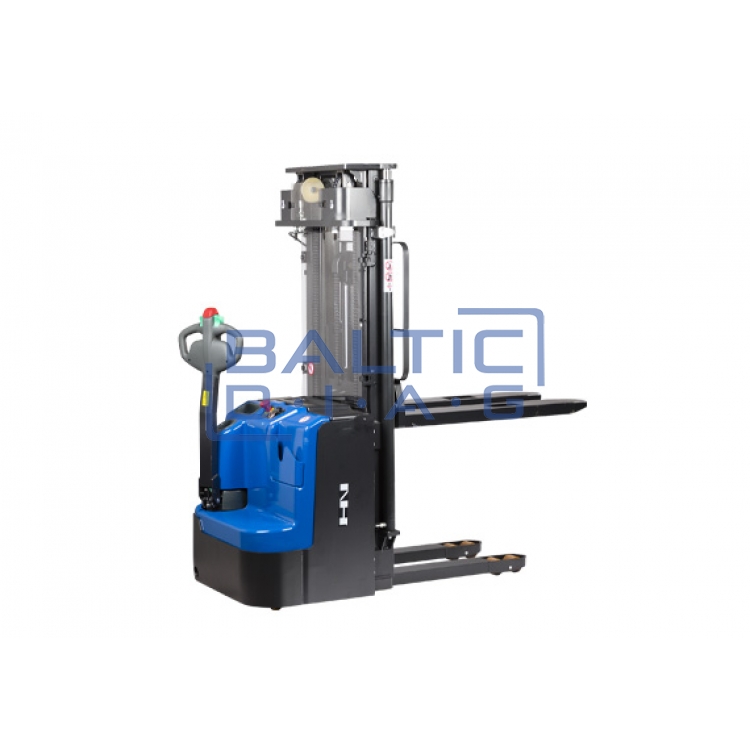

Electro-hydraulic self-propelled loader 1600 kg NH Handling SKS1636-L

Electro-hydraulic self-propelled forklift NH Handling SKS1636-L 1600 kg

Functions:

• Free lift up to 1760 mm
• All steering and control elements are ergonomically placed on the tiller handle
• Pulse control from fast to very sensitive
• Automatic braking when the tiller is released
• Anti-rollback protection when the forklift begins to ascend
• Integrated charger: 1 x 230V / 35 Amp

Technical specifications:

• Lifting capacity: 1600 kg
• Lifting function: Electric hydraulic
• Drive motor: Schaubmuller
• Battery: 24 V/270 Ah
• Lifting height: 3600 mm
• Overall height: 4080 mm
• Fork lifting height: 1760 mm
• Free lift: 1760 mm
• Fork width: 570 mm
• Travel speed without load: 6/5.7 km/h
• Lifting speed with/without load: 20/13 mm/s
• Maximum incline with/without load: 20 / 14˚
• Fork wheels Ø: 85 x 75 mm
• Steering / drive wheels Ø: 230 x 75 mm
• Support wheels Ø: 150 x 54 mm
• Weight: 1240 kg
