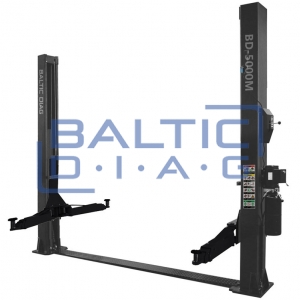

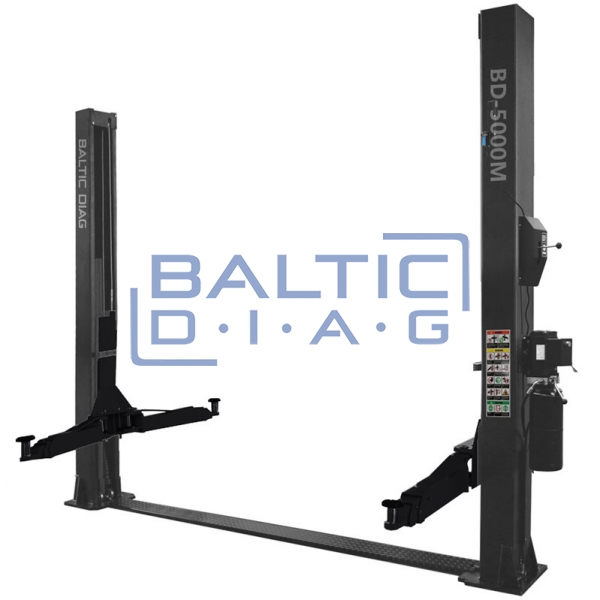

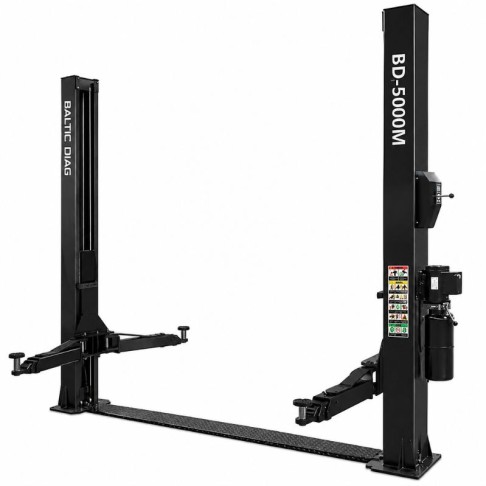

Two post lift for minibuses, 5T BD-5000M

Two-post lift for minibuses 5T BD-5000M

Country of origin: China, warranty period – 24 months

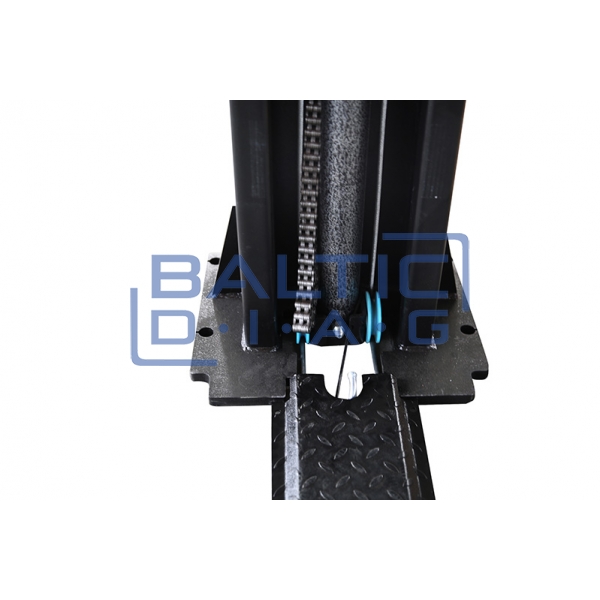

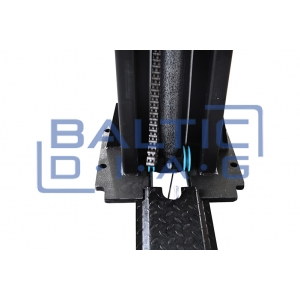

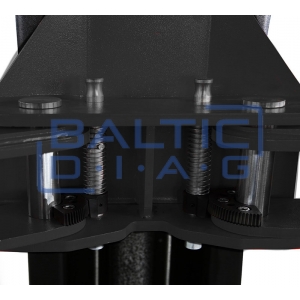

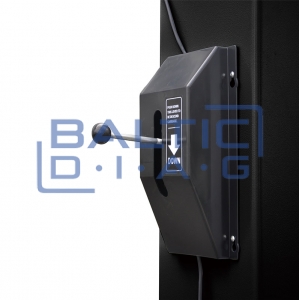

Professional two-post lift designed for lifting minibuses and other heavier vehicles. Compact design, reduced component wear, and reliable bottom synchronization ensure stable and safe operation. The lift uses self-lubricating sliders and bronze bushings; the locking mechanism meets double safety standards, and the reinforced arm carriage provides additional stability.

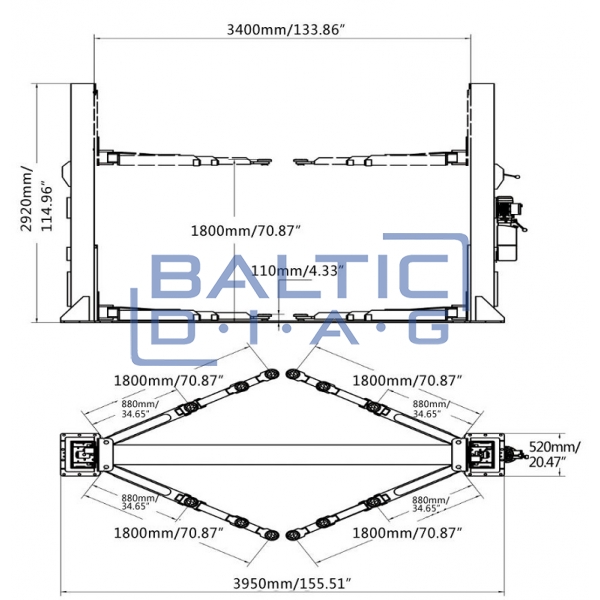

Technical specifications:

• Lifting capacity: 5000 kg
• Lifting time: 60–65 s
• Lifting height: 1800 mm

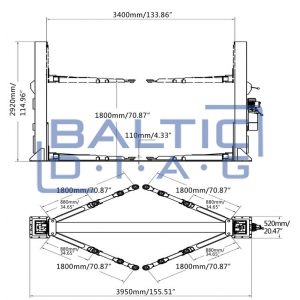

• Overall width: 3964 mm
• Width between posts: 3414 mm
• Maximum vehicle width serviced: 3050 mm
• Minimum pad height: 110 mm
• Lift weight: 831 kg

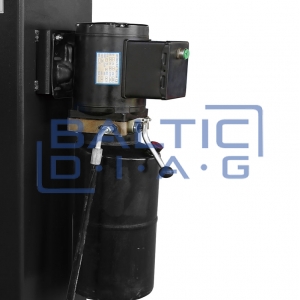

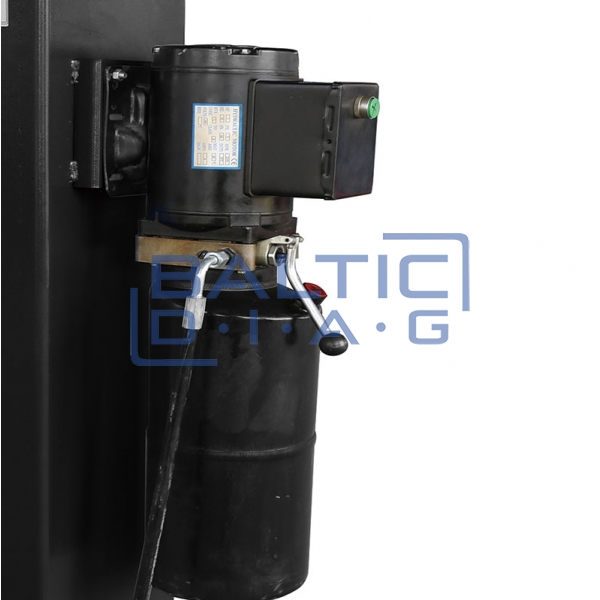

• Motor power: 3 kW
• Power supply: 380 V / 50 Hz / 3 phases
• Color code: RAL7021

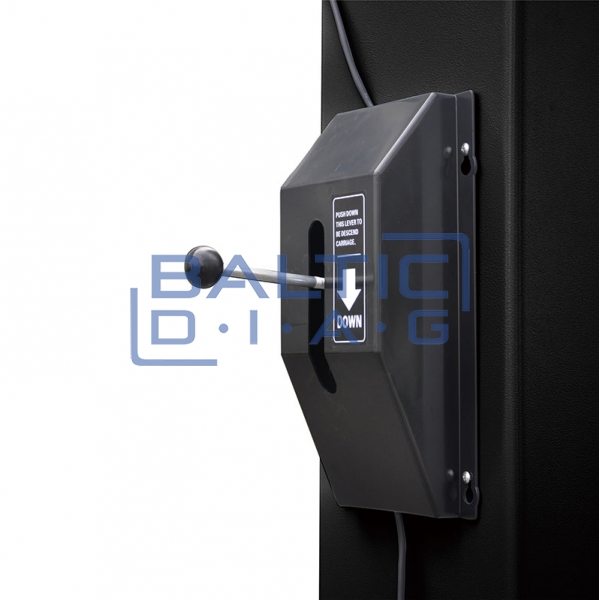

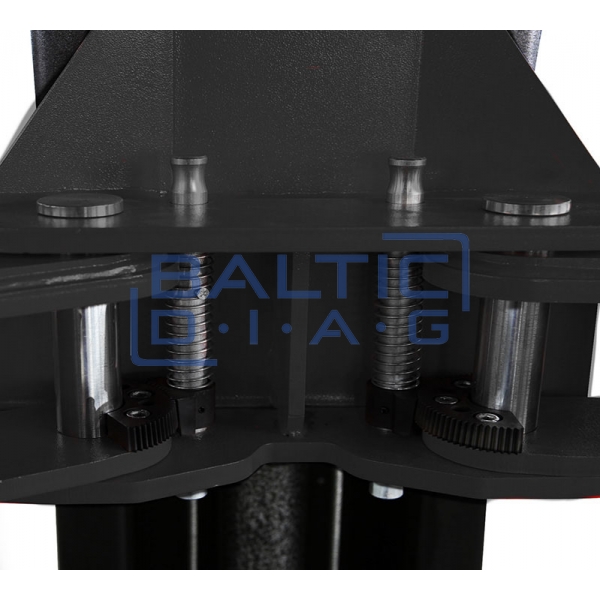

• Arm protection: manual arm locking on one side

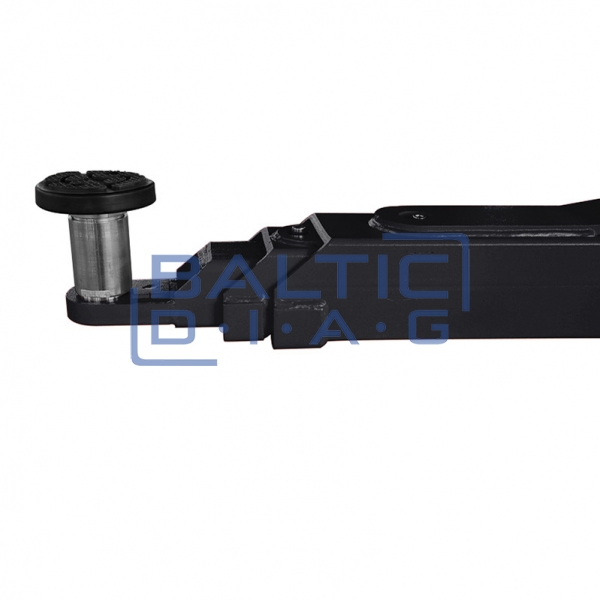

• 3-stage arm length: 880–1800 mm
• Noise level: < 80 dB(A)
