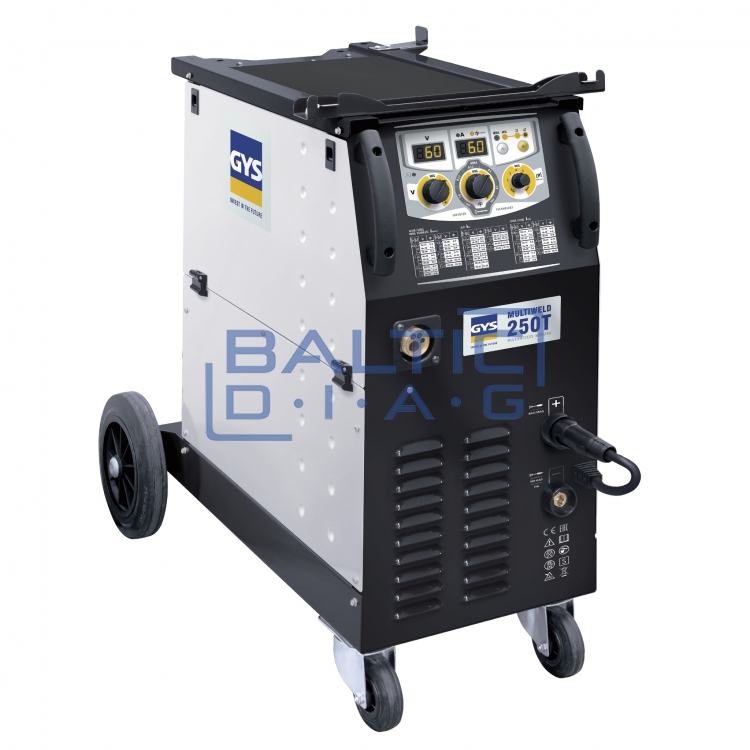

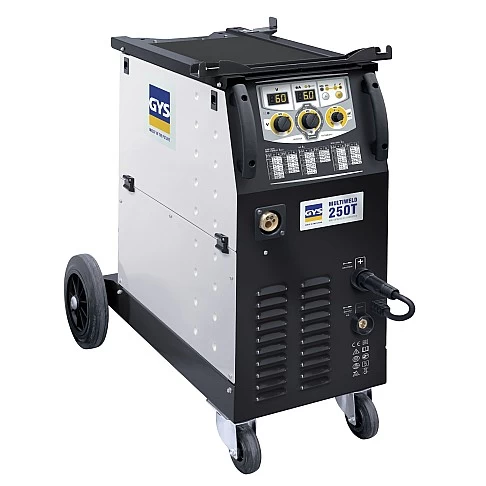

GYS Multiweld 250T semi-automatic welding machine

Semi-automatic welding machine GYS Multiweld 250T

GYS, France; Warranty: 24 months

Multiweld 250T is a three-phase semi-automatic welding device that combines MIG/MAG, electrode wire and MMA welding processes. The intuitive user interface has digital displays for easy and accurate parameter setting. Recommended for steel, stainless steel and aluminum welding. This welding machine is an excellent tool for craftsmen and all professional repair facilities.

MIG / MAG welding:

• Steel wire: Ø0.6 - 1.2 mm
• Stainless steel wire: Ø0.8 - 1.2 mm
• Aluminum wire: Ø0.8 - 1.0 mm
• Electrode wire (with reversed poles): Ø0.9 - 1.2 mm

MMA welding:

• Simple and rutile electrodes, up to Ø5.0 mm in diameter

Optimized MIG/MAG settings:

• Selection of excitation modes: 2T or 4T
• Welding wizard: a table on the front of the device helps the user to adjust the voltage and wire diameter according to the material and its thickness to be welded

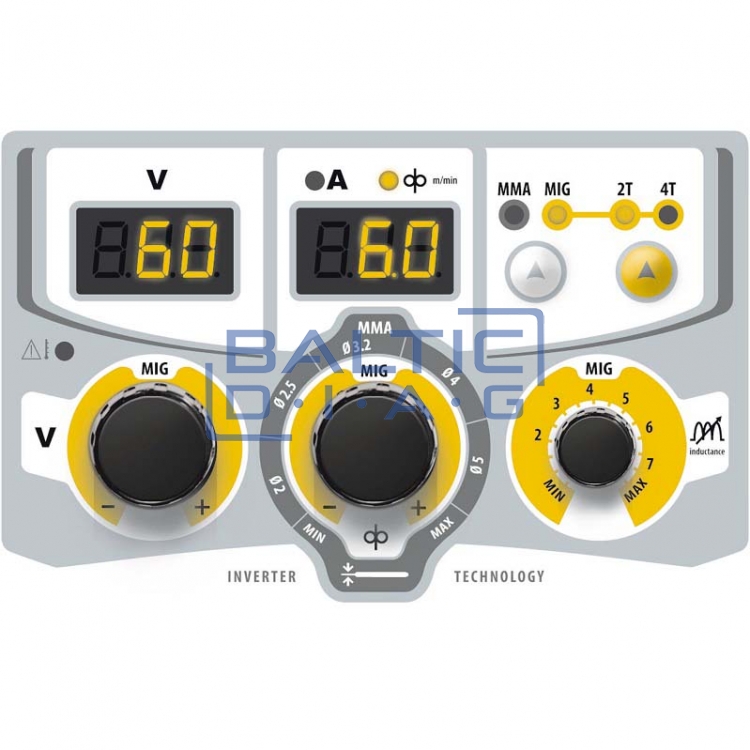

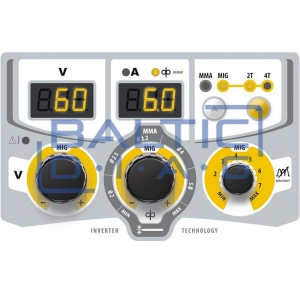

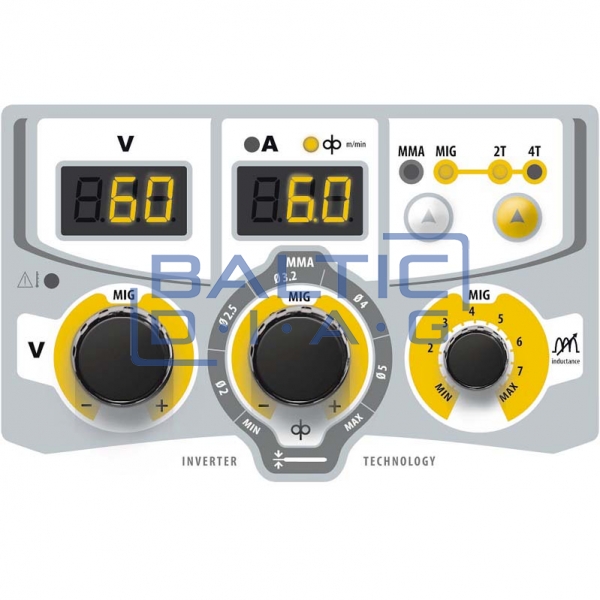

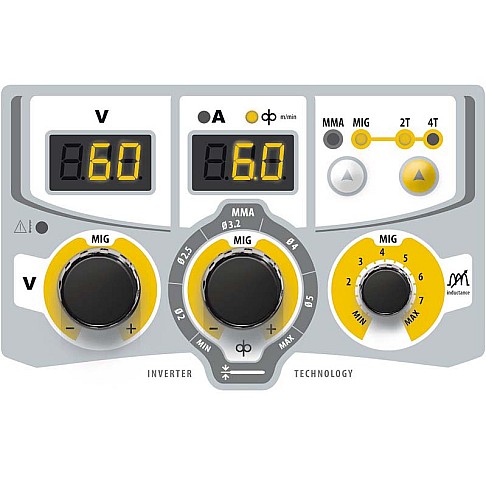

Intuitive:

• The display of the device is easy to read, even in bright light
• Simple and easy to understand management. Ergonomic design allows the device to be operated even when wearing gloves

Integrated wire feed mechanism:

• Compatible with wire reels: Ø 200 / 300 mm
• Wire feeding mechanism with 4 rollers
• EURO standard burner connection for quick connection/disconnection

Pre-Heating, pure CO2:

• Equipped with a special connection, 36V - 4.2A for gas heating, which is designed for cooking with pure CO2 carbonic acid (heater purchased separately)
• European electrical plugs, type C / E / F

Reliable construction:

• Reinforced construction
• Reinforced wheels for better stability and mobility
• Support for a gas cylinder up to 4 m3

Technical parameters:

• Supply voltage: 400V / 3 phases / 50-60Hz
• Fuse: 16A
• MMA welding current: 40 - 250 A
• MIG welding current: 40 - 250 A
• Welding wire thickness for gas welding: 0.6 – 1.2 mm
• Welding wire thickness for gasless welding: 0.9 – 1.2 mm
• Welding wire coils: 200 / 300 mm
• Electrode diameter: Ø 1.6 - 5 mm
• Wire feed control: electronic
• Wire feeding speed: 2 - 15 m/min
• Welding current according to EN60974-1 standard: 200A at 60%; 180A at 100%
• Welding voltage: 59 V
• Dimensions: 770 x 68 x 37 cm
• Weight: 48.0 kg
• Protection class: IP21
• Required generator power: 10.0 kVA
• Code: 078635

Complete with:

• MIG25 torch with European connection (250 A - 3 m)
• Bulk cable (4 m / 25 mm2)

We recommend purchasing the following accessories for full work:

• Earth clamps - 043794
• Electrode holder - 043862
• Pressure gauge- 041622
